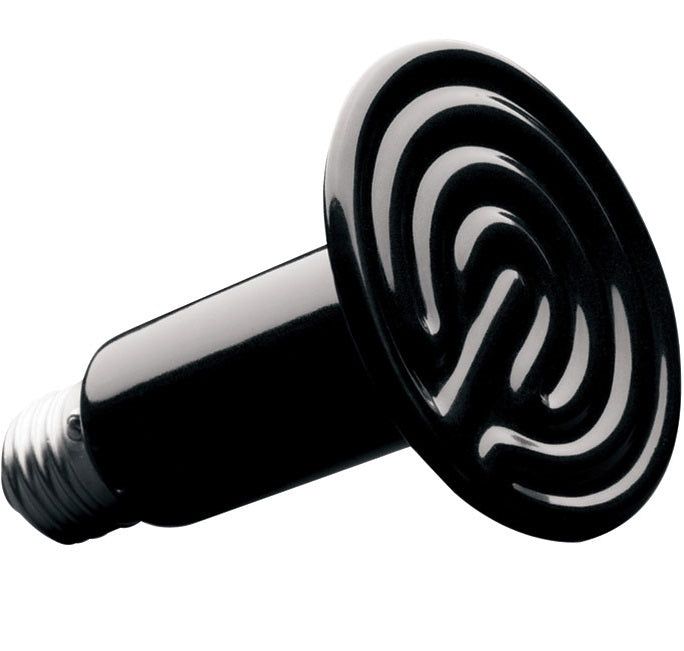

Ceramic Lamb Heat Emitter

The Ceramic Lamb Heat Emitter is a light-free infrared radiant heating element designed to provide localized warmth for newborn lambs, goat kids, piglets and other young livestock. Unlike conventional illuminated heat bulbs, the ceramic element produces heat without visible light, making it suitable for continuous day-and-night warming where a normal lighting cycle is preferred.

The ceramic heating element converts electrical energy into infrared radiant heat and directs warmth toward the animal resting zone. Common screw-base configurations use an E27 connection and can be installed in a compatible high-temperature ceramic lamp holder or guarded livestock heat-lamp fixture.

The emitter is suitable for lambing pens, nursery areas, creep zones, veterinary recovery spaces and livestock housing projects. Wattage, voltage, fixture type and heating layout can be selected according to local climate, animal age and project requirements.

• Light-Free Heating: Produces infrared radiant heat without visible light, helping preserve the normal light-dark environment in livestock housing.
• Continuous Heat Source: Suitable for extended heating periods when installed with a correctly rated fixture and temperature-control system.
• Ceramic Heating Element: Robust ceramic construction provides stable heat emission without the fragile glass envelope used in conventional heat bulbs.
• Localized Radiant Warmth: Directs heat toward lamb resting and creep areas instead of heating the entire livestock building.
• Standard Screw-Base Options: Common configurations use an E27 screw base for installation in compatible high-temperature ceramic sockets.
• Multiple Wattage Options: Different heating outputs can be selected according to pen size, mounting height and ambient temperature.
• Suitable for Young Livestock: Applicable to lambs, goat kids, piglets, poultry and other young or cold-stressed animals.
• Simple Replacement: Screw-type installation allows the heating element to be replaced without changing the complete fixture.
• Project Adaptability: Voltage, wattage, socket type, suspension arrangement and control system can be configured according to project requirements.

Electrical current passes through the internal resistance element and heats the ceramic body. The heated ceramic surface then releases infrared radiant energy toward the animal resting area.

Because the emitter does not depend on visible-light production, electrical energy is used primarily for heat generation. The radiant heat warms animals and nearby surfaces directly and can therefore be used to establish a localized microclimate within a larger lambing or nursery building.

Heating intensity at animal level depends on emitter wattage, suspension height, fixture design, room temperature, airflow and pen geometry. A suitable thermostat or temperature controller is recommended where precise environmental control is required.

Final wattage, voltage, socket and installation height should be selected according to local electrical standards, ambient conditions and livestock heating requirements.

• Newborn lamb warming areas
• Lambing pens and maternity barns
• Goat kid nursery areas
• Weak or cold-stressed young livestock
• Piglet creep areas and farrowing pens
• Poultry brooding areas
• Veterinary recovery pens
• Commercial sheep and goat farms
• Livestock breeding and research facilities
• Steel-structure livestock buildings and modular pen systems

• Heating wattage according to project requirements
• Voltage and frequency according to local electrical standards

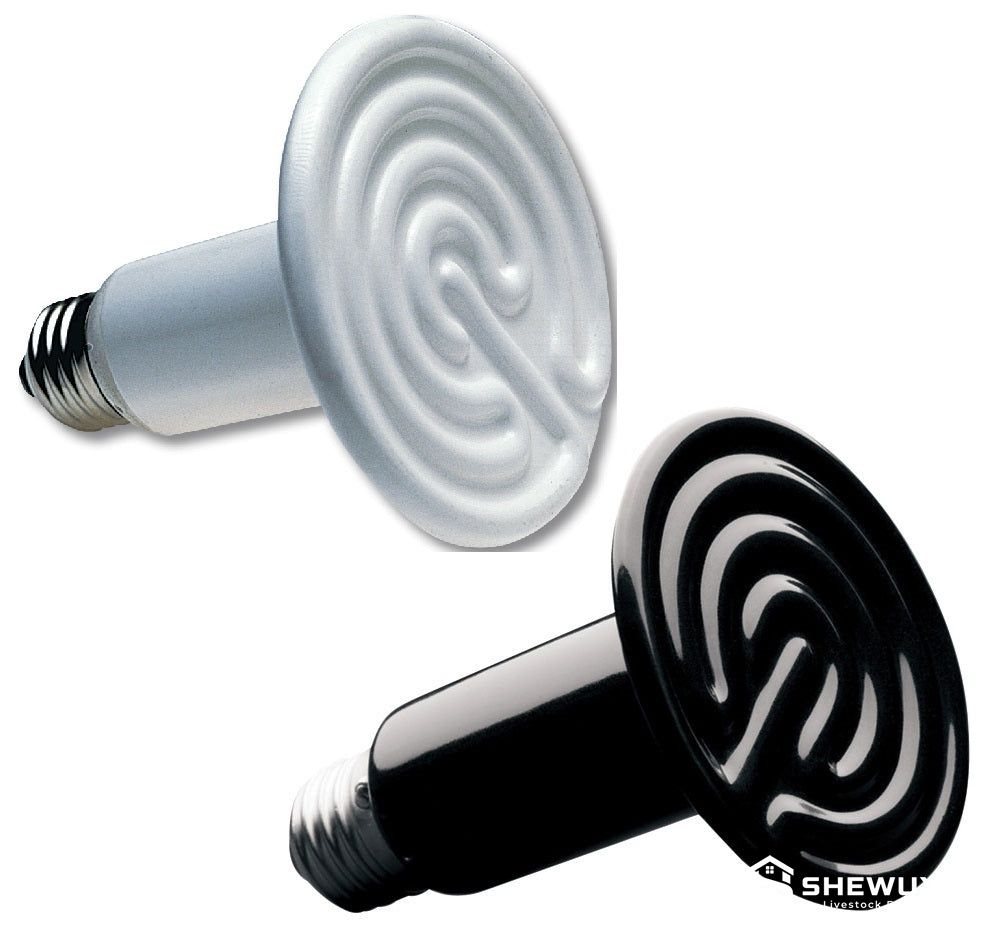

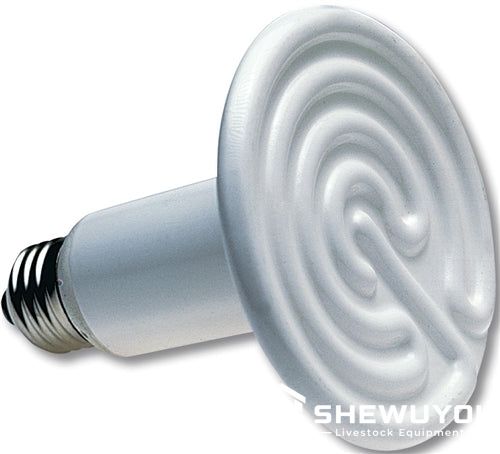

• Black or white ceramic emitter options
• Compatible ceramic lamp holder available upon request
• Protective lamp guard and suspension assembly available upon request
• Thermostat or temperature-controller configuration
• Cable and plug specification according to destination market
• OEM and private-label packaging
• Complete heating-zone layout designed according to local climate and farm conditions

Installation:

1. Install the emitter only in a heat-resistant ceramic socket rated for the selected wattage and voltage.
2. Use a guarded livestock heating fixture to reduce contact with animals, bedding and other combustible materials.
3. Suspend the fixture securely from the designated mounting point rather than from the electrical cable.
4. Position electrical wiring outside the reach of lambs, ewes and other livestock.
5. Maintain adequate clearance between the hot emitter and straw, bedding, timber, plastic partitions and other combustible materials.
6. Adjust mounting height according to emitter output, ambient temperature and animal behavior.
7. Use a compatible thermostat or temperature controller when automatic environmental control is required.
8. Electrical installation should comply with applicable livestock-building and local electrical regulations.

Maintenance:

• Disconnect electrical power and allow the ceramic emitter to cool completely before handling.
• Inspect the ceramic surface regularly for cracking, chipping or other physical damage.
• Inspect the socket, power cable, plug, guard and suspension hardware for wear or heat damage.
• Remove accumulated dust from the emitter and fixture after the unit has cooled.
• Keep straw, feed particles and other combustible contamination away from the heating assembly.
• Replace damaged emitters or sockets before returning the heater to service.
• Check animal behavior and resting pattern regularly to confirm that the warming zone is neither too hot nor too cold.

Q1: Does a ceramic heat emitter produce visible light?

No. Ceramic heat emitters are designed to produce infrared heat without visible light, allowing them to provide warmth without continuously illuminating the livestock resting area.

Q2: Can the emitter be used for lambs and goat kids?

Yes. When properly sized, guarded and installed, ceramic radiant heaters can provide localized supplementary warmth for lambs, goat kids and other young livestock.

Q3: What wattages are available?

Common ceramic emitter ranges include 50 W, 75 W, 100 W, 150 W, 200 W and 250 W. Final wattage should be selected according to the required warming area and installation conditions.

Q4: Can it be installed in a standard plastic lamp holder?

A high-temperature ceramic socket rated for the selected emitter should be used. Ordinary plastic lamp holders may not be suitable for the temperatures produced by ceramic heaters.

Q5: Does the emitter need a thermostat?

A compatible thermostat or heat controller is recommended where accurate temperature management is required, especially for continuous nursery or creep-area heating.

Q6: Can it run during the night?

Yes. Because it does not emit visible light, a ceramic emitter can provide supplementary nighttime warmth when used with a properly rated fixture and suitable temperature control.

Q7: Is a protective guard necessary?

A suitable livestock heat-lamp guard is strongly recommended to reduce the risk of animals or combustible materials contacting the hot ceramic surface.

Q8: Can SHEWUYOU supply a complete heating set?

Yes. Ceramic emitters, compatible sockets, guards, suspension components, electrical configurations and temperature controllers can be supplied according to project requirements.
