Lamb Heat Lamp Safety Guard

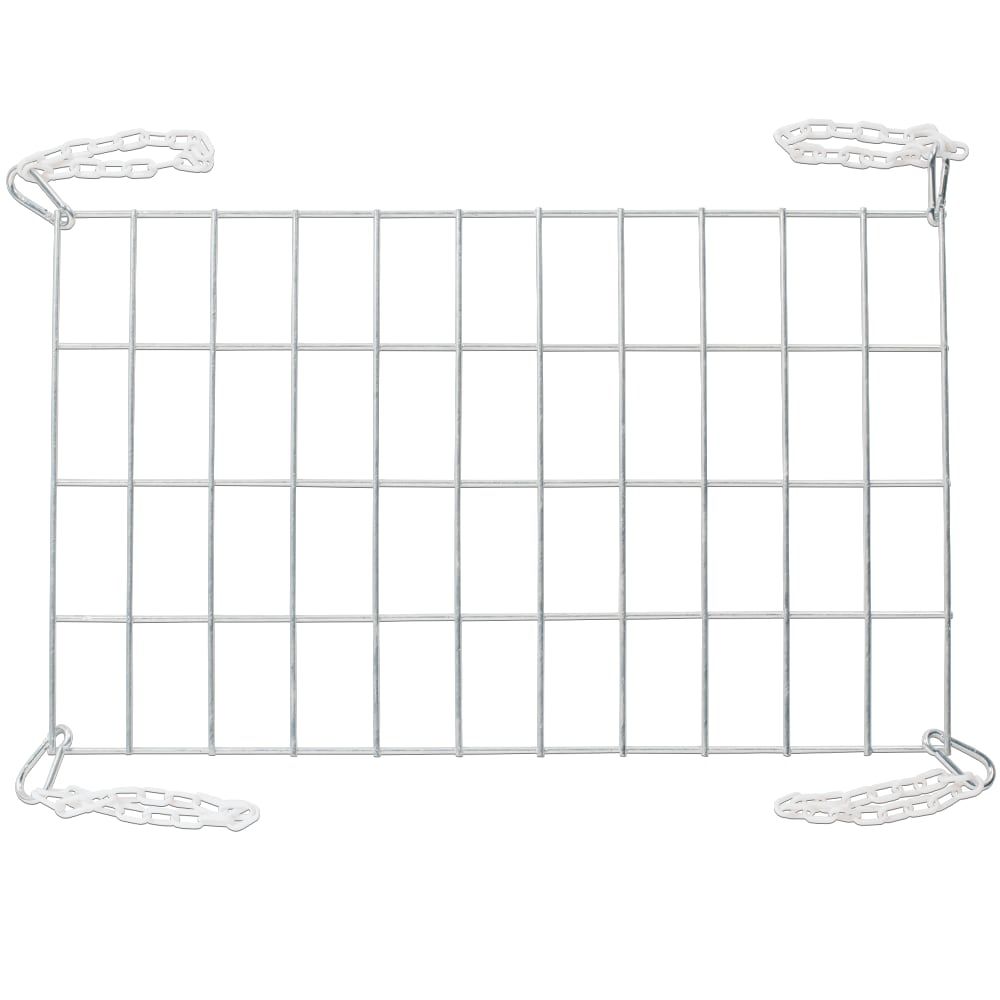

The Lamb Heat Lamp Safety Guard is a galvanized welded-wire barrier designed to create a protected heating zone around suspended livestock heat lamps in lambing and kidding pens. It allows newborn lambs and goat kids to enter the warmed creep area while helping keep larger adult animals away from the heat lamp fixture.

Separating adult animals from the heating equipment reduces the risk of the lamp being struck, pushed or displaced by ewes and does. The guard also creates an animal-management zone where young stock can rest beneath the heat source with less interference from larger animals.

Its simple panel structure is suitable for livestock gates, welded-wire partitions and modular pen systems used in commercial sheep housing, steel-structure farm buildings and lambing facilities.

• Heat Lamp Protection: Helps prevent adult livestock from butting, striking or pushing suspended heat lamp fixtures.
• Protected Lamb Creep Area: Creates a restricted warming zone accessible to young lambs and goat kids while limiting access by larger animals.
• Galvanized Steel Construction: Welded wire structure provides good mechanical strength and corrosion resistance for routine livestock-house use.
• Open Wire Design: Maintains visibility, ventilation and radiant heat distribution around the warming zone.
• Quick Pen Installation: Snap clips and adjustable chains allow the panel to be secured to compatible gates, fencing or livestock partitions.
• Adjustable Suspension: Chain length can be adapted to suit pen geometry and desired clearance.
• Reusable Farm Equipment: Can be moved between lambing pens during seasonal operations.
• Suitable for Modular Housing: Compatible with many welded-wire panels, tubular gates and livestock pen systems.
• Project Adaptability: Panel dimensions, attachment method and galvanized finish can be customized according to project requirements.

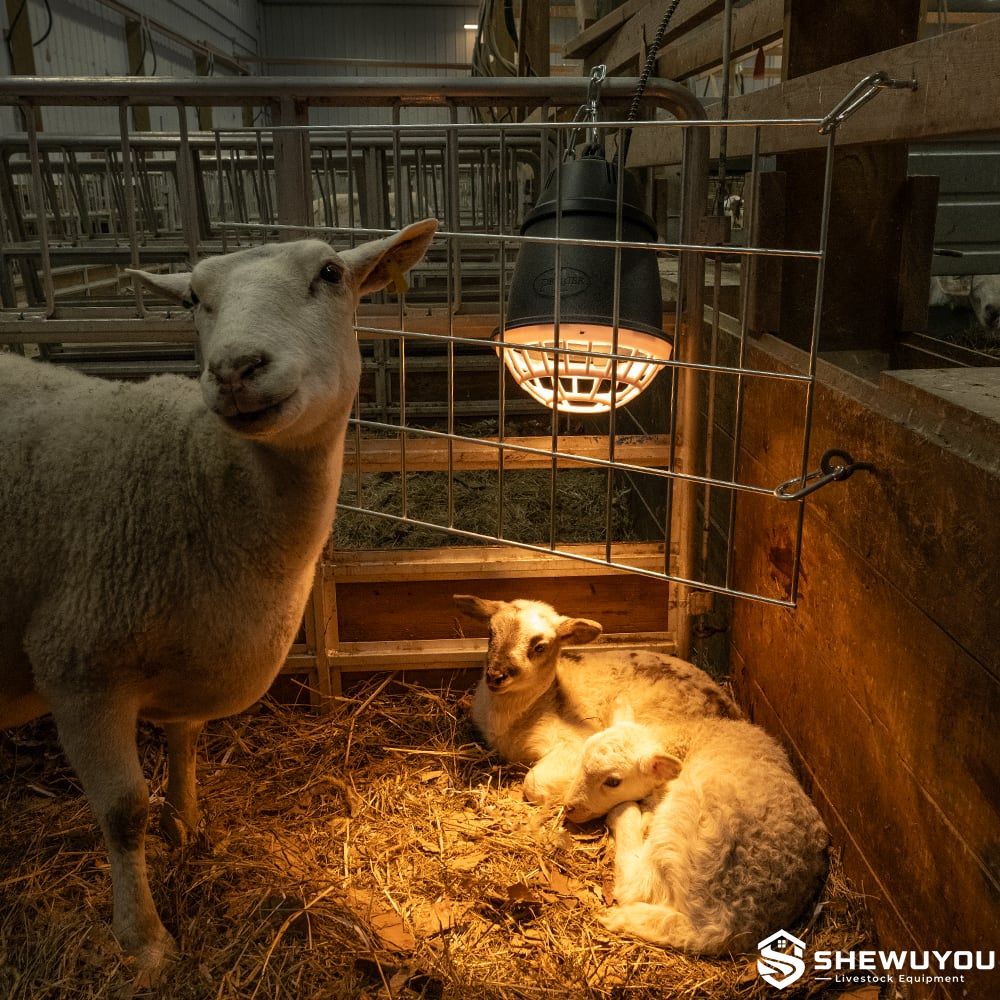

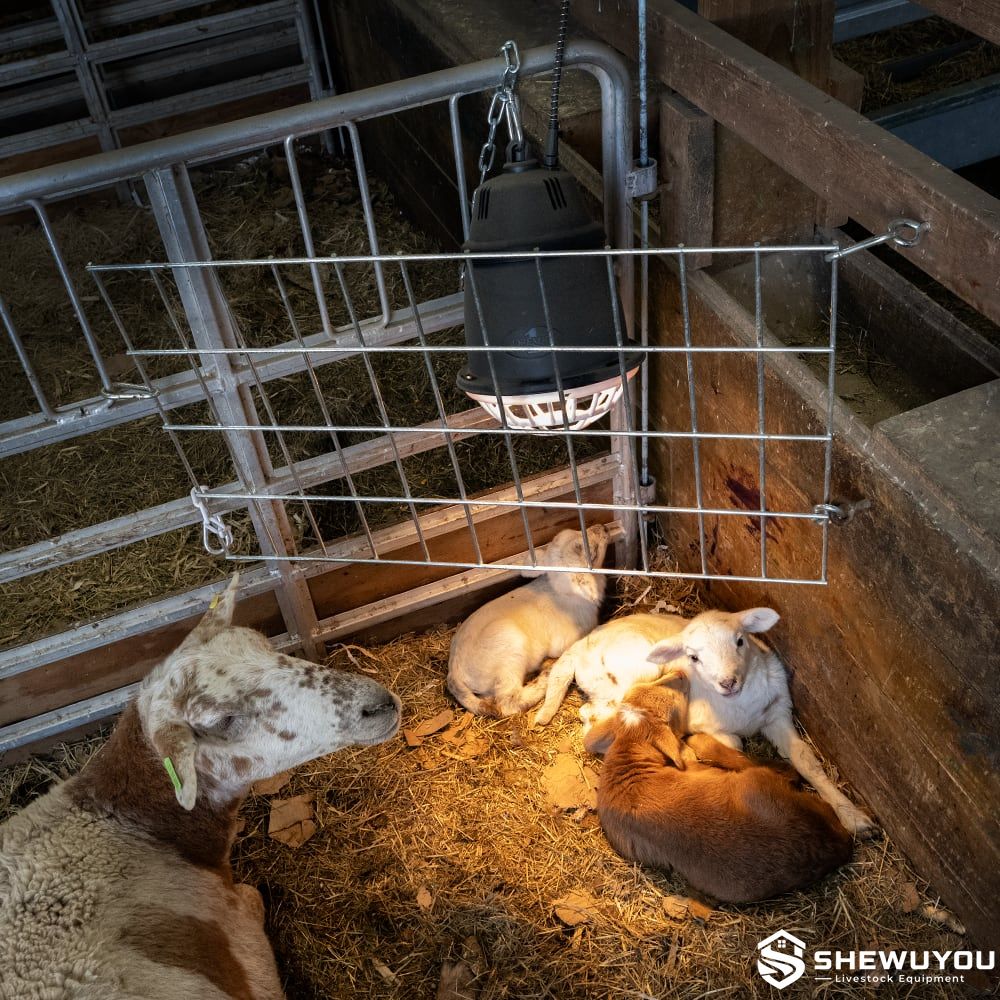

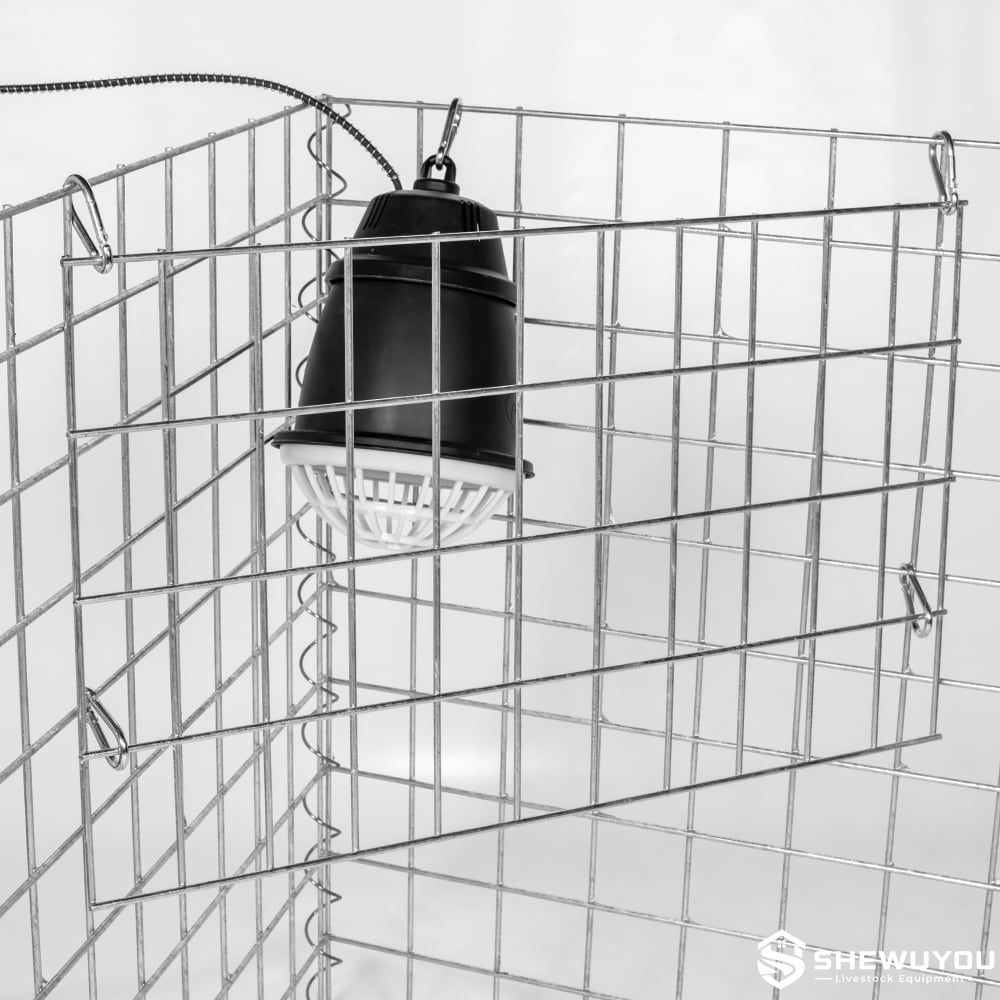

The safety guard is positioned between the suspended heat lamp and the area accessible to adult livestock. Its welded-wire panel acts as a physical barrier, preventing larger animals from approaching or striking the lamp while leaving an opening underneath for smaller lambs or goat kids.

The heat lamp remains independently suspended from a secure structural point. The safety guard does not support the lamp itself; instead, it protects the heating zone and helps maintain separation between the fixture and adult animals.

Because the barrier is open rather than enclosed, warm radiant energy and ventilation are maintained around the creep area while operator visibility remains unobstructed.

• Lambing pens and lambing jugs
• Newborn lamb warming zones
• Goat kidding pens and kid creep areas
• Commercial sheep breeding farms
• Livestock nursery and maternity areas
• Temporary lambing-season heating stations
• Veterinary and young-stock recovery pens
• Galvanized livestock pen systems
• Modular small-ruminant housing
• Steel-structure livestock building projects

• Panel length and height according to project requirements
• Wire diameter and grid spacing available upon request
• Galvanized surface specification according to livestock-house conditions
• Attachment clips according to pen structure
• Chain length according to installation layout
• Guard configuration for corner or straight-panel installation
• Complete heat lamp and safety guard packages available upon request
• OEM and bulk export packaging
• Installation layout designed according to local climate and farm conditions

Installation:

1. Select a rigid livestock gate, welded-wire panel or structural partition adjacent to the required warming area.
2. Secure the safety guard using the supplied or compatible snap clips and chains.
3. Set the lower clearance so lambs or goat kids can enter the warmed creep area while adult animals remain outside.
4. Suspend the heat lamp independently from a secure structural point; never suspend the lamp from the safety guard.
5. Position the electrical cable where livestock cannot chew, pull or rub against it.
6. Maintain the heat lamp manufacturer's specified clearance from animals, bedding and combustible materials.
7. Verify that adult animals cannot push the guard into contact with the heat lamp before operation.

Maintenance:

• Inspect welds, wire rods, clips and chains regularly for deformation or corrosion.
• Tighten or replace loose attachment hardware immediately.
• Remove accumulated straw, dust and other combustible material from around the heating zone.
• Confirm that the heat lamp remains securely suspended and cannot contact the guard.
• Inspect electrical cables, lamp holders and bulbs as part of routine livestock-house safety checks.
• Clean and disinfect the guard between animal groups when required by the farm biosecurity program.

Q1: What does a lamb heat lamp safety guard do?

It creates a physical barrier between adult livestock and the suspended heat lamp while allowing smaller lambs or goat kids to access the heated creep area.

Q2: What is the reference panel size?

The reference commercial guard uses a 20 × 33 in galvanized welded-wire panel.

Q3: Does the guard support the heat lamp?

No. The heat lamp should be suspended independently from a secure structural point. The guard serves only as a livestock barrier around the heating area.

Q4: Can lambs enter underneath the guard?

Yes. The installation height can be adjusted so young lambs or goat kids can enter while larger ewes or does are excluded.

Q5: Why keep adult sheep away from the heat lamp?

Adult animals can butt or push heating equipment. Preventing direct contact reduces the risk of fixture damage, broken bulbs and displacement toward bedding or other combustible materials.

Q6: What minimum heat lamp clearance should be maintained?

For the referenced Prima heat lamp installation, the manufacturer recommends at least 20 in between the lamp and the ground or lamb/kid. Requirements may differ for other heat lamps, so the specific lamp manufacturer's instructions should always be followed.

Q7: Can the guard be installed on modular livestock panels?

Yes. Snap clips and chains allow installation on many compatible welded-wire panels, gates and modular pen partitions.

Q8: Can the dimensions be customized?

Yes. Panel dimensions, wire configuration, attachment hardware and chain length can be customized according to project requirements.
