Carbon Fiber Lambing Pen Heater

The Carbon Fiber Lambing Pen Heater is a high-output suspended radiant heating unit designed for lambing pens, kidding areas, livestock barns and other applications requiring warmth over a broader area than a conventional low-wattage heat lamp.

The reference heater combines a carbon fiber heating element, reflective metal cone, protective wire grille, cooling-fin section, suspension chain and integrated tilt safety switch. Commercial configurations are available in 600 W and 1200 W ratings for different heating-area requirements.

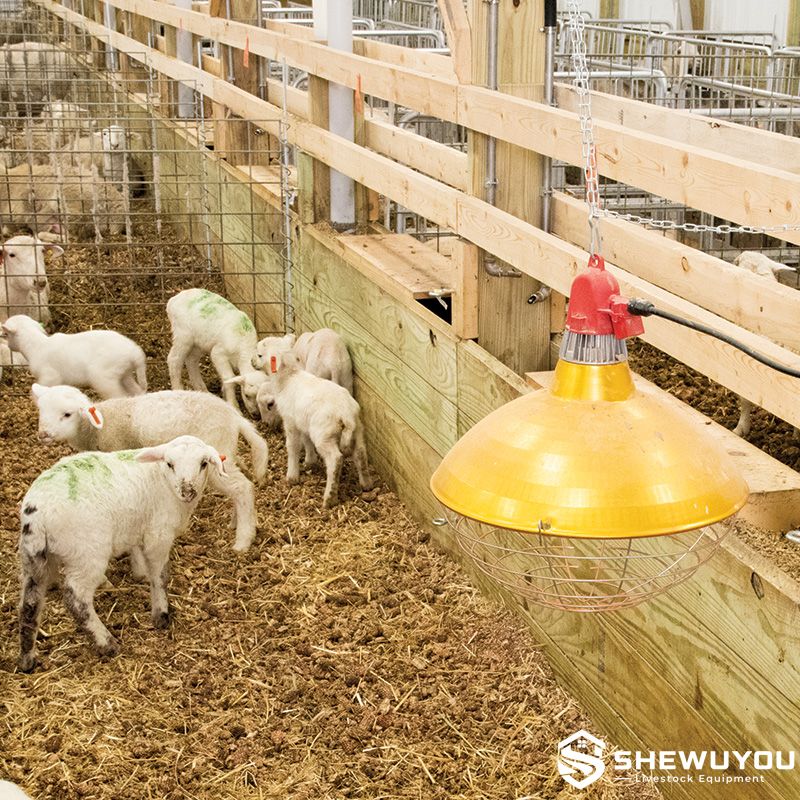

For commercial goat-farming-equipment/" target="_blank" class="keylink">sheep farms and steel-structure livestock buildings, heaters can be positioned above designated lambing, nursery or recovery areas to create localized thermal zones without unnecessarily increasing the temperature of the entire barn.

• High-Output Carbon Fiber Heating: Designed for livestock areas that require greater radiant heat output and wider coverage than conventional heat lamps.
• 600 W and 1200 W Reference Options: Two heater sizes are available for different pen dimensions and heating requirements.
• Automatic Tilt Safety Switch: The reference heater shuts off automatically if it reaches an unsafe angle greater than approximately 30 degrees.
• Reflective Heating Cone: Metal reflector helps direct useful heat toward the livestock area below the heater.
• Protective Wire Grille: Separates animals and nearby objects from the hot carbon fiber element.
• Metal Cooling Fins: Cooling-fin construction helps dissipate heat around the upper electronic control section.
• Suspended Installation: Supplied with a hanging chain for secure overhead positioning in livestock pens.
• Wide-Area Heating: Designed to be installed higher than conventional heat lamps so heat can disperse across a larger livestock resting area.
• Replaceable Heating Element: Matching replacement carbon fiber bulbs are available for corresponding heater ratings.
• Farm Project Integration: Heating-unit quantity and positioning can be planned according to barn dimensions, pen arrangement and local climate conditions.

Electrical current passes through the carbon fiber heating element, generating high-output radiant heat. The reflector distributes the thermal radiation toward the livestock resting and activity area below the suspended heater.

Because the unit produces greater heat output than a conventional livestock heat lamp, it is normally suspended higher above the animals. Increased mounting height allows heat to spread across a wider floor area while helping reduce concentrated hot spots.

If the suspended heater is knocked significantly out of its normal operating position, the integrated tilt switch interrupts electrical power when an unsafe angle is reached, adding another layer of protection in livestock housing environments.

Coverage values are reference figures and can vary with ambient temperature, mounting height, ventilation, building insulation and pen layout. The heating element must match the heater's specified wattage.

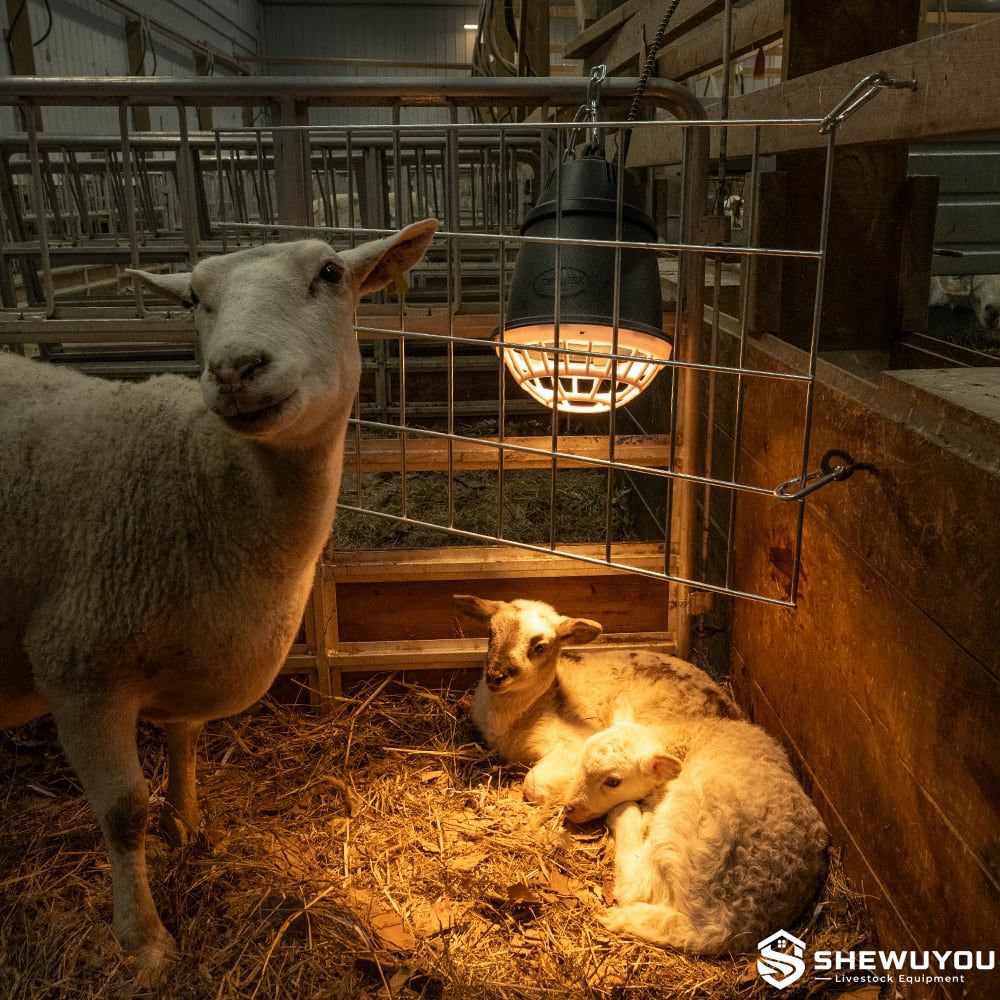

• Lambing pens and newborn lamb areas
• Kidding pens and goat kid nursery areas
• Weak or chilled livestock recovery zones
• Commercial sheep barns
• Goat housing and breeding facilities
• Large livestock pens requiring wider-area supplemental heating
• Horse stables and compatible barn heating applications
• Livestock breeding and veterinary facilities
• Modular livestock pen systems
• Steel-structure livestock buildings in cold-climate projects

• 600 W or 1200 W heating configuration according to project requirements
• Heating-unit quantity according to pen dimensions and livestock density
• Suspension height and installation layout according to barn structure
• Electrical configuration available according to project requirements
• Plug and cable specifications available upon request
• Replacement heating elements and spare-component packages
• OEM and private-label packaging available upon request
• Complete heating-zone layout designed according to local climate and farm conditions

Installation:

1. Suspend the heater from a structurally secure point using the designated hanging chain.
2. Install the carbon fiber heater higher than a conventional livestock heat lamp so its high-output radiant heat can spread over the intended area.
3. Position the unit where livestock cannot strike, pull or otherwise disturb the heater or power cable.
4. Maintain adequate clearance from straw, hay, timber, curtains, plastic pen components and other combustible materials.
5. Do not install the heater inside barrels, enclosed boxes or other structures that prevent heat dissipation.
6. Connect the unit to an appropriately rated electrical circuit with suitable ground-fault protection as required by local regulations.
7. Use only the replacement carbon fiber element specified for the heater wattage.
8. Final installation should comply with applicable livestock-building and electrical safety requirements.

Maintenance:

• Disconnect electrical power and allow the heater to cool before inspection or cleaning.
• Remove dust, cobwebs and barn debris from the reflector, cooling fins and protective grille.
• Inspect the hanging chain and suspension point for corrosion, wear or deformation.
• Check the power cord, plug and switch regularly for damage.
• Verify that the tilt safety shutoff operates correctly according to the equipment maintenance procedure.
• When replacing the carbon fiber element, match the wattage to the heater model.
• Handle replacement heating elements carefully and avoid contaminating the element surface during installation.
• Remove damaged electrical heating equipment from service until inspected by qualified personnel.

Q1: What wattage options are available?

The reference carbon fiber livestock heater is available in 600 W and 1200 W configurations.

Q2: What is the difference between the 600 W and 1200 W models?

The 600 W configuration uses a smaller 12-inch reflector and is intended for a smaller heating area, while the 1200 W configuration uses a 16-inch reflector for larger livestock spaces.

Q3: Why should a carbon fiber heater be installed higher than a conventional heat lamp?

The higher output is intended to cover a wider area. Additional suspension height helps distribute heat more broadly and reduces concentrated hot spots.

Q4: What happens if the heater is knocked sideways?

The reference design includes a safety switch that automatically disconnects the heater if it reaches an unsafe angle greater than approximately 30 degrees.

Q5: Does the heater include a protective guard?

Yes. A metal wire grille is positioned around the heating element to reduce the risk of animals making direct contact with the hot component.

Q6: Can a 600 W heating element be installed in a 1200 W heater?

No. Heating elements and heater assemblies must be matched to the specified wattage. The 600 W and 1200 W elements are not interchangeable.

Q7: Is this heater suitable for lambing pens?

Yes. Lambing and kidding pens are among the intended applications for this high-output livestock heater.

Q8: Can it replace whole-building heating?

The unit is primarily intended as localized or zone heating equipment. Total barn heating requirements depend on building insulation, ventilation, outside temperature, animal density and overall project design.

Q9: Can several heaters be installed in one commercial sheep barn?

Yes. Multiple heating zones can be planned according to pen arrangement, available electrical capacity and required thermal coverage.

Q10: Can SHEWUYOU configure the heater for farm projects?

Heating capacity, unit quantity, electrical configuration and installation layout can be selected according to project requirements and local farm conditions.
