4-Compartment Lamb Warming Box

The 4-Compartment Lamb Warming Box is a thermostatically heated recovery unit designed for weak, chilled or hypothermic newborn lambs. Four individual compartments allow several lambs to be warmed at the same time while keeping animals separated during recovery.

The reference design is manufactured from robust exterior-grade plywood and includes a mains-powered heater, internal partitions and inspection windows in the lid. Heated air circulates through the enclosure to provide more even body warming than localized radiant heating.

The removable partition arrangement also provides flexibility for larger animals or alternative recovery layouts. The unit is suitable for commercial lambing sheds, goat-farming-equipment/" target="_blank" class="keylink">sheep breeding farms, veterinary treatment areas and steel-structure livestock buildings where rapid access to controlled warming equipment is required.

• Four Individual Compartments: Provides separate recovery spaces for up to four lambs during intensive lambing periods.
• Thermostatically Controlled Heating: Helps maintain a stable internal warming environment while reducing the risk of excessive temperature fluctuation.
• All-Round Warm-Air Recovery: Warm air circulates around the lamb rather than heating only one exposed side.
• Removable Dividers: Internal partitions can be removed to create a larger recovery chamber when required.

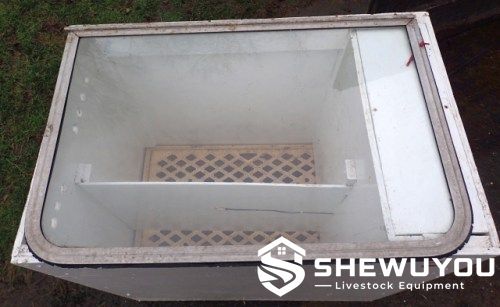

• Inspection Windows: Windows in the upper lid allow operators to monitor lamb condition without repeatedly opening the box.
• Robust Exterior-Grade Construction: The reference design uses 9 mm exterior plywood for a rigid, practical farm structure.
• Mains-Powered Heater: The reference unit is supplied with an electric heater for controlled warm-air operation.
• Multi-Purpose Layout: With partitions removed, the reference design can also provide a larger recovery area for newborn calves.
• Project Adaptability: Compartment quantity, panel material, heater specification and dimensions can be customized according to project requirements.

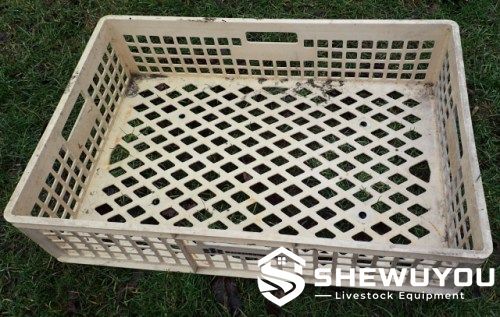

The electric heater introduces thermostatically controlled warm air into the lower part of the enclosure. The raised ventilated floor allows this heated air to move beneath and around each lamb, creating a more uniform warming environment.

This warm-air principle is particularly useful for chilled or hypothermic lambs because heat reaches a larger proportion of the body surface than with a conventional overhead heat lamp. Livestock guidance identifies circulating warm-air boxes as an appropriate warming method for moderate to severe lamb hypothermia.

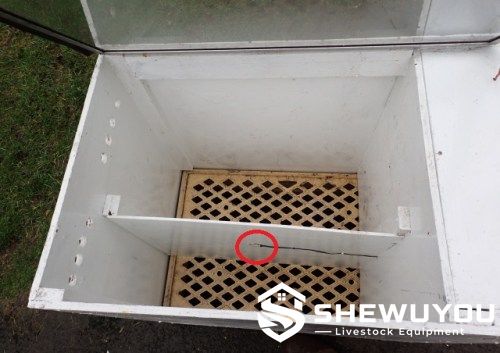

The compartment partitions allow several lambs to recover independently. Where additional internal space is required, the dividers can be removed to create a larger continuous chamber.

• Hypothermic newborn lamb recovery
• Weak or chilled lamb warming
• Wet lamb drying and warming after difficult births
• Commercial lambing sheds
• Sheep maternity and hospital areas
• Large-scale sheep breeding farms
• Veterinary livestock treatment areas
• Lambing-season emergency care stations
• Livestock breeding and research centers
• Steel-structure sheep houses and modular lambing-pen projects

• Overall box dimensions according to project requirements
• Compartment quantity and compartment width customizable
• Removable or fixed partition configurations
• Exterior plywood, plastic panel or alternative enclosure materials available upon request
• Inspection window quantity and position customizable
• Heater capacity according to local climate and farm conditions
• Voltage and plug configuration according to local electrical standards
• Ventilation and air-distribution layout according to project requirements
• Flat-pack or assembled supply available upon request
• OEM and private-label production available for distributors and agricultural projects

Installation:

1. Place the warming box on a stable, dry and level surface near the lambing or livestock hospital area.
2. Keep the heater air inlet and outlet clear of bedding, walls and stored materials.
3. Install the internal dividers according to the required number of recovery compartments.
4. Connect the heater to a suitable protected electrical supply that complies with local livestock-building requirements.
5. Set the thermostat according to farm veterinary protocol and monitor internal conditions before introducing animals.
6. Ensure inspection windows, lid hinges and ventilation paths are unobstructed.
7. Locate the unit close to colostrum, thermometers and other newborn-lamb emergency equipment.

Maintenance:

• Remove manure, bedding and moisture after each animal or recovery group.
• Clean and disinfect the floor, dividers and internal enclosure between animals.
• Inspect the mesh or perforated floor for blockage or damage.
• Keep heater air passages free of dust, wool and bedding material.
• Check thermostat operation periodically during the lambing season.
• Inspect electrical cables and plugs for damage before use.
• Allow the warming box to dry fully after cleaning.
• Monitor lamb rectal temperature and condition during warming to prevent overheating.

Q1: How many lambs can the warming box accommodate?

The standard layout provides four separate compartments, allowing up to four lambs to be housed individually at the same time.

Q2: Are the internal partitions removable?

Yes. The reference design allows the divisions to be removed, creating a larger continuous internal warming area.

Q3: How is the temperature controlled?

The reference system uses a thermostatically controlled electric heater to regulate warm-air output inside the enclosure.

Q4: Why use warm air instead of only a heat lamp?

A warming box circulates warm air around a larger proportion of the lamb's body. Heat lamps primarily warm the surface facing the lamp and are generally more appropriate for mild chilling than severe hypothermia.

Q5: Can operators observe lambs without opening the lid?

Yes. The reference design incorporates inspection windows in the lid for visual monitoring during recovery.

Q6: What are the dimensions of the reference four-compartment unit?

The reference Shearwell unit measures approximately 4 ft long × 2 ft wide × 2 ft deep.

Q7: Can it be used for newborn calves?

The reference manufacturer states that the larger enclosure can also be used for newborn calves after the internal divisions are removed.

Q8: Can SHEWUYOU customize the warming box?

Yes. Dimensions, number of compartments, panel material, heater configuration, voltage and packaging can be customized according to project requirements.
