Energy-Free Insulated Sheep Waterer

Energy-Free Insulated Sheep Waterer

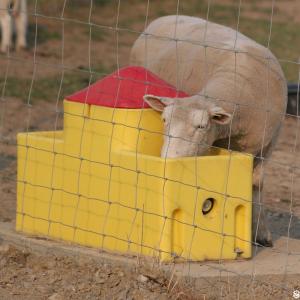

The Energy-Free Insulated Sheep Waterer is designed for livestock operations that require automatic watering without electrical heating. It connects directly to a pressurized water line and uses an automatic valve to replenish the water as animals drink.

The insulated body helps retain the temperature of incoming and stored water, while the covered or sealed drinking access reduces exposure to cold air, debris, birds and insects. This passive thermal design helps resist freezing without electricity or supplemental heat.

For commercial goat-farming-equipment/" target="_blank" class="keylink">sheep farms, breeding facilities, pasture systems and remote watering points, the energy-free configuration can reduce electrical infrastructure requirements and simplify long-term operation.

• No electrical heating required: Uses insulation and the thermal characteristics of the water supply and installation environment to resist freezing.
• Automatic water supply: A float-controlled valve replenishes the water automatically as livestock consume it.
• Insulated construction: Thermal insulation helps reduce heat loss and stabilize water temperature in cold conditions.
• Protected drinking access: A covered drinking opening helps limit exposure to wind, snow, debris and other contamination sources.
• Durable livestock-grade body: Polyethylene construction provides corrosion resistance and suitability for demanding agricultural environments.
• Low-maintenance operation: The system avoids heating elements and associated electrical components, simplifying routine service.
• Fast draining: A large drain arrangement can facilitate flushing, cleaning and seasonal maintenance.
• Remote-site friendly: Suitable for pasture and off-grid locations where electrical connections are unavailable or undesirable.

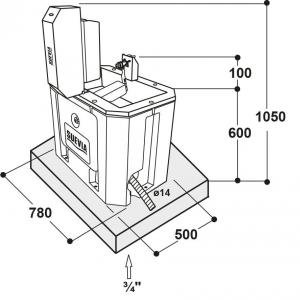

The typical energy-free configuration consists of:

• UV-resistant polyethylene outer housing
• Thermally insulated tank structure
• Protected drinking opening or access cover
• Automatic float valve and water inlet assembly
• Sealed or double-seal access arrangement
• Large drain plug or drainage outlet
• Mounting base and fixing points
• Water supply connection and service components

Material grade, insulation thickness, valve configuration, water connection, mounting structure and access opening can be customizable according to project requirements.

The waterer is connected to an underground or suitably protected water supply line. Fresh water enters the tank through an automatic float valve. When livestock drink and the water level falls, the float drops and opens the valve. Once the preset water level is restored, the float rises and closes the valve.

Unlike heated electric waterers, the energy-free design does not use a heating element. Its freeze-resistant performance relies on insulated construction, a protected drinking opening, incoming water temperature and the thermal conditions of the installation site.

For cold regions, underground waterlines, appropriate foundation depth, insulation and site-specific installation details should be designed according to local climate and farm conditions. Extreme or prolonged sub-zero conditions may require a heated watering solution.

Final dimensions, capacity, valve specifications and freeze-protection performance should be confirmed according to the selected configuration and project conditions.

• Commercial sheep breeding and lamb production farms
• Sheep pasture and rotational grazing systems
• Remote livestock watering points
• Off-grid agricultural projects without electrical infrastructure
• Cold-climate livestock barns and shelters
• Goat and mixed small-ruminant operations
• Livestock farm expansion and retrofit projects
• Turnkey agricultural engineering projects
• Farm construction projects integrating underground waterlines, concrete foundations, steel structure buildings and livestock pen systems

• Tank capacity: Customizable according to herd size and peak water demand.
• Drinking height: Adjustable according to sheep size, livestock category and housing layout.
• Water inlet: Connection size and inlet position available according to local plumbing standards.
• Insulation configuration: Designed according to local climate and farm conditions.
• Mounting system: Floor fixing, concrete base and project-specific mounting solutions available upon request.
• Drainage configuration: Adaptable to farm cleaning and wastewater management requirements.
• OEM and distributor requirements: Product labeling, packaging and selected component specifications available upon request.
• Project integration: Waterer layout can be coordinated with livestock pens, underground utilities, drainage and steel structure building plans.

Installation: Install the waterer on a stable, level foundation with sufficient load-bearing capacity. Connect it to a properly sized water supply line and ensure the automatic valve operates correctly before commissioning.

Cold-Climate Installation: Where freezing conditions are expected, underground waterlines should be installed below the local frost line where practical. The waterer position, foundation, pipe insulation and drainage arrangement should be planned as part of the overall farm construction design.

Maintenance: Regularly inspect the float valve, water inlet, seals and drainage components. Flush and clean the drinking area to control sediment and organic buildup. The large drain opening can be used to reduce cleaning time and service downtime.

Winter Inspection: Before the cold season, verify water flow, valve operation, pipe protection and drainage performance. Energy-free systems should be selected based on actual local winter conditions rather than treated as universally freeze-proof.

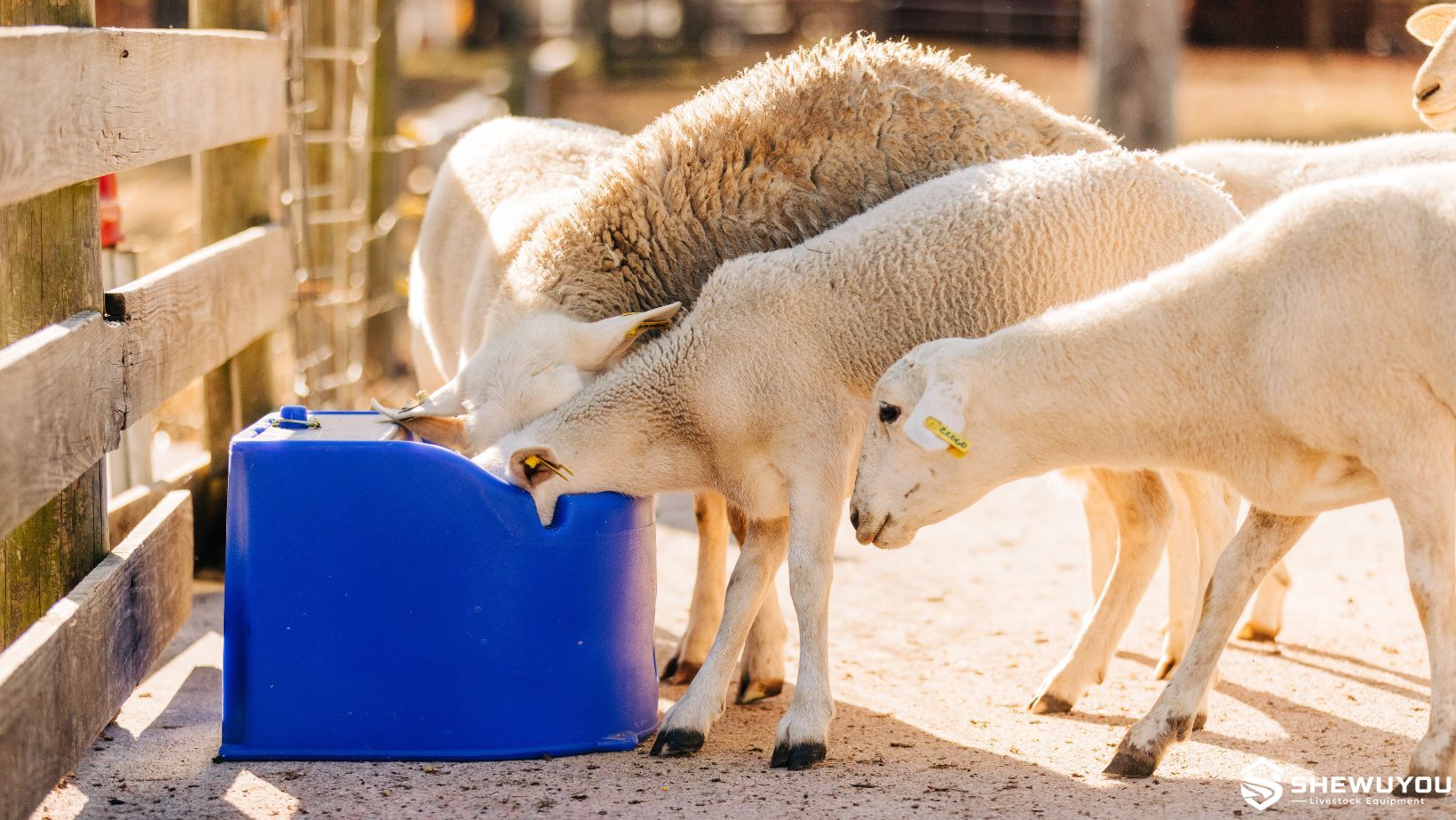

Energy-free automatic waterers are particularly suitable for pasture-based livestock operations and remote watering locations where reliable waterline access is available but electrical infrastructure is limited. The reference single-unit design is specified for livestock operations requiring automatic watering with reduced freezing risk.

For sheep farm construction, multiple waterers can be distributed according to paddock layout, animal movement, water demand and service access. Installation can be coordinated with underground utility routes, concrete works, drainage systems and steel structure livestock buildings.

Q1: What is an energy-free livestock waterer?
A: It is an automatic livestock water tank that operates without electricity or supplemental heating. Insulation and protected water access help retain heat and resist freezing.

Q2: Does the waterer need a waterline?
A: Yes. The automatic valve requires a continuous water supply through a suitable waterline. It is not a manually filled standalone tank.

Q3: Can an energy-free waterer prevent freezing in winter?
A: The insulated design helps resist freezing, but performance depends on climate, incoming water temperature, installation depth and exposure. Extreme cold may require a heated waterer.

Q4: Can it be used for sheep?
A: Yes. The configuration can be designed for sheep and other suitable livestock, with drinking height and access dimensions selected according to the animal group.

Q5: Is electricity required for operation?
A: No. The automatic refill mechanism is water-pressure operated and does not require electrical power or supplemental heating.

Q6: Is it suitable for remote farms?
A: Yes. It is well suited to pasture and remote watering points where a reliable waterline is available but electrical installation is impractical.

Q7: Can the waterer be customized?
A: Yes. Capacity, drinking height, water inlet, insulation configuration, mounting arrangement and other specifications can be customized according to project requirements.
