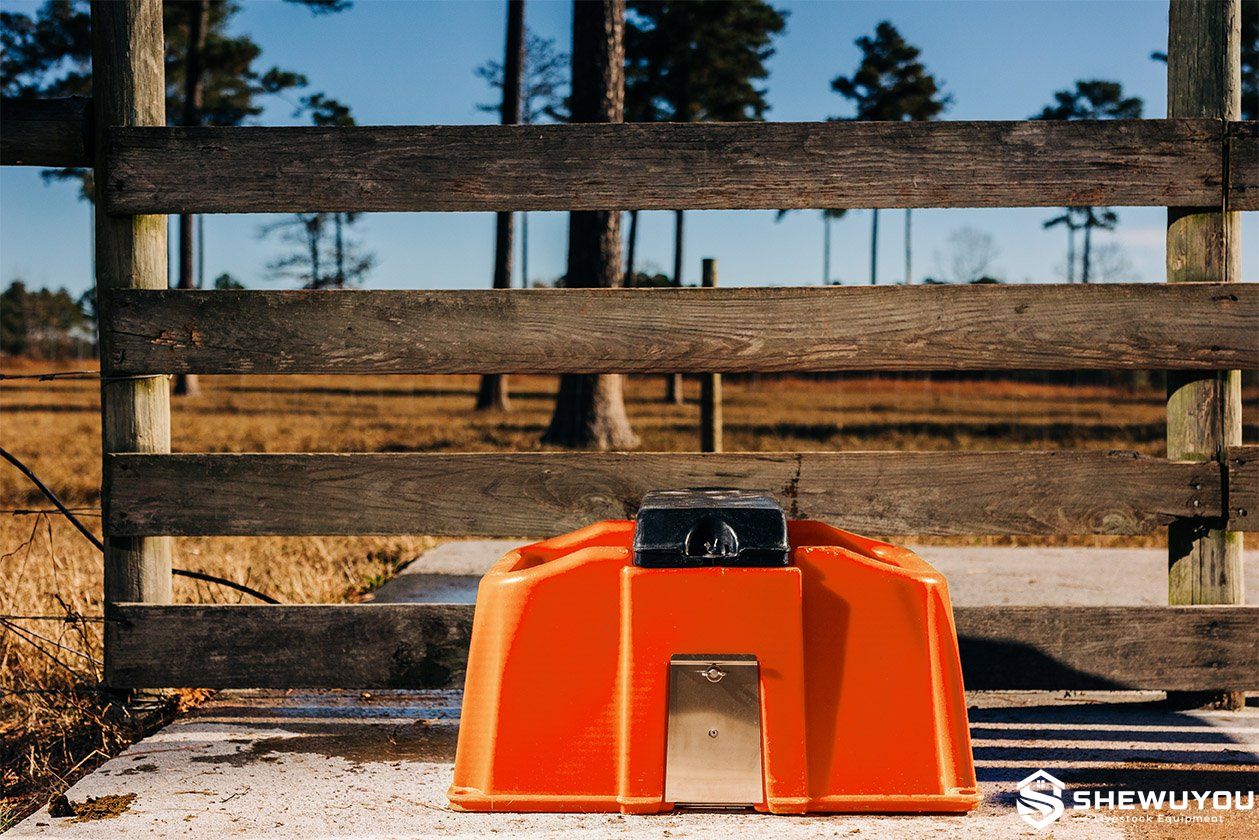

Low-Profile Electric Heated Sheep Waterer

The Low-Profile Electric Heated Sheep Waterer is an automatic two-bowl livestock drinking system developed specifically for goat-farming-equipment/" target="_blank" class="keylink">sheep, goats and other smaller livestock. Its reduced drinking height provides comfortable animal access while the compact footprint makes it suitable for commercial sheep houses, lambing facilities, outdoor pens and mixed livestock operations.

The reference configuration combines heavy-duty polyethylene construction with solid polyurethane foam insulation and an optional 500W submersible heating system with heat tape. During cold weather, the heating system protects the drinking water and vulnerable water-supply components against freezing, while insulation helps reduce unnecessary heat loss.

An automatic float-controlled inlet replenishes water as animals drink, reducing manual watering labor. The two-bowl configuration improves drinking access and makes the unit suitable for installation between livestock groups or in centralized watering areas within steel structure livestock buildings.

• Low Drinking Height: Approximately 12-inch reference drinking height provides convenient access for sheep, goats and other smaller livestock.
• Two-Bowl Configuration: Separate drinking areas improve animal access and help reduce competition around the watering point.
• Electric Freeze Protection: Optional 500W submersible heater with heat tape supports dependable cold-weather operation.
• Polyurethane Foam Insulation: Solid insulation helps retain heat during winter and moderate water temperature during warmer conditions.
• Automatic Water Refill: Float-controlled valve automatically maintains the required drinking water level.
• Heavy-Duty Polyethylene Body: Corrosion-resistant construction is suitable for demanding livestock environments.
• 5.3-Gallon Reference Capacity: Compact water volume combines efficient automatic replenishment with a low-profile structure.
• Large Drain Plug: Allows rapid draining during routine cleaning and maintenance.
• Easy Service Access: Reference construction is designed so routine maintenance can be completed without specialized tools.
• Commercial Farm Application: Suitable for sheep operations, goat farms, smaller livestock groups and cold-region agricultural projects.

• Rotomolded Polyethylene Body: Provides a durable, corrosion-resistant external enclosure for livestock environments.
• Dual Drinking Bowls: Low-profile drinking areas positioned for convenient small-livestock access.
• Polyurethane Foam Insulation: Located within the waterer structure to improve thermal efficiency.
• Automatic Float Valve: Regulates incoming water and maintains the operating water level.
• Submersible Heating Element: Provides active heat to help prevent drinking water from freezing.
• Heat Tape: Provides additional frost protection around vulnerable water-supply components.
• Water Supply Connection: Connects the waterer to the farm's underground or protected pressurized water line.
• Shut-Off Valve: Accessible valve arrangement facilitates servicing and water isolation.
• Drain Plug: Large drainage opening simplifies emptying and washing of the drinking compartments.
• Service Compartment: Protects valve, heating and utility components while maintaining convenient maintenance access.

The waterer connects to a protected farm water line and uses a float-operated valve to regulate water automatically. As sheep drink and the water level falls, the float mechanism opens the inlet valve. Fresh water enters the drinking chamber until the preset level is restored, after which the valve closes.

During freezing conditions, the submersible heater supplies heat directly to the water while heat tape provides additional protection for vulnerable supply-line and valve areas. Solid polyurethane foam insulation reduces heat transfer through the waterer body, improving overall winter performance.

Actual frost protection depends on ambient temperature, wind exposure, water consumption, installation quality, electrical supply and protection of the underground water line. Heating and insulation specifications should therefore be selected according to local climate and farm conditions.

• Commercial sheep farms
• Sheep breeding and lamb production facilities
• Goat farms and small-ruminant operations
• Cold-climate livestock facilities
• Steel structure sheep houses
• Lambing and kidding facilities
• Indoor livestock pens
• Outdoor paddocks and holding areas
• Mixed small-livestock operations
• Livestock farm construction and renovation projects
• Agricultural engineering and livestock equipment projects

SHEWUYOU can configure the heated livestock watering system according to animal type, climate conditions and project infrastructure. Available options may include:

• Drinking height according to sheep and livestock size
• Single or multiple drinking positions
• Water capacity and refill configuration
• Heating power according to local winter conditions
• Electrical voltage and control configuration
• Water inlet and valve arrangement
• Supply-line frost protection
• Insulation configuration
• Foundation and mounting arrangement
• OEM branding and identification
• Export packing according to project requirements

Final specifications can be designed according to local climate, farm conditions and project requirements.

Site Preparation: Install the waterer on a firm, level base with adequate drainage and sufficient clearance for livestock access and routine maintenance.

Water Connection: Connect the unit to a suitable pressurized farm waterline. In cold regions, underground and exposed supply pipes should be protected according to local frost depth and winter conditions.

Electrical Connection: The heater and heat tape should be connected to a correctly protected electrical circuit by qualified personnel in accordance with local electrical regulations.

Water Level Adjustment: Set the float valve to maintain the required operating level while preventing unnecessary overflow.

Cleaning: Use the large drain plug to empty the drinking chamber. Remove sediment, feed particles and organic contamination regularly.

Winter Inspection: Before freezing weather, check heater operation, heat tape, wiring, valve function and waterline protection.

Routine Service: Inspect the float, valve, drain plug and electrical components periodically. The accessible internal configuration supports convenient maintenance without specialized tools.

Q: Is this waterer designed specifically for sheep?
A: The low-profile configuration is particularly suitable for sheep, goats and smaller livestock because its approximately 12-inch drinking height provides easier access than standard cattle waterers.

Q: How many drinking areas does it have?
A: The reference configuration has two drinking bowls, providing convenient access from two sides of the waterer.

Q: How is the water supplied automatically?
A: The waterer connects to the farm waterline and uses a float-controlled valve. When animals drink and the level drops, the valve opens automatically and replenishes the drinking chamber.

Q: What heating system is used?
A: The reference heated configuration uses an optional 500W submersible heater together with heat tape to provide additional freeze protection for critical components.

Q: Is the body insulated?
A: Yes. The reference structure uses solid polyurethane foam insulation to reduce heat transfer and improve winter watering performance.

Q: How many sheep can one waterer serve?
A: The reference product is specified for up to approximately 100 sheep or goats. Actual capacity depends on climate, water pressure, animal weight, production stage and daily water demand.

Q: Is the waterer easy to clean?
A: Yes. A large drain plug allows rapid emptying, while the accessible internal design simplifies routine cleaning and component inspection.

Q: Can SHEWUYOU customize the waterer for cold-climate projects?
A: Yes. Heating, electrical configuration, water connections, drinking height and installation details can be designed according to local climate and farm conditions.
