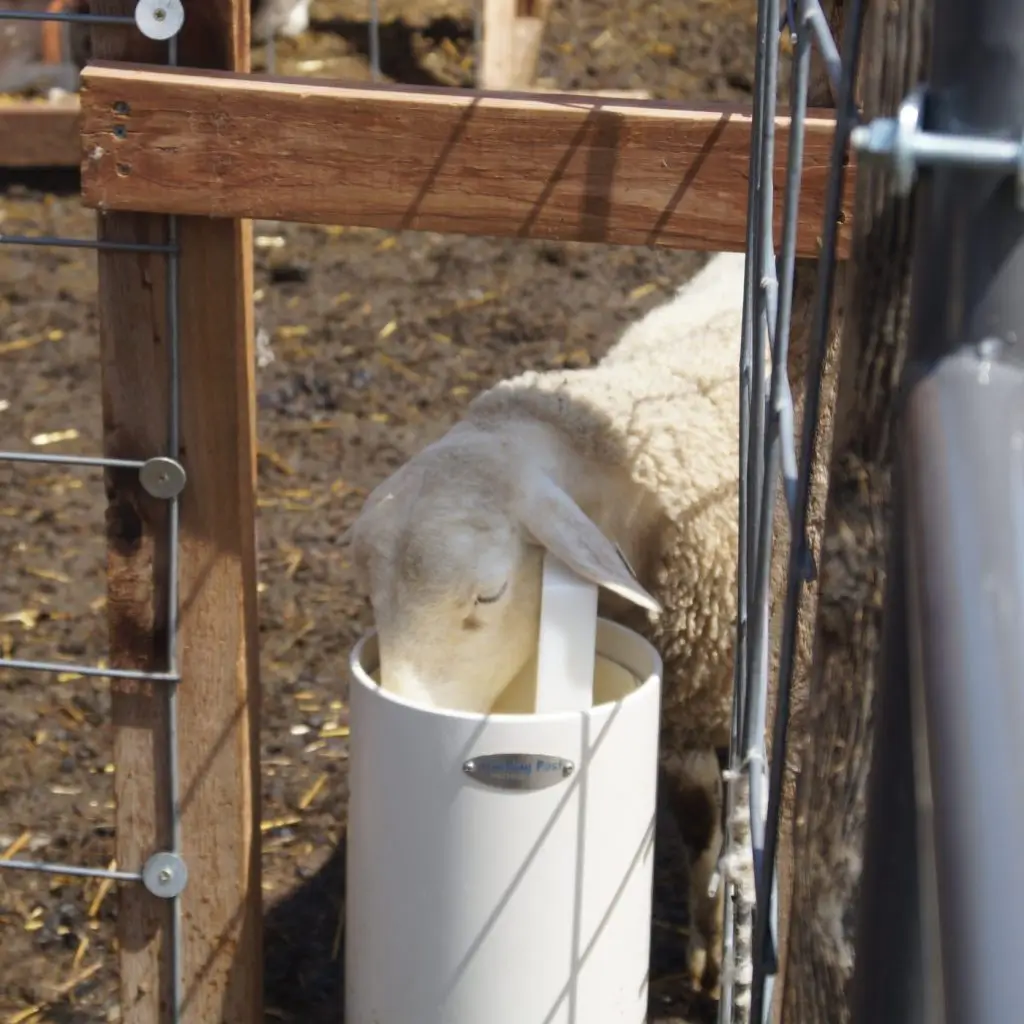

Underground Non-Electric Frost-Free Sheep Waterer

The Underground Non-Electric Frost-Free Sheep Waterer is an automatic on-demand livestock watering system designed for goat-farming-equipment/" target="_blank" class="keylink">sheep farms, goat farms, pasture facilities and cold-climate livestock projects. Unlike conventional troughs that retain standing water, the drinking bowl fills when an animal activates the mechanism and drains after drinking.

The underground section connects directly to a pressurized farm water line and is installed below the local frost line. This arrangement protects critical water components using the relatively stable underground temperature rather than electric heaters, helping provide reliable winter watering while reducing electrical infrastructure and operating costs.

The drinking height can be configured for sheep and smaller livestock. The compact above-ground structure also makes the system suitable for livestock houses, steel structure farm buildings, outdoor pens, paddocks and fence-line watering points.

• Non-Electric Freeze Protection: No conventional electric heater is required when the waterer is correctly sized and installed below the local frost line.
• Underground Installation: The lower waterer body and water connection are protected underground where soil temperatures remain more stable during winter.
• On-Demand Water Supply: Sheep activate the drinking mechanism only when water is required.
• Sheep-Friendly Paddle: A weighted livestock paddle can be activated using the natural forward head movement of sheep.
• Fill-and-Drain Bowl: The bowl fills during use and drains afterward, eliminating prolonged standing water.
• Reduced Algae Potential: Because water does not remain continuously in the drinking bowl, conditions that encourage algae growth are minimized.
• Fresh Water for Each Drinking Cycle: Water is supplied directly from the pressurized water line whenever the animal operates the paddle.
• Adjustable Drinking Height: Above-ground bowl position can be configured to accommodate sheep, lambs and compatible livestock.
• Low Routine Maintenance: The absence of a continuously filled trough reduces routine trough cleaning and winter ice removal.
• Cold-Climate Configuration: Underground depth can be selected according to the local frost line and project conditions.

• Drinking Bowl: Compact above-ground bowl providing direct drinking access for sheep.
• Livestock Paddle: Animal-operated control designed for convenient activation by sheep and goats.
• Paddle Riser: Weighted attachment improves accessibility for smaller livestock and supports natural activation.
• Vertical Waterer Body: Extends from the drinking station into the protected underground zone.
• Water Control Assembly: Opens the water supply when the drinking paddle is activated.
• Drainage System: Allows remaining bowl water to drain after each drinking cycle.
• Underground Water Connection: Connects the waterer directly to the farm's pressurized water line.
• Below-Frost-Line Base: Critical lower section is installed below local frost depth for freeze protection.
• Serviceable Internal Components: Internal parts can be accessed for inspection, adjustment and maintenance.

The waterer operates similarly to an animal-activated drinking fountain. When a sheep pushes the weighted livestock paddle forward, the internal valve opens and fresh water from the pressurized supply line enters the drinking bowl.

When the sheep finishes drinking and releases the paddle, the inlet closes and residual water drains from the bowl. Because the drinking area does not retain a large volume of standing water between uses, there is substantially less exposed water available to freeze or develop algae.

Freeze protection is provided by locating the critical lower section of the waterer and its water connection below the local frost line. The reference installation specifies that the base should extend at least 18 inches below the local frost line. The required overall depth therefore varies by climate and site.

The reference system is designed for non-electric operation and can remain frost-free in extremely cold conditions when correctly sized and installed. Actual performance depends on local frost depth, soil conditions, drainage, installation depth, water supply configuration and site exposure.

• Commercial sheep farms
• Sheep breeding and lamb production facilities
• Goat and small-ruminant farms
• Cold-climate livestock operations
• Pastures and grazing paddocks
• Outdoor sheep pens and holding areas
• Steel structure sheep houses and livestock buildings
• Fence-line livestock watering points
• Remote farm areas where electrical heating is undesirable
• Livestock farm construction and renovation projects
• Agricultural engineering and livestock equipment projects

SHEWUYOU can configure the underground frost-free watering system according to livestock type, local frost depth and farm infrastructure. Project options may include:

• Overall underground installation depth
• Above-ground drinking height
• Sheep and lamb drinking configuration
• Water inlet connection
• Valve and paddle configuration
• Drainage arrangement
• Foundation and surrounding gravel layout
• Fence-line installation configuration
• Cold-climate installation package
• OEM branding and identification
• Export packaging and project supply

Final configuration is designed according to local climate, frost depth, soil conditions, livestock size and project requirements.

Determine Local Frost Depth: Confirm the officially recommended frost depth for the project location before selecting waterer length and excavation depth.

Underground Depth: For the reference design, the bottom of the waterer should extend at least 18 inches below the local frost line. The final depth must be selected according to site-specific climate conditions.

Water Connection: Connect the base to a suitable pressurized underground water line. All fittings should be checked for leakage before backfilling.

Drainage: Provide suitable subsurface drainage around the waterer so discharged bowl water can drain effectively instead of accumulating around the unit.

Drinking Height: Set the bowl and paddle at an appropriate height for sheep or lambs. The reference design allows the bowl height to be adjusted for smaller animals.

Training: Introduce animals to the paddle-operated system after installation. The weighted sheep paddle is designed to make activation easier for small ruminants.

Routine Maintenance: Periodically inspect the paddle, valve, intake filter, drainage path and internal water components. Remove dirt or sediment and confirm that the bowl drains completely after use.

Q: Does this frost-free sheep waterer require electricity?
A: No. The system is designed to operate without an electric heater. Correct below-frost-line installation protects the water supply during freezing conditions.

Q: How does a sheep obtain water?
A: The animal pushes the weighted livestock paddle with its head. This opens the water supply and fills the drinking bowl with fresh water.

Q: What happens to the water after the sheep finishes drinking?
A: When the paddle is released, the supply closes and remaining water drains from the bowl. This eliminates continuous standing water in the drinking area.

Q: How does the system prevent freezing?
A: The lower waterer body and water connection are installed below the local frost line. Combined with the self-draining bowl, this keeps vulnerable standing water away from freezing above-ground conditions.

Q: How deep should the waterer be installed?
A: Installation depth depends on the local frost line. The reference system specifies that the base should extend at least 18 inches below the local frost line.

Q: Does the bowl remain full between animals?
A: No. The bowl is designed to fill when an animal drinks and drain afterward, helping maintain fresh water and reducing algae growth.

Q: Can the drinking height be adjusted for lambs?
A: Yes. The drinking height can be configured for smaller animals according to livestock and project requirements.

Q: Can SHEWUYOU customize the system for different climates?
A: Yes. Underground length, drinking height, water connections and installation details can be designed according to local climate, frost depth and farm conditions.
