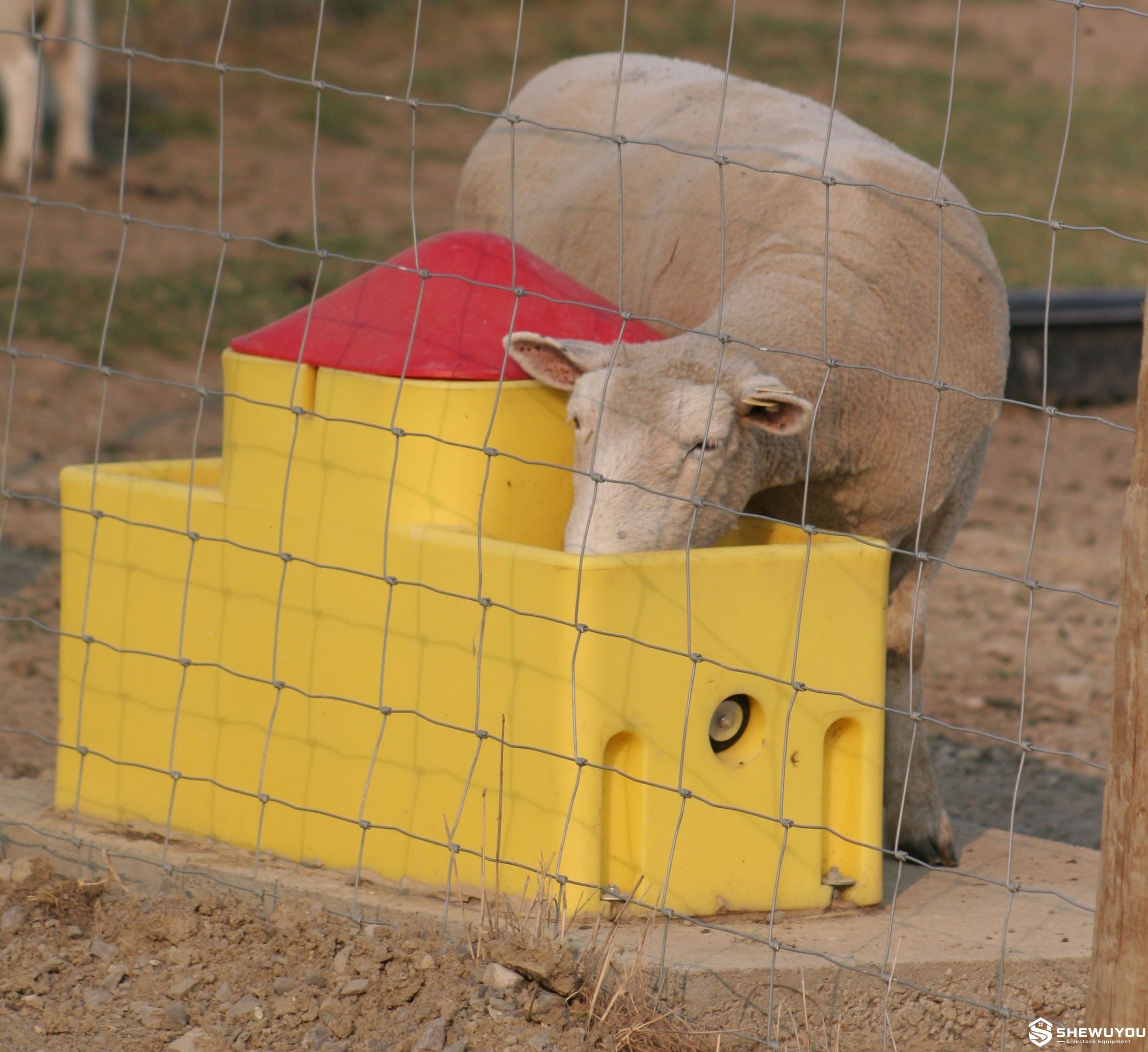

Non-Electric Frost-Free Sheep Drinker

The Non-Electric Frost-Free Sheep Drinker is an automatic livestock watering solution developed for goat-farming-equipment/" target="_blank" class="keylink">sheep farms, paddocks, outdoor pens and cold-climate livestock facilities where dependable winter water supply and reduced electrical dependence are important.

Unlike conventional electrically heated livestock drinkers, the system is designed around a highly insulated body, protected water supply arrangement and thermal energy available below the frost line. Correct installation helps reduce heat loss from the drinking chamber and protects critical water components during low-temperature operation.

The drinker can be incorporated into new livestock farm construction, steel structure sheep houses, pasture watering systems and farm renovation projects. Final insulation, water-line depth and foundation details should always be selected according to local frost depth, winter temperature, soil conditions and farm management requirements.

• Non-Electric Operation: Designed to provide frost-resistant livestock watering without relying on conventional electric heating during normal operation.
• Highly Insulated Body: Insulated enclosure reduces heat transfer between the internal water chamber and cold outside air.
• Automatic Water Supply: Float-operated valve technology maintains the required drinking water level and replenishes water as animals drink.
• Protected Drinking Area: An insulated closure helps reduce exposure of the water surface to freezing air.
• Ground-Heat Utilization: Proper installation over a thermal riser or insulated ground opening allows relatively warmer subsurface conditions to help protect the water supply.
• Low Energy Requirement: Eliminates routine power consumption associated with electric heaters in suitable installations.
• Durable Livestock Construction: Impact-resistant body options are designed for demanding farm environments.
• Automatic Refilling: Fresh water is supplied according to livestock consumption without manual bucket filling.
• Weather-Resistant Design: Suitable for outdoor paddocks, sheep pens and livestock facilities when correctly installed.
• Project Customization: Water inlet configuration, drinking height, capacity and installation arrangement can be adapted to project requirements.

• Insulated Outer Body: Provides mechanical protection and minimizes thermal loss.
• Drinking Chamber: Provides livestock with controlled access to fresh water.
• Insulated Closure: Covers the drinking opening when not in use and helps isolate water from cold outside air.
• Automatic Float Valve: Controls incoming water and maintains the predetermined operating level.
• Valve Compartment: Protects water-control components while allowing inspection and servicing.
• Water Supply Connection: Connects the drinker to the farm pressurized water system.
• Thermal Riser Area: Provides an insulated connection between the drinker and below-ground water supply zone.
• Drainage Components: Facilitate routine cleaning and servicing where included in the selected configuration.
• Mounting Base: Allows secure installation on a suitable concrete foundation or livestock watering pad.

The non-electric frost-free design works by minimizing heat loss rather than continuously adding heat with an electrical heating element. The insulated housing and protected drinking opening reduce direct exposure of stored water to low ambient temperatures.

The underground water line is routed below the local frost depth and enters the drinker through an insulated thermal riser area. Heat naturally available from the ground helps maintain a more stable temperature around the supply line and lower portion of the drinker.

When sheep drink, the water level decreases and the float valve opens automatically. Fresh pressurized water enters the drinking chamber until the preset level is restored, after which the valve closes.

Actual freeze protection depends on correct installation, livestock usage, water turnover, local minimum temperature, frost depth, wind exposure, supply-line configuration and foundation design. Extremely severe climates may require additional project-specific freeze protection.

• Commercial sheep farms
• Sheep breeding and lamb production facilities
• Cold-climate livestock farms
• Outdoor paddocks and pasture watering points
• Winter livestock feeding and holding areas
• Steel structure sheep houses and livestock buildings
• Fence-line watering installations
• Remote livestock areas where electrical supply is inconvenient
• Livestock farm construction and renovation projects
• Agricultural engineering and livestock equipment projects

SHEWUYOU can configure the frost-free livestock watering system according to herd size, climate conditions and farm infrastructure. Customization options may include:

• Single-access or multiple-access drinking configurations
• Drinking height according to livestock type
• Water capacity and refill requirements
• Water inlet and valve configuration
• Body dimensions and insulation configuration
• Thermal riser and underground pipe arrangement
• Concrete foundation layout
• Fence-line installation configuration
• Cold-climate protection package
• OEM branding and project identification
• Export packaging and container loading

Final specifications are designed according to local climate, frost depth, farm conditions and project requirements.

Foundation: Install the drinker on a stable, level concrete pad or engineered base suitable for livestock traffic. The foundation should provide adequate drainage around the drinking station.

Water Line: Route the supply pipe below the locally specified frost line. Protect the pipe and valve area with the required thermal riser or insulated opening.

Sealing: Seal the connection between the drinker, foundation and thermal riser as required to prevent cold-air infiltration into the underground supply area.

Valve Adjustment: Set the float valve to maintain an appropriate water level while providing adequate refill performance for the livestock group.

Routine Maintenance: Inspect and clean the drinking chamber, valve, float, closure and drain components regularly. Remove sediment, feed material and other contamination.

Winter Inspection: Before severe winter conditions, check insulation, foundation seals, underground pipe protection and valve operation. Correct installation is essential for dependable non-electric freeze protection.

Q: Does this frost-free sheep drinker require electricity?
A: The standard non-electric configuration is designed to operate without conventional electrical heating. It relies on insulation, correct below-frost-line installation and thermal protection of the water supply.

Q: How does the drinker help prevent freezing?
A: The insulated body and protected drinking opening minimize heat loss, while a correctly installed underground water supply and thermal riser help utilize the more stable temperature below the frost line.

Q: Is it suitable for sheep farms?
A: Yes. Drinking height, access arrangement and water capacity can be configured for sheep farms and other compatible livestock applications.

Q: Can it be installed outdoors?
A: Yes. Typical applications include paddocks, pasture watering stations, fence lines and outdoor livestock pens. Installation details should match local weather and soil conditions.

Q: Can one drinker serve two livestock pens?
A: A suitable multi-access configuration can be positioned along a fence line to provide drinking access from adjacent pens, subject to the selected model and farm layout.

Q: Will a non-electric drinker work in every winter climate?
A: Freeze resistance depends on minimum temperature, frost depth, wind exposure, livestock usage, water turnover and installation quality. Very severe environments should be evaluated individually before selecting the final configuration.

Q: Can SHEWUYOU customize the system for an overseas livestock project?
A: Yes. Water connections, capacity, drinking height, insulation, installation layout and other details can be customized according to project requirements and local climate conditions.
