Large Flock Energy-Free Sheep Waterer

Large Flock Energy-Free Sheep Waterer

The Large Flock Energy-Free Sheep Waterer is designed to provide automatic access to drinking water without depending on an electrical heating system. Its insulated enclosure, below-grade water connection and thermal design use the relatively stable temperature of the surrounding ground to help protect the water supply from freezing during cold weather while helping maintain cooler drinking water during hot weather.

The two-hole configuration provides multiple drinking positions from a single unit, making it suitable for high-density goat-farming-equipment/" target="_blank" class="keylink">sheep housing, breeding facilities, pasture systems and large-scale livestock operations. The system can be incorporated into new farm construction or retrofit projects and coordinated with concrete slabs, fencing, drainage, underground utilities and steel structure buildings.

• Energy-free operation: No electrical heating is required for the basic frost-free operating principle.
• Two-hole drinking access: Provides two drinking openings and supports efficient access for large livestock groups.
• Ground-heat frost protection: The below-grade water supply and insulated structure utilize underground thermal conditions to reduce freezing risk.
• Insulated construction: High-density foam insulation and insulated thermal components help improve temperature stability.
• Automatic water replenishment: A float-controlled valve maintains the drinking water level as animals consume water.

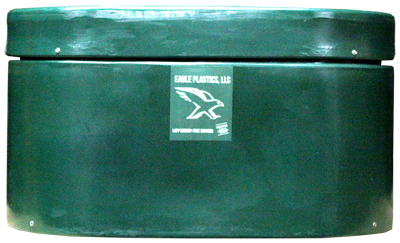

• Durable polyethylene body: Polyethylene construction provides resistance to rust and is suitable for demanding livestock environments.
• Animal-friendly design: Rounded edges and accessible drinking openings help provide a practical and robust livestock watering point.
• Low utility dependence: Eliminates the need for continuous electrical heating and avoids the water wastage associated with some freeze-protection systems.

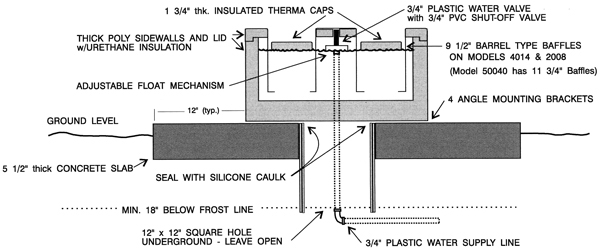

The typical system structure includes:

• Heavy-duty polyethylene outer housing
• Two insulated drinking openings
• Insulated thermal baffle or cap assembly
• Internal drinking reservoir
• Adjustable float and valve mechanism
• Non-siphoning plastic water valve and shut-off valve arrangement
• Underground water supply line
• Insulated underground heat-well or air-space section
• Concrete mounting slab and mechanical fixing brackets

Material specifications, valve configuration, connection size and mounting arrangement can be customizable according to project requirements.

The waterer is connected to a pressurized or suitable gravity-fed water supply through an underground plastic water line. An adjustable float valve automatically admits fresh water as the water level drops, keeping the drinking reservoir ready for livestock.

For frost protection, the water supply is routed below the local frost line through an insulated underground section. The surrounding ground provides a comparatively stable thermal environment, while the insulated body and thermal baffle limit heat loss from the drinking area. Proper underground installation is essential for reliable winter performance and should be designed according to local climate, frost depth and farm conditions.

Reference specifications are provided for engineering guidance. Final dimensions, capacity, valve configuration and connection standards should be confirmed according to project requirements.

• Large-scale sheep breeding and finishing farms
• Commercial sheep barns and livestock housing facilities
• Ewe and lamb production systems
• Pasture-based and rotational grazing operations
• Cold-climate livestock facilities
• Agricultural engineering and turnkey farm projects
• Livestock equipment distribution and dealer projects
• New livestock buildings integrated with concrete works, fencing and drainage
• Farm construction projects coordinated with steel structure buildings and underground utility systems

For contractors involved in pig farm construction or other livestock infrastructure projects, the waterer can be incorporated into the overall site utility and livestock equipment package where sheep or mixed-species facilities are included.

For international distributors, farm engineering companies and livestock project buyers, the configuration can be adapted to the intended installation environment.

• Overall dimensions and drinking height — Customizable
• Water inlet and valve configuration — According to project requirements
• Installation depth and underground heat-well arrangement — Designed according to local climate and farm conditions
• Concrete mounting and fixing arrangement — According to project requirements
• Material and insulation configuration — Available upon request
• OEM labeling, packaging and distributor requirements — Available upon request
• Project-specific water flow and livestock capacity planning — According to herd size and site conditions

Installation: Prepare a stable concrete mounting slab and locate the underground water connection according to the approved installation drawing. Provide an appropriate underground heat-well or air-space section beneath the waterer and route the plastic water supply line below the local frost line. Install suitable insulation around the underground section, position the waterer on the slab, secure the mounting brackets and seal the base connection against water and air leakage.

Water Supply: The water line should be sized and configured according to required flow, available pressure and the selected valve assembly. Plastic water pipe is recommended for the reference configuration; final plumbing should comply with local standards.

Maintenance: Regularly inspect the drinking openings, float mechanism, valve, shut-off valve and water connection. Remove sediment and foreign material when necessary. Before winter operation, verify insulation, underground protection, seals and valve function. Maintenance frequency depends on water quality and livestock operating conditions.

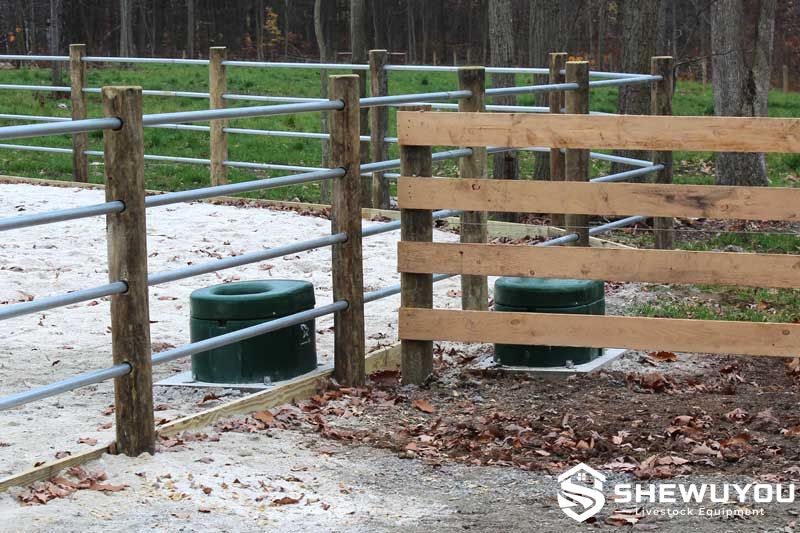

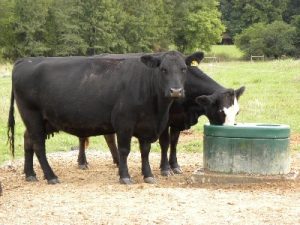

The reference two-hole energy-free design is used in outdoor livestock watering applications and can be integrated into fenced pasture areas and permanent livestock facilities. Its underground water connection is particularly suited to projects where waterlines are planned together with site grading, drainage, concrete foundations and livestock traffic routes.

For new-build agricultural projects, SHEWUYOU can coordinate the waterer configuration with livestock pen layout, steel structure building design, underground utility routing and other livestock equipment according to project requirements.

Q1: Does this sheep waterer require electricity?
A: No electrical heating is required for the basic energy-free configuration. Frost protection relies on underground installation, insulation and ground thermal conditions.

Q2: How many sheep can one unit serve?
A: The reference two-hole configuration is listed for up to approximately 400 sheep. Actual capacity should be determined from herd size, peak water consumption, water flow and farm layout.

Q3: Can it be installed outdoors?
A: Yes. It is suitable for outdoor livestock watering when the underground heat-well, frost protection and concrete mounting system are correctly designed for the local climate.

Q4: What type of water supply can be used?
A: The reference design supports suitable gravity-fed or pressurized water supplies with the appropriate valve configuration. Final water pressure and connection specifications should be confirmed before installation.

Q5: Can the waterer be customized for an international farm project?
A: Yes. Dimensions, drinking height, valve configuration, connection standards, installation depth, insulation and mounting details can be customized according to project requirements.

Q6: Is professional installation important?
A: Yes. Correct frost-line depth, underground heat-well construction, insulation, sealing and waterline routing are essential to achieve reliable energy-free performance.
