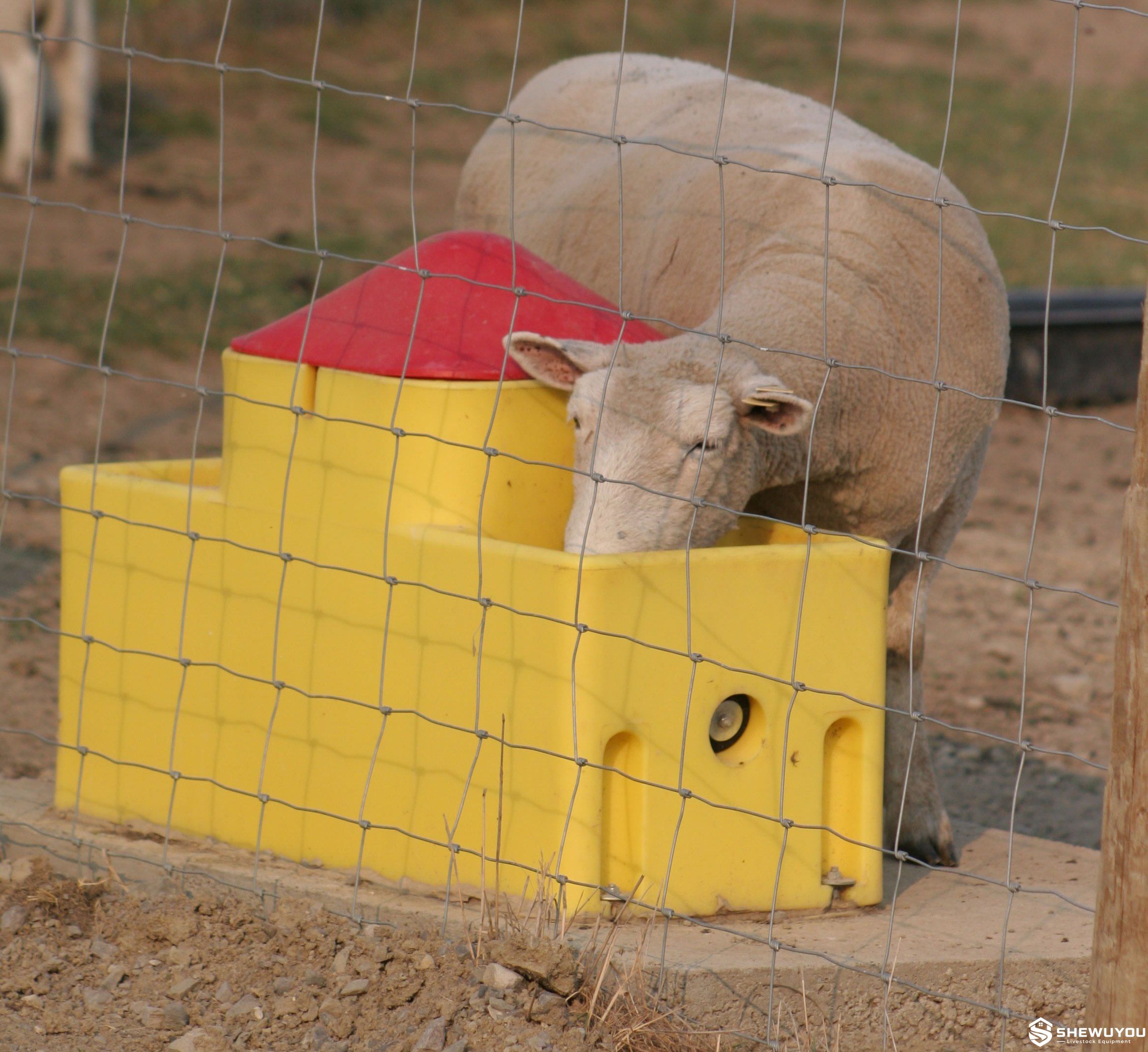

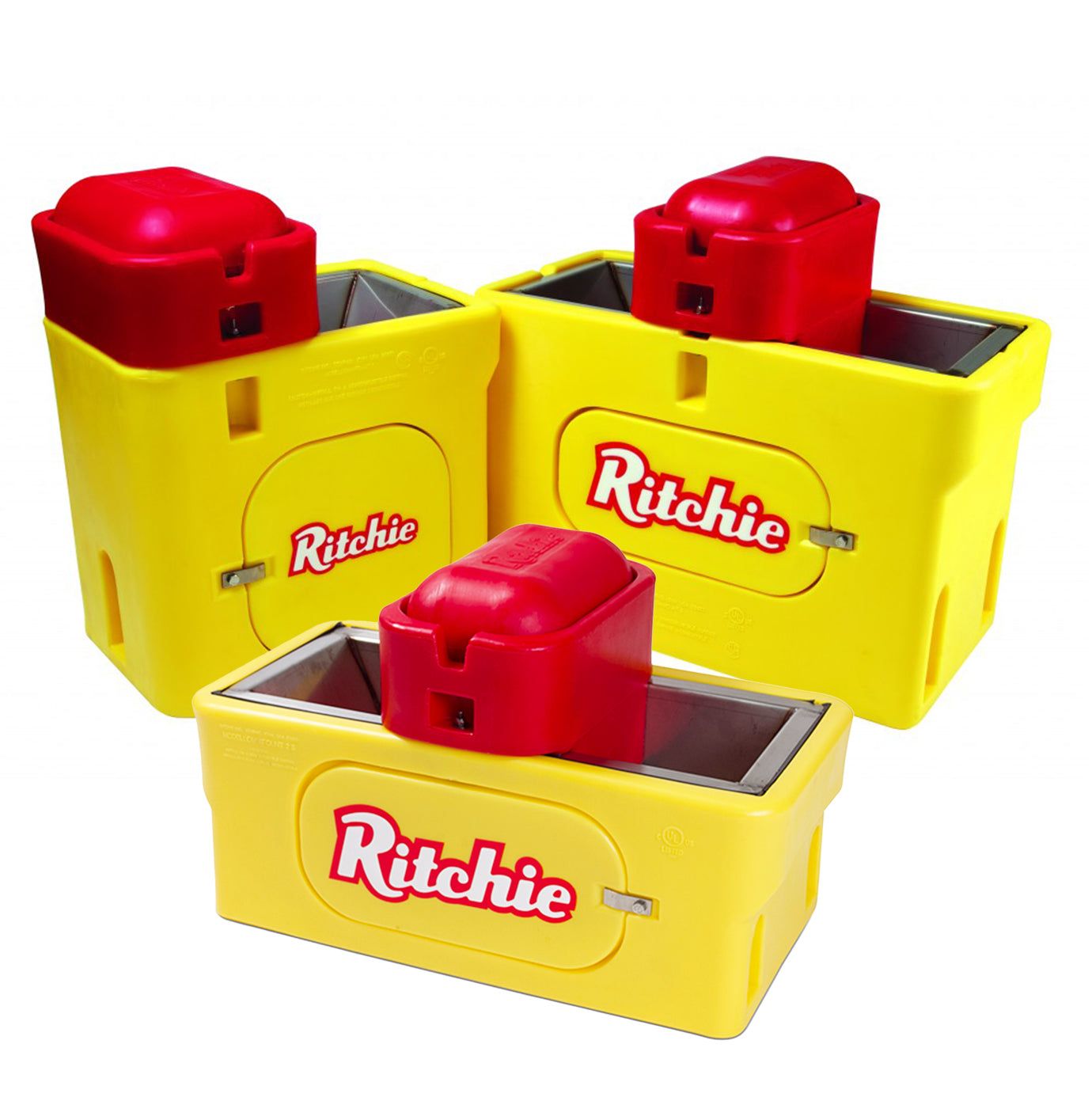

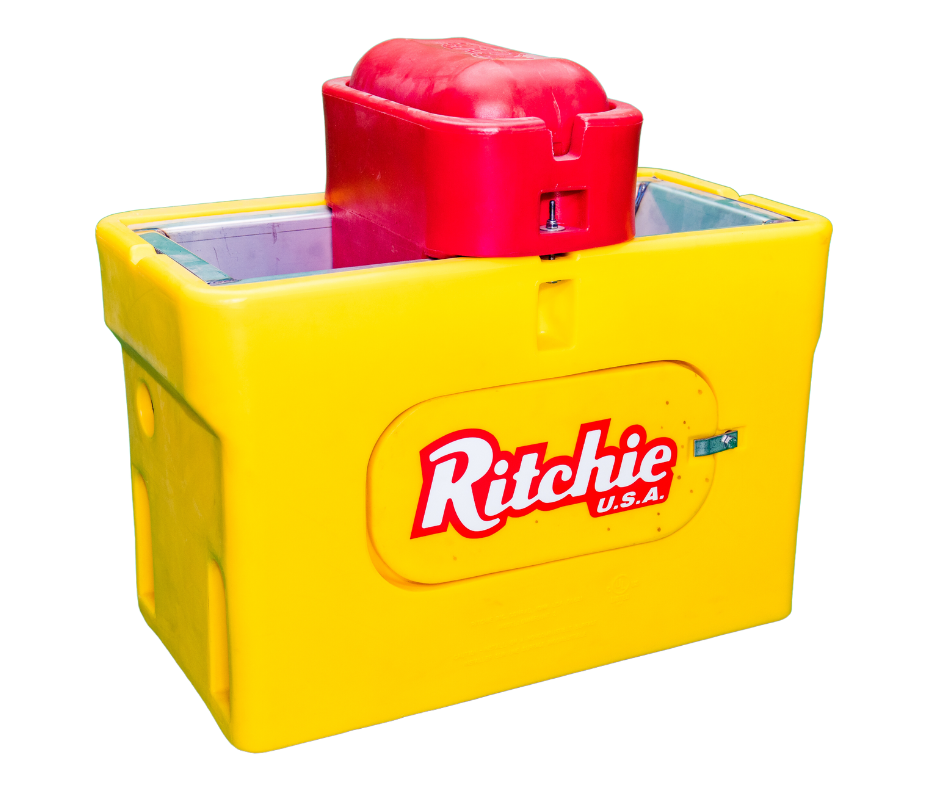

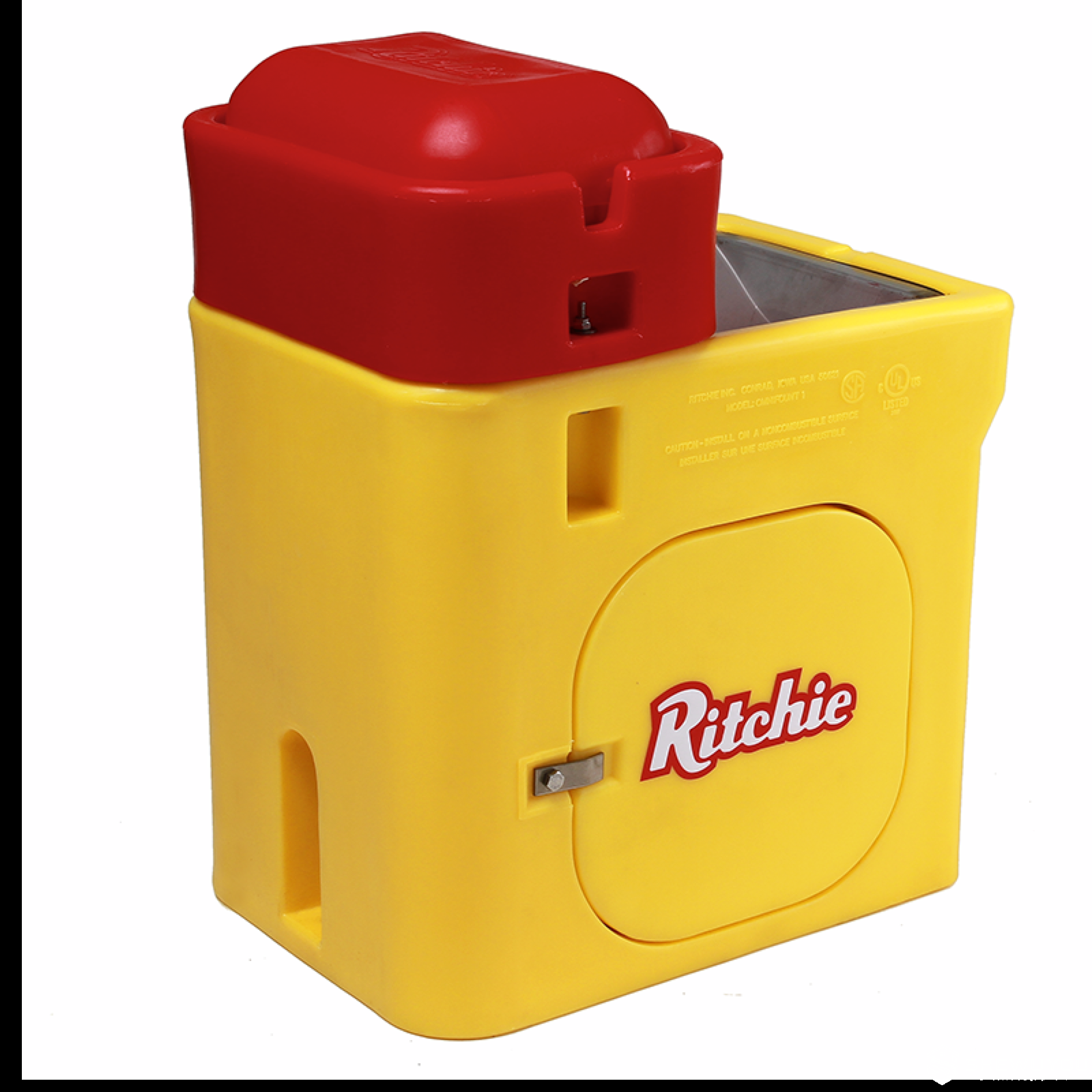

Double-Station Non-Electric Sheep Drinker

The Double-Station Non-Electric Sheep Drinker is an insulated automatic livestock watering system designed for goat-farming-equipment/" target="_blank" class="keylink">sheep farms, lamb production facilities, outdoor paddocks and cold-climate agricultural projects. Two drinking stations provide convenient access from both sides of the unit, making the drinker suitable for larger groups and fence-line installations between adjacent livestock areas.

The system is designed to reduce dependence on conventional electric heating. An insulated body, protected drinking openings and correctly installed below-ground water supply help conserve naturally available thermal energy and protect the drinking system during cold weather.

For commercial livestock projects, the drinker can be integrated with steel structure sheep houses, outdoor pens, pasture systems and livestock handling areas. Final freeze-protection performance depends on local frost depth, ambient temperature, water turnover, livestock usage and installation conditions.

• Double Drinking Stations: Two animal access points help increase drinking availability and support installation between adjacent pens.
• Non-Electric Frost Protection: Designed to minimize reliance on electric heating through insulation and correct below-frost-line installation.
• Automatic Water Refill: A float-controlled valve replenishes the drinking chamber as livestock consume water.
• Insulated Housing: Thick insulated construction helps reduce heat transfer between drinking water and cold outside air.
• Protected Drinking Openings: Insulated closures help retain internal heat when animals are not drinking.
• Ground-Heat Utilization: The installation can use the more stable temperature below ground to help protect the water supply area.
• Fence-Line Compatibility: Double-sided access is well suited to dividing fences between two sheep pens or livestock groups.
• Reduced Operating Cost: Non-electric operation can eliminate routine heater electricity consumption where climatic and installation conditions are suitable.
• Durable Farm Construction: Designed for regular livestock contact and demanding indoor or outdoor agricultural environments.
• Project Customization: Water connections, drinking height, valve arrangement and installation details can be configured according to project requirements.

• Insulated Main Body: Provides structural protection and limits thermal loss during winter operation.
• Dual Drinking Stations: Two access areas allow livestock to drink from opposite sides.
• Insulated Closures: Help separate the internal water chamber from cold ambient air.
• Water Reservoir: Maintains an accessible supply of drinking water inside the insulated enclosure.
• Float Valve Assembly: Automatically regulates incoming water according to the water level.
• Protected Valve Compartment: Keeps critical water-control components within the protected structure.
• Underground Water Connection: Connects the drinker to the farm water supply below the frost zone.
• Thermal Riser Area: Provides a protected path between below-ground conditions and the insulated drinker body.
• Service Access: Allows inspection, adjustment and maintenance of internal components.
• Mounting Base: Supports secure attachment to a suitable concrete livestock pad.

The double-station drinker is designed around heat conservation rather than continuous electrical heating. Its insulated enclosure limits heat transfer, while protected drinking openings reduce direct exposure of the internal water chamber to freezing air.

The water supply pipe is installed below the local frost line and routed upward through a protected thermal riser. This arrangement allows the relatively stable below-ground temperature to contribute to freeze protection around the supply line and lower portion of the watering unit.

When sheep drink from either station, the reservoir level falls. The float-operated valve opens automatically and allows fresh water into the chamber. Once the preset level is restored, the valve closes.

Successful non-electric winter operation requires proper installation and sufficient water turnover. Local minimum temperature, frost depth, wind exposure, animal numbers and water-system conditions should therefore be considered during project design.

• Commercial sheep farms
• Sheep breeding and lamb production facilities
• Cold-climate livestock farms
• Outdoor paddocks and winter feeding areas
• Pasture livestock watering systems
• Fence-line watering between two sheep pens
• Steel structure sheep houses and livestock buildings
• Remote livestock areas with limited electrical infrastructure
• Livestock farm construction and renovation projects
• Agricultural engineering and livestock equipment projects

SHEWUYOU can configure the double-station livestock watering system according to herd size, farm layout and climatic conditions. Available options may include:

• Drinking height for sheep or other compatible livestock
• Water capacity and refill configuration
• Float valve and water inlet arrangement
• Insulation configuration
• Body dimensions according to project requirements
• Thermal riser and underground supply arrangement
• Fence-line or free-standing installation
• Concrete foundation layout
• Cold-climate protection configuration
• OEM branding and project identification
• Export packaging requirements

Final specifications can be designed according to local climate, frost depth, water system, livestock population and farm conditions.

Site Preparation: Select a well-drained location with convenient livestock access. For two-pen applications, the drinker can be positioned along a suitable dividing fence.

Concrete Base: Install the drinker on a stable, level concrete pad or engineered foundation. The surrounding area should minimize standing water and mud.

Below-Ground Supply: The water pipe should be installed below the locally specified frost depth and routed through a properly designed thermal riser.

Cold-Air Sealing: Seal gaps around the base, riser and pipe penetration as required. Uncontrolled cold-air entry can reduce frost-protection performance.

Valve Setting: Adjust the float valve to maintain the recommended operating water level and verify adequate refill performance under peak livestock demand.

Routine Cleaning: Regularly remove sediment, feed residue and organic material from the drinking chamber and inspect the water-control components.

Winter Maintenance: Before freezing weather, inspect insulated closures, valve operation, foundation seals and underground supply protection. Correct installation is essential for reliable non-electric winter operation.

Q: What does double-station mean?
A: The drinker provides two livestock drinking access points, allowing animals to approach from opposite sides and helping reduce congestion around a single drinking location.

Q: Does this sheep drinker require electricity?
A: The standard configuration is designed for non-electric operation. Frost protection relies on insulation, protected drinking openings, proper below-frost-line plumbing and suitable water turnover.

Q: Can it serve two separate sheep pens?
A: Yes. Double-station drinkers are particularly useful for fence-line installation, where one watering unit can provide access from adjacent livestock areas when the site layout is suitable.

Q: How is the water level maintained?
A: A float-controlled valve automatically opens when the water level falls and closes when the required level has been restored.

Q: Is it suitable for very cold climates?
A: It is intended for cold-weather livestock applications, but actual frost protection depends on local temperature, frost depth, wind exposure, installation quality, animal usage and water turnover. Project-specific evaluation is recommended for severe climates.

Q: Can the drinker be used inside a steel structure sheep house?
A: Yes. It can be incorporated into livestock building layouts, outdoor pens or fence-line watering systems when plumbing, drainage and foundation requirements are considered during construction.

Q: Can SHEWUYOU customize the drinker for livestock projects?
A: Yes. Water inlet arrangement, drinking height, capacity, insulation configuration and installation details can be customized according to project requirements.
