Low-Pressure Heated Float Sheep Drinker

Low-Pressure Heated Float Sheep Drinker

The Low-Pressure Heated Float Sheep Drinker is designed for individual or small-group livestock watering where stable water level, controlled flow and winter freeze protection are required. The float-operated water valve automatically replenishes the bowl as animals drink, reducing the need for manual filling.

The reference design uses a robust cast-iron bowl with a smooth white enamelled drinking surface and a protected float assembly. A low-voltage heating element helps prevent water from freezing in cold conditions, while the heating and waterline configuration can be selected according to the local climate.

Its compact format is suitable for goat-farming-equipment/" target="_blank" class="keylink">sheep barns, lambing facilities, breeding units, pasture shelters and livestock housing projects. The drinker can be integrated with concrete walls, steel structure buildings, pipework, pen partitions and other livestock equipment.

• Automatic float control: The float valve maintains a consistent water level as livestock consume water.
• Low-pressure operation: The float-valve configuration is suitable for controlled water pressure applications and can be adjusted to the available supply conditions.
• Electric frost protection: A low-voltage heating element helps prevent freezing of the drinking bowl in cold-weather operation.
• Durable cast-iron body: Heavy-duty cast iron provides mechanical strength for demanding livestock environments.
• Hygienic enamelled surface: The smooth enamel finish provides a non-porous, easy-to-clean drinking surface and protects the bowl against corrosion.
• Protected valve assembly: The float mechanism is positioned within the rear valve area to reduce exposure to livestock impact and contamination.
• Compact livestock equipment: The individual bowl format requires limited installation space and is suitable for wall or pipe mounting.
• Serviceable construction: Valve and heating components can be accessed for inspection, adjustment and replacement during maintenance.

The typical heated float drinker configuration includes:

• Heavy-duty cast-iron drinking bowl
• Smooth enamelled interior surface
• Protective valve cover
• Adjustable float and float valve assembly
• Low-pressure water inlet connection
• Low-voltage heating element with suitable temperature control
• Drain and cleaning provision
• Wall, concrete-post or pipe mounting arrangement

Component material, inlet position, valve specification, mounting configuration and heating package can be customizable according to project requirements.

The waterer is connected to the farm water supply through a suitable low-pressure inlet. When the water level falls, the float moves downward and opens the valve, allowing fresh water to enter the bowl. Once the preset water level is reached, the float rises and closes the valve automatically.

For winter operation, the heating element transfers controlled heat to the bowl and valve area to reduce the risk of ice formation. The heating capacity should be selected according to ambient temperature, installation exposure and waterline conditions.

The final heating capacity and protection of the incoming waterline should be designed according to local climate and farm conditions, particularly where the supply pipe is exposed to prolonged sub-zero temperatures.

Reference specifications should be confirmed against the selected configuration and project requirements.

• Commercial sheep breeding and lamb production facilities
• Sheep barns and enclosed livestock housing
• Lambing and nursery areas
• Goat and mixed small-livestock facilities
• Cold-climate livestock buildings
• Pasture shelters and protected outdoor livestock areas
• Agricultural engineering and turnkey farm projects
• Livestock equipment retrofit projects
• Farm construction projects integrating concrete works, steel structure buildings, water supply systems and livestock pen equipment

For international livestock projects, distributors and engineering contractors, the drinker can be configured around local water, climate and installation requirements.

• Bowl material and surface finish — Customizable
• Float valve type and flow configuration — According to project requirements
• Water inlet position and connection standard — Available upon request
• Heating power and frost-protection configuration — Designed according to local climate and farm conditions
• Transformer and electrical control arrangement — According to local electrical standards
• Mounting brackets, pipe mounting and concrete fixing — Customizable
• OEM labeling, packaging and distributor specifications — Available upon request

Installation: Install the drinking bowl on a rigid wall, concrete post or suitable pipe support. Connect the water inlet to a properly sized supply line, adjust the float valve to the required water level and verify the flow before commissioning.

Winter Installation: In freezing climates, connect the heater through the specified low-voltage transformer and appropriate electrical protection system. The incoming waterline should be insulated and protected against freezing where necessary.

Maintenance: Inspect the float valve, valve seat, water inlet, drain opening and heating system regularly. Clean the enamelled bowl to remove feed residue, sediment and organic contamination. Check the thermostat, transformer and electrical connections before each cold season.

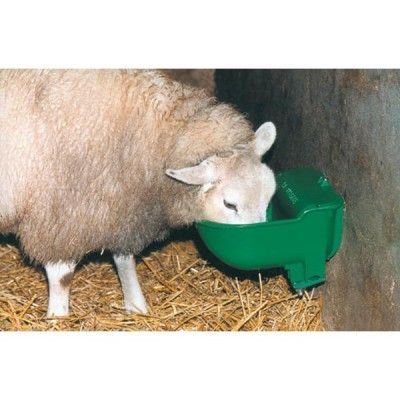

The compact heated float-bowl configuration is suitable for sheep, goats and other small livestock and can be installed at distributed watering points throughout commercial livestock housing. Its wall- or pipe-mounting format makes it practical for pens where individual watering stations are required.

For new farm construction, the waterer can be coordinated with livestock traffic routes, pen partitions, concrete foundations, drainage, water supply networks and steel structure building services.

Q1: What is a low-pressure float sheep drinker?
A: It is an automatic drinking bowl using a float-controlled valve to maintain a preset water level under controlled water pressure.

Q2: Does the drinker require electricity?
A: The automatic watering function does not require electricity, but the heated version requires a suitable low-voltage power supply for its frost-protection heating system.

Q3: How does the heated version prevent freezing?
A: A low-voltage heating element supplies controlled heat to the drinking bowl and valve area. The required heating capacity depends on ambient temperature, installation exposure and waterline conditions.

Q4: How many sheep can one drinker serve?
A: The reference configuration is suitable for approximately 15–20 animals. Actual capacity should be calculated from livestock type, herd size, peak water demand and water supply performance.

Q5: Can the drinker work with low water pressure?
A: Yes. The float-valve configuration is intended for controlled-pressure water supplies, and the flow can be adjusted according to the available water pressure.

Q6: Can it be customized for different livestock projects?
A: Yes. Valve configuration, connection standard, heating capacity, mounting arrangement, drinking height and other project details can be customized according to local climate and farm conditions.
