Automatic Egg Collection Control System

The Automatic Egg Collection Control System is an intelligent poultry automation solution designed to coordinate egg flow from multiple poultry houses, cage rows and collection belts into a centralized egg room.

Instead of requiring operators to manually start, stop and adjust individual egg belts, the control system manages collection capacity and conveyor speed as one coordinated process. This helps create a steady egg supply to downstream grading, packing or processing equipment.

When combined with compatible egg counting equipment, the controller can automatically adjust the speed of incoming egg belts according to the actual number of eggs entering the collection line. This helps prevent both excessive accumulation and insufficient egg supply at the packing area.

The system is suitable for commercial layer farms, breeder operations, multi-house poultry projects and automated steel structure poultry buildings where labor efficiency, egg quality and centralized process control are important.

• Automatic Egg Flow Control: Coordinates the capacity and speed of multiple egg collection belts to maintain a consistent flow toward the egg room.
• Reduced Manual Operation: Minimizes the need for personnel to operate individual switches or continuously adjust conveyor speeds.
• Dynamic Belt Speed Adjustment: Compatible counting data can be used to automatically increase or reduce belt speed according to actual egg flow.
• Overflow Prevention: Helps prevent excessive egg accumulation at cross conveyors, transfer points and packing equipment.
• Stable Equipment Loading: Provides a more consistent egg supply to grading and packing lines.
• Gentle Egg Handling: Controlled conveyor operation reduces abrupt flow changes that can contribute to collisions or breakage.
• Automatic Start Capability: Suitable systems can begin the egg collection process before operators arrive in the egg room.
• Multi-House Management: Suitable for centralized egg collection from several poultry houses and multiple conveyor lines.
• Production Data Integration: Compatible farm-data platforms can provide information about egg production, distribution and operating performance.
• Project-Based Configuration: Control logic, conveyor groups and integration requirements can be customized according to farm layout and production capacity.

• Central control cabinet

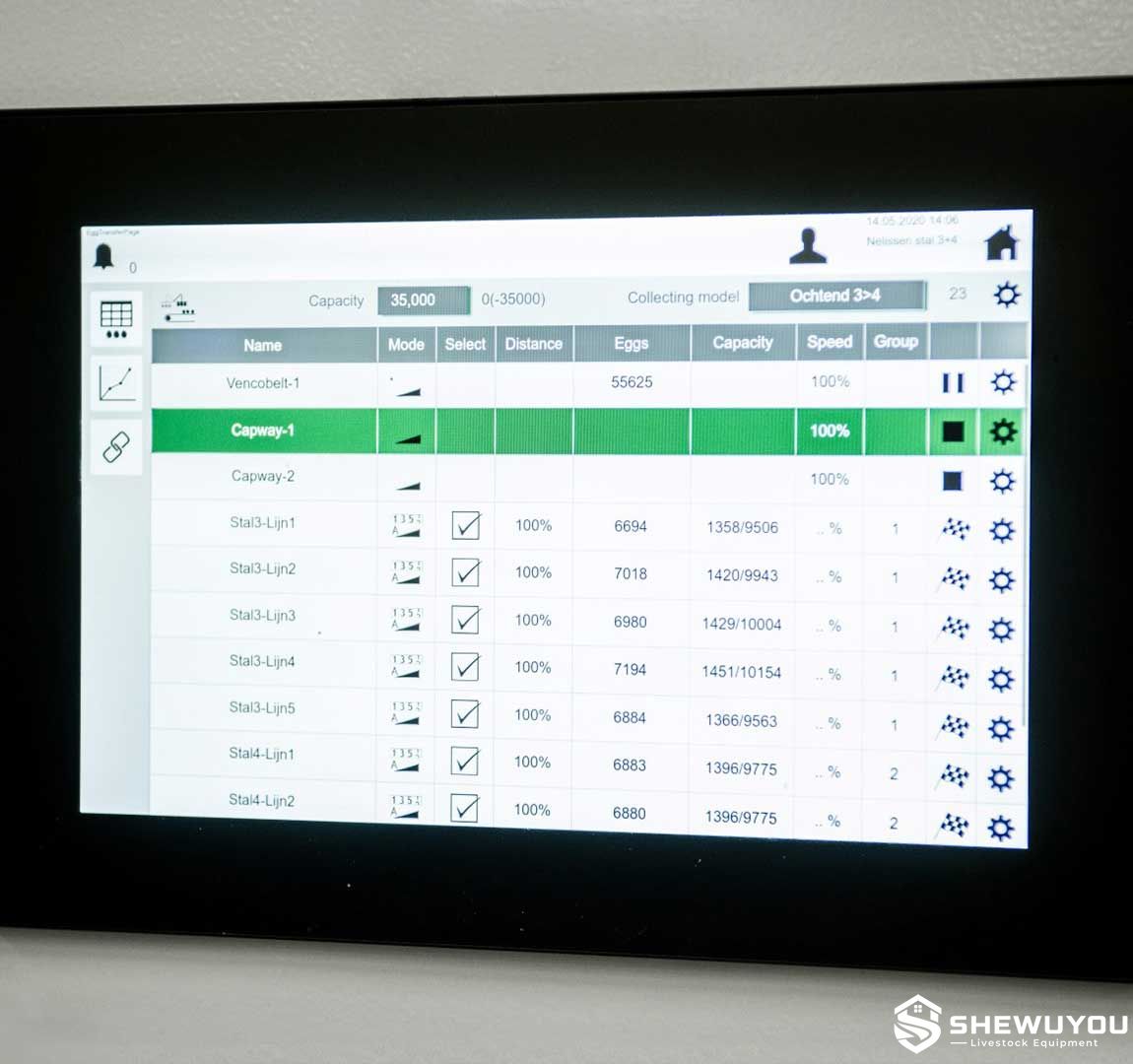

• Operator control interface
• Programmable control unit
• Motor control interfaces
• Egg belt speed-control modules
• Conveyor status monitoring inputs
• Emergency stop circuit
• Communication modules
• Optional egg-counting system interface
• Optional production-data connection
• Electrical terminals, protection devices and installation accessories

Eggs are transported from poultry houses or cage rows toward the centralized collection line. The control system monitors the operating status and required capacity of the different conveyor sections.

When integrated with compatible egg counters, the system receives real-time egg-flow information before eggs enter the central collection conveyor. Based on this information, conveyor speeds can be adjusted automatically to maintain a steady supply to the egg room.

By coordinating upstream belts with cross conveyors and downstream packing equipment, the controller helps prevent sudden surges, empty conveyor periods and unnecessary manual intervention throughout the collection process.

• Commercial layer poultry farms
• Layer breeder facilities
• Multi-house egg production complexes
• Automatic cage egg collection systems
• Aviary egg collection systems

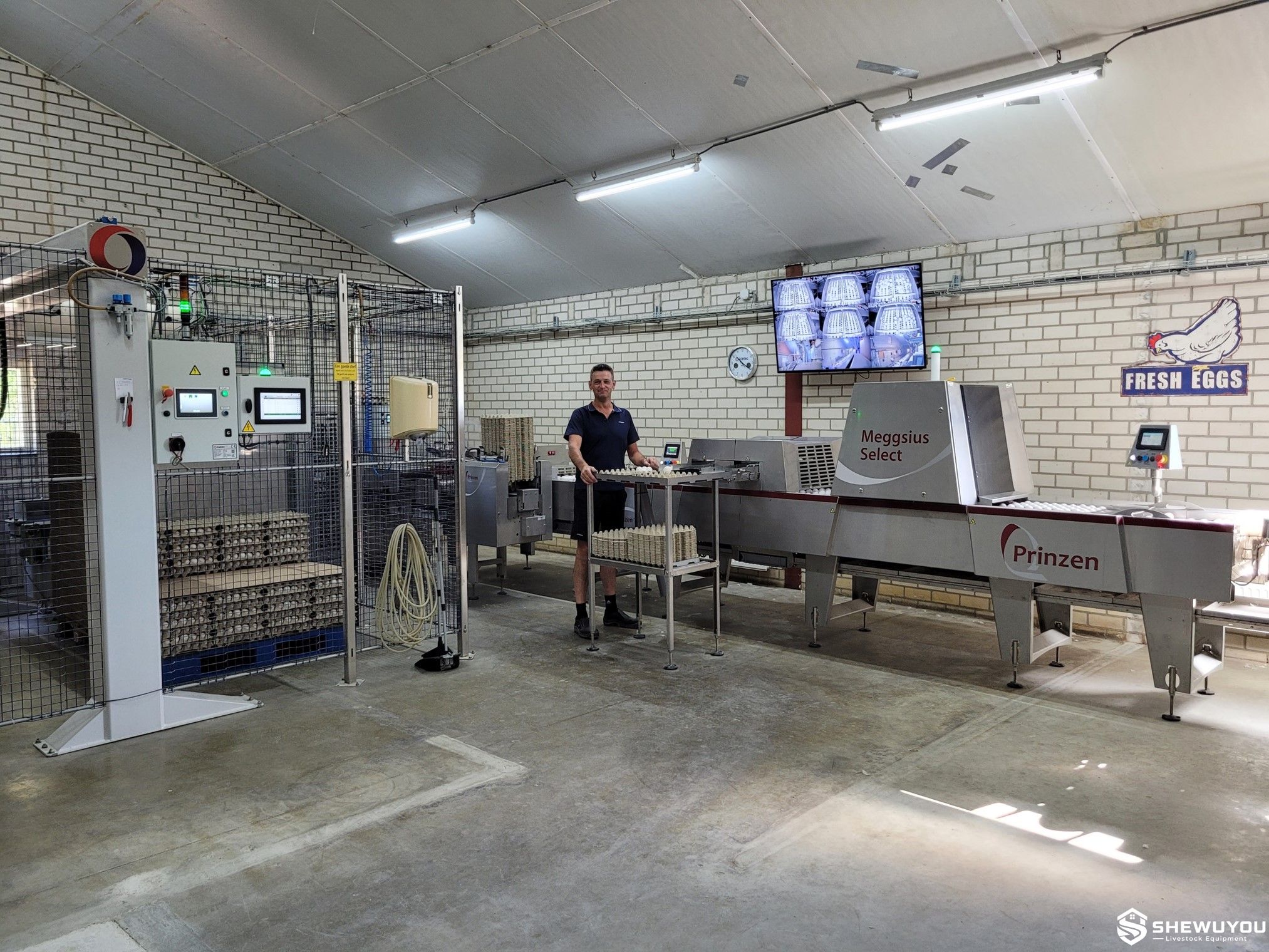

• Centralized egg collection rooms
• Automatic egg grading and packing lines
• Poultry farm automation upgrades
• Steel structure poultry buildings
• Turnkey commercial egg-production projects

• Number of controlled conveyor lines: Customizable
• Number of poultry houses: According to project requirements
• Control logic: Customizable
• Egg counter integration: Available upon request
• Variable-speed conveyor control: Available upon request
• Alarm and monitoring functions: According to project requirements
• Data platform integration: Available upon request
• Grader and packer coordination: Customizable
• Control cabinet size and configuration: According to project requirements
• Electrical specification: Designed according to destination market
• Complete automatic egg collection architecture: Designed according to farm capacity and poultry-house layout

The main control cabinet should be installed in a dry, accessible service location with clear visibility of the egg collection process where practical. Electrical wiring should follow the approved conveyor layout and applicable local electrical standards.

During commissioning, each longitudinal belt, cross conveyor, transfer conveyor and downstream packing line should be tested individually before automatic coordination is enabled. Conveyor direction, motor response, speed range, safety circuits and communication signals should be verified.

Routine maintenance includes checking electrical terminals, ventilation openings, control-cabinet cleanliness, motor communication, sensors, emergency stop functions and conveyor feedback signals. System settings should be reviewed whenever farm layout or egg collection capacity changes.

In a multi-house layer farm, the control system can coordinate egg belts from several poultry buildings and regulate their delivery to one centralized grading or packing room. Egg flow is balanced so downstream equipment receives a more consistent supply.

For automated breeder operations, egg counting, conveyor control and production-data systems can be combined to reduce manual intervention while giving farm managers clearer information about egg production and distribution across different houses.

Q: What does an automatic egg collection control system do?

A: It coordinates egg belt and conveyor operation to create a controlled and consistent egg flow toward the central collection room.

Q: Can conveyor speed be adjusted automatically?

A: Yes. When connected to compatible egg counting equipment, belt speeds can be adjusted according to actual egg flow.

Q: How can the system reduce labor requirements?

A: Automatic control reduces the need for personnel to operate individual switches, monitor every belt continuously and manually balance egg flow.

Q: Can it control eggs coming from several poultry houses?

A: Yes. Multi-house control can be configured according to the collection layout and project requirements.

Q: Can production data be viewed remotely?

A: Compatible data-platform integration can provide remote access to egg production, egg flow and distribution information.

Q: Can the system work with an automatic grader or farm packer?

A: Yes. Control logic can be coordinated with compatible downstream egg grading and packing equipment.

Q: Can SHEWUYOU customize the control system?

A: Yes. Conveyor groups, control logic, electrical specifications, counting integration and centralized egg-room configuration can be designed according to project requirements.
