Automatic Egg Counting System for Poultry Farms

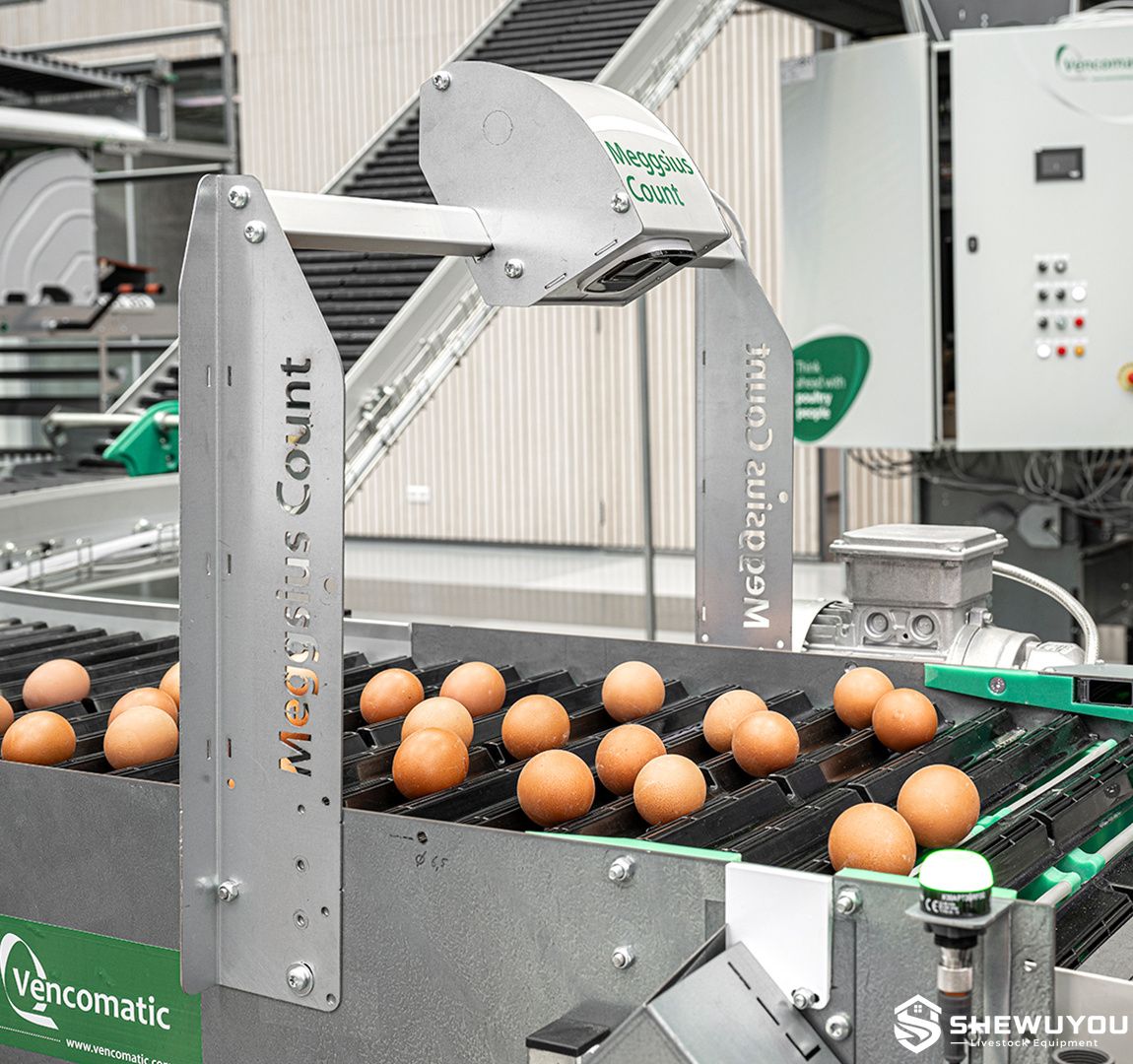

The Automatic Egg Counting System is a precision poultry monitoring solution designed to count eggs continuously as they move along collection belts or cross conveyors. A non-contact optical or infrared sensing unit detects passing eggs without interrupting normal egg transport.

Installed directly above the egg transport route, the counting unit provides real-time production data that can be used to monitor laying performance, compare production between houses or rows, and coordinate automatic egg collection operations.

The system is suitable for commercial layer farms, breeder farms and centralized egg collection projects. SHEWUYOU can configure the sensing unit, mounting structure, communication interface, display system and data-management functions according to existing poultry equipment and project requirements.

• Automatic egg counting: Continuously records eggs passing through the collection system without manual counting.
• Non-contact detection: Optical or infrared sensing technology counts eggs without mechanical contact.
• Real-time production data: Provides immediate egg-count information for farm management and production analysis.
• High counting reliability: Suitable sensor configuration helps maintain reliable counting under demanding poultry-house conditions.
• Reverse-movement compensation: Advanced configurations can identify belt movement changes and help prevent duplicate counting.
• Production-zone monitoring: Counters can be arranged by belt, row, house or production zone according to project design.
• Egg-flow optimization: Count data can support adjustment of conveyor operation and packing-line capacity.
• System integration: Can interface with automatic egg collection controls and poultry farm management platforms.
• Easy installation: Compact sensor assemblies can be mounted directly above compatible egg conveyors.
• Scalable configuration: Suitable for individual houses or large multi-house poultry projects.

• Counting Sensor or Camera: Detects eggs as they pass through the monitoring zone.
• Mounting Frame: Positions the sensor accurately above the egg transport surface.
• Signal Processing Unit: Converts sensor information into egg-count data.
• Control Interface: Transfers counting information to a local controller or central farm management system.

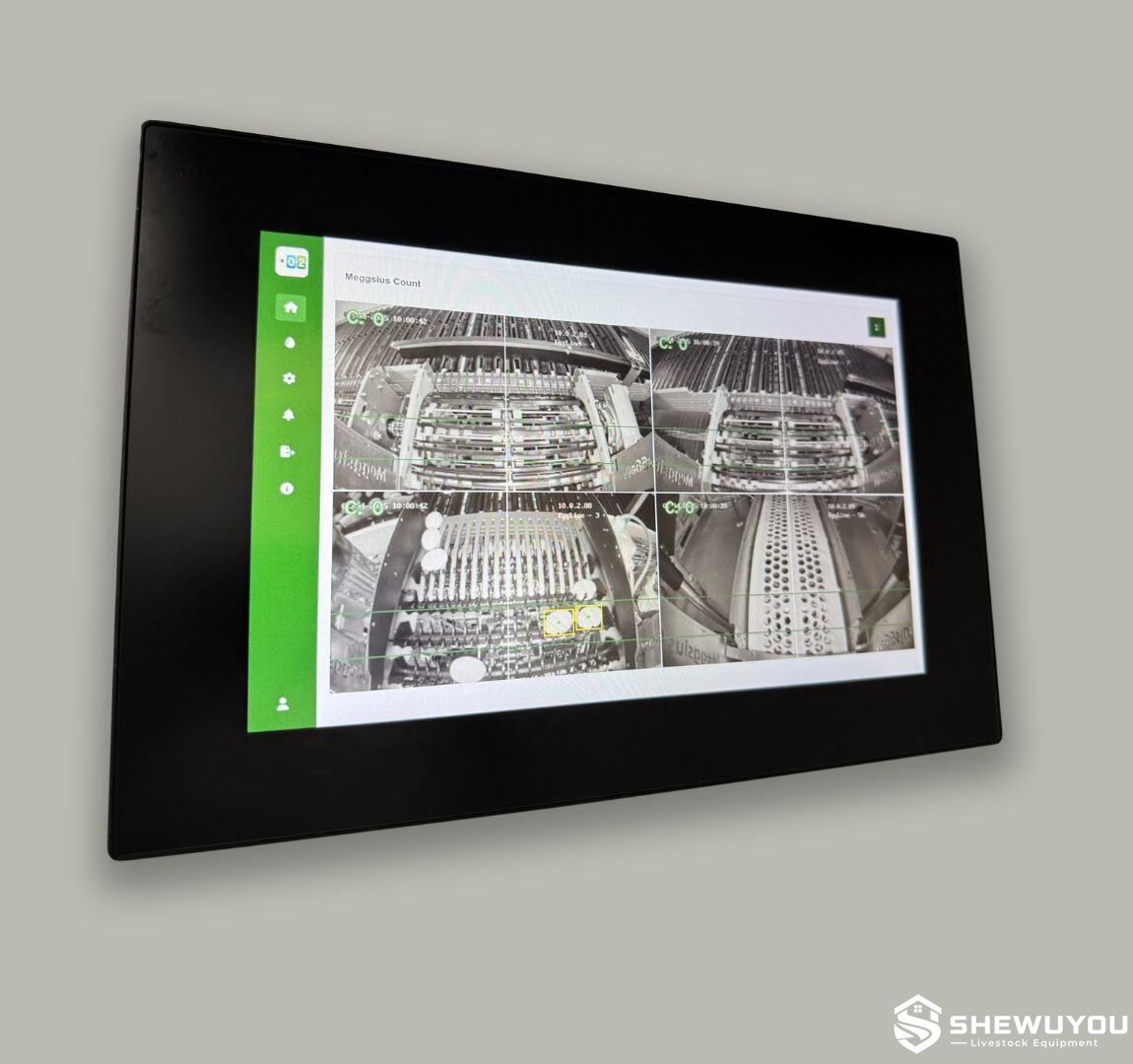

• Display or Dashboard: Presents production information for operators where included in the project.
• Power and Communication Cables: Connect counting devices with the control and data network.
• Protective Housing: Helps protect electronic components in dusty poultry production environments.

Eggs travel beneath the counting sensor while moving toward the central collection conveyor or egg room. The sensing system recognizes individual eggs within the detection area and converts each confirmed detection into digital count data.

Advanced infrared camera configurations can monitor eggs across the conveyor width and distinguish their position on the transport surface. Where the collection belt stops or briefly reverses, suitable control logic can compensate for belt movement to reduce the risk of counting the same egg more than once.

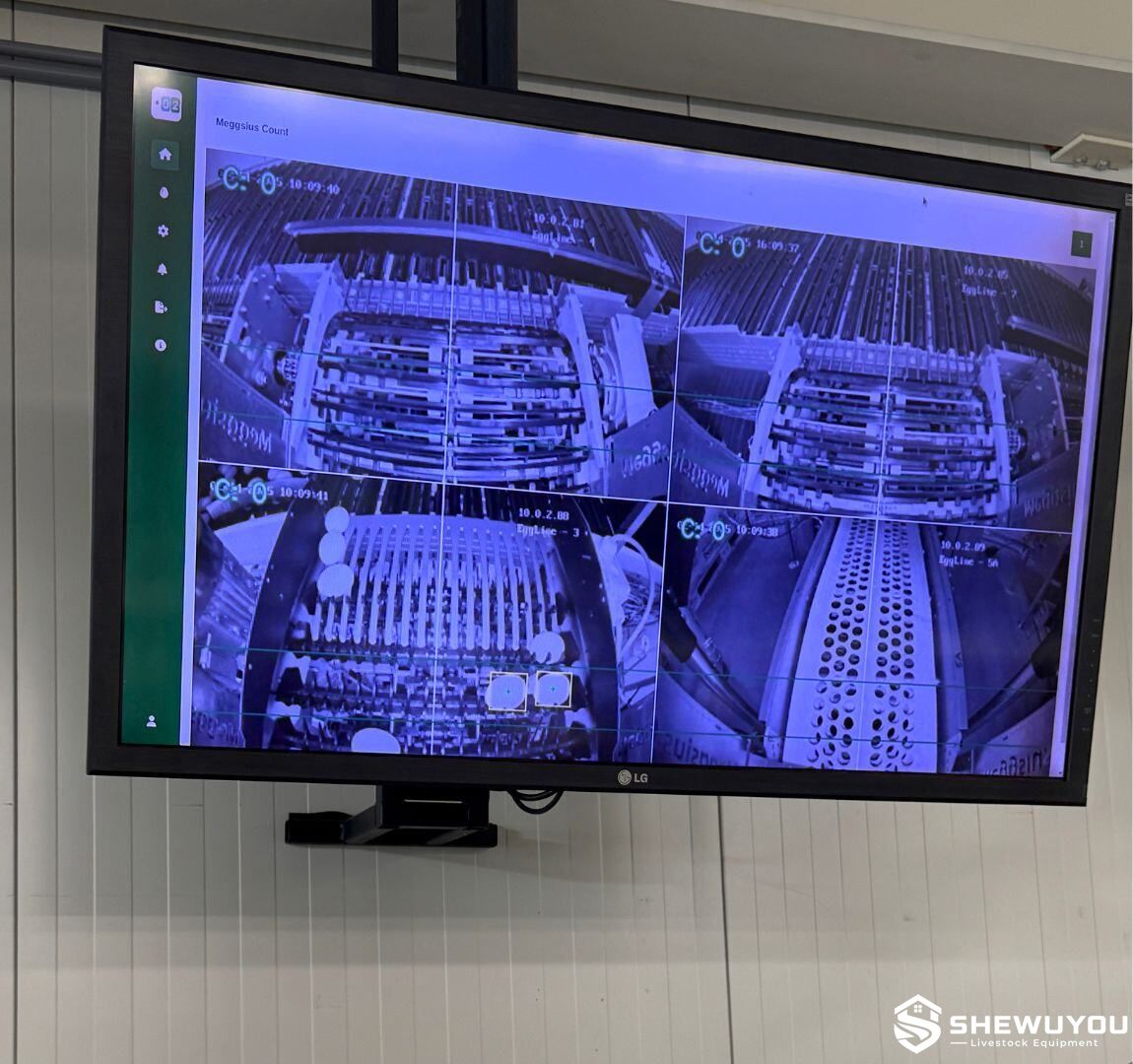

Counting information can then be displayed locally or transmitted to a central control platform, allowing operators to review production by belt, row, house or farm and coordinate downstream collection capacity.

• Product Type: Automatic poultry egg counting system
• Detection Technology: Infrared, optical or project-specific sensing technology
• Counting Method: Non-contact automatic detection
• Installation Position: Above egg belt or conveyor
• Conveyor Compatibility: According to egg belt type and project requirements
• Counting Width: Customizable according to conveyor dimensions
• Counting Capacity: Selected according to belt speed and egg-flow requirements
• Data Output: Digital signal or communication interface according to control configuration
• Display: Local display or central dashboard available upon request
• Network Integration: Available according to poultry farm automation requirements
• Power Supply: According to project electrical standards
• Protection Configuration: Designed for dusty poultry-house operating conditions
• Operating Environment: Designed according to local climate and farm conditions

• Commercial layer farms
• Layer breeder farms
• Broiler breeder farms
• Automatic layer cage systems
• Aviary egg collection systems
• Nest-based breeder production systems
• Central egg collection conveyors
• Multi-house egg collection projects
• Egg grading and packing centers
• Steel structure poultry farm projects

• Sensor width: Selected according to conveyor or egg belt width.
• Mounting structure: Customized according to existing collection equipment.
• Counting zones: Configurable by belt, cage row, house or production area.
• Data interface: Available according to farm controller and communication requirements.
• Display system: Local screen or centralized monitoring interface available upon request.
• Alarm functions: Production deviation alerts can be incorporated according to project requirements.
• Egg-flow control: Counting information can be integrated into automated collection management.
• Multi-house integration: Several counters can be connected to a centralized farm monitoring system.

Installation

1. Confirm conveyor width, egg-flow direction and suitable sensor installation position.
2. Install the mounting frame above the egg belt according to the required detection distance.
3. Secure the sensor or infrared camera and verify alignment across the complete counting area.
4. Connect power, signal and communication cables according to the electrical design.
5. Connect the counter to the local controller or central farm management platform where required.
6. Run eggs through the conveyor and compare the automatic result with a controlled manual count.
7. Complete calibration and system testing before full production operation.

Maintenance

• Keep the sensor or camera detection surface clean.
• Remove dust, feathers and other material that could obstruct the detection area.
• Inspect mounting brackets and sensor alignment regularly.
• Check cables and connectors for damage or loose connections.
• Periodically compare automatic counting results with production records.
• Check communication with the central control system where applicable.
• Follow the recommended electrical safety procedures before servicing electronic components.

Automatic egg counting systems are particularly useful in commercial poultry projects where accurate production information is required from multiple cage rows, belts or poultry houses. SHEWUYOU can prepare a counting layout according to collection equipment, house quantity, conveyor dimensions, control architecture and required production reports.

Q1: What is an Automatic Egg Counting System?

It is a sensor-based system that automatically records eggs as they move through an egg collection conveyor.

Q2: Does the counter touch the eggs?

Non-contact infrared or optical configurations detect eggs without mechanical contact with the shell.

Q3: Can the system operate in dusty poultry houses?

Yes. Appropriate sensor and protective configurations can be selected for demanding poultry-house environments.

Q4: Can it prevent duplicate counts when a belt reverses?

Advanced camera-based systems can compensate for brief reverse belt movement and reduce duplicate counting.

Q5: Can one farm use several egg counters?

Yes. Counters can be installed by belt, row, house or production zone and connected to a central monitoring system.

Q6: Can it work with different egg conveyor brands?

Yes. A suitable mounting and communication configuration can be prepared according to the existing egg collection equipment.

Q7: Can egg-count data be viewed remotely?

Remote data monitoring can be provided when the counter is integrated with a compatible farm management platform.

Q8: Can counting data help control egg flow?

Yes. Real-time counts can be used by compatible automation systems to coordinate conveyor operation and downstream packing capacity.

Q9: Can SHEWUYOU customize the complete system?

Yes. Sensor configuration, installation structure, data interface and system integration can be designed according to project requirements.
