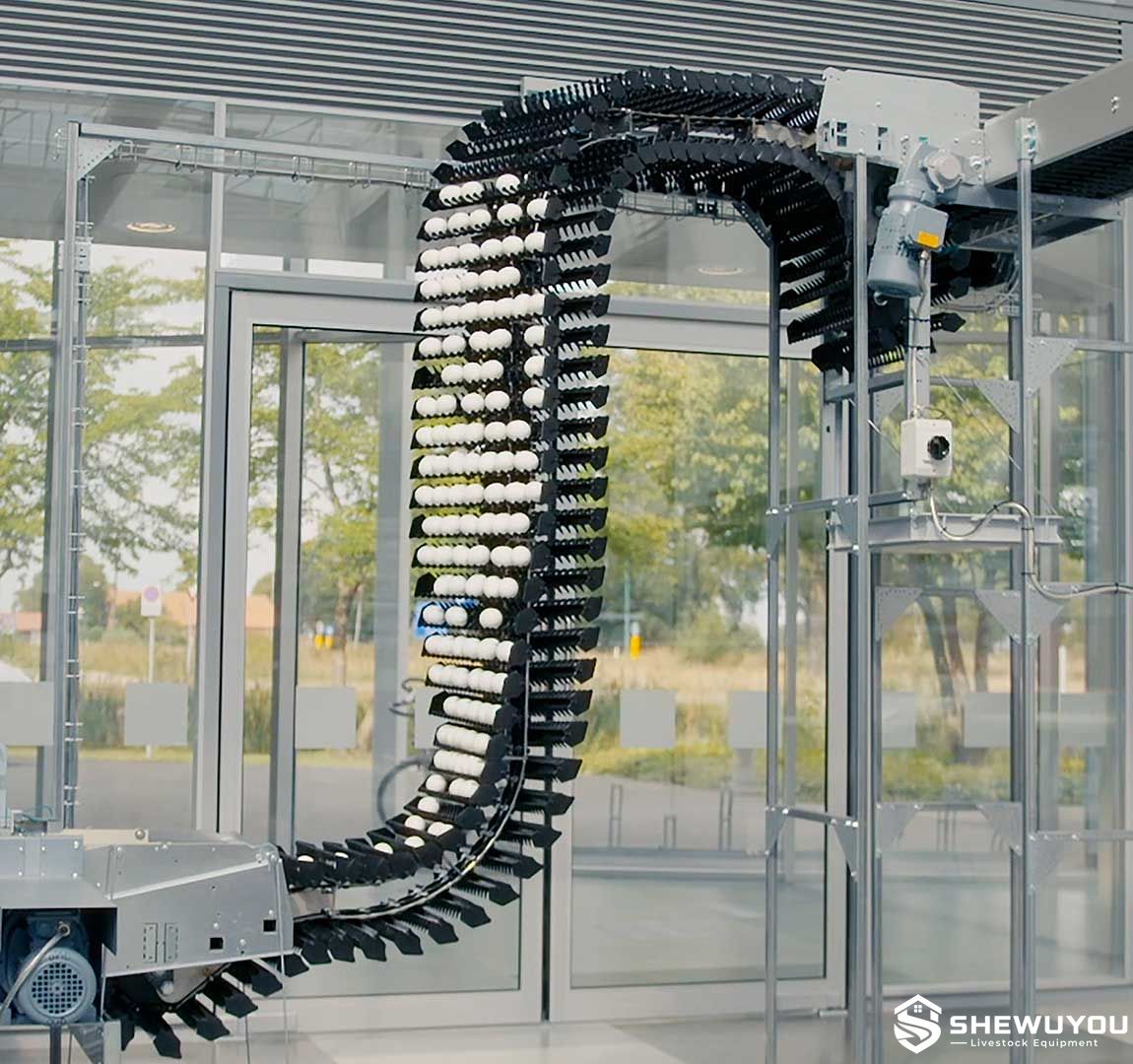

Compact Egg Transfer System

The Compact Egg Transfer System is an automated poultry egg transport solution designed to connect individual egg collection belts with a central egg conveyor while requiring minimal installation space.

Its flexible conveyor layout allows egg belts to connect to the main collection line even when poultry-house rows are not positioned directly above or perfectly aligned with each other. This makes the system suitable for new layer houses, breeder facilities, renovation projects and complex steel structure poultry buildings.

The system is engineered to maintain a constant and controlled egg flow while minimizing the number of transfer points. Fewer transfers help reduce unnecessary egg impacts, rolling and collisions during transport from the housing system toward the egg room.

Compact construction, modular routing and high transport capacity make the system particularly suitable for commercial poultry farms where floor space, egg quality and automated workflow are important project considerations.

• Compact Footprint: Requires limited installation space compared with conventional incline transfer arrangements.
• Flexible Conveyor Layout: Housing rows do not need to be positioned directly above or perfectly aligned with the main conveyor.
• Direct Belt Connection: Each individual egg belt can be connected to the central egg conveyor.
• Reduced Transfer Points: The reference transport principle uses only a limited number of egg transfers between the housing system and main conveyor.

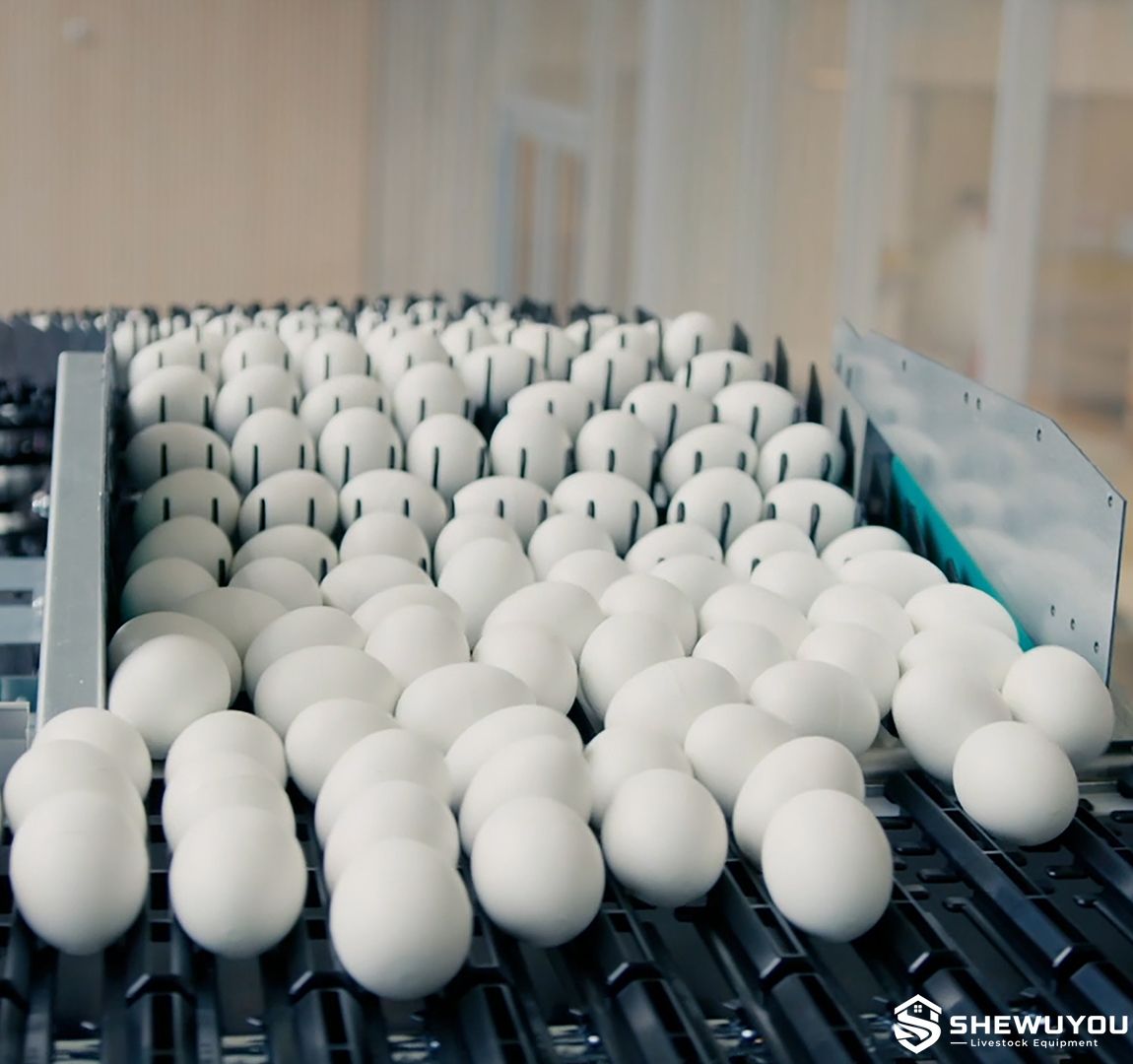

• Gentle Egg Handling: Controlled carrier movement helps reduce collisions, cracks and unnecessary rolling.
• Constant Egg Flow: Individual belt collection helps maintain an organized and continuous transfer process.
• High Transport Capacity: Suitable for large commercial layer and breeder operations requiring efficient centralized collection.
• Modular Construction: System length, height and routing can be adapted to poultry-house geometry.
• Automation Compatible: Can connect with main egg conveyors, egg counters, graders and farm packing equipment.
• Project-Oriented Engineering: Configuration can be designed according to flock size, house layout and collection-room position.

• Galvanized steel supporting frame
• Egg-supporting carrier assemblies
• Individual egg belt inlet sections
• Compact vertical and curved transfer sections
• Main egg conveyor interface
• Electric drive motor
• Gear reducer and transmission system
• Guide rails and carrier chains
• Tensioning and alignment components
• Protective guards
• Sensors and electrical control components
• Optional egg counting and monitoring equipment

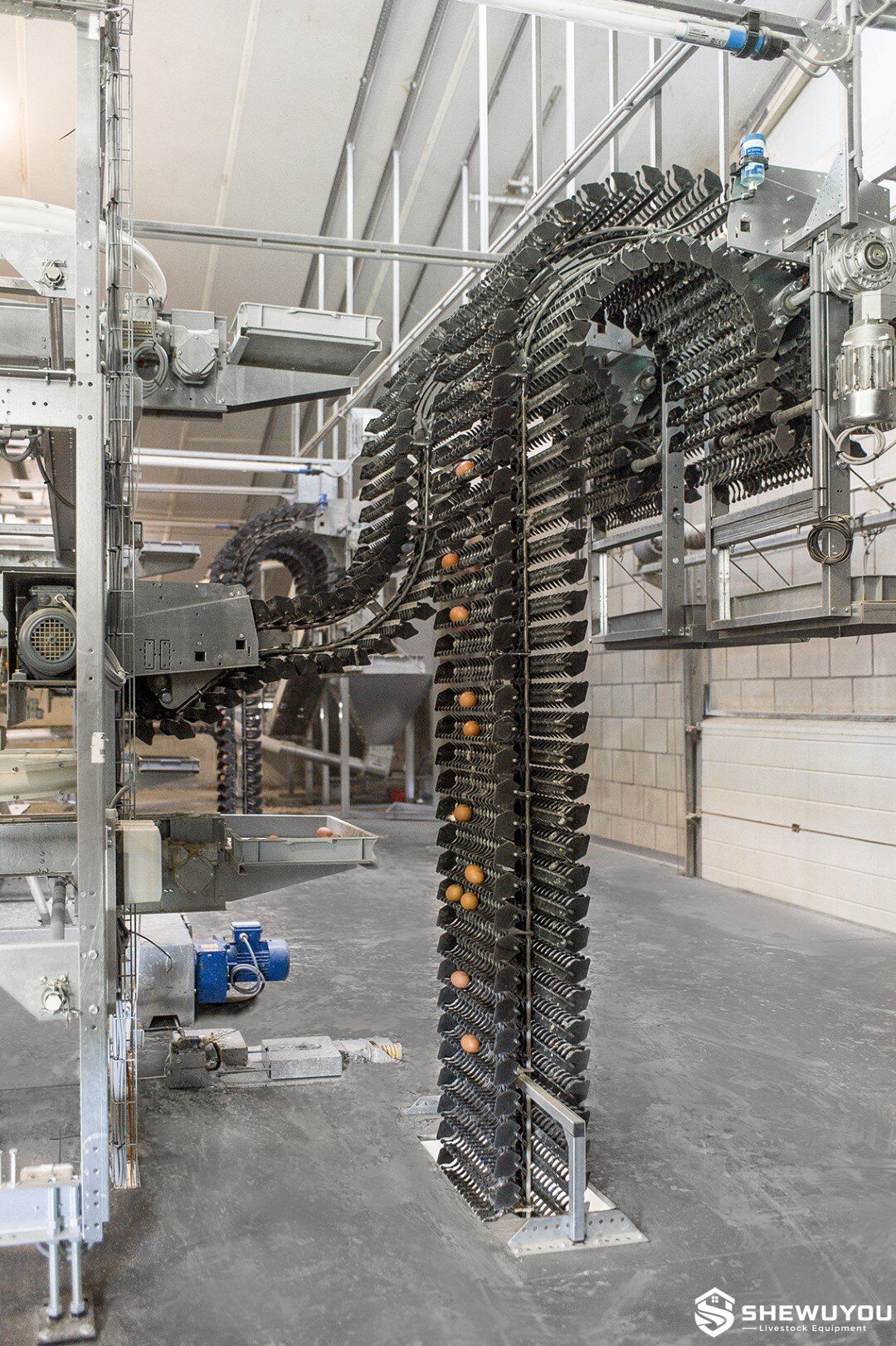

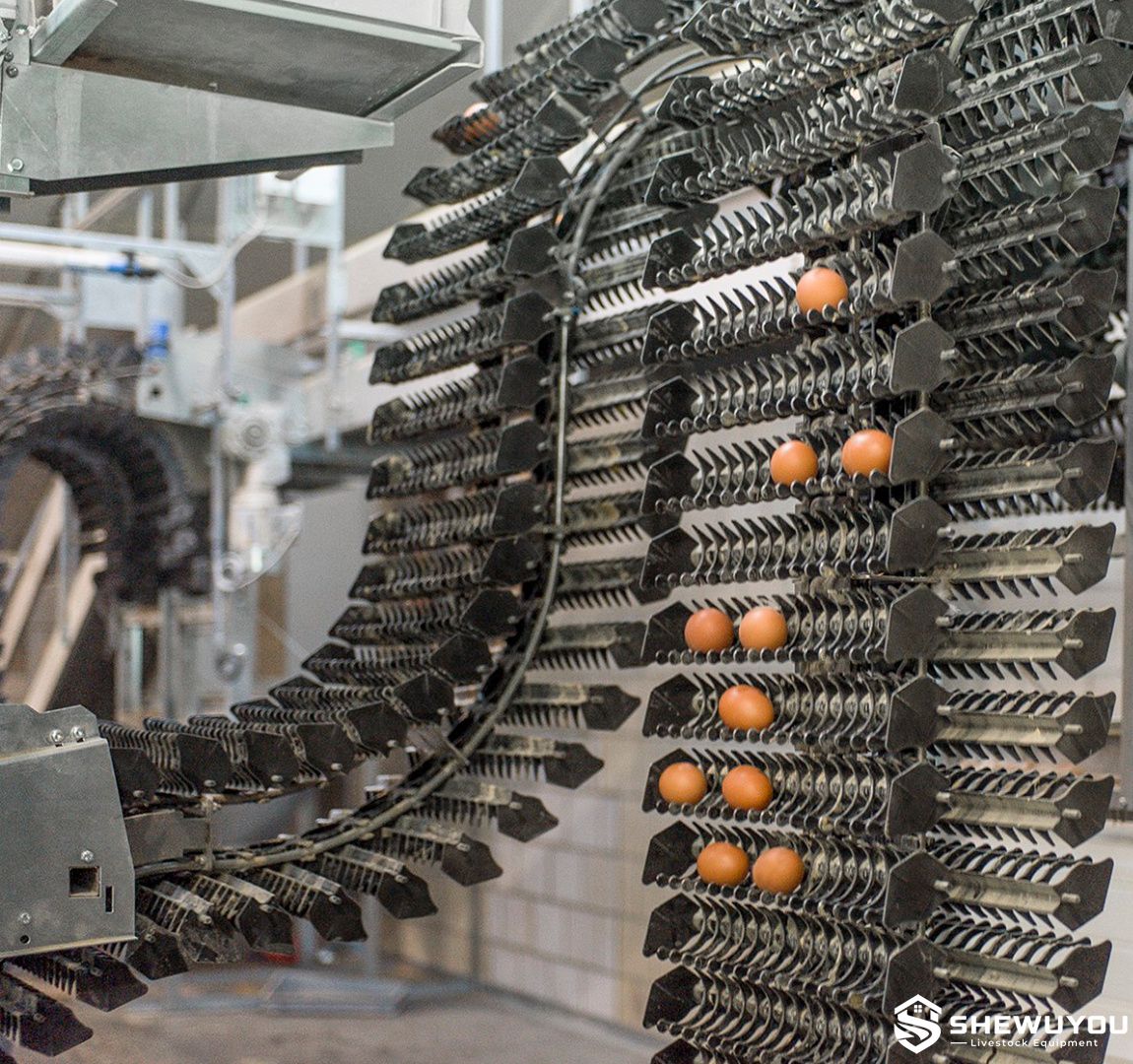

Eggs arrive from each longitudinal collection belt and enter the compact transfer system separately. Individual carriers support and guide the eggs through the required vertical and curved conveyor path.

The carrier system moves the eggs toward the main collection conveyor while maintaining controlled spacing and limiting unnecessary transfers. This arrangement helps provide a stable flow even when several poultry-house rows are feeding the centralized egg line.

At the discharge point, eggs are transferred onto the main conveyor for transport toward an egg collection table, grader, farm packer or centralized egg processing room.

• Commercial layer farms
• Layer breeder poultry houses
• Aviary egg production systems
• Multi-row poultry houses
• Poultry houses with offset cage or nest rows
• Facilities with restricted end-of-row installation space
• Centralized egg collection rooms
• Automatic egg grading and packing facilities
• Poultry farm renovation projects
• Steel structure poultry buildings
• Turnkey automated egg-production projects

• System height: Customizable
• Transfer route: According to project requirements
• Number of egg belt inlets: Customizable
• Egg belt spacing: According to poultry-house layout
• Main conveyor elevation: Available according to project requirements
• Collection capacity: Designed according to flock production targets
• Drive motor specification: Available upon request
• Variable-speed control: Available upon request
• Egg counter integration: Available upon request
• Grader and packer connection: Customizable
• Electrical controls: According to destination-market standards
• Complete egg transport layout: Designed according to poultry-house and steel structure building conditions

Installation starts with accurate measurement of each egg belt outlet, the required main conveyor elevation and available service space. Supporting frames should be positioned according to the approved poultry-house equipment layout.

Carrier tracks, transfer sections and drive assemblies should be aligned carefully to provide smooth egg movement. Inlet and discharge heights must be adjusted to minimize drop distance and ensure controlled transfer between conveyor sections.

Routine maintenance includes cleaning egg carriers, inspecting chain or belt tension, checking guide rails, lubricating approved drive components, inspecting motors and gearboxes, and removing broken shell fragments from transfer areas. Guards should remain securely installed during operation.

In a multi-row commercial layer house, separate longitudinal egg belts can feed individual inlet points of the compact transfer system. The eggs are then guided through a compact carrier path before entering one centralized main conveyor.

For retrofit projects where existing cage or nest rows are offset, the flexible transfer geometry allows the egg collection line to be redesigned without requiring every row to be vertically aligned. This can reduce structural modification requirements and simplify integration with existing poultry-house equipment.

Q: What is the main advantage of a compact egg transfer system?

A: It connects individual egg belts to a centralized conveyor while requiring less installation space than many conventional incline transfer layouts.

Q: Do the egg collection rows need to be vertically aligned?

A: No. Flexible system geometry allows egg belts positioned at different locations to connect with the main conveyor.

Q: How does the system protect egg quality?

A: Controlled carriers and a limited number of transfer points help reduce unnecessary impacts and egg-to-egg collisions.

Q: Can the system handle eggs from multiple rows?

A: Yes. Multiple individual egg belts can be connected according to the poultry-house layout and required collection capacity.

Q: Can an egg counter be integrated?

A: Yes. Compatible egg counting and production-monitoring equipment can be added according to project requirements.

Q: Can it connect directly to egg grading or packing equipment?

A: Yes. The main conveyor can be configured to transport eggs toward compatible collection tables, graders and farm packers.

Q: Can SHEWUYOU customize the complete egg transport layout?

A: Yes. System height, number of inlet belts, conveyor routing, collection capacity and downstream connections can be designed according to project requirements.
