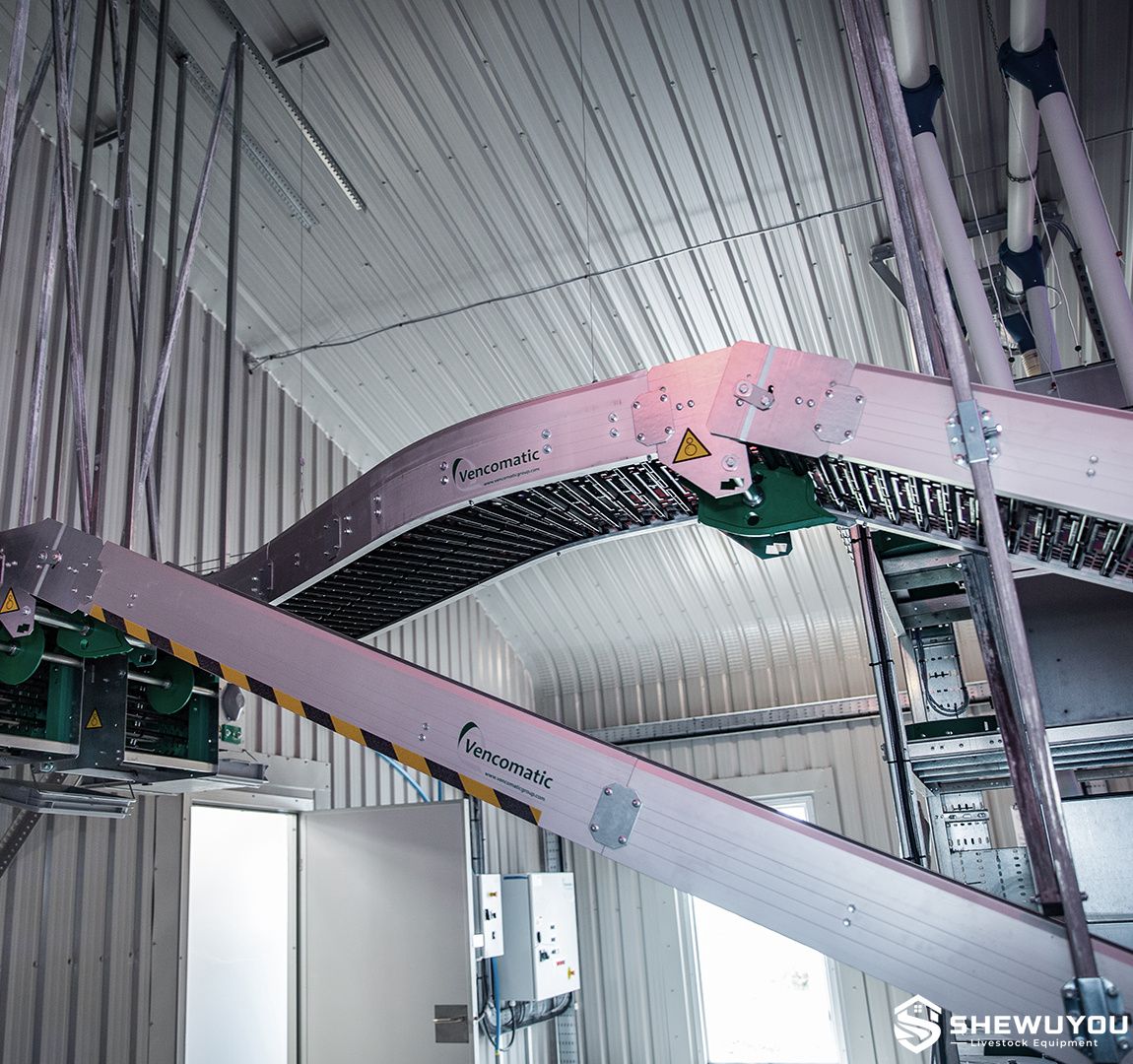

Multi-House Central Egg Conveyor System

The Multi-House Central Egg Conveyor System is an automatic egg transport solution designed to connect several poultry houses with one centralized egg collection, grading or packing room. Eggs from individual houses are transferred onto a main conveyor and transported continuously toward the central processing area.

The system uses a flexible conveyor layout that can incorporate straight runs, horizontal curves and inclined sections. This allows the transport route to pass between poultry houses, around structural obstacles and through different building elevations while maintaining controlled egg movement.

SHEWUYOU can configure conveyor width, route length, bend arrangement, inclination, drive position, support structure and transfer interfaces according to farm layout, egg production capacity and steel structure building conditions.

• Multi-house connection: Collects eggs from several poultry houses and transports them to one centralized egg room.

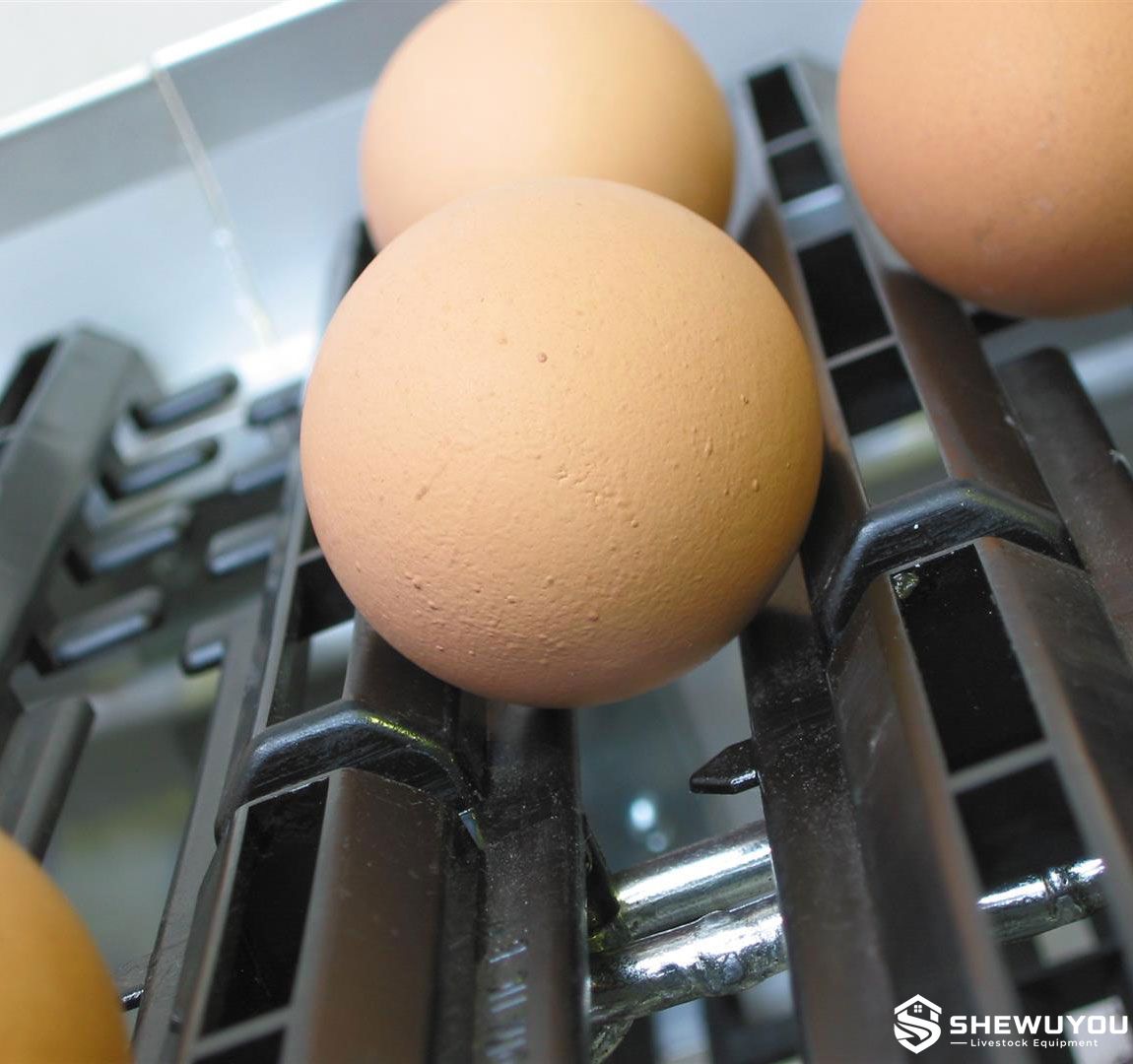

• Gentle egg handling: Supported carrier elements help reduce egg-to-egg contact and impact during transportation.
• Flexible routing: Straight, curved and inclined conveyor sections can be combined according to farm layout.
• Centralized collection: Reduces the need for separate egg handling operations in each poultry house.
• High transport efficiency: Suitable for continuous egg flow from large commercial layer and breeder farms.
• Open conveyor structure: Provides convenient inspection, cleaning and routine maintenance access.
• Modular construction: Conveyor routes can be expanded when additional poultry houses are added.
• Reduced manual handling: Automatic transport decreases repeated movement of egg trays or collection carts.
• Project-specific configuration: Conveyor dimensions and drive arrangements can be selected according to project requirements.

• Main Conveyor Frame: Supports the complete egg transport route between poultry houses and the egg room.

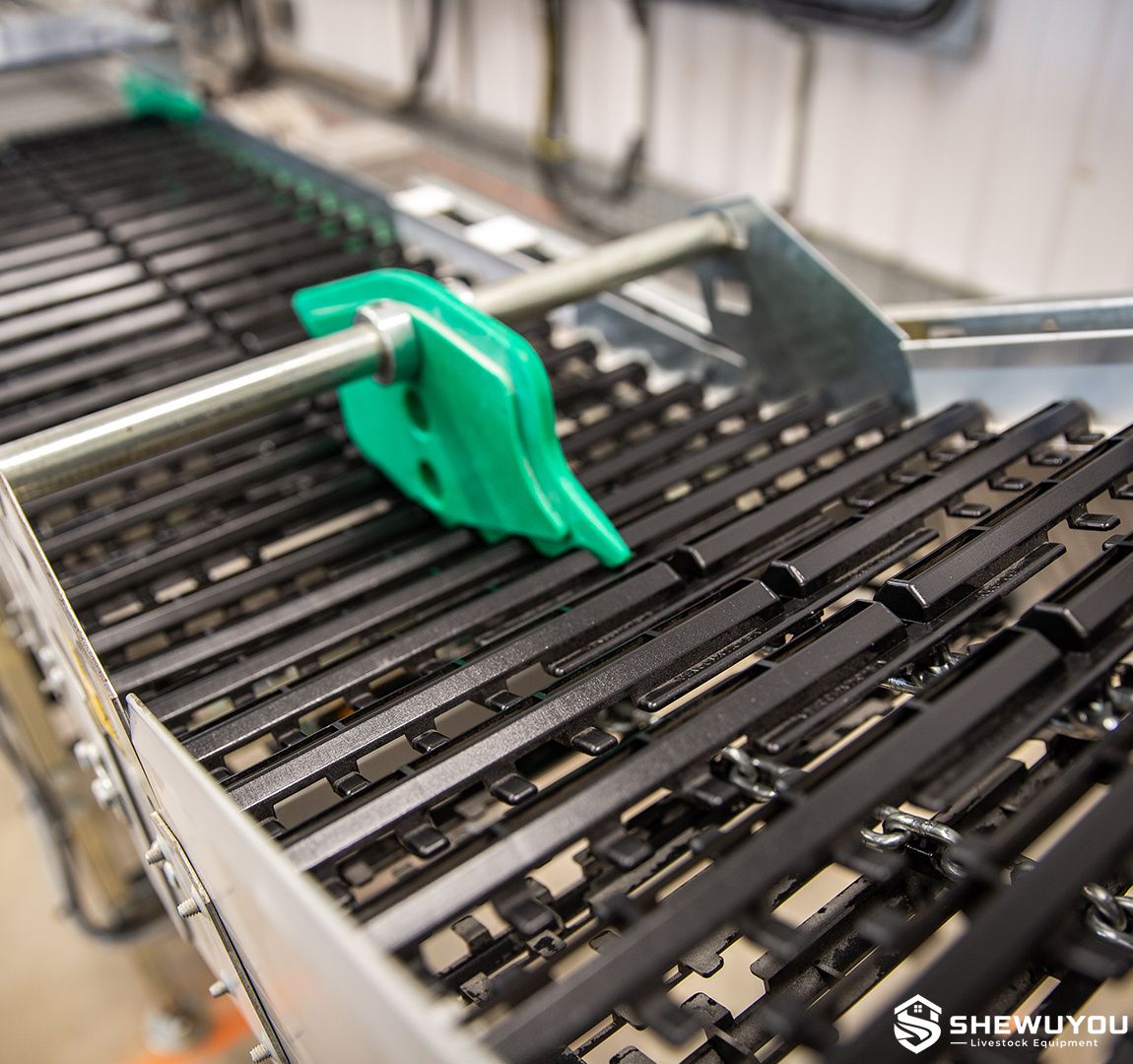

• Egg Carrier Elements: Provide continuous support for eggs during horizontal and inclined transportation.
• Central Drive Chain: Transfers motion through the conveyor system and supports flexible routing.
• Straight Conveyor Sections: Provide long-distance transport between farm buildings.
• Curve Sections: Allow the conveyor to change direction around walls, columns and equipment.
• Inclined Sections: Connect conveyor routes installed at different elevations.
• House Transfer Units: Receive eggs from individual house collection belts.
• Drive Units: Provide suitable power for different conveyor lengths and farm configurations.
• Tensioning Components: Maintain stable chain operation and correct conveyor tracking.
• Support Structure: Floor-mounted or suspended supports secure the conveyor route.
• Safety Guards: Protect drive and moving components where required.

Eggs are first collected by longitudinal belts or other automatic egg collection equipment inside each poultry house. At the house outlet, eggs pass through a controlled transfer section onto the central conveyor.

The conveyor carries eggs through the planned farm route using supported carrier elements. Curved sections change the transport direction, while inclined sections allow the conveyor to pass between different elevations without requiring repeated manual transfer.

Eggs from several houses are combined into one controlled flow and delivered to a centralized collection room, grader, farm packer or downstream processing system.

• Product Type: Multi-house central egg conveyor system
• Application: Automatic centralized egg collection and transport
• Suitable Poultry Houses: Layer and breeder production facilities
• Conveyor Width: Customizable
• Total Conveyor Length: According to project requirements
• Transport Capacity: Selected according to farm egg production and downstream equipment capacity
• Route Configuration: Straight, curved and inclined sections available
• Inclination: Designed according to site conditions and project requirements
• Curve Configuration: Available according to required farm routing
• Drive Arrangement: Selected according to system length and transport load
• Support Method: Floor-mounted or suspended installation
• Downstream Connection: Egg grader, farm packer, collection table or processing line
• Control System: Independent or centralized automatic control available upon request
• Operating Environment: Designed according to local climate and farm conditions

• Multi-house commercial layer farms
• Broiler breeder farms
• Layer breeder production facilities
• Centralized egg collection projects
• Egg grading and packing centers
• Large poultry farm complexes
• Automatic livestock equipment projects
• Existing poultry farm modernization
• New poultry farm construction
• Steel structure poultry building projects

• Number of poultry houses: System layout designed according to farm scale.
• Conveyor width: Selected according to required egg transport capacity.
• Transport route: Customizable according to farm master plan and egg-room location.
• Curve layout: Configured around buildings, structural columns and other farm equipment.
• Inclined sections: Available where different building elevations must be connected.
• Drive configuration: Selected according to conveyor length, routing and operating load.
• Support system: Floor-supported or suspended arrangements available.
• Transfer interfaces: Customized for different house egg belts and downstream equipment.
• Control integration: Can be coordinated with egg counters, collection belts and packing equipment.
• Complete project solution: Available according to poultry-house layout and steel structure building design.

Installation

1. Confirm the position of each poultry house, central egg room and egg collection outlet.
2. Prepare a complete conveyor route drawing including straight runs, curves and elevation changes.
3. Install floor supports or suspension brackets according to the approved layout.
4. Assemble straight, curved and inclined conveyor sections in sequence.
5. Install carrier elements, drive chains and tensioning components.
6. Connect each poultry-house egg belt to the corresponding transfer point.
7. Connect the main conveyor outlet to the egg grader, packer or collection table.
8. Install drive units, protective guards and electrical control components.
9. Run the conveyor without eggs to verify tracking, tension and alignment.
10. Perform a controlled egg-flow test before full production operation.

Maintenance

• Inspect drive chains and carrier components regularly.
• Maintain correct conveyor tension and alignment.
• Clean the open conveyor structure to prevent shell fragments and debris accumulation.
• Inspect horizontal curves and inclined sections for smooth operation.
• Check drive motors, bearings and transmission components according to the maintenance schedule.
• Inspect transfer points between individual houses and the central conveyor.
• Keep safety guards securely installed during operation.
• Replace worn carrier, chain or guide components when necessary.

Multi-house central egg conveyor systems are particularly suitable for large poultry complexes where several layer or breeder houses deliver eggs to one collection and packing center. SHEWUYOU can prepare the conveyor route according to farm master plans, poultry-house distances, expected egg volume, structural obstacles and the position of downstream processing equipment.

Q1: What is a Multi-House Central Egg Conveyor System?

It is an automatic conveyor network that transports eggs from several poultry houses to one centralized egg collection, grading or packing area.

Q2: Can one conveyor connect several poultry houses?

Yes. The system can combine egg flows from multiple houses according to farm layout and required collection capacity.

Q3: Can the conveyor make horizontal turns?

Yes. Curved sections can be incorporated to route the conveyor around buildings, columns and farm equipment.

Q4: Can eggs be transported between different elevations?

Yes. Inclined sections can be configured according to building height differences and project requirements.

Q5: How does the system help protect egg quality?

Supported carrier elements and controlled transfer sections help maintain smooth egg movement while limiting unnecessary impact and egg-to-egg contact.

Q6: Can the system connect directly to an egg packer?

Yes. The central conveyor can be configured to discharge into a collection table, grading line or automatic farm packer.

Q7: Can an existing farm be upgraded with a central conveyor?

Yes. Retrofit layouts can be designed after confirming building dimensions, existing egg collection equipment and available routing space.

Q8: Can the system be expanded when a new poultry house is built?

Yes. A modular conveyor layout can be designed with future farm expansion in mind.

Q9: Can SHEWUYOU design the complete egg collection route?

Yes. Conveyor routing, house connections, support structures and downstream equipment interfaces can be designed according to project requirements.
