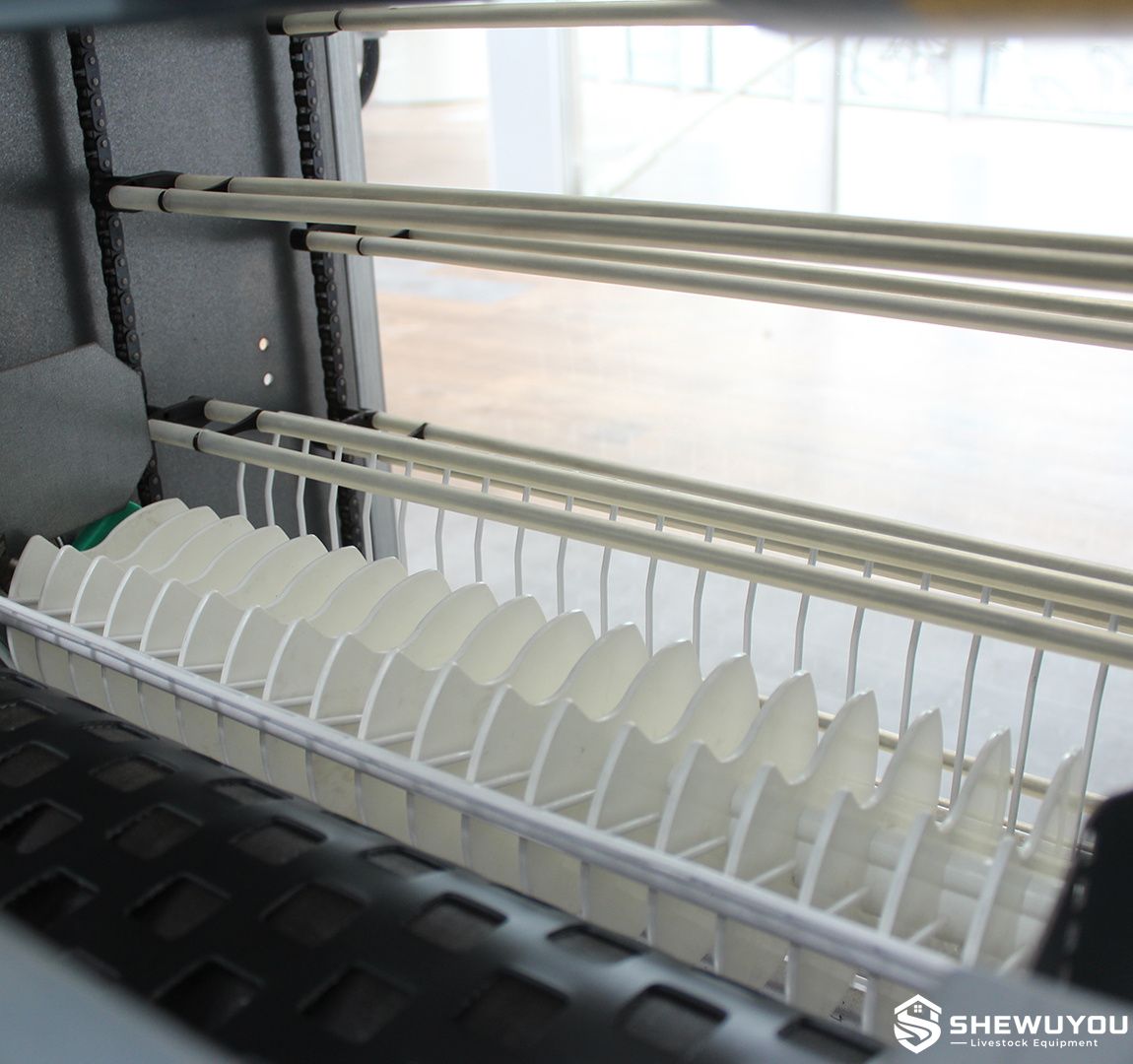

Compact Vertical Egg Elevator

The Compact Vertical Egg Elevator is an automatic egg transport system designed to collect eggs from one or multiple poultry-house egg belts and transfer them vertically to a central conveyor, cross conveyor or downstream egg handling line.

Its vertical configuration makes efficient use of available floor space, which is particularly valuable in commercial layer houses, breeder houses and multi-level poultry systems where several egg collection belts must be connected within a limited equipment area.

Eggs entering the elevator are distributed onto individual carriers and transported vertically through the machine. Soft-contact components and controlled transfer points help reduce unnecessary impact during movement, supporting gentle egg handling and a consistent flow toward the egg room.

The system can be integrated into new poultry farm construction or automatic egg collection upgrades. Elevator height, intake positions, belt interfaces, discharge arrangement and control configuration can be designed according to poultry-house layout and project requirements.

• Compact Vertical Transport: Transfers eggs between different heights while requiring limited floor space.
• Multiple Egg Belt Infeeds: Can collect eggs from several horizontal collection belts according to system configuration.
• Controlled Egg Intake: Regulated infeed helps distribute eggs more evenly onto the elevator carriers.
• Consistent Egg Flow: Supports stable transfer from poultry-house collection belts to the central egg conveyor.
• Gentle Egg Handling: Soft-contact components help minimize impact and unnecessary egg-to-equipment contact.
• Individual Carrier Transport: Eggs are supported during vertical movement instead of being allowed to fall between levels.
• Small Footprint: Suitable for poultry houses and egg rooms where available installation space is limited.
• Open Equipment Structure: Provides convenient visual inspection and access to major transport components.
• Multi-Level Integration: Suitable for connecting nest rows or egg belts installed at different elevations.
• Automatic Operation: Reduces manual egg transfer between poultry-house collection levels.
• Flexible System Layout: Intake and discharge arrangement can be matched to the farm's egg collection design.
• Commercial Farm Application: Designed for layer farms, breeder farms and large-scale poultry production projects.

• Vertical supporting frame
• Egg intake assemblies
• Egg transfer guides
• Individual egg carriers
• Carrier chain or circulating transport mechanism
• Upper and lower turning sections
• Drive motor and transmission unit
• Guide rails
• Egg discharge section
• Protective covers and guards
• Inspection and maintenance access areas
• Electrical control components
• Connection interface for central egg conveyor

Eggs arrive at the elevator from horizontal collection belts positioned at one or more levels. The intake mechanism regulates the incoming egg flow and guides eggs toward the moving carrier system.

Individual carriers pick up and support the eggs as the transport mechanism moves vertically through the elevator frame. Controlled spacing helps prevent excessive accumulation and maintains a more uniform flow through the system.

At the discharge level, eggs leave the carriers through a controlled transfer section and enter the connected cross conveyor or central egg transport line. From there, eggs can continue toward inspection, grading, packing or other downstream handling equipment.

By combining several egg belt levels into one vertical transport route, the elevator simplifies poultry-house egg collection while reducing the amount of floor space required for inclined conveyor arrangements.

Reference intake and belt-width data are based on a comparable commercial vertical egg elevator. Final capacity, height, intake arrangement, drive configuration and conveyor interfaces should be confirmed according to the poultry-house egg production and project layout.

• Commercial layer farms
• Breeder poultry farms
• Multi-tier poultry housing systems
• Multi-level nest systems
• Automatic egg collection systems
• Central egg conveyor systems
• Egg collection rooms
• Egg grading and packing lines
• Large-scale poultry farm projects
• Steel structure poultry houses
• New poultry farm construction
• Existing egg collection system upgrades

The Compact Vertical Egg Elevator can be configured according to poultry-house dimensions, egg production capacity, collection belt layout and downstream egg handling equipment.

• Elevator overall height
• Number of egg intake positions
• Egg belt width and connection interface
• Intake elevation
• Discharge elevation
• Transport capacity
• Carrier configuration
• Drive motor specification
• Operating speed
• Central conveyor connection
• Egg room layout integration
• Electrical voltage and frequency
• Automatic control configuration
• Safety protection components
• Complete egg collection line integration
• OEM / ODM project supply

Installation should be coordinated with the poultry-house egg belt elevations and the position of the central egg conveyor. Correct alignment at every transfer point is important for smooth egg flow and reliable long-term operation.

• Confirm poultry-house dimensions and egg belt elevations before equipment production.
• Prepare a stable mounting position according to the approved equipment layout.
• Install and align the vertical supporting frame.
• Connect each egg intake section accurately with the corresponding collection belt.
• Align the discharge section with the central conveyor or downstream handling line.
• Check carrier movement and chain or transmission tension before operation.
• Test the system initially without eggs to verify correct rotation and alignment.
• Run a controlled egg test and inspect every transfer point.
• Keep carriers and guide components free from feathers, dust and broken-shell material.
• Inspect drive, transmission and tensioning components at scheduled intervals.
• Check guards, sensors and emergency-stop devices according to the maintenance program.
• Replace worn soft-contact components before they affect egg handling quality.
• Disconnect and isolate electrical power before maintenance work.

Q1: What is a vertical egg elevator used for?

It transfers eggs vertically between poultry-house collection belts and a central egg conveyor, helping automate egg movement from different elevations.

Q2: Why use an elevator instead of a long inclined conveyor?

A vertical elevator requires less floor space and is particularly useful where several egg belts must be connected within a compact equipment area.

Q3: Can several egg belts feed one elevator?

Yes. Multi-infeed configurations are available. A comparable commercial system supports up to four intake positions, while final configuration depends on project requirements.

Q4: How are eggs protected during vertical transport?

Eggs are supported by individual carriers and guided through controlled transfer points. Soft-contact components can be used to reduce impact during handling.

Q5: Can the elevator connect to multi-level nest rows?

Yes. Vertical egg elevators are suitable for connecting egg collection belts or nest rows positioned at different heights.

Q6: Can the elevator height be customized?

Yes. Overall height, intake elevations and discharge level can be configured according to the poultry-house and egg-room layout.

Q7: Is the system suitable for existing poultry houses?

Yes, subject to site dimensions and compatibility with existing egg belts. Retrofit layouts should be confirmed before production.

Q8: Can SHEWUYOU provide the complete automatic egg collection line?

Yes. The elevator can be configured together with egg belts, cross conveyors, central conveyors, control equipment and downstream egg handling systems according to project requirements.
