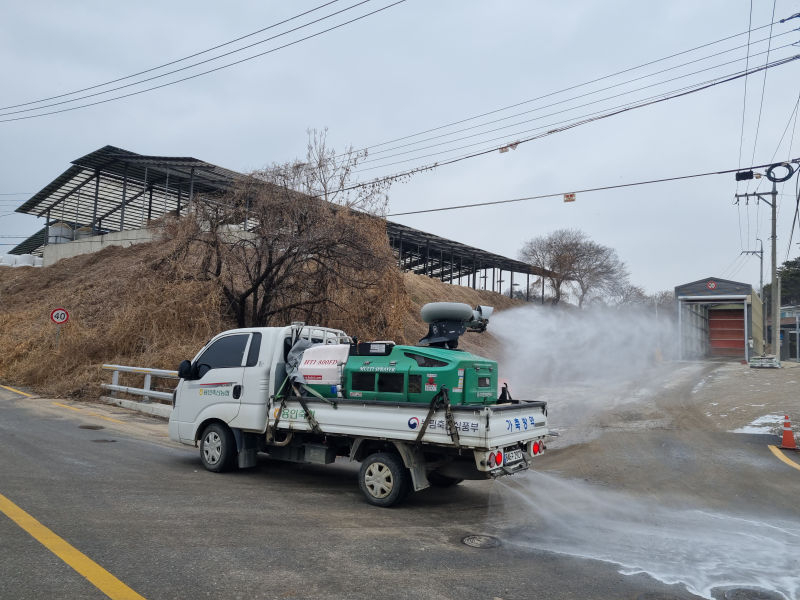

Mobile High Pressure Vehicle Disinfection Unit

• Self-Contained Operation: Integrated water storage and pressure equipment reduce dependence on fixed water and power infrastructure.
• High-Pressure Cleaning: Pressurized water helps remove soil, manure, dust and organic residues from suitable vehicle and equipment surfaces.
• Mobile Deployment: Suitable for mounting on appropriate pickups, trailers, utility vehicles and UTV platforms.
• Vehicle Biosecurity Support: Provides a practical pre-cleaning and chemical application solution for vehicles entering or leaving controlled farm areas.
• Integrated Chemical System: A separate chemical tank or dosing arrangement can be configured for compatible cleaning or disinfection products.
• Filtration Protection: In-line filtration helps protect the pump and spray circuit from particles in the water supply.
• Long-Reach Hose: High-pressure hose configurations provide working access around vehicles, livestock buildings and farm equipment.
• Adjustable Spray Equipment: Spray guns and optional lances can be selected for different cleaning and application tasks.
• Forkliftable Steel Frame: Integrated forklift pockets simplify loading and relocation.
• Durable Agricultural Construction: Hot-dip galvanized steel and UV-resistant PE tank materials are suitable for demanding outdoor conditions.
• Trailer Option: An optional wheeled chassis can convert the equipment into an independently towable mobile pressure-washing unit.
• Project-Specific Engineering: Main components and accessories can be configured according to farm conditions and vehicle requirements.

• Water Storage Tank: UV-resistant polyethylene tank provides onboard water storage for mobile operation.
• High-Pressure Pump: Engine-driven pump supplies pressurized water for cleaning and liquid application.
• Engine Assembly: Gasoline-powered configurations provide independent operation where external electrical power is unavailable.
• Chemical Tank: Separate chemical storage supports compatible detergent or disinfectant application.
• Filtration System: Fine filtration helps protect the pump and liquid circuit from particles.
• High-Pressure Hose: Flexible hose provides working reach around vehicles, livestock houses and agricultural machinery.
• Washing Gun: Adjustable spray equipment provides controlled application for different cleaning requirements.
• Galvanized Steel Underframe: Fully welded structural frame supports the tank, pump and accessories.
• Forklift Pockets: Four-way access allows convenient handling with suitable lifting equipment.
• Hose Stand or Hose Reel: Manual or automatic hose-reel configurations are available according to project requirements.
• Optional Trailer Chassis: A wheeled chassis can be added where independent towing is required.

Reference values are based on comparable mobile high-pressure configurations. Final pressure, flow rate, tank capacity, dimensions, weight, engine, hose arrangement and accessories should be confirmed according to the selected model and project requirements.

• Commercial Pig Farms: Vehicle cleaning, loading-area sanitation, farm machinery washing and preparation before approved disinfection procedures.
• Poultry Farms: Cleaning poultry-house service areas, equipment, transport equipment and suitable external surfaces.
• Cattle and Dairy Farms: Mobile sanitation support for livestock facilities, machinery and washable farm surfaces.
• Livestock Transport: Pre-cleaning of livestock transporters, trailers, wheels and suitable external vehicle surfaces.
• Breeding and Quarantine Facilities: Mobile cleaning support for controlled farm zones and equipment.
• Farm Vehicle Biosecurity: Cleaning vehicles before chemical disinfection where required by the farm's biosecurity procedure.
• Agricultural Machinery: Cleaning tractors, trailers, utility vehicles and other machinery before movement between biosecurity zones.
• Farm Equipment: Washing feeders, panels, carts, crates, tools and other compatible washable equipment.
• Agricultural Engineering Projects: Mobile cleaning equipment for contractors working across multiple livestock facilities.
• Farm Service Contractors: Flexible cleaning and chemical application equipment for professional agricultural service providers.

• Water Tank Capacity: 300 L, 600 L or other capacities according to operating time and vehicle payload.
• Pump Performance: Pressure and flow can be selected according to cleaning intensity and application requirements.
• Chemical Dosing: Separate chemical tank and dosing arrangements can be configured for compatible detergents or disinfectants.
• Hose Length: 15 m, 30 m or project-specific hose configurations available upon request.
• Hose Reel: Manual or automatic reel options can be selected according to workflow requirements.
• Vehicle Mounting: The steel base can be engineered for suitable pickups, trailers, UTVs, utility vehicles and other carriers.
• Trailer Conversion: Optional wheeled chassis can provide independent towing and on-site mobility.
• Spray Accessories: TURBO lances, short high-pressure guns, washing brooms and other accessories can be configured.
• Tank Baffles: Internal baffles can be added where required to reduce liquid movement during transport.
• Material Selection: Liquid-contact materials can be selected according to chemical compatibility and operating conditions.
• Climate Adaptation: The equipment can be designed according to local temperature, humidity, water quality and farm conditions.
• OEM / ODM: Branding, packaging, documentation, spare parts and project-specific engineering are available according to project requirements.

Installation: The unit is supplied as an integrated mobile assembly. It can be loaded onto a suitable pickup, trailer or utility vehicle using the forklift pockets and secured according to the carrier manufacturer's load and mounting requirements.

1. Confirm the carrier payload, mounting area and weight distribution before installation.
2. Position the unit on a stable load-bearing platform.
3. Secure the steel frame against movement during transport and operation.
4. Check the water tank, pump, engine, hose, spray gun, filter and chemical system before use.
5. Fill the water tank with a suitable clean water source.
6. Use only chemicals confirmed to be compatible with the equipment.
7. Remove heavy organic contamination before disinfectant application where required by the farm sanitation procedure.
8. Follow the selected disinfectant manufacturer's concentration, coverage and contact-time requirements.
9. Flush the liquid circuit with clean water after chemical application when appropriate.
10. Clean filters regularly to maintain stable water flow and protect the pump.
11. Inspect high-pressure hoses, fittings, spray guns and connections for wear or leakage.
12. Maintain the engine and pump according to the applicable manufacturer's service schedule.
13. Inspect the galvanized steel frame, forklift pockets and mounting points periodically.
14. Drain or protect the water system against freezing where required by local climate.
15. Store the unit in a clean, dry and protected area when not in service.

Q: What is a Mobile High Pressure Vehicle Disinfection Unit?
A: It is a mobile cleaning and sanitation platform combining an onboard water tank, high-pressure pump, filtration system, hose equipment and chemical dosing arrangement for livestock farms and agricultural facilities.

Q: Is it suitable for commercial pig farms?
A: Yes. It can support vehicle cleaning, livestock-house sanitation, equipment washing and approved disinfection procedures in commercial pig farms and other livestock facilities.

Q: Can it operate without a fixed water connection?
A: Yes. The integrated water tank provides onboard water storage, allowing mobile operation where a fixed water connection is unavailable, subject to the selected tank capacity.

Q: Does the unit require external electricity?
A: A gasoline-engine-driven configuration can operate independently of mains electricity at the treatment location.

Q: What pressure and flow are available?
A: Selected configurations can provide adjustable pressure up to approximately 170 bar and pump flow up to approximately 9.5 L/min. Final performance depends on the selected pump configuration.

Q: Can disinfectant be applied through the unit?
A: Yes, where the selected chemical is compatible with the equipment and the application method follows the chemical manufacturer's instructions and the farm's approved biosecurity procedure.

Q: Can the unit be mounted on a pickup truck?
A: Yes. The forkliftable steel frame can be configured for suitable pickups, trailers, UTVs, utility vehicles and other carriers, subject to payload and mounting requirements.

Q: What tank capacities are available?
A: Reference configurations include 300 L and 600 L tanks. Other capacities can be designed according to operating time, vehicle payload and project requirements.

Q: Can a hose reel be installed?
A: Yes. Manual hose stands and automatic hose reels can be selected, with hose lengths configured according to the working area.

Q: Is a trailer configuration available?
A: Yes. An optional wheeled chassis can convert the mobile unit into a towable configuration for suitable applications.

Q: Can the system be customized for an international livestock project?
A: Yes. Tank capacity, pump performance, chemical dosing, hose system, vehicle mounting, trailer configuration, spray accessories, materials and documentation can be customized according to local climate, farm conditions and project requirements.
