Backwash Sand Filter for Livestock Wastewater

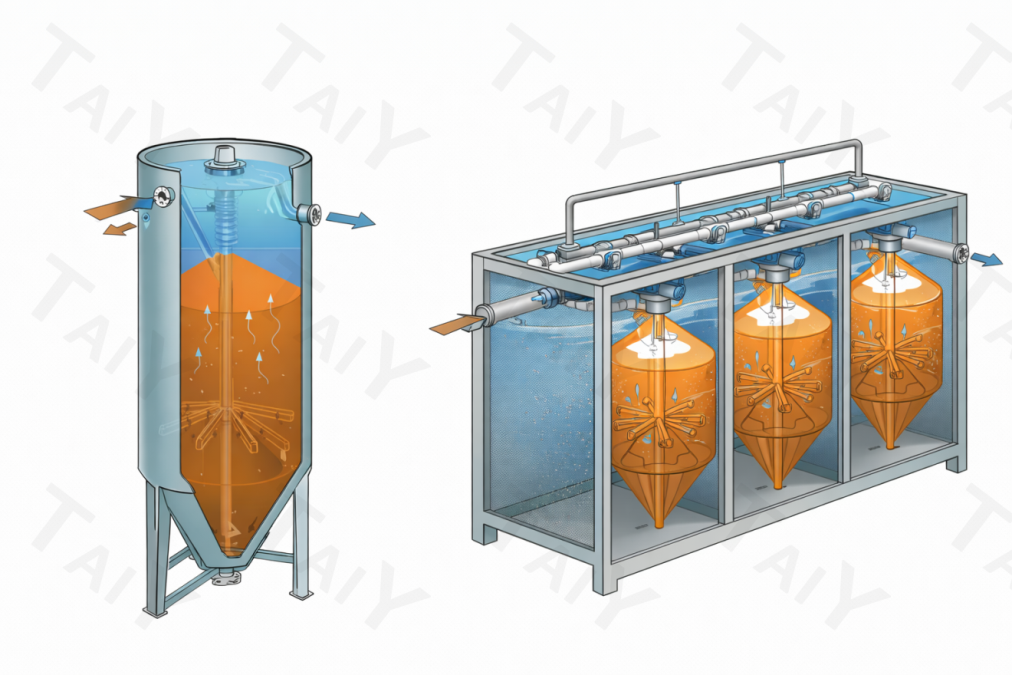

Illustrative manufacturer reference image; the supplied configuration depends on the project.

The Backwash Sand Filter for Livestock Wastewater is a granular media filtration unit intended to reduce residual suspended solids in pretreated farm effluent. In a continuous backwash configuration, wastewater passes upward through a sand bed while a separate internal circuit lifts, washes and returns the filter media. Filtration continues as the sand is cleaned.

For commercial pig farms, the filter is typically considered after appropriate screening, solids separation and biological or clarification stages. Its position and sizing depend on the incoming water quality and the required downstream process.

• Deep sand bed captures residual particulate matter from pretreated wastewater.
• Continuous media washing allows filtration without a separate shutdown for each backwash cycle.
• Dedicated reject outlet directs wash water and removed solids to further handling.
• Packaged or civil-tank arrangements can be evaluated according to site capacity and layout.
• Accessible air, inlet, outlet and reject connections support routine inspection.

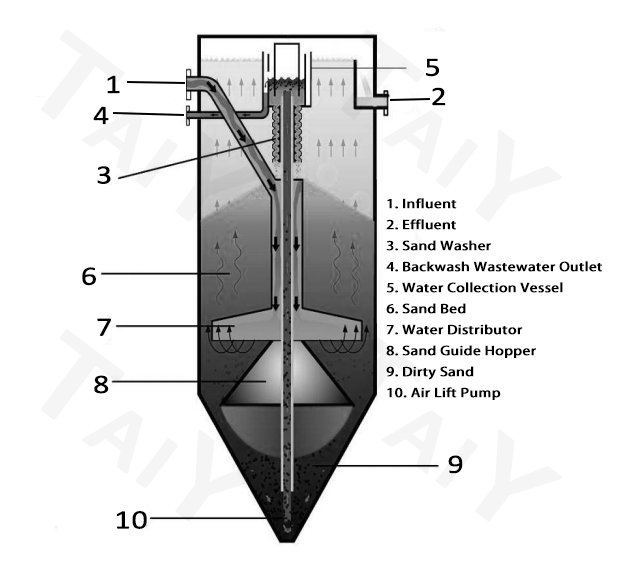

A typical continuous backwash arrangement includes a filter vessel or concrete cell, influent distribution assembly, sand media bed, filtrate collection outlet, airlift, sand washer, reject-water outlet and air supply connection. The vessel material, access provisions and associated controls are selected for the approved project design.

Pretreated wastewater is distributed near the bottom of the sand bed and flows upward through the media. Retained particles remain within the bed as filtered water leaves through the upper outlet. An airlift conveys sand from the lower part of the filter to a washer. Separated impurities leave with the reject stream, and cleaned sand returns to the top of the bed. The reject stream must be routed into the farm wastewater treatment plan.

• Design flow and number of filter units: According to project requirements.
• Filter area, vessel dimensions and media specification: Customizable following water-quality and hydraulic review.
• Vessel and wetted-part materials: Available upon request.
• Air supply and reject-water connections: According to project requirements.
• Installation environment: Designed according to local climate and farm conditions.
• Target filtrate quality: Determined from influent testing, treatment objectives and the complete process design.

Final solids polishing in commercial pig farm wastewater plants, livestock effluent treatment upgrades and agricultural wastewater reuse systems. Additional disinfection or other treatment may be required where the filtered water is intended for a specific reuse or discharge application.

Filter capacity, media selection, tank arrangement, connection positions, access platform and control interfaces can be reviewed against the farm’s process flow diagram. For new pig farm construction, the foundation and service access can be coordinated with the wastewater building or adjacent steel structure building.

Provide a level foundation or suitable civil filter cell, influent and filtrate pipework, compressed-air supply, reject-water drainage and safe access for inspection. Commissioning should confirm water distribution, sand circulation and reject flow. Routine checks include media level, airlift operation, washer condition, pipe connections and filtrate quality; maintenance intervals depend on the wastewater and operating conditions.

Can this filter treat raw pig manure wastewater directly?
It is intended for pretreated wastewater. Raw manure solids and high solids loads should be addressed by suitable upstream treatment before filter selection.

Does filtration stop while the sand is washed?
In the continuous backwash configuration described here, sand cleaning takes place while filtration continues.

What information is needed for sizing?
Provide average and peak flow, influent suspended solids and turbidity, available site space, upstream treatment details, desired filtrate quality and the planned destination for the reject stream.

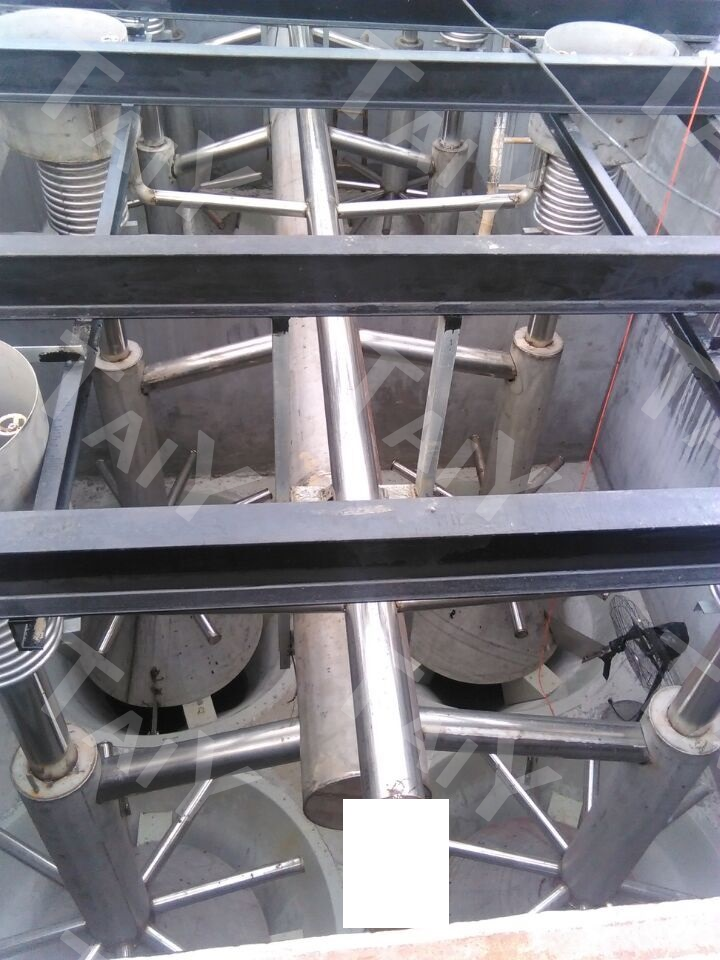

Illustrative manufacturer reference images; final equipment and installation details vary by project.
