Long-Handle Boar Gate

The Long-Handle Boar Gate is a specialized pig breeding gate designed to improve operator safety and workflow during sow heat detection and artificial insemination. Its extended operating handle allows the gate to be opened and controlled from outside the boar passage or mating area.

The gate can be configured for one-direction opening with a mechanical stop, helping operators close the passage quickly after the boar has moved to the required position. Reversible installation allows the opening direction to be adapted to different barn layouts.

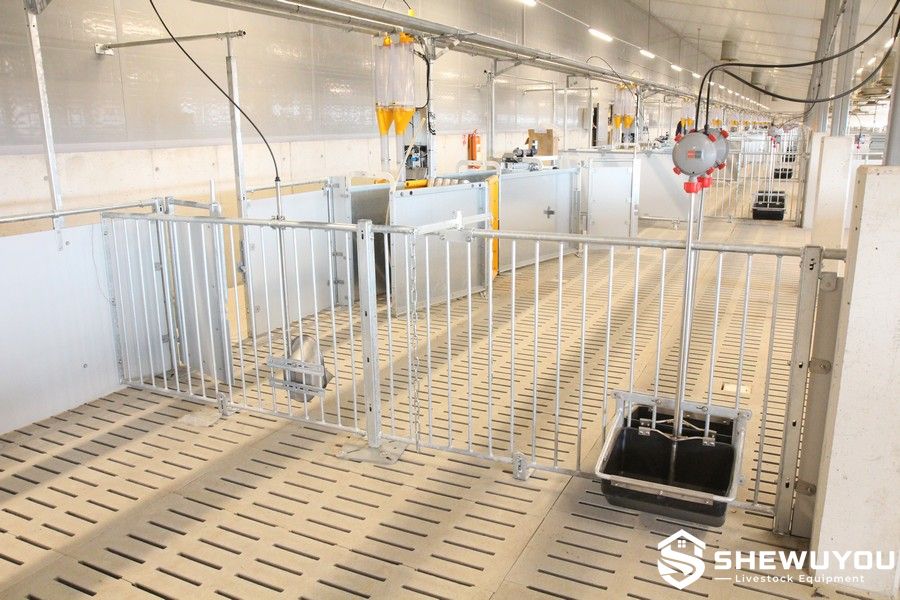

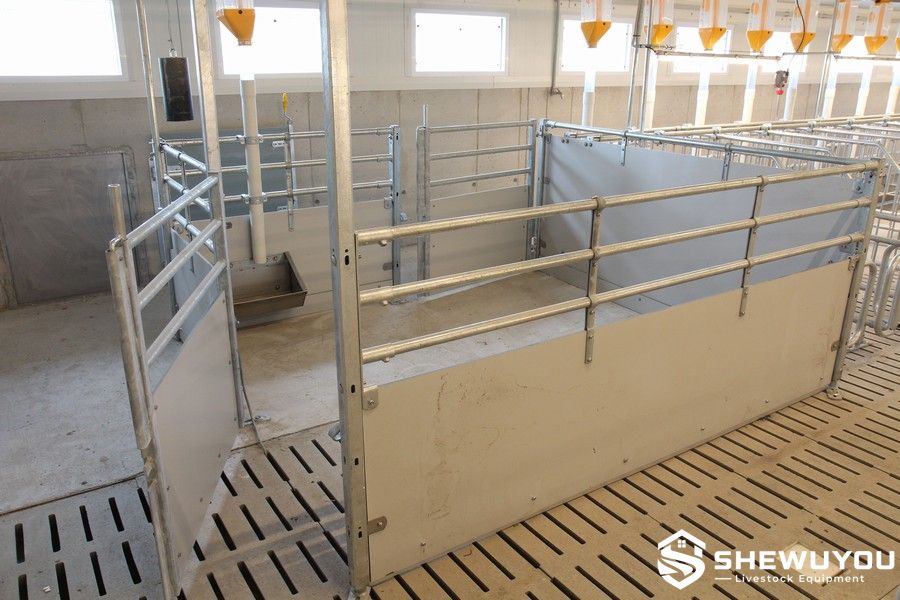

The system is suitable for commercial sow farms, breeding centers and insemination units and can be integrated with galvanized mating stalls, boar passages, concrete floors or slatted flooring systems.

• Remote Gate Operation: The extended handle allows operators to control the gate without entering the boar passage.
• Improved Working Safety: Helps maintain greater separation between personnel and breeding boars during daily handling.
• One-Way Opening: A mechanical stop can limit gate movement to one direction for controlled animal flow.
• Reversible Installation: The gate can be configured for right-hand or left-hand operation according to the pig house layout.
• Easy Closure: Designed for quick closing after the boar passes through the gate.
• On-Site Adjustment: Installation and operating position can be adjusted according to project conditions.
• Robust Construction: Heavy-duty metal components are suitable for demanding commercial swine breeding environments.
• Flexible Integration: Compatible with mating stalls, sow insemination areas, boar alleys and breeding pen systems.

• Gate Frame: Reinforced steel frame designed to withstand regular contact with adult boars.
• Gate Panel: Steel bar, solid panel or combined construction according to project requirements.

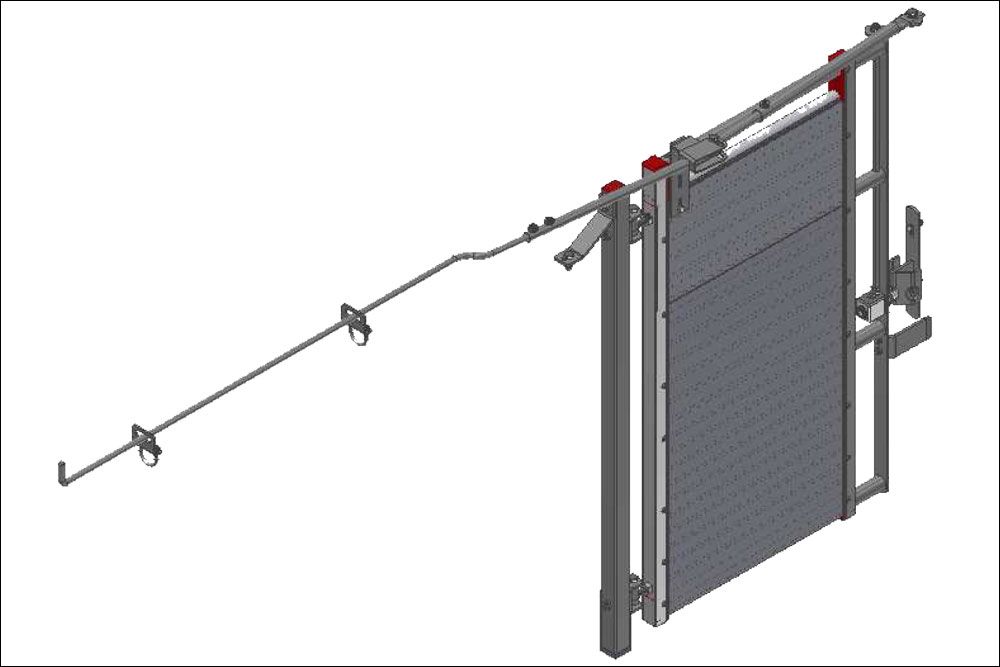

• Extended Operating Handle: Long-distance manual control mechanism positioned outside the animal passage.
• Pivot and Hinge Assembly: Heavy-duty connection system allowing smooth gate movement.
• Mechanical Stop: Limits the opening direction and supports controlled closing.
• Support Posts: Galvanized steel structural posts or compatible mating-stall frames.
• Mounting Hardware: Bolts, anchors, brackets and floor fixing components selected according to installation conditions.

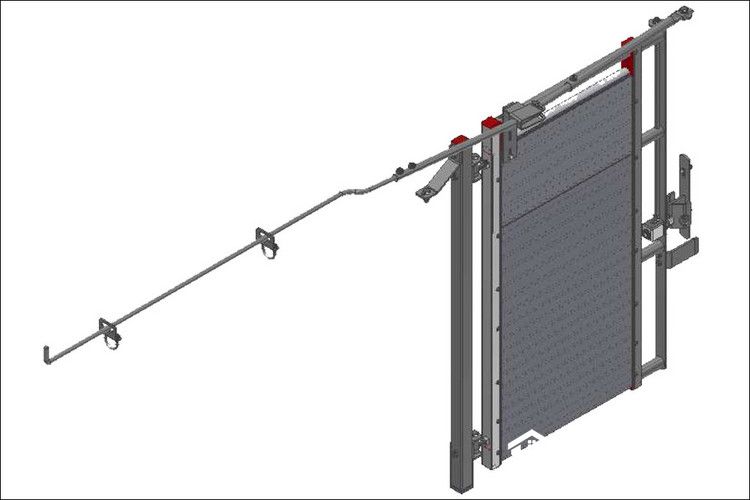

The gate is installed within a boar passage or adjacent to sow mating stalls. The extended handle transfers the operator's movement to the gate through a mechanical linkage, allowing the gate to be opened from outside the animal handling area.

After the boar enters the required section, the operator closes the gate to control its movement along the sow row. This arrangement can support efficient boar exposure for heat detection and stimulation during insemination procedures.

The opening direction, handle position and gate mounting orientation can be selected according to aisle configuration and workflow requirements.

• Commercial sow insemination units
• Boar stimulation passages
• Heat detection areas
• Mating and breeding barns
• Artificial insemination facilities
• Gilt breeding units
• Large-scale sow farms
• Steel structure pig houses
• Pig farm renovation and breeding equipment upgrade projects

• Gate height and width
• Long-handle length and operating position
• Right-hand or left-hand installation
• Steel bar or solid-panel gate construction
• Galvanized steel or alternative corrosion-resistant materials
• Mechanical stop configuration
• Concrete-floor or slatted-floor mounting
• Integration with mating stalls and boar passages
• Complete configuration according to pig house drawings and project requirements

Installation:

• Confirm the boar passage width, gate opening direction and operator position.
• Install structural posts or connect the gate to the compatible mating-stall frame.
• Mount the gate hinges and verify free movement.
• Install the extended operating handle and linkage brackets.
• Adjust the mechanical stop for the required opening direction.
• Test gate operation and confirm that all fasteners are secure before use.

Maintenance:

• Inspect hinges, handle joints and mechanical stops regularly.
• Check bolts, anchors and structural connections for looseness.
• Clean manure and contamination from moving parts during routine barn washing.
• Repair damaged galvanized surfaces when necessary.
• Replace excessively worn operating components to maintain reliable gate control.

Q1: What is the main advantage of a long-handle boar gate?

The extended handle allows the operator to open and close the gate from outside the boar passage, improving working convenience and reducing unnecessary close contact with the animal.

Q2: Is the opening direction reversible?

Yes. Right-hand or left-hand configurations can be selected according to the mating-unit layout.

Q3: Can the gate size be customized?

Yes. Gate dimensions and handle length can be designed according to aisle width, stall configuration and project requirements.

Q4: Can it be installed on slatted flooring?

Yes. Suitable mounting brackets and anchors can be selected for compatible slatted-floor structures.

Q5: Can it be integrated with existing mating stalls?

Yes. The mounting arrangement can be customized for existing or newly installed sow mating and insemination equipment.

Q6: What information is required for a quotation?

Please provide the pig house drawing, boar passage width, required gate dimensions, opening direction, flooring type, mating-stall configuration and project location.
