Heavy-Duty Boar Pen

The Heavy-Duty Boar Pen is a reinforced livestock housing system designed for mature breeding boars in commercial pig farms, artificial insemination centers, nucleus farms and breeding units. Because mature boars impose significantly higher mechanical loads on penning than younger pigs, the system emphasizes structural stability, secure gates, reliable floor anchoring and corrosion-resistant materials.

The pen can be configured with a combination of solid plastic panels and galvanized steel bars, heavy-duty 50 mm plastic panels, or solid panels combined with galvanized or stainless steel contact grids. High support posts connected by galvanized top rails can be incorporated where additional structural reinforcement is required.

Modular construction allows the boar pen to be adapted to new steel-structure pig houses, existing breeding barns and boar stud facilities. Feeding troughs, drinking equipment, flooring, gates and neighboring contact sections can be selected according to farm management requirements and local animal welfare standards.

• Heavy-duty construction designed for mature breeding boars and intensive commercial use.
• Reinforced galvanized steel posts provide increased resistance to animal impact.
• Available with panel-and-steel-bar partitions, 50 mm solid plastic panels or combined configurations.
• Optional high support posts and galvanized top rails provide additional structural stability.
• Galvanized or stainless steel contact grids can allow controlled contact between neighboring animals where required.
• Smooth solid-panel surfaces support efficient washing and disinfection.
• Strong gate assemblies help maintain secure containment of mature boars.
• Gate width and opening direction can be customized according to animal-flow requirements.
• Stainless steel floor mounting components are available for corrosion-resistant installation.
• Compatible with water cups, nipple or bite-valve drinking equipment.
• Compatible with dry feeders, feeding troughs and project-specific feeding arrangements.
• Can be adapted to new or existing floors and different floor slopes.
• Suitable for individual boar housing, breeding units and artificial insemination facilities.

• Heavy-Duty Support Posts: Reinforced galvanized steel posts provide the main structural support for boar pen partitions.
• Solid Lower Panels: Livestock-grade plastic panels can create a durable lower barrier and reduce direct contact at floor level.
• Vertical Steel Bars: Galvanized bars can be incorporated above solid panels for visibility and ventilation.
• 50 mm Plastic Panels: Heavy-duty solid panels are available where a fully enclosed partition is preferred.
• High Reinforcement Posts: Extended posts can be connected by galvanized top rails to increase overall rigidity.
• Contact Grids: Galvanized or stainless steel grids can be incorporated where controlled animal contact is required.
• Boar Gate: Reinforced swing or project-specific gate provides secure entry and exit.
• Gate Lock: Heavy-duty livestock-grade locking hardware helps prevent accidental opening.
• Floor Mountings: Stainless steel brackets, base plates and mechanical anchors secure the system to the barn floor.
• Feeding Equipment: Stainless steel, polymer or project-specific feeding troughs can be installed.
• Drinking Equipment: Water cups, nipple drinkers or bite valves can be connected to centralized water pipelines.

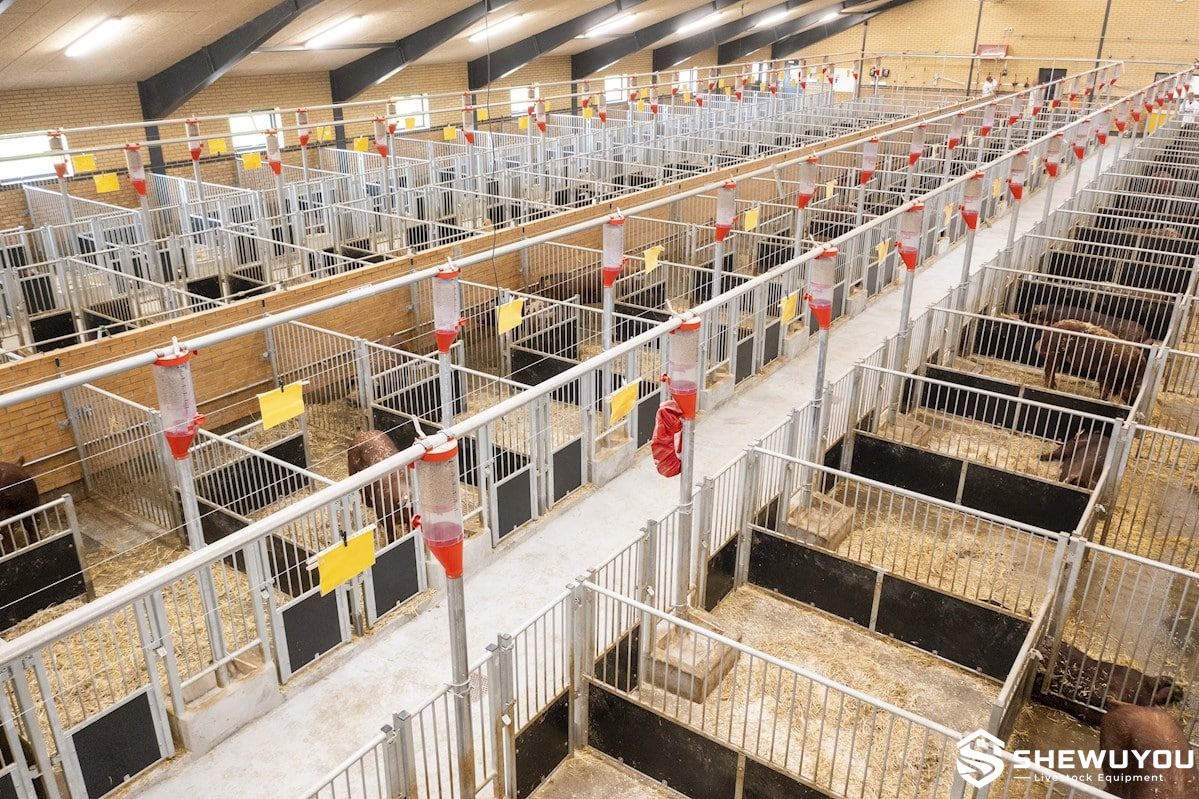

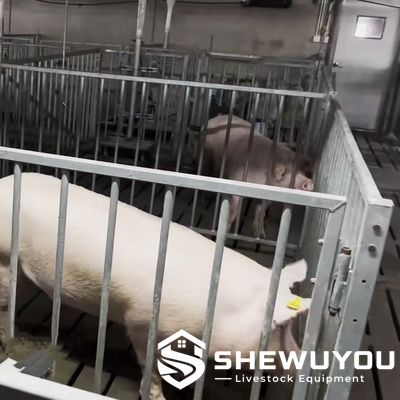

The boar is housed in an individual reinforced pen that provides sufficient separation from neighboring animals while allowing controlled observation, feeding, watering and breeding management. Mechanical loads created when the animal pushes against the pen are transferred from the partition panels and steel bars through the reinforced support posts into the floor anchoring system.

For installations requiring increased stability, taller steel posts can be connected with galvanized horizontal pipes or top rails. This creates a reinforced upper structure that reduces movement of long partition runs and gates.

Solid lower panels can reduce direct contact and contamination between pens, while open steel grids can be positioned in selected areas when controlled social contact or improved visibility is desired.

The gate arrangement provides controlled access for animal transfer, collection procedures, health inspection and routine cleaning while maintaining secure containment during normal operation.

• Commercial breeding boar houses
• Artificial insemination boar studs
• Semen collection centers
• Nucleus and multiplier breeding farms
• Gilt and sow breeding units requiring boar housing
• Boar isolation and observation pens
• Large-scale integrated pig farms
• Steel-structure pig houses
• Prefabricated livestock buildings
• Existing breeding-barn renovation
• Turnkey commercial pig breeding projects

• Pen length, width and partition height
• Panel-and-steel-bar or full-panel configuration
• 12 mm reinforced lower plastic panel configuration
• 50 mm heavy-duty solid plastic panel configuration
• Galvanized or stainless steel contact grids
• Standard or high reinforcement posts
• Galvanized upper support rail
• Support-post dimensions and reinforcement level
• Gate width, height and opening direction
• Gate locking configuration
• Stainless steel floor mounting components
• Feeding trough type and location
• Water cup, nipple or bite-valve drinking system
• Solid or slatted flooring integration
• Controlled contact sections between neighboring boars
• New-building or retrofit installation
• Designed according to local climate and farm conditions

Installation:

• Confirm boar-house dimensions, required pen sizes, service aisles and animal-flow routes.
• Determine feeding, drinking and manure-management arrangements before fixing pen positions.
• Check the floor structure and slope before marking support-post locations.
• Install heavy-duty galvanized support posts and stainless steel floor fittings.
• Install solid panels, steel-bar sections or 50 mm plastic panels according to the selected configuration.
• Install high reinforcement posts and upper galvanized rails where specified.
• Fit contact grids in locations requiring controlled contact with neighboring animals.
• Install reinforced gates, hinges and secure locking hardware.
• Install feeding troughs, water lines and drinking equipment.
• Check anchors, structural alignment, gates, sharp edges and all animal-contact surfaces before commissioning.

Maintenance:

• Inspect structural posts, floor anchors and reinforcement rails regularly.
• Check gates, hinges and locking hardware frequently because mature boars create high mechanical loads.
• Remove manure, bedding and feed residues from gate and floor-mounting areas.
• Wash and disinfect panels and steel components according to the farm biosecurity program.
• Inspect galvanized coatings for mechanical damage.
• Check contact grids and welded joints for deformation or sharp edges.
• Inspect feeding troughs for accumulated or spoiled feed.
• Check water cups, nipple drinkers and pipelines for leakage or blockage.
• Replace damaged structural or gate components promptly to maintain safe containment.

Q: Why does a boar pen require heavier construction than a standard pig pen?
A: Mature boars generate significantly higher mechanical loads against partitions and gates. Reinforced posts, strong anchoring and heavy-duty gate assemblies are therefore important for long-term stability and secure containment.

Q: What partition configurations are available?
A: The pen can use reinforced plastic panels with steel bars, heavy-duty 50 mm solid plastic panels, or combinations with galvanized or stainless steel contact grids.

Q: What pen height can be supplied?
A: Common heavy-duty configurations include approximately 1000 mm, 1100 mm or 1200 mm pen-side heights. Final dimensions should be selected according to animal size, project requirements and local regulations.

Q: Can additional structural reinforcement be added?
A: Yes. High support posts connected by galvanized upper rails can be incorporated where increased stability is required.

Q: Can neighboring boars have controlled contact?
A: Yes. Galvanized or stainless steel contact grids can be incorporated in selected partition areas according to the breeding and management strategy.

Q: Can pen dimensions be customized?
A: Yes. Length, width, height, gate dimensions, partition configuration and reinforcement can be designed according to project requirements.

Q: What drinking equipment can be installed?
A: Water cups, nipple drinkers or bite valves can be incorporated with a centralized water supply system.

Q: Can the boar pen be installed in an existing building?
A: Yes. Modular configurations can be adapted to existing breeding barns after evaluating floor condition, slope, available space, manure handling and service aisles.

Q: Is the system suitable for artificial insemination centers?
A: Yes. Heavy-duty individual boar pens are suitable for commercial boar studs and semen-production facilities when designed together with appropriate collection, handling, ventilation and biosecurity areas.

Q: What information is required for a quotation?
A: Please provide the number of boars, barn dimensions, preferred pen dimensions, animal size, flooring type, feeding and drinking requirements, project location and available building or equipment layout drawings.
