PVC Pig Pen Partition Panels

PVC Pig Pen Partition Panels are modular livestock housing components designed for constructing solid pen walls, gates, section partitions and internal barriers in commercial pig houses. Their smooth, non-porous surfaces and corrosion-resistant construction make them particularly suitable for environments exposed to moisture, manure, frequent washing and routine disinfection.

The hollow PVC profiles use internal reinforcing ribs or zig-zag lamellas to improve resistance to bending, pressure and torsional loads. Interlocking edges allow multiple boards to be joined into continuous partitions, while sealing strips can provide tighter joints and help reduce the accumulation of manure and organic material between panels.

PVC boards can be combined with stainless steel U-profiles, galvanized steel posts, horizontal pipes, gates and floor brackets to create complete penning systems for weaners, grower pigs, finishers and other pig production stages. The modular design is suitable for new steel-structure pig houses and renovation of existing livestock buildings.

• Durable PVC construction for demanding commercial pig-house environments.
• Internal reinforcing ribs improve pressure and torsional stability.
• Smooth, non-porous surfaces support efficient washing and disinfection.
• Corrosion-resistant material performs well in humid livestock buildings.
• Interlocking board profiles support fast and efficient modular assembly.
• Tight-fitting joints help reduce manure and dirt penetration between panels.
• Rounded profiles and smooth edges help improve animal safety.
• Compatible with stainless steel U-profiles and galvanized support posts.
• Can be combined with steel grids, horizontal bars and full-width gates.
• Suitable for closed partitions or semi-open pen configurations.
• Available in different board heights and thicknesses according to project requirements.
• Easy to cut and adapt during new construction or barn renovation.
• Suitable for modular installation in large-scale commercial pig farms.

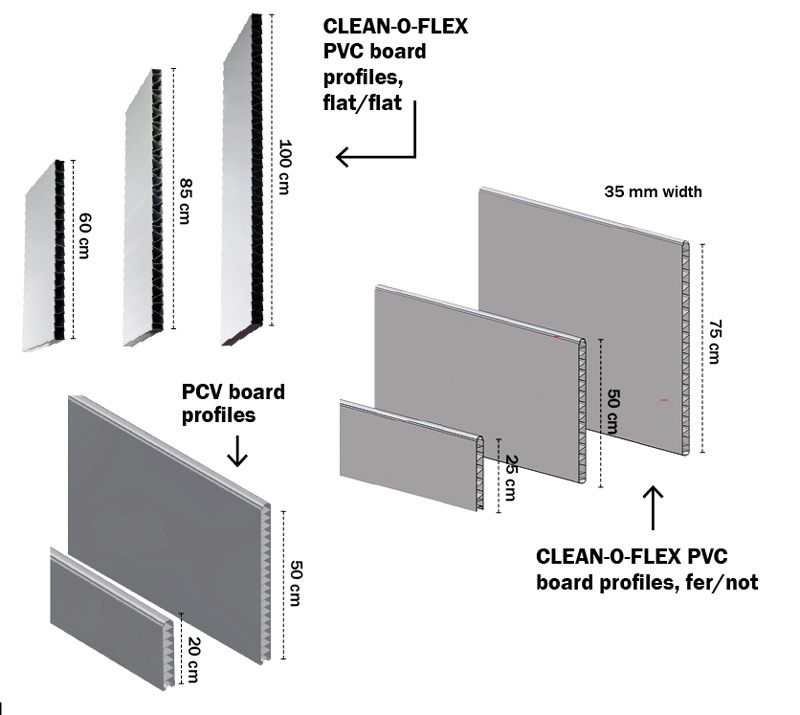

• PVC Board Profiles: Hollow livestock-grade PVC panels with reinforced internal rib structures provide the main solid partition surface.
• Interlocking Joint: Tongue-and-groove or compatible click-type connections join multiple profiles into a continuous wall.
• Internal Reinforcement: Zig-zag or chambered ribs improve panel rigidity while maintaining manageable component weight.
• Rubber Sealing Strip: Optional sealing material along panel edges helps create tighter, more hygienic joints.
• Stainless Steel U-Profiles: Vertical profiles hold panel edges securely and provide structural reinforcement.
• Galvanized Steel Posts: Floor-mounted posts transfer animal loads from the partition into the building structure.
• Floor Profiles: Bottom profiles can provide a smooth transition between the PVC wall and concrete or slatted flooring.
• Top Profiles: Protective or reinforcing top sections complete the partition and improve structural stability.

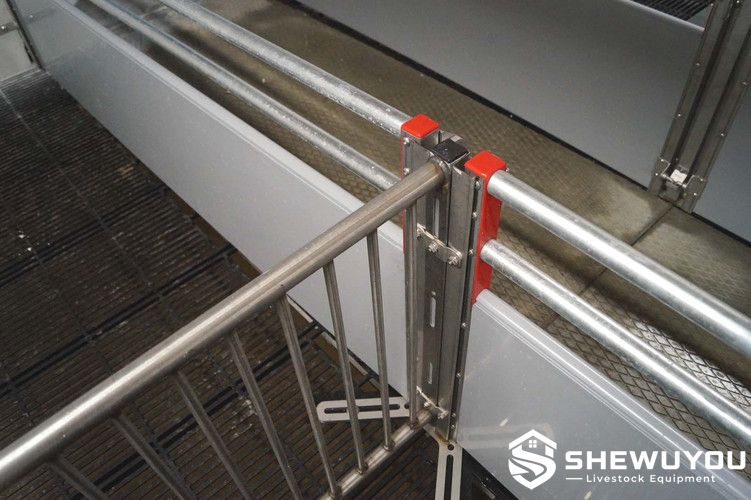

• Gate Components: PVC boards can be incorporated into livestock gates using stainless steel or galvanized steel frames.
• Fasteners: Stainless steel bolts, concrete anchors, brackets and livestock-grade fittings provide secure installation.

Individual PVC profiles are connected vertically or horizontally according to the selected partition design. Their interlocking edges create a continuous solid wall, while internal ribs resist bending and twisting caused by animal pressure and routine farm operation.

The completed panel assembly is secured inside stainless steel or galvanized structural profiles. Loads are transferred through the side profiles and support posts into floor brackets or mechanical anchors, providing a stable modular pen structure.

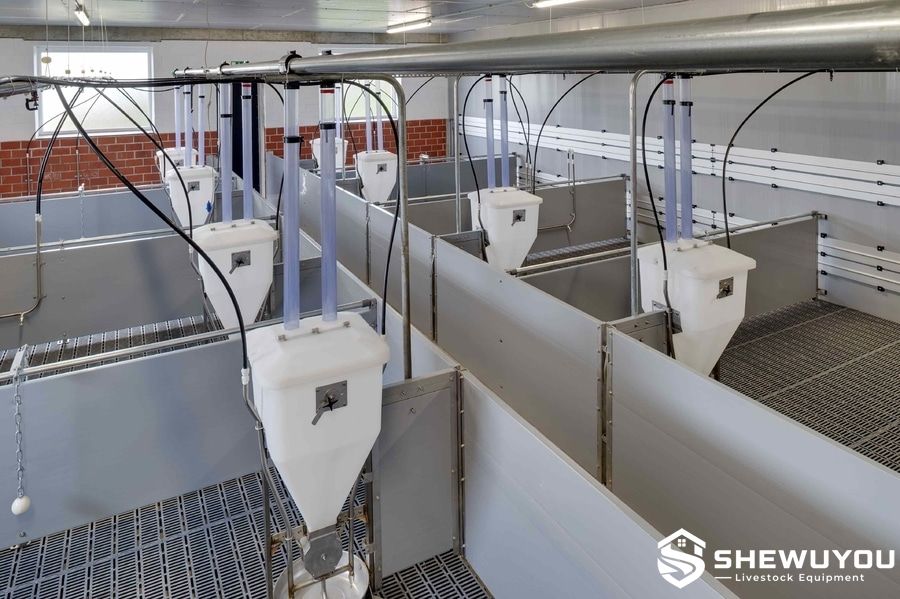

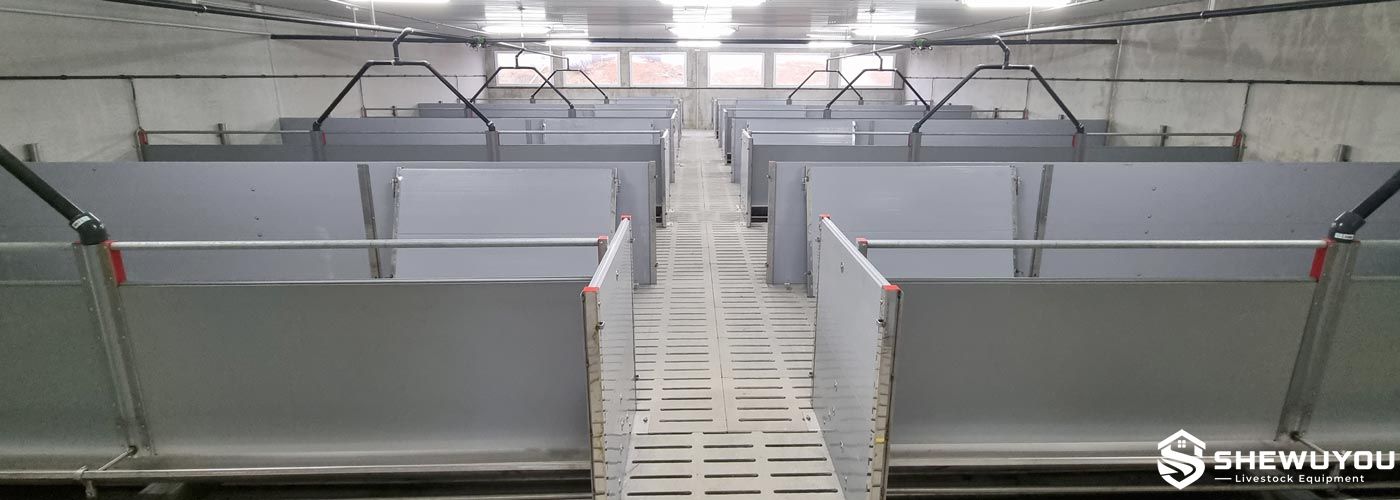

Solid PVC walls can separate resting areas or neighboring pig groups, while selected sections can be combined with galvanized or stainless steel grids when additional air movement, visibility or animal contact is required.

Smooth surfaces and tightly fitted joints reduce inaccessible cavities and simplify pressure washing, helping commercial farms maintain effective cleaning and biosecurity routines between production batches.

• Piglet nursery pen partitions
• Wean-to-finish pig pens
• Grower pig housing
• Finishing pig pens
• Gilt development pens
• Sow housing partitions with suitable heavy-duty configurations
• Internal pig house section walls
• Pen gates and access barriers
• Feeding-area partitions
• Commercial steel-structure pig houses
• Prefabricated livestock buildings
• Existing pig barn renovation and modernization
• Turnkey commercial pig farm construction projects

• 35 mm or heavy-duty 40 mm board profile configuration
• Panel height and overall partition height
• Profile length according to barn dimensions
• Panel color according to availability and project requirements
• Flat, tongue-and-groove or compatible interlocking edge configuration
• Stainless steel U-profile dimensions
• Galvanized or stainless steel support-post arrangement
• Solid-panel or semi-open partition design
• PVC panel and galvanized grid combinations
• Upper horizontal pipe configuration
• Full-width or sectional gate integration
• Floor-mounted or project-specific support brackets
• Dry feeding or liquid feeding interface
• Water-line and drinking-equipment integration
• New-build or renovation installation
• Designed according to local climate and farm conditions

Installation:

• Confirm the pig-house layout, partition dimensions, gate locations and floor structure before installation.
• Cut PVC profiles to the required project dimensions where field adjustment is necessary.
• Install floor profiles, U-profiles or galvanized support posts according to the approved layout.
• Insert the PVC boards into the profiles and connect adjacent panels using the designed interlocking system.
• Install sealing strips where required to create tighter joints.
• Install top profiles, reinforcing pipes or grid sections according to the selected configuration.
• Secure support posts and brackets using suitable stainless steel or corrosion-resistant anchors.
• Install gates, feeding equipment and water-line components where required.
• Check panel alignment, joints, fasteners and all animal-contact edges before commissioning.

Maintenance:

• Remove manure and feed residues before pressure washing.
• Wash and disinfect PVC surfaces according to the farm biosecurity program.
• Inspect joints and bottom profiles for accumulated organic material.
• Check U-profiles, support posts and floor anchors periodically.
• Inspect PVC panels for impact damage, deformation or cracked edges.
• Check gates, locks and hinges for correct operation.
• Use cleaning agents compatible with PVC and the installed metal components.
• Replace damaged boards or fittings promptly to maintain structural integrity and animal safety.

Q: Why are PVC panels widely used in commercial pig pens?
A: PVC panels provide corrosion resistance, smooth hygienic surfaces and modular installation, making them well suited to livestock buildings that require frequent washing and disinfection.

Q: What makes reinforced PVC board profiles strong?
A: Internal chambered or zig-zag ribs increase resistance to pressure, bending and twisting while maintaining a relatively lightweight modular structure.

Q: What thicknesses are available?
A: 35 mm profiles are commonly used for pig pen partitions, while heavier 40 mm configurations can be supplied for applications requiring additional rigidity.

Q: Can the panels be cut to custom lengths?
A: Yes. PVC profiles can be supplied or cut according to project dimensions, subject to the selected profile and installation system.

Q: Can PVC panels be combined with steel grids?

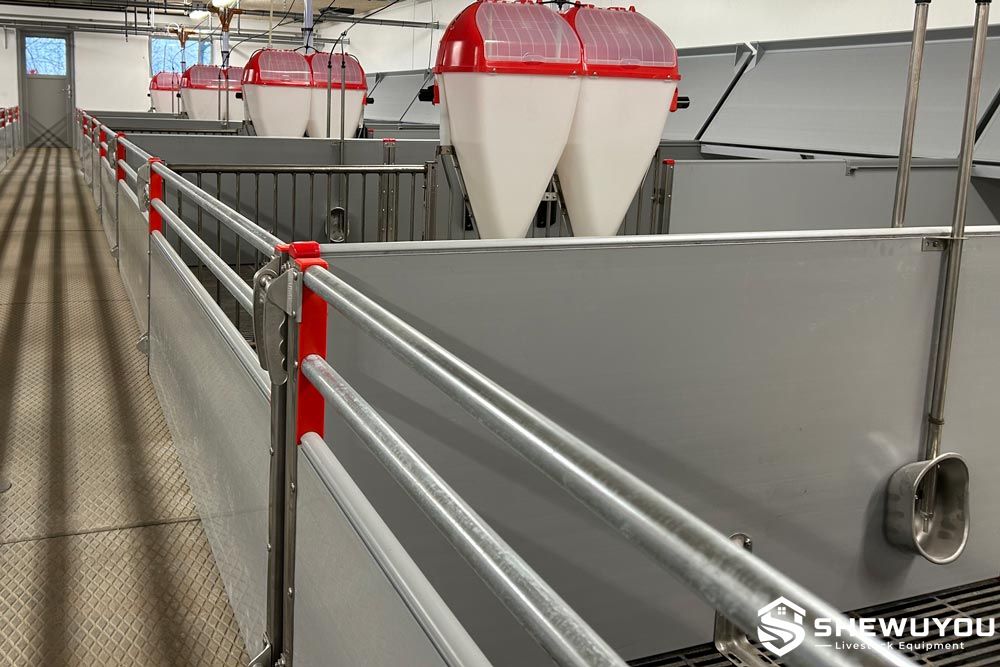

A: Yes. Solid PVC lower partitions can be combined with galvanized or stainless steel grids and horizontal pipes where additional ventilation, visibility or animal contact is required.

Q: Are stainless steel profiles recommended?
A: Stainless steel U-profiles are commonly used because they provide corrosion resistance, structural support and close-fitting connections around PVC boards.

Q: Can the panels be used for gates?

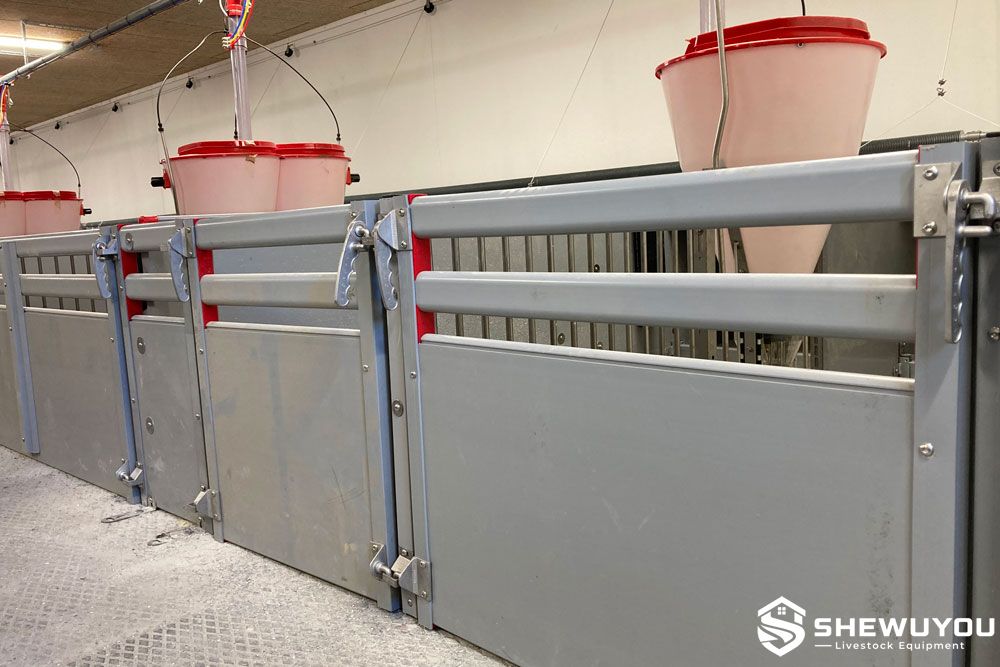

A: Yes. PVC boards can be incorporated into galvanized or stainless steel gate frames to create solid or semi-open livestock gates.

Q: Are PVC partitions suitable for both nursery and finishing pigs?
A: Yes. Panel height, structural reinforcement, gate configuration and support spacing can be adapted according to animal size and production stage.

Q: Can the panels be installed in an existing pig house?
A: Yes. Their modular construction makes PVC board systems suitable for both new construction and renovation projects after the existing floor, dimensions and equipment layout have been evaluated.

Q: What information is required for a quotation?
A: Please provide the pig production stage, required partition height and length, total project quantity, preferred panel thickness, gate requirements, floor type, project location and available pig-house layout drawings.
