Product Name

Galvanized Steel Pig Pen Fencing

Product Image

Product Overview

Galvanized Steel Pig Pen Fencing is a heavy-duty modular penning and gating system designed for commercial swine facilities. Welded steel panels, structural uprights, gate assemblies and corrosion-resistant fixing components create durable partitions for nursery pigs, wean-to-finish pigs, finishing pigs, gilts and breeding animals.

The open horizontal-bar construction provides good visibility and air movement while securely separating pig groups. Bar spacing can be designed closer toward the lower section of the panel to improve containment of smaller pigs and provide additional strength in areas exposed to frequent animal contact.

The fencing system can be configured as wall-to-wall, aisle-to-wall, aisle-to-feeder, feeder-to-wall or customized pen layouts. Modular posts, bolt-on legs, wall brackets, feeder brackets, gate rods and floor anchors simplify installation in both new steel-structure pig houses and existing barn renovation projects.

Hot-dip galvanized surfaces provide enhanced corrosion resistance for humid, manure-intensive livestock environments and support long service life with routine cleaning and maintenance.

Key Features

Heavy-Duty Welded Steel Construction: Horizontal rods, bottom rails and vertical uprights form a rigid enclosure suitable for intensive commercial pig production.
Hot-Dip Galvanized Protection: Zinc-coated steel provides improved resistance to moisture, manure gases, washing water and aggressive barn conditions.
Optimized Bar Arrangement: Lower horizontal rods can be positioned more closely to improve containment and structural strength where pigs exert the greatest pressure.
Modular Pen Layout: Panels, gates, posts and brackets can be combined into multiple pen configurations according to barn drawings.
Flexible Gate Integration: Swing gates, alley gates, feeder-side gates and customized access sections are available according to project requirements.
Good Ventilation and Visibility: Open steel-bar construction supports airflow and allows farm personnel to observe pigs easily.
Compatible with Slatted Floors: Suitable fixing systems can be selected for concrete slatted or solid-floor pig houses.

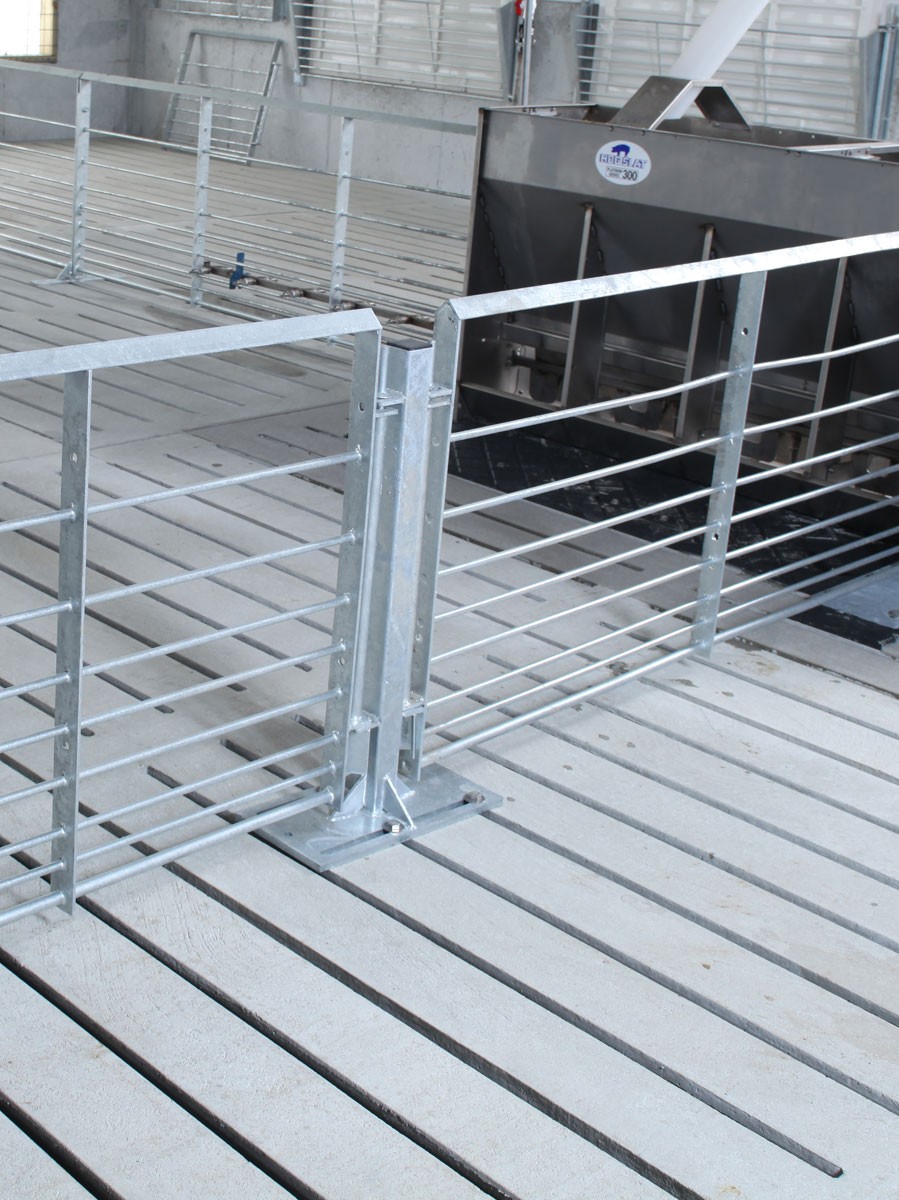

Feeder Integration: Dedicated brackets can connect fencing directly to commercial pig feeders or solid walls.
Easy Replacement and Expansion: Modular panels and accessories simplify future barn modification or replacement of individual components.
Commercial Farm Durability: Designed for repeated loading, animal contact, cleaning and daily operation in high-density swine facilities.

Structural Components

Horizontal Steel Rods: Form the primary pig-containment structure and distribute animal loads across the panel.
Heavy Bottom Rail: Reinforced lower member withstands repeated contact from growing and finishing pigs.
Vertical Uprights: Welded structural members maintain panel alignment and rigidity.
Top Rail: Provides longitudinal reinforcement and a smooth upper boundary for each fencing section.

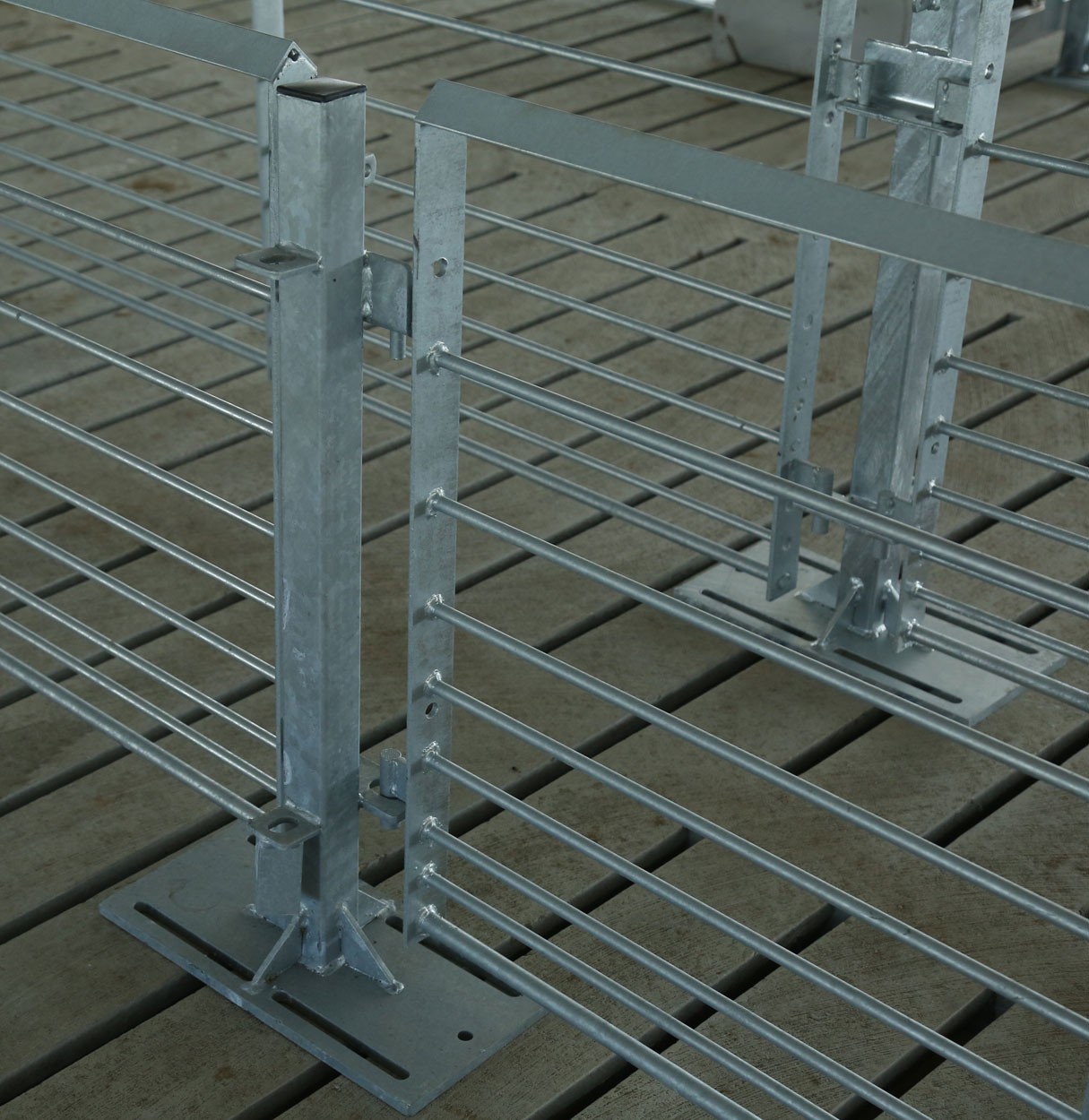

Structural Posts: Flat-bar, square-tube or project-specific posts support junctions, long panel runs and gate openings.
Bolt-On Legs: Allow fencing panels to be secured to compatible solid or slatted flooring.
Base Plates and Floor Anchors: Transfer panel and animal loads safely into the barn floor structure.
Gate Rods and Hinge Components: Provide simple and durable pivoting connections for access gates.
Gate Latches: Livestock-grade locking devices provide convenient opening while maintaining secure containment.
Wall and Feeder Brackets: Connect fencing sections to concrete walls, steel structures or feeding equipment.
Clips and Divider Connections: Join adjacent panels and simplify modular barn installation.

Working Principle / Structural Principle

The fencing system forms rigid modular boundaries between pig groups, feeding areas, service alleys and animal movement routes. Horizontal steel rods resist lateral pressure from pigs while vertical uprights and structural posts transfer loads to floor-mounted supports.

The lower section of the panel can use closer rod spacing to provide better containment for smaller animals and increase structural reinforcement in the zone exposed to the greatest pig contact.

Individual panels are connected to posts, walls, feeders or adjacent fencing sections using mechanical brackets, gate rods and compatible fastening components. This modular principle reduces the need for extensive on-site fabrication and allows pen dimensions to be adapted to the building layout.

Gates installed within the fencing provide controlled access for feeding, inspection, sorting, treatment and pig transfer between production areas.

Technical Specifications

Product Type	Modular steel pig pen fencing and gating system
Main Material	Structural carbon steel
Surface Treatment	Hot-dip galvanized; coating specification according to project requirements
Panel Construction	Welded horizontal rods with vertical structural uprights
Panel Height	Customizable according to pig category and project requirements
Panel Length	Customizable according to barn dimensions and structural layout
Rod Spacing	Designed according to pig size and containment requirements
Gate Configuration	Swing gate, alley gate or customized configuration
Installation Accessories	Posts, bolt-on legs, base plates, clips, brackets, gate rods, latches and floor fasteners
Floor Compatibility	Concrete slatted floor, solid concrete floor or project-specific flooring
Pen Layout	Wall-to-wall, aisle-to-wall, aisle-to-feeder, feeder-to-wall or customized
Installation Method	Modular bolted, clipped and anchored assembly according to project design

Applications

Nursery pig pens
Wean-to-finish pig housing
Grower pig pens
Finisher pig pens
Gilt development pens
Gestation group pens
Boar holding and breeding areas
Sorting and holding pens
Pig movement and service alleys
Commercial integrated pig farms
New steel-structure pig houses
Existing pig barn renovation and equipment replacement

Customization Options

Galvanized Steel Pig Pen Fencing can be manufactured according to individual barn drawings and commercial production requirements.

Panel length and height
Horizontal rod quantity and spacing
Bottom rail configuration
Vertical upright spacing
Steel section dimensions
Hot-dip galvanizing specification
Gate width and opening direction
Single or multiple gate arrangement
Structural post type
Wall-to-wall penning
Aisle-to-wall penning
Aisle-to-feeder penning
Feeder-to-wall penning
Solid or slatted-floor fixing system
Feeder and drinker integration
Service alley and pig movement layout

Final configuration can be designed according to local climate and farm conditions, pig genetics, production stage, barn dimensions and applicable livestock-housing requirements.

Installation & Maintenance

Installation:

Confirm the approved pen layout, panel lengths, gate locations, feeders and service alleys before installation.
Check slatted-floor positions, structural joints and manure-channel locations before determining anchor points.
Install structural posts and floor supports according to the engineering layout.
Position fencing panels and connect them to posts, walls, feeders or adjoining panels using the specified brackets and gate rods.
Install gates and adjust hinges, rods and latches for smooth operation.
Secure bolt-on legs or base plates using appropriate floor fasteners.
Check alignment, fastener tightness and all animal-contact surfaces before commissioning.

Maintenance:

Wash fencing regularly as part of the pig house cleaning and biosecurity program.
Inspect welds, rods, uprights and bottom rails for abnormal mechanical damage.
Check gate rods, hinges, latches and moving components regularly.
Inspect floor anchors and structural posts for looseness.
Remove accumulated manure and feed residues around posts and fixing components.
Inspect galvanized surfaces after mechanical impact or repair work.
Replace damaged brackets, clips or fasteners when required.
Retighten mechanical connections during scheduled preventive maintenance.

Product FAQ

Q: What production stages can galvanized pig pen fencing be used for?
A: The panel system can be configured for nursery, wean-to-finish, growing, finishing, gilt development and breeding applications. Panel dimensions and bar spacing should be selected according to the animal category.

Q: Why use hot-dip galvanized steel in pig houses?
A: Hot-dip galvanizing provides corrosion protection for steel exposed to moisture, manure gases, washing water and other aggressive livestock-house conditions.

Q: Can panel sizes be customized?
A: Yes. Panel length, height, rod spacing, structural posts and gate dimensions can be customized according to project requirements.

Q: Can the fencing be installed on concrete slatted floors?
A: Yes. Bolt-on legs, structural posts and compatible floor fasteners can be selected for slatted-floor installations.

Q: Can the panels connect directly to pig feeders?
A: Yes. Feeder brackets and customized connecting components can be supplied to integrate fencing with compatible commercial feeders.

Q: Are different gate configurations available?
A: Yes. Gate width, opening direction, latch type and location can be configured according to pig movement and barn-management requirements.

Q: Can the system be used for renovation projects?
A: Yes. Modular steel penning is suitable for many retrofit applications after checking existing floor structures, walls, feeders, columns and manure channels.

Q: Can individual damaged sections be replaced?
A: Yes. Modular panels, posts, brackets, gates and fasteners can generally be replaced individually without rebuilding the complete pen system.

Q: What information is required for quotation?
A: Recommended information includes barn drawings, pig type, pig quantity, pigs per pen, required pen dimensions, floor type, feeder arrangement, gate positions and preferred surface treatment.
