Full-Width Pig Pen Gate

The Full-Width Pig Pen Gate is a modular livestock access gate designed to open a large section of the pen front or side, providing a wider passage for moving groups of pigs, cleaning equipment and farm personnel. It is particularly suitable for commercial nursery, wean-to-finish and finishing pig facilities where efficient animal flow is important.

The gate can combine reinforced PVC board profiles with stainless steel side profiles and hot-dip galvanized steel pipes. Smooth surfaces, rounded components and corrosion-resistant fittings support hygienic operation in humid pig-house environments.

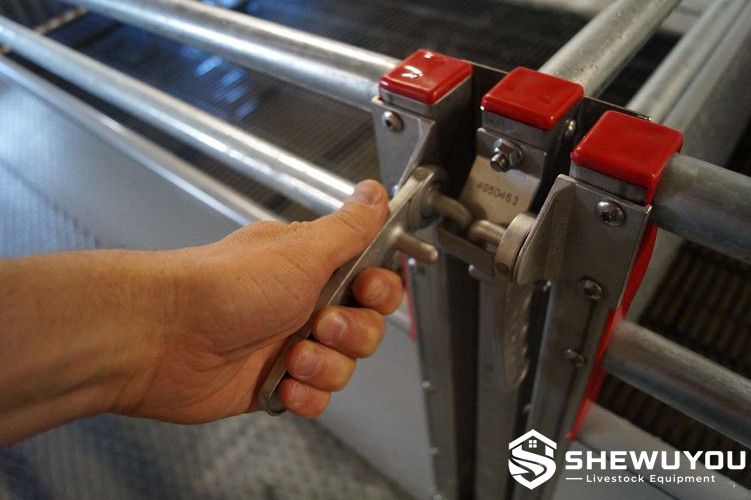

A practical one-hand locking system allows operators to open and secure the gate quickly during routine pig movement. Dimensions, partition design and hinge direction can be customized according to the pig house layout and project requirements.

• Full-width opening provides convenient access for moving pigs and cleaning equipment.
• Suitable for nursery, wean-to-finish and finishing pig pens.
• One-hand gate operation supports faster daily livestock handling.
• Reliable locking mechanism helps prevent accidental opening by pigs.
• Reinforced PVC panels provide smooth, hygienic and corrosion-resistant surfaces.
• Stainless steel profiles provide durable gate-edge reinforcement.
• Hot-dip galvanized steel pipes increase structural rigidity.
• Rounded edges and protected fittings help improve animal safety.
• Available as solid-panel or panel-and-pipe configurations.
• Gate width and opening direction can be customized.
• Suitable for modular installation with commercial pig pen partition systems.
• Designed for frequent washing and disinfection in intensive pig farms.

• PVC Board Profiles: Reinforced hollow PVC boards form the solid lower or complete gate surface.
• Stainless Steel U-Profiles: Structural profiles secure the PVC boards and reinforce the gate edges.
• Galvanized Steel Pipes: Horizontal pipes can be incorporated into semi-open gate configurations.
• Gate Handles: Stainless steel operating handles provide convenient access from the service aisle.
• Lower Hinges: Corrosion-resistant hinges support repeated opening and closing.
• Locking Mechanism: Mechanical livestock-grade lock secures the gate during normal operation.
• Support Posts: Stainless steel or galvanized structural posts support the gate and adjoining pen partitions.
• Fasteners: Stainless steel screws, sleeves, brackets and floor anchors provide reliable assembly.

During normal operation, the full-width gate forms part of the pen partition and securely contains the pigs. When animal transfer or cleaning access is required, the operator releases the locking handle and swings the gate away from the opening.

The larger opening reduces narrow passage points and can make it easier to move complete groups of pigs between pens, aisles, loading routes or sorting areas. It also improves access for pressure-washing equipment and maintenance work.

Structural loads are transferred through the reinforced gate profiles, hinges and support posts into the floor-mounted pen structure. Correct anchoring and alignment are important for reliable long-term operation.

• Piglet nursery pens
• Weaner pig pens
• Wean-to-finish pig pens
• Grower and finishing pig pens
• Hospital and recovery pens
• Sorting and transfer pens
• Commercial pig-house service aisles
• Large-scale integrated pig farms
• Steel-structure pig houses
• Prefabricated livestock buildings
• Existing pig barn renovation projects

• Gate width and height
• Solid-panel or semi-open configuration
• PVC board quantity and arrangement
• Galvanized upper pipe quantity
• Left-hand or right-hand opening
• Single or paired gate arrangement
• Stainless steel profile specifications
• Support-post configuration
• Handle and locking system
• Wall-mounted or pen-post installation
• Integration with PVC, fiber or steel-grid partitions
• New-build or retrofit installation
• Designed according to local climate and farm conditions

Installation:

• Confirm the clear gate opening, pen height and desired opening direction.
• Check the floor structure and support-post positions before installation.
• Install and align the gate-side support profiles or posts.
• Assemble PVC boards, reinforcing pipes and gate profiles according to the selected configuration.
• Install lower hinges and hang the gate in the correct opening direction.
• Install the stainless steel handle and locking mechanism.
• Adjust hinge alignment so the gate moves freely without excessive clearance.
• Verify that the gate closes securely and cannot be opened unintentionally by pigs.
• Check all screws, anchors and animal-contact surfaces before commissioning.

Maintenance:

• Remove manure and feed residue from the hinge and locking areas regularly.
• Wash and disinfect PVC and metal surfaces according to the farm biosecurity program.
• Inspect hinges, handles and locking components for wear.
• Check support posts and floor anchors for movement or loosening.
• Inspect PVC boards for impact damage or cracked edges.
• Check galvanized pipes and stainless steel profiles for mechanical damage.
• Adjust the gate if floor movement or repeated use affects alignment.
• Replace damaged locking or hinge components promptly.

Q: What is a full-width pig pen gate?
A: It is a gate designed to open a large portion of the pen front or side, providing wider access than a conventional personnel-sized pig pen gate.

Q: What are the advantages of a full-width opening?
A: The larger opening can simplify movement of pig groups, improve access for cleaning equipment and reduce narrow traffic points during animal transfer.

Q: Can the gate be opened with one hand?
A: Yes. Compatible livestock locking systems can be designed for convenient one-hand opening and closing during daily farm operation.

Q: Can the gate be completely solid?
A: Yes. Full PVC panel gates are available, while semi-open configurations can combine PVC boards with galvanized steel pipes.

Q: Is the gate suitable for nursery and finishing pigs?
A: Yes. Gate height, width and structural configuration can be selected according to pig size and production stage.

Q: Can the gate opening direction be customized?
A: Yes. Left-hand or right-hand hinge arrangements can be supplied according to aisle and animal-flow requirements.

Q: Can it be integrated with existing PVC pig pen partitions?
A: Yes. The gate can be configured for new or existing modular PVC partition systems after confirming profile dimensions and support conditions.

Q: Is stainless steel recommended for gate fittings?
A: Stainless steel is commonly used for profiles, handles, hinges and fasteners because of its corrosion resistance in humid pig-house environments.

Q: What information is required for a quotation?
A: Please provide the required gate width and height, pig production stage, partition type, opening direction, floor condition, quantity, project location and available pen layout drawings.
