No-Spray Finisher Pig Nipple Drinker

The No-Spray Finisher Pig Nipple Drinker is designed for growing and finishing pigs in commercial swine facilities. Its internal anti-spray flow-control structure delivers a gentle, even stream when the pig activates the nipple, helping reduce unnecessary spraying, runoff and water entering the manure system.

The stainless steel body, trigger and spring provide durability in humid pig-house environments, while adjustable flow settings allow the watering system to be matched to water pressure and animal requirements.

• No-Spray Water Delivery: Internal flow-control design reduces spray when the nipple is activated.
• Reduced Water Waste: Gentle water delivery helps limit runoff and unnecessary water entering manure pits.
• Stainless Steel Construction: Body, trigger and spring resist corrosion during intensive pig-house use.
• Adjustable Flow: Three selectable flow settings accommodate different water-delivery requirements.
• Durable Sealing: Viton O-ring provides reliable sealing and long-term valve performance.
• Standard Connection: 1/2-inch male pipe thread simplifies integration with common swine watering systems.
• On-Demand Operation: Water flows only when the pig activates the nipple trigger.

• Stainless Steel Housing: Protects the internal valve components.
• Trigger Stem: Opens the valve when activated by the pig.
• Stainless Steel Spring: Returns the trigger to the closed position.

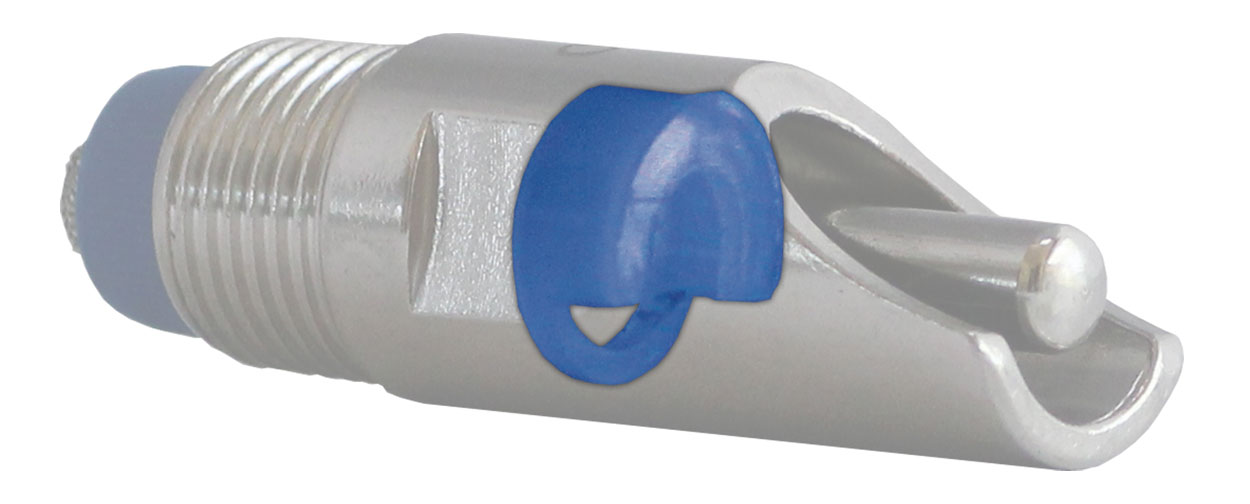

• Anti-Spray Insert: Controls water movement to provide a smoother discharge pattern.
• Flow Orifice: Allows selection of different water-flow settings.
• Viton O-Ring: Seals the internal valve against leakage.
• Threaded Water Inlet: Connects directly to compatible water pipes or mounting brackets.

When a pig presses the trigger stem with its mouth, the internal valve opens and water passes through the selected flow-control orifice. The anti-spray insert modifies the discharge pattern to produce a more controlled and even stream instead of a high-velocity spray.

After the pig releases the trigger, the spring returns the valve to the closed position and the sealing element stops water flow automatically.

• Product Type: No-spray bite-type nipple drinker for finishing pigs
• Reference Model: HSNR-50 type
• Connection: 1/2-inch male pipe thread
• Body: Stainless steel
• Trigger and Spring: Stainless steel
• Seal: Viton O-ring
• Flow Control: Three selectable orifice settings
• Reference Operating Pressure: 20-40 psi
• Reference Maximum Pressure: 50 psi
• Reference Flow at 40 psi: Small 1.0 qt/min, Medium 1.8 qt/min, Large 4.2 qt/min
• Final Configuration: According to project requirements

• Commercial finishing pig houses
• Grower-finisher barns
• Wean-to-finish facilities
• Group pig pens
• Adjustable nipple drinking lines
• Wall-mounted or pen-mounted watering systems
• Steel structure pig-house projects
• Water-saving renovation projects for existing pig farms

• Water-flow configuration
• Single or multiple drinker layout
• Fixed or height-adjustable water pipe
• Stainless steel or galvanized mounting brackets
• Water pressure regulator
• Water filtration and flushing components
• Complete watering system according to pig-house layout

Installation:

• Connect the 1/2-inch threaded nipple to a compatible water pipe or adjustable bracket.
• Install at an appropriate drinking height according to pig size and production stage.
• Flush the water line before installing or activating the nipple.
• Check line pressure and select the appropriate flow setting.
• Test each drinking point before pigs enter the pen.

Maintenance:

• Check each nipple regularly for adequate flow and complete shutoff.
• Remove mineral deposits or feed contamination when necessary.
• Inspect the O-ring, spring and flow-control components periodically.
• Flush water lines after medication or water-treatment programs.
• Adjust drinker height and flow as pigs grow.

Q1: How does the no-spray design reduce water waste?

The internal anti-spray insert changes the water discharge into a gentler, more even stream, reducing spray and runoff around the drinking point.

Q2: Is the drinker suitable for finishing pigs?

Yes. It is specifically designed for commercial grower and finisher pig watering applications.

Q3: What connection size is used?

The reference configuration uses a standard 1/2-inch male pipe thread.

Q4: Can the water flow be adjusted?

Yes. Three reference orifice settings provide different water-flow rates.

Q5: What water pressure is recommended?

The reference operating range is approximately 20-40 psi, with a stated maximum pressure of 50 psi.

Q6: Can the nipple be installed on an adjustable pipe?

Yes. Adjustable brackets or water pipes can be used to maintain an appropriate drinking height as pigs grow.

Q7: What information is required for a quotation?

Please provide pig weight range, required quantity, water pressure, pipe connection, preferred flow setting, mounting method and project location.
