Product Showcase	Content

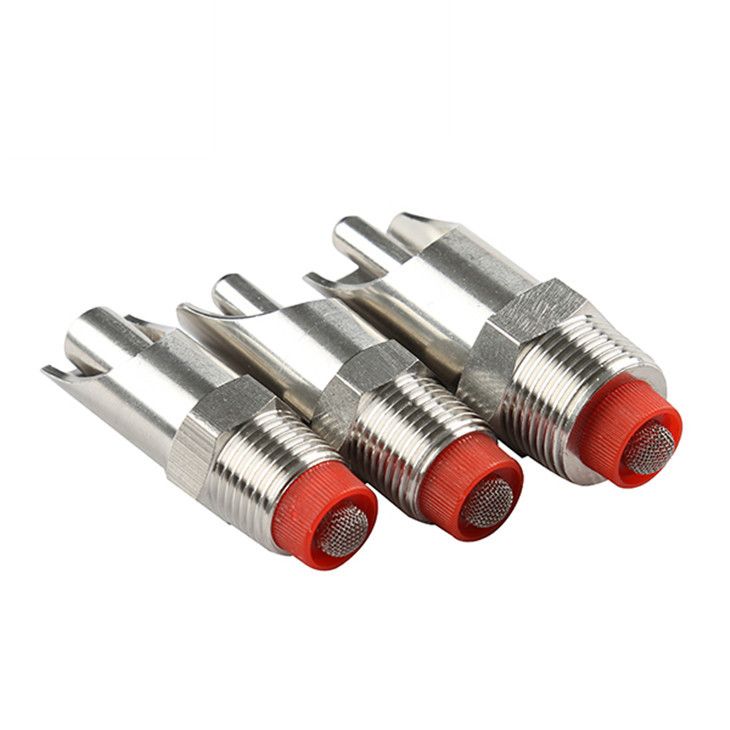

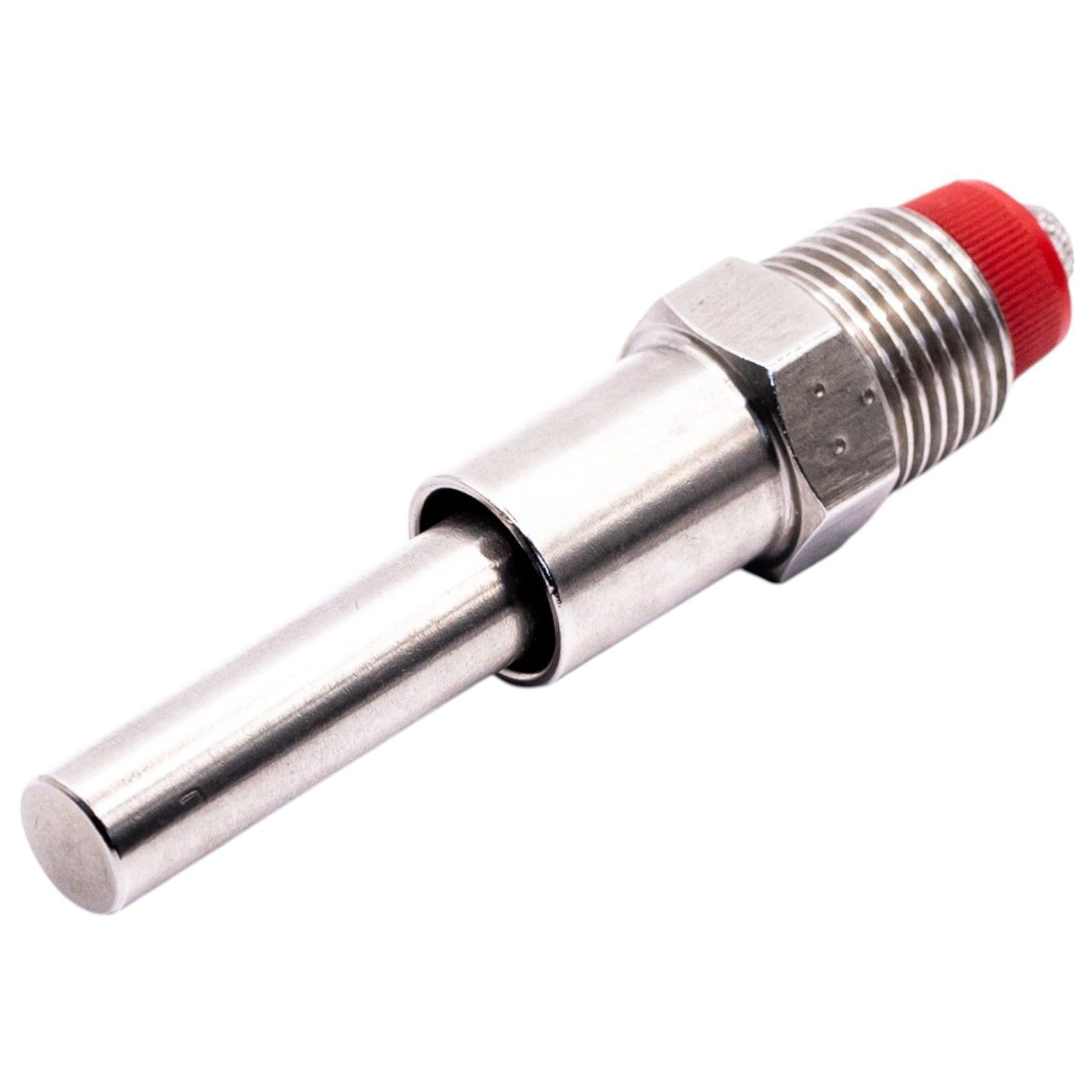

Product Name	Stainless Steel Piglet Nipple Drinker
Product Image
Product Overview	The Stainless Steel Piglet Nipple Drinker is designed for on-demand water delivery in farrowing and nursery pig facilities. When the piglet presses or bites the valve stem, the internal valve opens and releases drinking water directly at the mouth. The compact stainless steel structure provides good resistance to corrosion and daily animal contact, while the threaded connection allows convenient integration with pig-house water lines, drinker brackets or nursery pen watering systems.
Key Features	Stainless steel construction for durability in humid pig-house environments. On-demand valve operation supplies water only when activated by the piglet. Compact mouthpiece designed for piglets and nursery pigs. Helps reduce standing-water contamination compared with conventional open troughs. Controlled water delivery can help reduce unnecessary water loss. Threaded connection simplifies installation on drinking pipes and mounting brackets. Selected configurations provide adjustable water flow. Simple internal structure supports routine inspection and maintenance. Suitable for individual pens and centralized commercial swine watering systems.
Structural Components	Stainless Steel Body: Main pressure-resistant housing for the drinking valve. Valve Stem / Nipple Pin: Activated by the piglet to open the internal water passage. Valve Seat: Controls opening and closing of the water supply. Sealing Components: Help maintain reliable shutoff when the nipple is not activated. Flow Regulation Component: Available on selected models for adjusting water delivery. Threaded Inlet: Connects the nipple drinker to the farm water supply system. Optional Filter: Helps reduce entry of particles into the valve mechanism.
Working Principle / Structural Principle	The drinker remains closed under normal conditions. When a piglet pushes or bites the nipple stem, the valve mechanism moves away from its sealing position and allows pressurized water to flow through the mouthpiece. When the piglet releases the nipple, the valve returns to the closed position and stops the water flow. This demand-operated principle provides fresh water directly to the animal while limiting continuous discharge.
Technical Specifications	Product Type Automatic Piglet Nipple Drinker Main Material Stainless Steel Animal Stage Piglets and Nursery Pigs Valve Type Push / Bite-Activated Nipple Valve Common Connection 1/2" Male Thread Thread Standard NPT, BSP or According to Project Requirements Flow Regulation Adjustable Options Available Operating Water Pressure According to Selected Model and Farm Water System Water Flow Rate Available Upon Request Installation Water Pipe, Bracket or Pen Watering System
Applications	Piglet nursery pens Weaning and early-growth facilities Sow farrowing pens for piglet access to supplementary water Commercial pig breeding farms Large-scale swine production facilities Wet-dry feeder installations requiring supplementary drinking points New pig farm construction and existing watering-system renovation projects
Customization Options	Stainless steel grade Nipple body length and diameter Valve stem dimensions 1/2" NPT, BSP and other thread configurations Water flow characteristics Filter and flow-regulation configurations Mounting bracket and connector options OEM branding and bulk packaging
Installation & Maintenance	Install the nipple drinker at an appropriate height and angle for the piglet size so the animal can activate the valve comfortably while drinking. Connect the threaded inlet securely to the water line or drinker bracket and check all joints for leakage before operation. Flush new water lines before commissioning. Periodically inspect the nipple movement, seals, filter and water flow, and remove mineral deposits or feed contamination when necessary. Water pressure and flow should be adjusted to suit piglet age and farm management requirements.
Product FAQ	Q: Is this nipple drinker designed specifically for piglets? A: Yes. The compact drinking valve is intended for piglets and nursery pigs. Larger pigs normally require a drinker selected for their size and water demand. Q: How does the nipple drinker supply water? A: The piglet presses or bites the valve stem, which opens the internal valve and releases water. The valve closes again when pressure is removed. Q: What connection size is commonly used? A: A 1/2-inch male threaded connection is widely used for piglet nipple drinkers. NPT, BSP and other configurations can be supplied according to project requirements. Q: Can the water flow be adjusted? A: Adjustable-flow configurations are available. The appropriate flow should be selected according to piglet age, water pressure and farm management conditions. Q: Where can the nipple drinker be installed? A: It can be installed on pig-house water pipes, nipple brackets, pen partitions or dedicated nursery drinking systems. Q: Can different models be supplied for a complete pig farm? A: Yes. Piglet, grower-finisher, sow and other pig drinking configurations can be selected according to the production stage and project requirements.
Product Gallery
