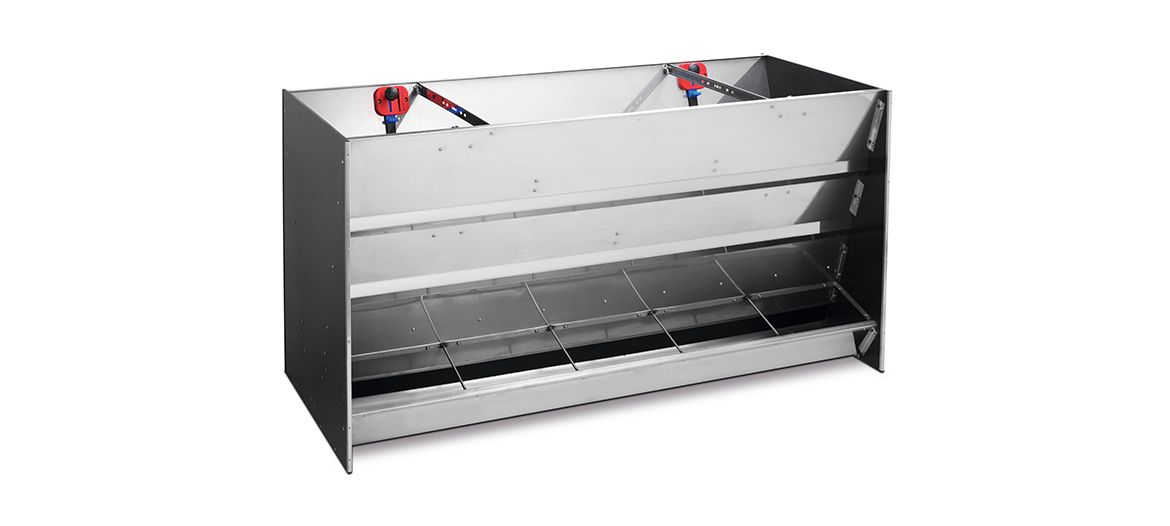

Multi-Space Nursery Dry Feeder

The Multi-Space Nursery Dry Feeder is designed for ad libitum feeding of weaned pigs in commercial nursery houses. Multiple feeding positions allow several piglets to eat simultaneously, while the adjustable feed opening helps maintain consistent feed availability and control wastage.

The feeder can be configured with feeding spaces on one or both sides and manufactured from stainless steel or a combination of stainless steel and durable plastic. It is suitable for pellets, granules, crumbles and meal feed and can be filled manually or connected to an automatic dry-feed delivery system.

• Multi-Space Feeding: Several feeding positions improve simultaneous access for nursery pigs.
• Ad Libitum Dry Feeding: Maintains continuous access to dry feed throughout the nursery period.
• Adjustable Feed Flow: Mechanical adjustment allows feed presentation to be matched to pig size and ration characteristics.
• Reduced Feed Waste: Purpose-designed trough geometry helps keep feed inside the feeding area.
• Hygienic Trough Design: Open feeding areas simplify visual inspection, cleaning and sanitation.
• Corrosion-Resistant Construction: Stainless steel components are suitable for humid commercial pig-house environments.
• Single- or Double-Sided Layout: Suitable for wall-side installation or integration between adjacent pens.
• Automatic Feed-Line Compatible: Can be integrated with suitable dry-feed conveying systems according to project requirements.

• Feed Hopper: Stores dry nursery feed above the dispensing area.
• Adjustable Feed Gate: Regulates feed movement from the hopper into the trough.
• Feeding-Space Dividers: Separate feeding positions and help organize pig access.
• Dry Feed Trough: Specially shaped feeding surface designed for hygiene and reduced feed loss.
• Side and End Panels: Provide structural rigidity and help contain feed.
• Mounting Structure: Allows free-standing installation or integration into the pig pen partition.

Dry feed enters the hopper manually or through an automatic feeding line and moves downward by gravity toward the adjustable dispensing opening.

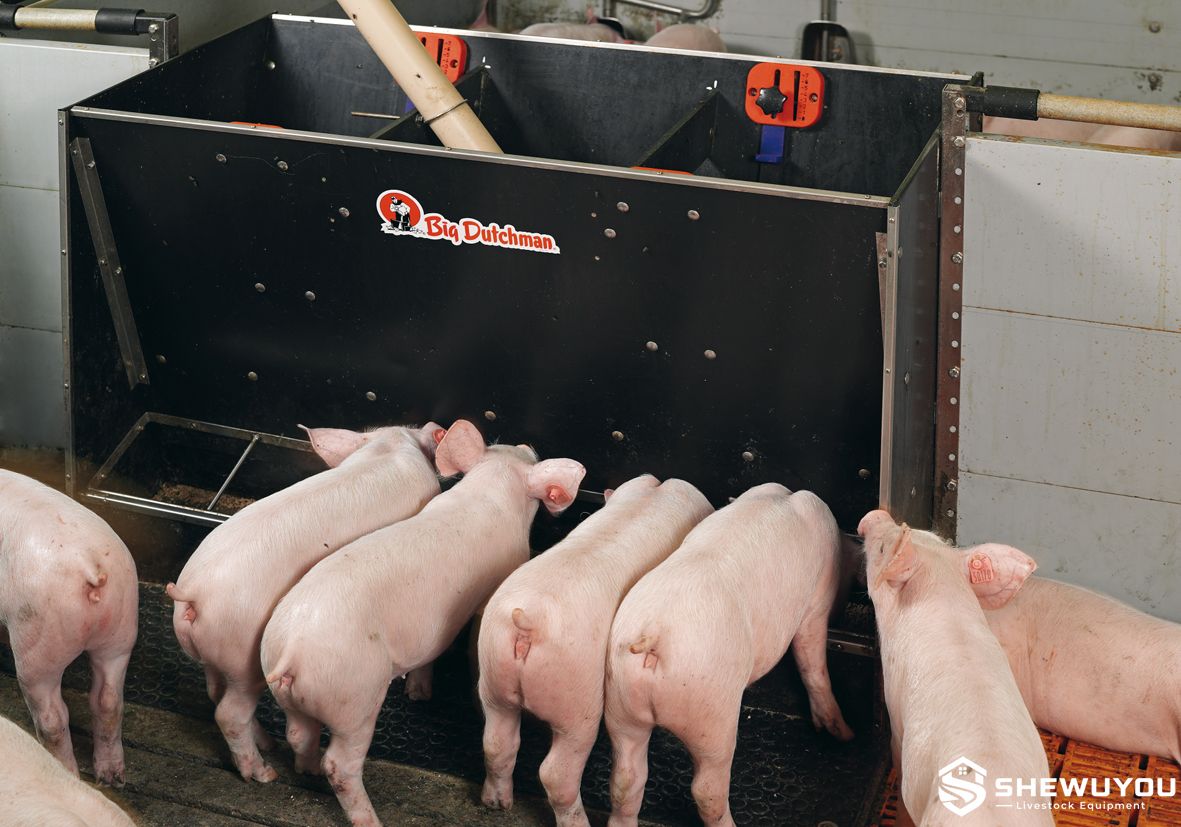

The feed gate controls the quantity presented in the trough. Pigs consume feed from individual spaces, while correct adjustment maintains continuous feed availability without unnecessarily overfilling the trough.

• Product Type: Multi-space nursery dry pig feeder
• Feeding Method: Ad libitum dry feeding
• Reference Pig Weight: Approximately 6–30 kg for nursery configurations
• Feeding Spaces: 2 to 6 spaces arranged on one or both sides; up to 12 spaces in reference configurations
• Feed Types: Pellets, granules, crumbles and meal
• Material Options: Stainless steel and plastic combination or all-stainless-steel construction
• Feed Adjustment: Mechanically adjustable
• Feed Supply: Manual filling or automatic dry-feed delivery
• Installation: Free-standing or integrated into the pen partition
• Dimensions: Standard or customizable according to project requirements

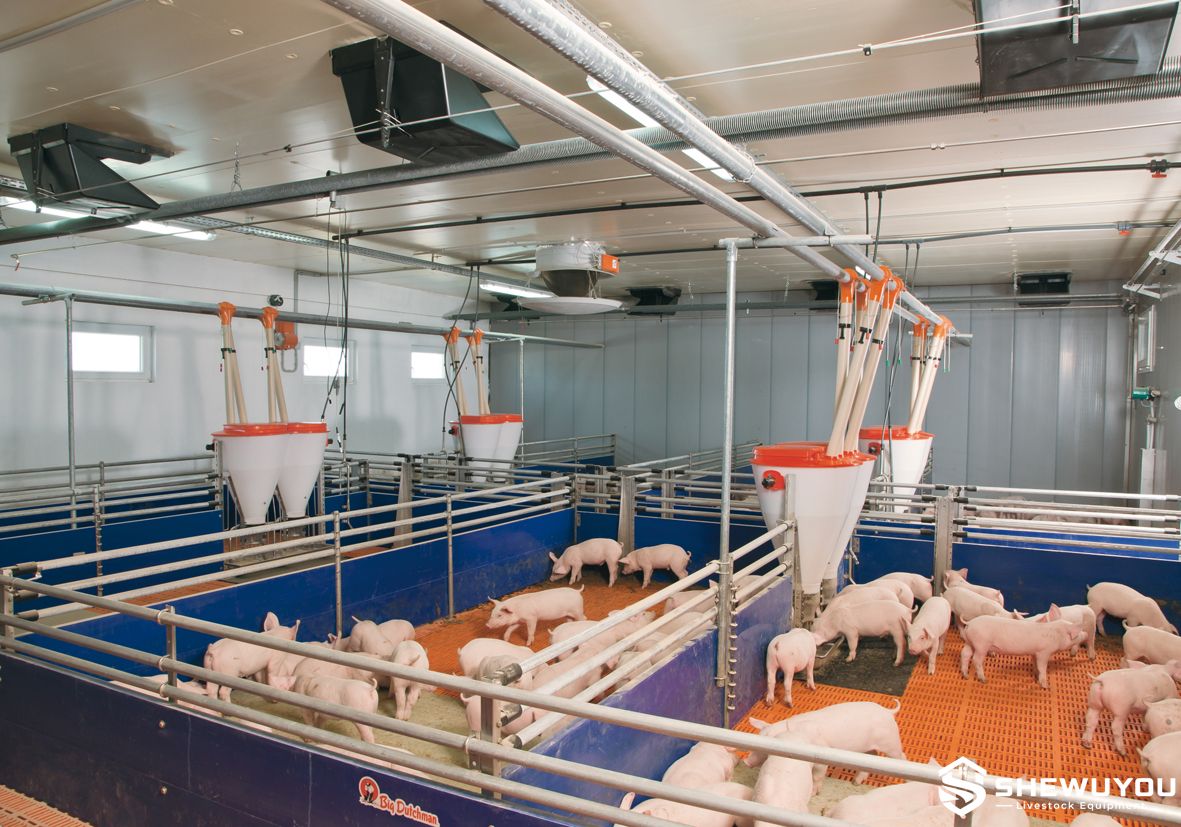

• Commercial nursery pig houses
• Post-weaning piglet pens
• Large-group nursery housing
• Single-sided fence-line feeding layouts
• Shared double-sided feeder layouts
• Automatic dry feeding systems
• Slatted-floor pig houses
• Prefabricated steel structure pig houses
• Pig farm renovation and feeder replacement projects

• Number of feeding spaces
• Single-sided or double-sided configuration
• Feeder length and height
• Stainless steel or stainless steel and plastic construction
• Feed-flow adjustment system
• Automatic feed-line connection
• Free-standing or pen-partition installation
• Complete configuration according to project requirements

Installation:

• Confirm feeder configuration, pen dimensions and required animal access.
• Position the feeder free-standing in the pen or integrate it into the pen partition.
• Secure the feeder using suitable corrosion-resistant brackets and fasteners.
• Connect the hopper to the automatic feed line where required.
• Set the initial feed opening according to pig size and feed characteristics.
• Check feeder stability and even feed distribution before introducing pigs.

Maintenance:

• Remove stale or compacted feed from the trough regularly.
• Adjust feed flow as pig weight and feed characteristics change.
• Inspect adjustment mechanisms, dividers and mounting hardware periodically.
• Wash and disinfect the feeder between nursery batches.
• Replace damaged or excessively worn components before returning the feeder to service.

Q1: What pig weight range is the feeder suitable for?

Reference nursery configurations are designed for weaned pigs weighing approximately 6 to 30 kg.

Q2: How many feeding spaces are available?

Reference configurations provide 2 to 6 spaces on one or both sides, with up to 12 feeding positions in total.

Q3: Can the feeder be installed between two pens?

Yes. A double-sided configuration can be integrated into a pen partition so pigs can access the feeder from both sides.

Q4: Which types of feed can be used?

The feeder can handle common nursery dry feeds including pellets, granules, crumbles and meal.

Q5: Can feed delivery be adjusted?

Yes. The dispensing opening can be adjusted according to pig size, feed flow characteristics and consumption level.

Q6: Can it connect to an automatic feeding system?

Yes. The hopper can be supplied from a compatible automatic dry-feed conveying system.

Q7: What information is required for a quotation?

Please provide the pig weight range, pigs per pen, pen dimensions, required feeding spaces, single- or double-sided layout, feed type, floor type and automatic feeding requirements.
