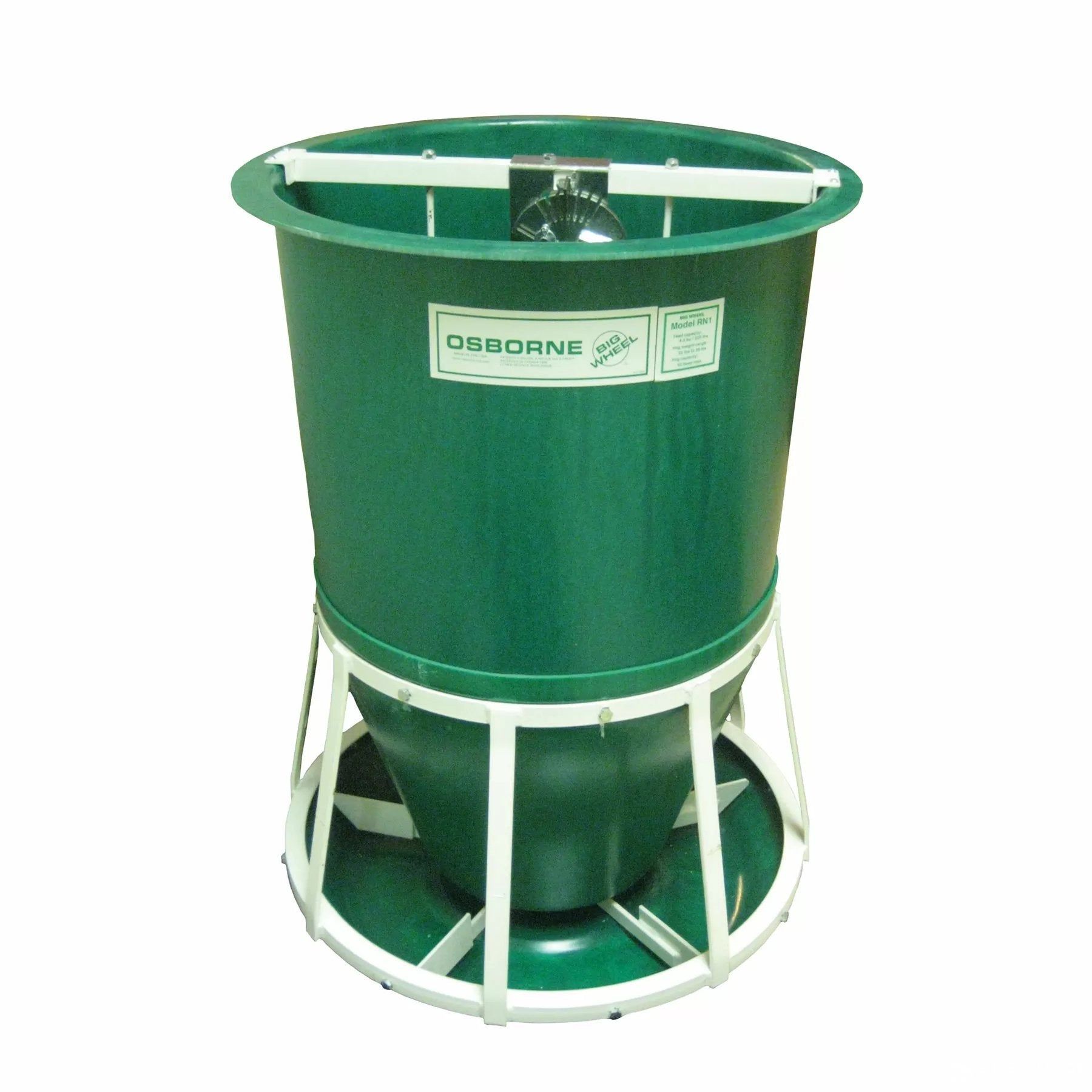

Large-Capacity Nursery Pig Feeder

The Large-Capacity Nursery Pig Feeder is designed for commercial nursery houses requiring high feed storage capacity and access for a large group of growing piglets. Its round configuration provides 360-degree feeding access while occupying a compact central floor area.

Unlike conventional gravity-only feeders, the mechanical feed-delivery concept uses pig interaction with the feed wheel to release feed into the trough. This helps maintain fresh feed availability while reducing overfilling, sorting and play-related feed waste.

The feeder can be integrated into new nursery facilities, steel structure pig houses and renovation projects, with material finishes, mounting arrangements and accessories selected according to project requirements.

• Large Feed Capacity: Reduces refill frequency in high-density nursery production.
• 360-Degree Feeding Access: Round trough design allows pigs to approach the feeder from all directions.
• Mechanical Feed Delivery: Pig interaction activates feed movement rather than relying entirely on unrestricted gravity flow.
• Reduced Feed Waste: Feed delivery slows when pigs stop operating the feeder, helping prevent excessive trough accumulation.
• Self-Cleaning Round Trough: Circular feeding action helps keep feed moving and reduces stagnant material.
• Multiple Pig Access: Suitable for large nursery groups where simultaneous feeding access is important.
• Durable Composite Hopper: Reinforced composite construction provides abrasion resistance and corrosion-free feed storage.
• Flexible Metal Components: Painted, galvanized, zinc-plated or stainless steel component options can be supplied according to project requirements.
• Accessory Compatible: Hopper lids, anchoring components and fence-line installation accessories are available for suitable layouts.

• Large-Capacity Hopper: Stores nursery feed above the dispensing mechanism.
• Lower Hopper Cone: Directs feed toward the controlled dispensing zone.
• Feed Wheel: Pig-operated rotating component that moves feed outward into the trough.
• Feed Sweep: Helps distribute feed around the circular feeding area.
• Feed Flow Control: Regulates the internal feed-delivery setting.
• Round Trough: Provides continuous feeding access around the feeder.
• Trough Dividers: Organize feeding positions and reduce interference between pigs.
• Axle and Support Assembly: Supports rotation and mechanical feed distribution.
• Anchor System: Optional brackets secure the feeder to the pig-house floor.

Dry feed is stored in the upper hopper, while the internal cone and feed-control components prevent uncontrolled gravity discharge into the trough.

When pigs push or rotate the feed wheel, the mechanical system moves a controlled quantity of feed toward the outer trough. The movement also redistributes feed around the circular feeding area.

As pigs stop operating the wheel, feed delivery is reduced or stopped, helping maintain an appropriate trough level and minimize feed loss into the flooring or manure pit.

• Product Type: Large-capacity round nursery dry feeder
• Feeding Method: Animal-activated mechanical feed delivery
• Reference Feed Capacity: Approximately 105 kg
• Reference Feeder Height: Approximately 91 cm
• Reference Trough Diameter: Approximately 66 cm
• Reference Pig Range: Nursery pigs from early rearing up to approximately 36 kg
• Reference Group Capacity: Up to approximately 60 pigs
• Hopper Material: Abrasion-resistant reinforced composite or according to project requirements
• Metal Component Options: Painted steel, galvanized/zinc-plated steel or stainless steel
• Feed Access: 360-degree circular access
• Installation: Free-standing with anchoring or fence-line configuration
• Final Configuration: Customizable according to project requirements

• Commercial nursery pig houses
• Large-group piglet pens
• Post-weaning production units
• High-capacity dry feeding systems
• Slatted-floor nursery barns
• Prefabricated steel structure pig houses
• New pig farm construction projects
• Pig house feeder replacement and renovation projects

• Feed capacity according to project requirements
• Painted, galvanized or stainless steel metal components
• Feed-wheel and internal component material
• Hopper lid
• Anchor brackets
• Fence-line installation adapter
• Automatic feed-line connection
• Floor mounting arrangement
• Complete feeder configuration available upon request

Installation:

• Select a level location that provides adequate circular access for the required pig group.
• Assemble the hopper, trough, divider cage and feed-wheel mechanism according to the supplied assembly drawing.
• Secure the feeder with suitable anchor brackets where required.
• Install the optional fence-line adapter when the feeder forms part of the pen partition.
• Set the initial feed-flow control according to feed characteristics and pig size.
• Place a small quantity of feed in the trough during initial training so pigs quickly learn to operate the feed wheel.

Maintenance:

• Keep the trough and feed-wheel area free from compacted or spoiled feed.
• Inspect the feed wheel, axle, sweep and flow-control mechanism periodically.
• Check structural fasteners and floor anchors for looseness.
• Keep the hopper dry and inspect the optional lid regularly.
• Wash and disinfect the feeder between production groups.
• Replace excessively worn moving components before returning the feeder to service.

Q1: How does the mechanical feed system work?

Pigs move the feed wheel while eating, which mechanically transfers feed from the hopper into the trough instead of allowing unrestricted gravity flow.

Q2: Why is the feeder suitable for large nursery groups?

Its large hopper and circular trough provide high feed capacity and 360-degree access for multiple pigs around the feeder.

Q3: How much feed can the reference configuration hold?

The reference large-capacity nursery configuration holds approximately 105 kg of feed, depending on feed density.

Q4: How many pigs can use one feeder?

Reference systems can serve up to approximately 60 nursery pigs, while final stocking recommendations should consider pig size, management and local production conditions.

Q5: Can stainless steel components be supplied?

Yes. Stainless steel, galvanized and other metal-component configurations are available according to project requirements.

Q6: Can the feeder be installed along a pen fence?

Yes. A suitable fence-line adapter can be used where the pig-house layout requires feeder integration with the pen partition.

Q7: What information is required for a quotation?

Please provide the pig age and weight range, pigs per pen, required feeder capacity, pen dimensions, flooring type, preferred material configuration, automatic feeding requirements and project location.
