| Product Name |

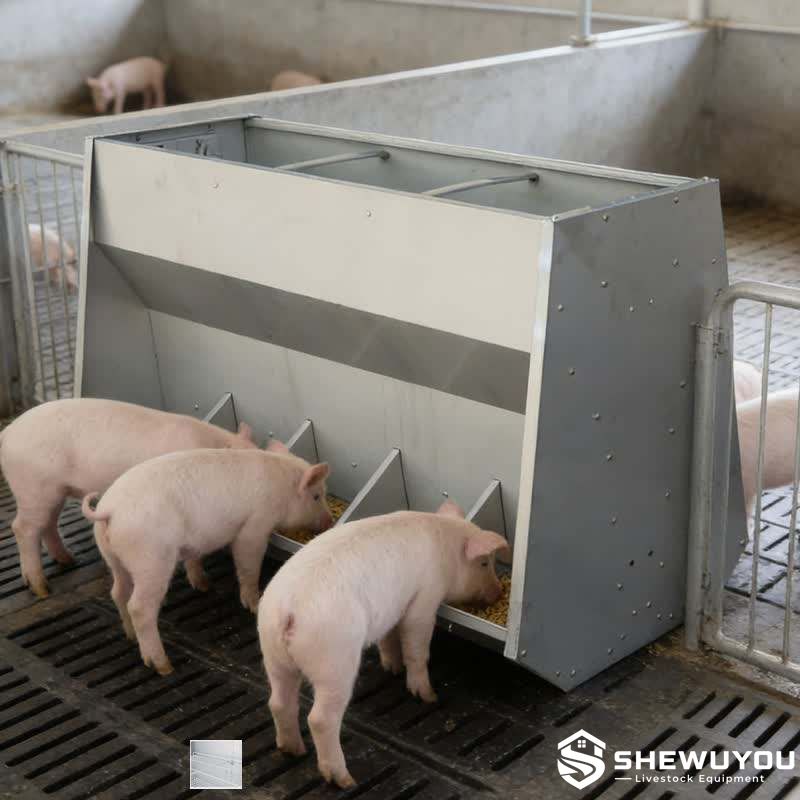

Stainless Steel Box Feeder for Weaners
|
| Product Image |
|
| Product Overview |
The Stainless Steel Box Feeder for Weaners is designed for reliable ad-libitum dry feeding in commercial nursery pig houses. Its rectangular hopper and divided trough provide easy feed access for multiple piglets while supporting controlled feed distribution.
Corrosion-resistant 304 stainless steel provides a durable, hygienic structure for intensive livestock environments. A multi-step adjustment mechanism allows feed flow to be matched to feed type, pig size and consumption level, helping reduce unnecessary feed waste.
Single-sided and double-sided configurations are available for wall-side, pen-partition and shared feeding layouts.
|
| Key Features |
- 304 Stainless Steel: Corrosion-resistant material suitable for humid nursery barns and frequent cleaning.
- Multi-Step Feed Adjustment: Precise regulation helps maintain suitable feed availability and minimize waste.
- Multiple Feeding Spaces: Available in different widths and eating-space configurations for various group sizes.
- Single or Double-Sided: Flexible installation for perimeter pens or between adjacent pig groups.
- Easy Feed Access: Open trough design allows young pigs to locate and consume feed easily.
- Smooth Animal-Contact Areas: Designed without unnecessary sharp exposed edges.
- Easy to Clean: Stainless surfaces and accessible trough sections simplify washing and disinfection.
- Automatic Feeding Compatible: Can be supplied from overhead dry-feed downpipes according to project design.
|
| Structural Components |
- Stainless Steel Hopper: Stores dry feed above the dispensing section.
- Front Plate: Forms the lower hopper section and guides feed toward the trough.
- Adjustable Slider: Controls the feed opening.
- Regulation Mechanism: Includes adjustment knobs and gauges for repeatable feed settings.
- Stainless Steel Trough: Provides accessible feeding space for weaned pigs.
- Feeding Dividers: Separate eating positions and organize pig access.
- Structural Frame: Reinforces the feeder body for commercial farm use.
- Mounting Hardware: Bolts, brackets and fasteners secure the feeder according to the selected installation layout.
|
| Working Principle |

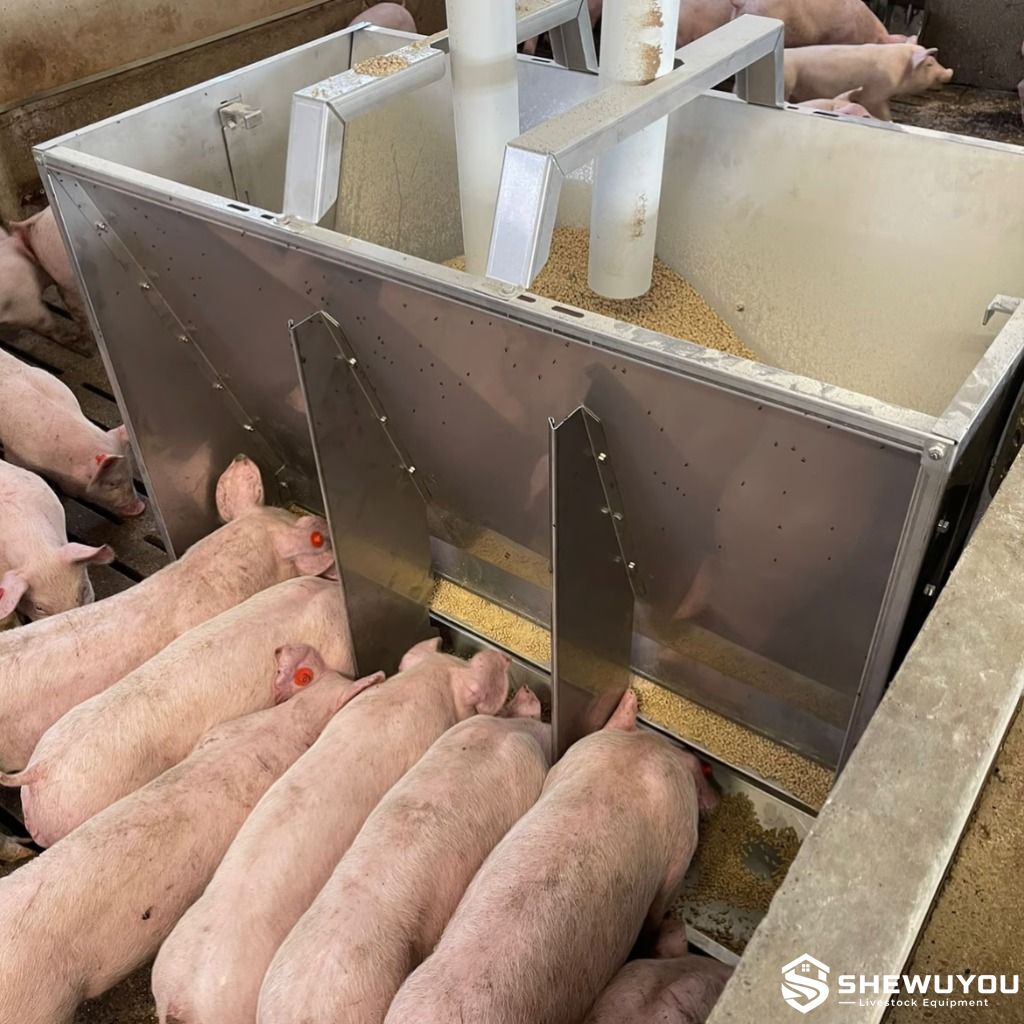

Dry meal or pellet feed is delivered into the upper hopper manually or through an automatic dry-feed downpipe. Gravity moves the feed toward the adjustable outlet above the trough.
The multi-step regulation mechanism controls the outlet opening and therefore the quantity of feed available to the pigs. As pigs consume feed from the trough, additional feed moves downward from the hopper.
The setting can be adjusted as pig size, feed characteristics and intake change during the nursery period.
|
| Technical Specifications |
| Product Type |
Dry box feeder for weaned pigs |
| Main Material |
304 stainless steel |
| Reference Material Thickness |
Approximately 1.2 mm |
| Feeding Configuration |
Single-sided or double-sided |
| Reference Feeding Spaces |
4, 6 or 8 eating spaces for stainless steel weaner configurations |
| Reference Single-Sided Size |
80 × 70 × 29 cm, 120 × 70 × 29 cm or 160 × 70 × 29 cm |
| Reference Double-Sided Size |
80 × 70 × 47 cm, 120 × 70 × 47 cm or 160 × 70 × 47 cm |
| Feed Adjustment |
Precise multi-step adjustment |
| Feed Type |
Dry meal or pellets according to project requirements |
| Supply Form |
Assembled or unassembled options available upon request |
| Dimensions |
Standard or customizable according to project requirements |
|
| Applications |
- Commercial nursery pig houses
- Post-weaning piglet pens
- Weaner rearing facilities
- Single-sided perimeter feeding layouts
- Double-sided shared feeder installations
- Automatic dry-feeding systems
- New steel-structure pig houses
- Existing nursery barn renovation projects
|
| Customization Options |
- Single-sided or double-sided configuration
- Number of feeding spaces
- Feeder width and depth
- Hopper capacity
- Feed-flow adjustment range
- Dry meal or pellet application
- Automatic feed downpipe connection
- Pen-partition installation
- Floor or structural mounting arrangement
- Assembled or unassembled supply
Final specifications can be selected according to pig group size, feed characteristics, barn layout and project requirements.
|
| Installation & Maintenance |
Installation:
- Confirm feeder size, feeding direction and pen layout before installation.
- Position the feeder at the specified pen partition or feeding line.
- Secure the feeder using compatible brackets and fasteners.
- Connect the dry-feed downpipe where automatic filling is required.
- Check feeder level and trough accessibility.
- Set the initial feed opening according to pig size and feed type.
Maintenance:
- Remove stale or compacted feed regularly.
- Wash and disinfect the trough and hopper between production groups.
- Check adjustment sliders and knobs for free movement.
- Inspect dividers, brackets and fasteners for damage.
- Adjust feed flow as pigs grow or feed characteristics change.
- Replace worn components when required.
|
| Product FAQ |
Q: What pigs is this box feeder designed for?
A: It is designed primarily for weaned pigs in nursery and post-weaning production systems.
Q: What material is used for the feeder?
A: The referenced stainless steel configuration uses corrosion-resistant 304 stainless steel.
Q: Is feed flow adjustable?
A: Yes. A multi-step adjustment mechanism allows feed delivery to be matched to pig size and feed characteristics.
Q: Are single and double feeders available?
A: Yes. Single-sided and double-sided configurations can be selected according to the pen layout.
Q: How many feeding spaces are available?
A: Reference stainless steel weaner models include 4, 6 and 8 eating-space configurations.
Q: Can the feeder be connected to an automatic feeding system?
A: Yes. Dry feed can be delivered from compatible overhead downpipes or centralized feed-conveying systems.
Q: What information is required for quotation?
A: Recommended information includes pig weight range, pigs per pen, required feeding spaces, single or double-sided layout, feed type, automatic feed-line details and project quantity.
|
