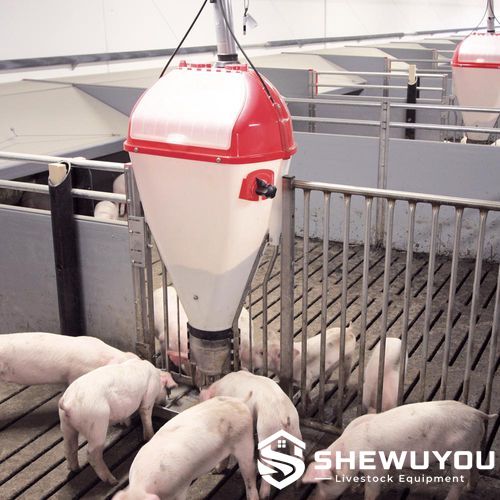

Self-Activated Nursery Pig Feeder

The Self-Activated Nursery Pig Feeder is designed for post-weaning pigs that require continuous access to fresh feed with controlled delivery. Pigs activate the dispensing mechanism through their natural rooting and manipulation behavior, releasing feed only when required.

The steep-sided hopper promotes reliable feed flow, while the adjustable dosing section and agitator help minimize bridging and excessive feed accumulation. The feeding area can also incorporate drinking points so pigs can access dry feed, water or moistened feed according to the selected configuration.

The feeder is suitable for commercial nursery houses, wean-to-finish systems and modern steel structure pig farms, with capacity and installation arrangements customizable according to project requirements.

• Self-Activated Feeding: Pigs operate the dispensing section themselves to release fresh feed.
• Natural Feeding Behavior: The activation principle encourages normal rooting and exploratory behavior.
• Reduced Feed Waste: Feed is dispensed according to animal activity rather than continuously filling the trough.
• Anti-Bridging Hopper: Steep hopper walls and an integrated agitator promote consistent feed movement.
• Adjustable Feed Delivery: Feed quantity can be regulated according to pig size, feed type and consumption.
• Hygienic Feeding Area: Reduced residual feed helps simplify cleaning and maintain better trough hygiene.
• Transparent Inspection Areas: Allow quick visual checks of feed level and cleanliness.
• Durable Stainless Steel Components: High-wear dispensing and frame areas can use corrosion-resistant stainless steel.
• Meal and Pellet Compatibility: Suitable configurations can handle common nursery dry-feed formulations.

• Feed Hopper: Steep-sided storage chamber designed to promote reliable feed flow.
• Transparent Lid: Allows feed inspection and convenient manual filling.
• Adjustable Dosing Unit: Controls the amount of feed released during activation.
• Stainless Steel Activator: Pig-operated mechanism that releases feed into the trough.
• Integrated Agitator: Helps prevent feed bridging above the outlet.

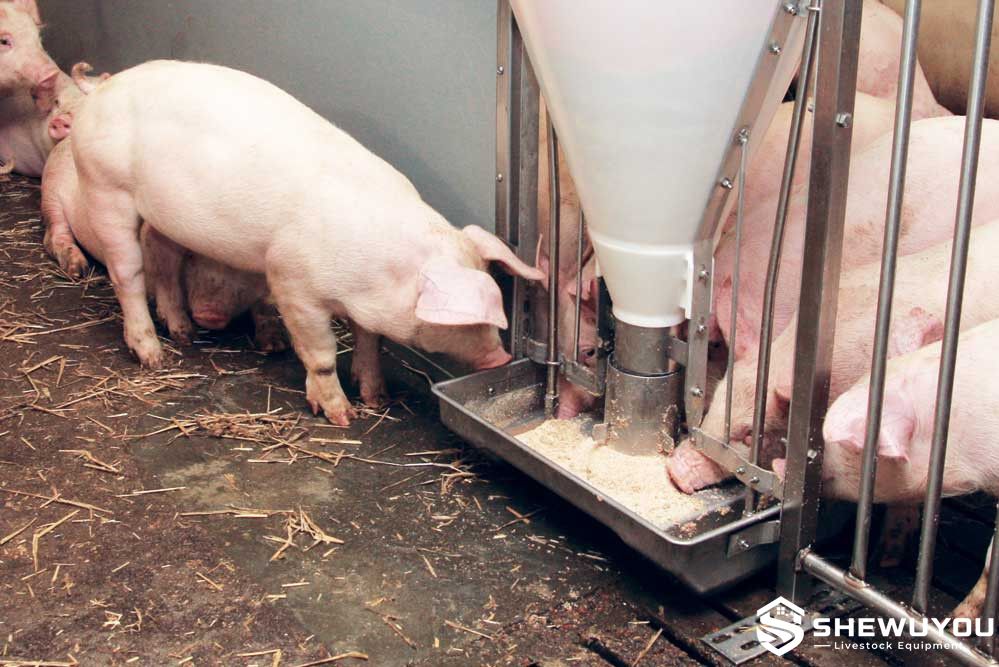

• Feeding Trough: Provides accessible feeding space around the dispensing section.
• Optional Drinking Area: Water bowls or nipples can be incorporated according to feeder configuration.
• Support Frame: Provides stable mounting and structural support inside the pig pen.

Dry feed is stored in the hopper and moves toward the lower dosing section by gravity. Steep hopper walls and the internal agitator help maintain a consistent flow toward the outlet.

When pigs push or manipulate the stainless steel activating component, a controlled quantity of feed is released into the trough. Feed delivery decreases when pigs stop activating the mechanism.

This demand-based feeding principle helps keep the trough from remaining continuously overloaded with feed, supporting cleaner feeding conditions and reducing unnecessary feed loss.

• Product Type: Self-activated nursery pig feeder
• Feeding Principle: Pig-activated mechanical dispensing
• Reference Pig Range: Suitable reference configurations from approximately 7 kg upward
• Reference Nursery Application: Weaners up to approximately 30 kg
• Reference Group Capacity: Approximately 30-50 weaners per feeder, depending on management conditions
• Reference Hopper Volume: Approximately 83 L for selected single-hopper configurations
• Jumbo Hopper Option: Larger capacity available according to project requirements
• Feed Types: Meal, pellets and compatible dry feed
• Activator Material: Stainless steel or project-specific configuration
• Feed Adjustment: Adjustable
• Water Supply: Optional integrated drinking system
• Final Configuration: Customizable according to project requirements

• Commercial nursery pig houses
• Post-weaning piglet pens
• Large-group nursery housing
• Wean-to-finish production systems
• Automatic dry-feed delivery projects
• Slatted-floor pig houses
• Prefabricated steel structure pig houses
• Pig farm feeding-system renovation projects

• Hopper capacity
• Single or larger-capacity feeder configuration
• Feed-dosing adjustment range
• Activator and trough material
• Integrated drinking bowls or nipple drinkers
• Automatic feed-line connection
• Floor or pen-partition mounting
• Support frame configuration
• Complete feeder layout according to project requirements

Installation:

• Confirm feeder position, pig group size, floor type and pen layout.
• Position the support frame securely on the floor or approved structural mounting points.
• Connect the hopper to the automatic feed line where required.
• Connect optional drinking components and verify suitable water flow.
• Set the initial feed-dosing position according to pig size and feed characteristics.
• Test the activating mechanism, feed flow and feeder stability before introducing pigs.

Maintenance:

• Check the activating mechanism regularly for free movement.
• Remove compacted or stale feed from the dosing area.
• Adjust feed flow as pigs grow or feed characteristics change.
• Inspect the hopper, agitator, frame and drinking components periodically.
• Wash and disinfect the feeder between production groups.
• Replace worn dispensing components before they affect feed delivery.

Q1: How does the self-activated feeder work?

Pigs manipulate the dispensing mechanism with their snout, causing a controlled quantity of feed to move from the hopper into the trough.

Q2: Is the feeder suitable for nursery pigs?

Yes. Suitable configurations can be used for post-weaning pigs, with reference nursery applications for pigs up to approximately 30 kg.

Q3: Does self-activation help reduce feed waste?

Yes. Feed is released according to pig activity rather than continuously accumulating in the trough, helping reduce excessive feed loss.

Q4: Can it handle both meal and pellet feed?

Yes. Suitable configurations can be adjusted for common meal and pellet diets used in commercial pig production.

Q5: Can drinking water be integrated?

Yes. Drinking bowls or nipple systems can be integrated according to the selected feeder configuration.

Q6: Can the feeder connect to an automatic feed line?

Yes. The hopper can be connected to a compatible dry-feed conveying system according to project requirements.

Q7: What information is required for a quotation?

Please provide the pig weight range, pigs per pen, feed type, floor type, required hopper capacity, drinking-water requirements, automatic feeding requirements and project location.
