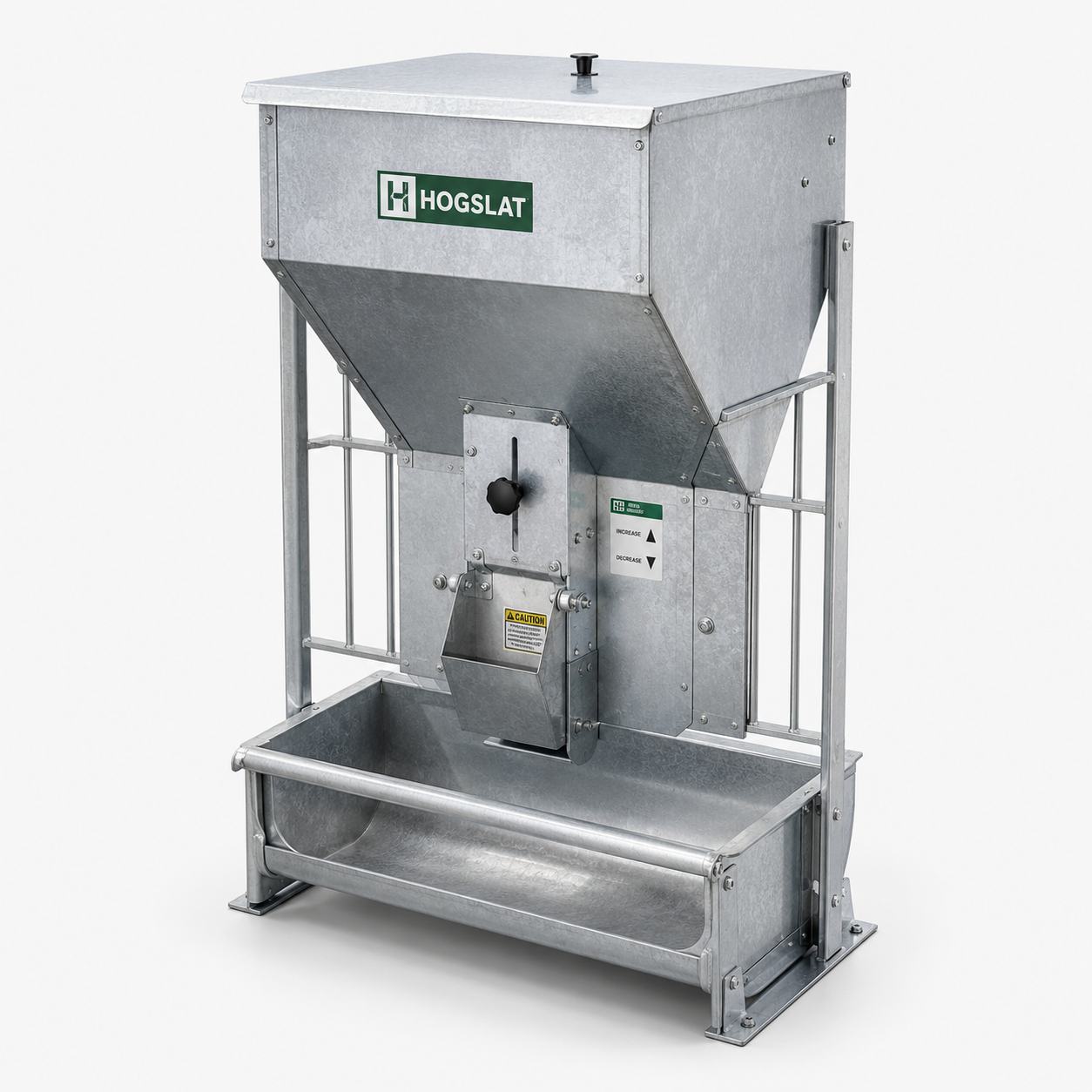

Single Automatic Nursery Pig Feeder

The Single Automatic Nursery Pig Feeder is designed for commercial weaner pens requiring accurate dry-feed delivery and convenient daily management. Its adjustable dispensing mechanism releases feed in small quantities, helping maintain fresh feed availability while limiting excessive accumulation in the trough.

A wide central feeding plateau provides convenient access for nursery pigs, while drinking water is positioned separately on both sides of the feeding area. This separation helps keep the main dry-feed zone cleaner and supports efficient feed utilization.

The feeder can be integrated into a pen partition or installed independently with suitable support posts. Manual hopper filling and connection to an automatic dry-feed distribution system are both available.

• Designed for nursery pigs and commercial weaner production.
• Precise feed adjustment helps reduce feed waste.
• Suitable for meal, pellets and compatible dry feed.
• Reversible dosing plate supports different feed characteristics.
• Large external adjustment handle simplifies feed regulation.
• Feed discharge can be completely closed when required.
• 100 L reference hopper capacity.
• Stainless steel trough provides corrosion resistance and easy cleaning.
• Wide central feed plateau provides good feeding access.
• Feed and drinking water remain separated.
• Waterproof hopper construction supports routine barn washing.
• Prepared for automatic filling from multiple dry-feed circuits.

• Feed Hopper: Stores dry feed and is shaped for efficient utilization of internal volume.
• Dosing Unit: Regulates the amount of feed released into the feeding area.
• Reversible Dosing Plate: Can be configured for meal or pellet feed.
• Adjustment Handle: Provides convenient external feed-flow control.
• Feed Funnel: Guides feed from the hopper into the dispensing section.
• Central Feed Plateau: Provides a broad dry-feed eating area.
• Stainless Steel Trough: Provides a hygienic and durable animal-contact surface.
• Drinking Valves: Supply water separately from the central feed area.
• Stainless Steel Frame: Supports the hopper, trough and mounting structure.
• Feed Pipe Holders: Allow connection to automatic feed-drop lines.

Dry feed moves from the hopper into the adjustable dispensing unit. Small quantities are released onto the central feed plateau according to the selected feed-flow setting.

The reversible dosing plate allows the feeder to be adapted to different feed characteristics. Feed delivery can be increased, reduced or completely shut off for cleaning and maintenance.

Water is available separately at the sides of the trough, allowing pigs to alternate easily between feeding and drinking without continuously wetting the main dry-feed area.
