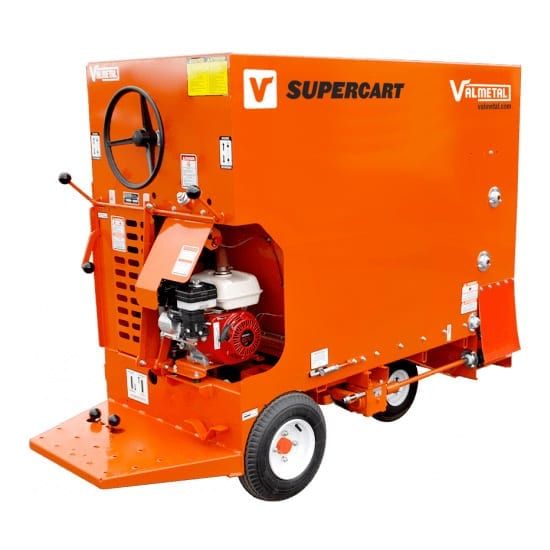

Bi-Directional Feed Distribution Cart

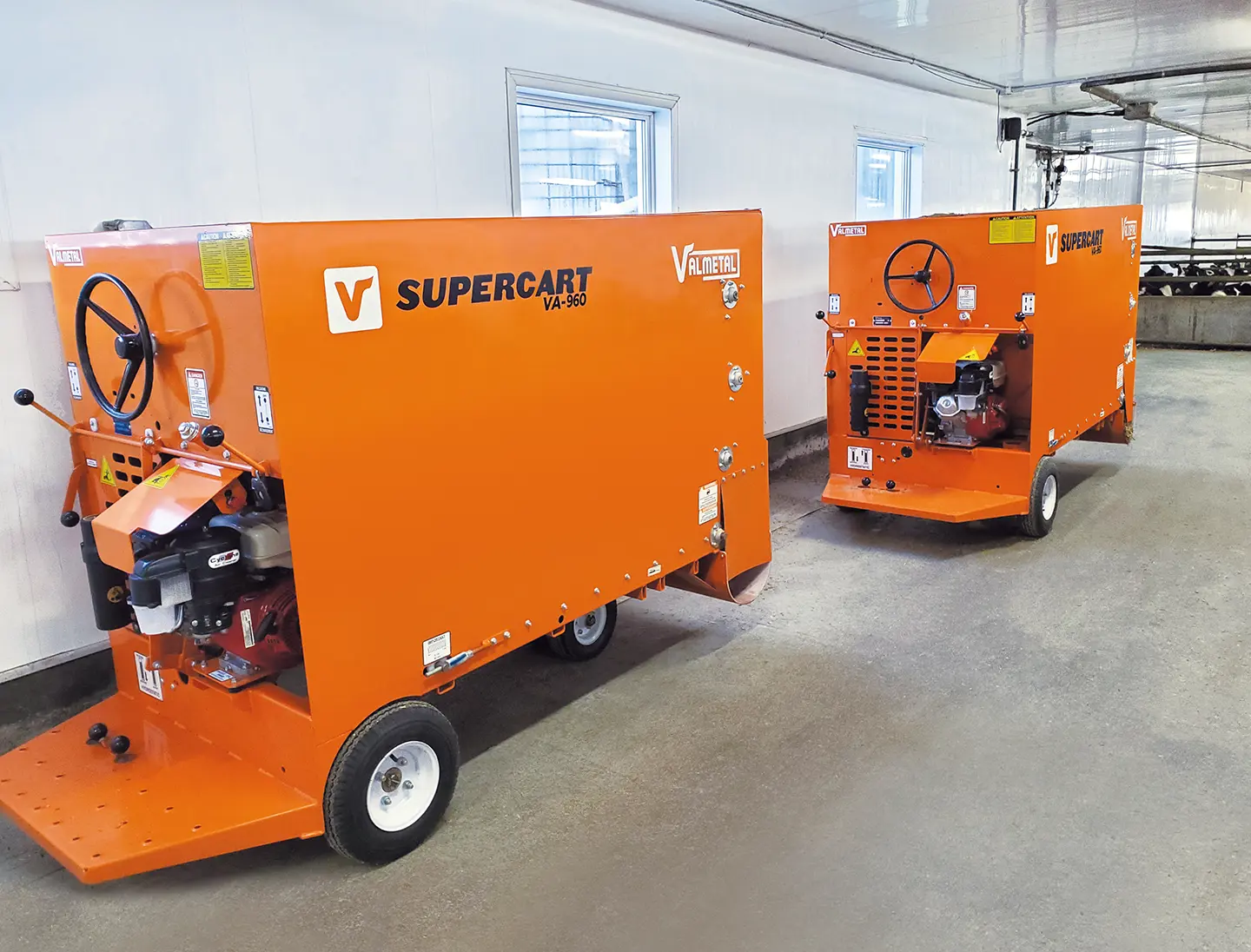

The Bi-Directional Feed Distribution Cart is a motorized mobile feeding unit designed to transport bulk feed and discharge it to either side of a livestock-house aisle. A reversible transverse conveyor enables the operator to select left- or right-hand unloading without repositioning the entire cart.

The compact self-propelled platform combines feed storage, transportation and controlled distribution in one machine. For pig-farm projects, dimensions, discharge height, conveyor configuration and feed-contact components can be adapted to the required aisle layout and feed characteristics.

• Left/Right Feed Discharge: Reversible cross conveyor allows feed to be distributed toward either side of the aisle.
• Motorized Transport: Self-propelled operation reduces manual pushing and repeated feed handling.
• Controlled Distribution: Conveyor operation can be started, stopped or reversed according to the required feeding position.
• Heavy-Duty Conveyor: Chain-and-paddle construction provides dependable movement of compatible bulk feed materials.
• Protected Drive Components: Low-positioned conveyor components reduce exposure to door frames, curbs and pen structures.
• Compact Barn Mobility: Multiple machine sizes can accommodate different aisle widths and turning conditions.
• Low-Maintenance Drive: Robust hydraulic or electric drive configurations are available according to project requirements.
• Optional Weighing: A weighing system can be integrated for improved feed-loading and ration control.

• Bulk Feed Hopper: Holds feed during transportation through the livestock building.
• Main Floor Conveyor: Moves feed from the hopper toward the distribution section.

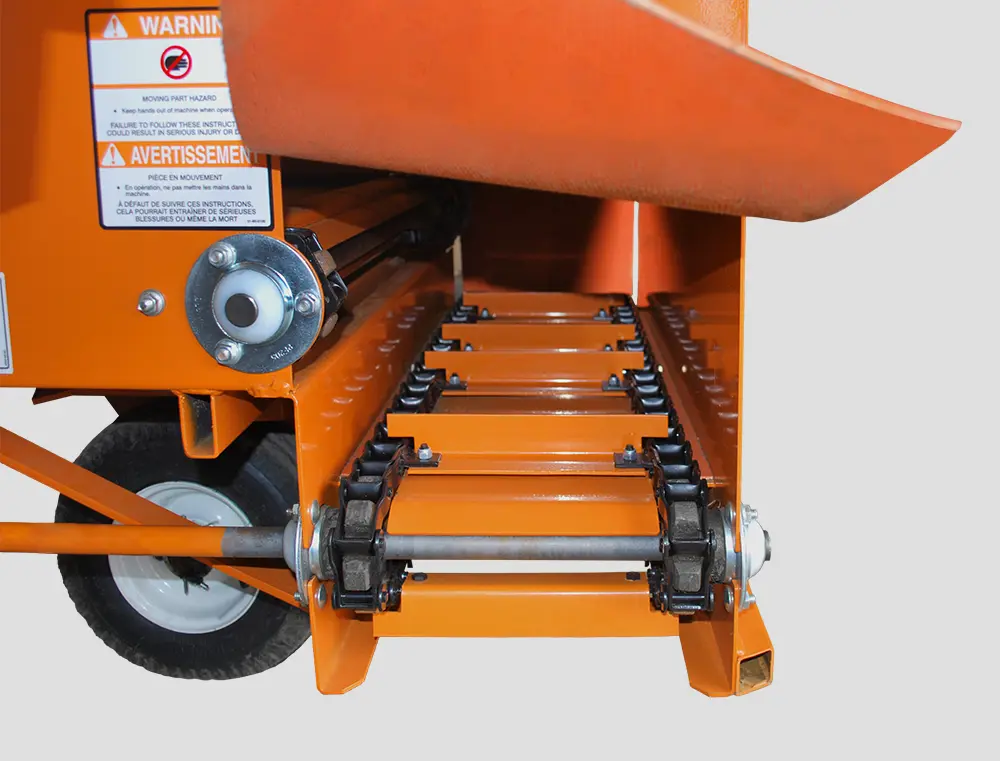

• Reversible Cross Conveyor: Transfers feed to the selected left or right discharge side.
• Conveyor Paddles: Carry feed evenly while maintaining controlled conveyor speed.
• Reversible Gearbox: Changes conveyor direction for bi-directional discharge.
• Adjustable Deflector: Helps direct feed into the required trough or feeding zone.
• Drive and Steering System: Provides powered travel and maneuverability inside the barn.
• Operator Platform: Integrates steering, travel and feed-distribution controls.

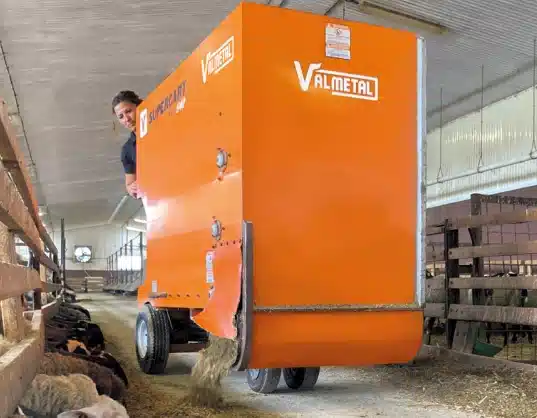

Feed is loaded into the hopper before the cart enters the feeding route. The motorized chassis transports the material along the central aisle while the operator positions the machine beside the required feeding area.

When distribution is required, the internal conveyor moves feed toward the transverse discharge conveyor. The reversible gearbox determines whether the cross conveyor moves feed to the left or right side.

The operator can stop distribution between feeding sections, reverse the discharge direction when required and continue along the barn without turning the cart around.

• Product Type: Motorized bi-directional feed distribution cart
• Discharge Method: Reversible left/right cross conveyor
• Reference Capacity Range: Approximately 1.1-2.7 m³ depending on model
• Reference Width: Approximately 84-114 cm depending on model
• Reference Length: Approximately 208-295 cm depending on model
• Reference Height: Approximately 150-160 cm depending on model
• Reference Machine Weight: Approximately 445-748 kg depending on model
• Conveyor Drive: Reversible gearbox
• Propulsion: Engine or electric configuration according to project requirements
• Optional Equipment: Weighing system, operator seat, tire options and customized discharge components
• Final Specification: Designed according to livestock-house layout and project requirements

• Commercial pig farms
• Sow gestation houses
• Nursery and growing barns
• Finishing pig houses
• Double-row pen layouts
• Central feeding aisles
• Manual feeding modernization projects
• Prefabricated steel structure livestock buildings
• Feed transport and distribution system upgrades

• Hopper capacity and machine dimensions
• Machine width according to barn aisle
• Reversible conveyor width and discharge capacity
• Discharge height and deflector configuration
• Engine or electric drive system
• Feed-contact material and surface treatment
• Optional weighing system
• Operator seat and tire configuration
• Complete configuration according to project requirements

Commissioning:

• Confirm aisle width, doorway clearance, turning radius and trough position before selecting the cart configuration.
• Inspect steering, brakes, tires, conveyor chains and safety guards before operation.
• Run the cross conveyor in both directions without feed to confirm correct operation.
• Load a small test quantity and check left- and right-side discharge.
• Adjust the feed deflector and conveyor settings according to the feeding layout.

Maintenance:

• Remove residual feed from the hopper and conveyor after use when required.
• Inspect conveyor chain tension, paddles, bearings and gearbox regularly.
• Keep the discharge area free from compacted feed and foreign objects.
• Check steering, brakes and tires according to the maintenance schedule.
• Inspect hydraulic or electrical components for leakage, damage or loose connections.
• Clean feed-contact areas according to the farm biosecurity program.

Q1: What does bi-directional distribution mean?

It means the cross conveyor can reverse direction so feed can be discharged from either the left or right side of the cart.

Q2: Does the entire cart need to turn around to change discharge sides?

No. The reversible cross conveyor changes the discharge direction while the cart remains in the same orientation.

Q3: Is the cart suitable for double-row pig houses?

Yes. A left/right discharge configuration is particularly useful where pens or troughs are positioned on both sides of a central feeding aisle.

Q4: Are different cart capacities available?

Yes. Reference motorized cart configurations cover approximately 1.1 to 2.7 m³, while project-specific capacities are available upon request.

Q5: Can an electric version be supplied?

Yes. Electric drive configurations can be supplied where low-noise and emission-free indoor operation is preferred.

Q6: Can a weighing system be added?

Yes. An optional weighing system can help operators monitor loaded feed quantities and improve ration management.

Q7: Can the dimensions be adapted to narrow aisles?

Yes. Machine width, capacity and discharge arrangement can be selected according to the available barn aisle and doorway dimensions.

Q8: What information is required for a quotation?

Please provide the required capacity, feed type, aisle width, doorway dimensions, trough height, feeding distance, preferred power system and project location.
