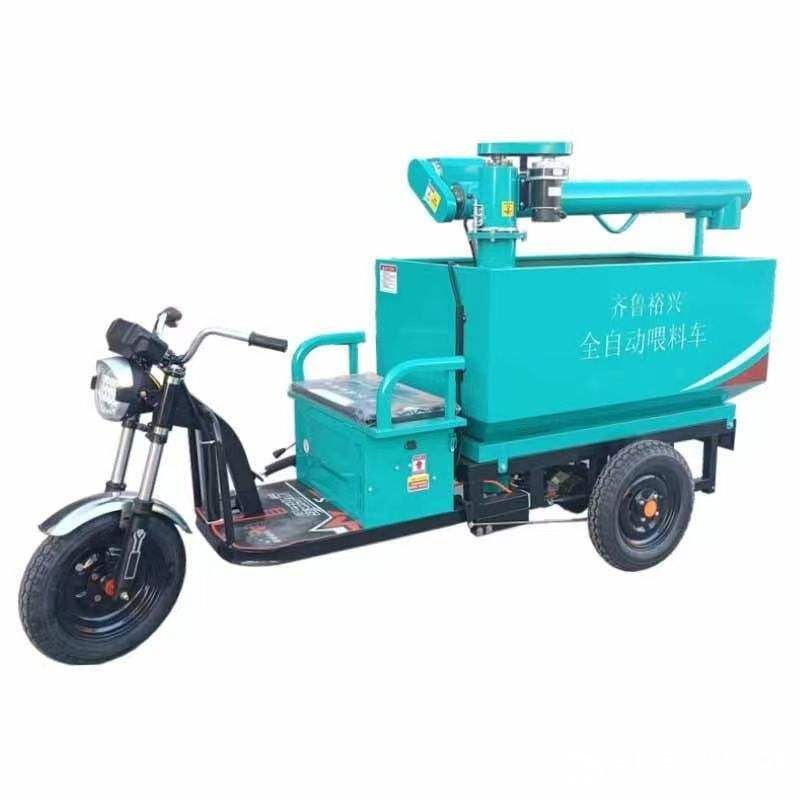

Ride-On Automatic Pig Feed Distribution Cart

The Ride-On Automatic Pig Feed Distribution Cart is a battery-powered mobile feeding vehicle designed for efficient dry-feed transportation and dispensing inside commercial pig houses. It combines an electric ride-on chassis, large feed hopper and powered auger discharge system in one compact unit.

The operator drives the cart along the feeding aisle while the auger system continuously or intermittently transfers feed from the hopper into feeders or troughs. Adjustable discharge speed helps match feed output to pen size and feeding requirements.

Multiple vehicle widths and hopper capacities can be supplied for different pig-house layouts, including narrow aisles in existing farms and new steel structure pig houses.

• Ride-On Electric Drive: Allows one operator to transport and distribute feed without manually pushing a loaded cart.
• Automatic Auger Dispensing: Powered screw conveyor transfers feed directly from the hopper to the feeding area.
• Adjustable Feed Output: Discharge speed can be regulated according to ration requirements and travel speed.
• Double-Side Feeding Option: Compatible configurations can distribute feed toward either side of the barn aisle.
• Narrow-Aisle Design: Different vehicle widths are available for existing and newly constructed pig houses.
• Large Hopper Capacity: Reduces repeated trips between the feed room and livestock buildings.
• Battery Powered: Low-noise electric operation is well suited to indoor livestock environments.
• One-Person Operation: Integrates feed transport, driving and controlled distribution into a single feeding process.

• Feed Hopper: Stores dry meal, pellets and compatible feed ingredients during transportation.
• Electric Drive Chassis: Provides powered movement through farm roads and pig-house aisles.
• Operator Seat and Controls: Allow convenient driving and feed-distribution operation.
• Auger Conveyor: Transfers feed from the bottom of the hopper toward the discharge outlet.
• Discharge Tube: Directs feed toward the required trough or feeder.
• Feed-Speed Control: Adjusts auger operation and discharge rate.
• Rechargeable Battery System: Supplies power to the driving and feeding mechanisms.

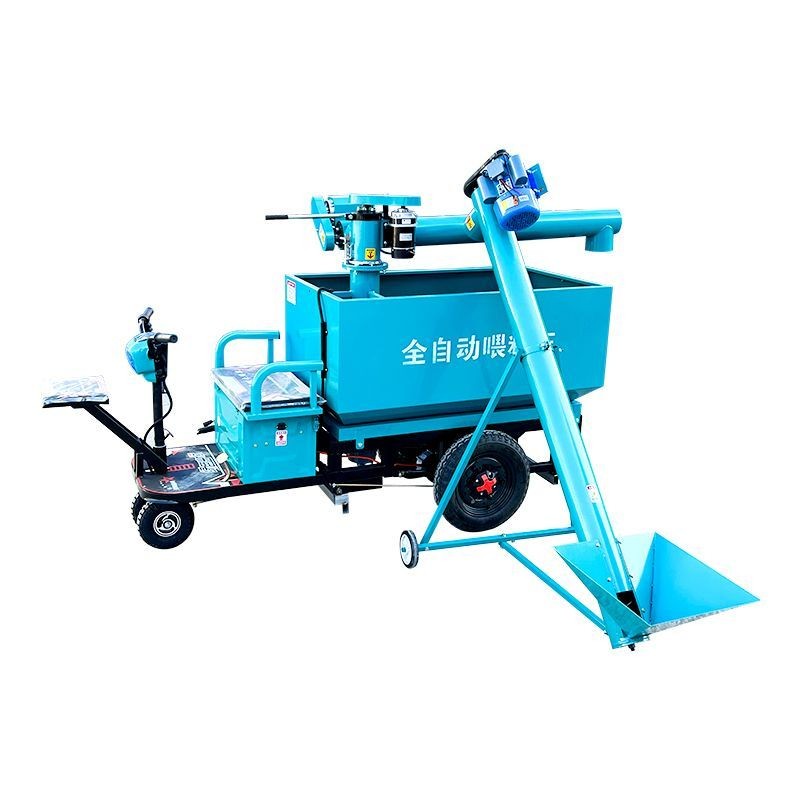

• Optional Loading Conveyor: Can assist automatic or semi-automatic transfer of feed into the cart hopper.

Dry feed is loaded into the hopper manually, from a silo outlet or through an optional loading conveyor. The electric drive system moves the cart along the predetermined pig-house feeding route.

When the cart reaches the required pens, the operator activates the auger. The rotating screw transfers feed from the hopper to the side discharge outlet and into the corresponding feeder or trough.

Feed-distribution speed can be adjusted to match the required quantity. The operator can stop dispensing between pens while continuing to drive to the next feeding position.

• Product Type: Ride-on electric pig feed transport and distribution cart
• Drive System: Battery-powered electric drive
• Distribution System: Powered auger conveyor
• Reference Vehicle Widths: Approximately 800 mm, 900 mm, 1000 mm and 1200 mm depending on model
• Reference Load Capacities: Approximately 500 kg, 800 kg and 1000 kg depending on configuration
• Feed Output: Adjustable
• Discharge Direction: Single-side or double-side configuration available upon request
• Compatible Feed: Dry meal, pellet feed and compatible feed ingredients
• Hopper Material: Stainless steel or coated steel according to project requirements
• Loading Method: Manual, silo discharge or optional loading conveyor
• Operator Requirement: One person
• Final Specification: Customizable according to project requirements

• Commercial pig farms
• Sow gestation houses
• Nursery pig houses
• Grower and finishing barns
• Manual-to-mechanized feeding upgrades
• Long pig-house feeding aisles
• Narrow-aisle pig farm buildings
• Prefabricated steel structure pig houses
• Pig farm renovation and labor-saving feeding projects

• Vehicle width according to pig-house aisle
• Hopper capacity and load rating
• Stainless steel or coated steel hopper
• Single-side or double-side discharge
• Auger diameter and discharge capacity
• Battery capacity and charging system
• Wheel and tire configuration
• Optional feed-loading conveyor
• Discharge height and outlet position
• Complete configuration according to farm layout and project requirements

Commissioning:

• Confirm aisle width, door dimensions, turning radius, floor condition and feeding route before selecting the cart.
• Charge the battery fully before initial operation.
• Check drive controls, brakes, tires, auger and discharge mechanism.
• Run the auger without feed briefly to confirm correct rotation.
• Load a small quantity of feed and adjust discharge speed before normal feeding.
• Train operators in safe driving, loading and feed-distribution procedures.

Maintenance:

• Remove residual feed from the hopper and auger after required feeding cycles.
• Keep the discharge outlet free from compacted feed.
• Inspect auger bearings, drive components and fasteners regularly.
• Check tires, steering and braking performance before operation.
• Recharge and maintain the battery according to the battery manufacturer's instructions.
• Clean and disinfect feed-contact surfaces according to the farm biosecurity program.

Q1: Is the feed cart fully autonomous?

No. The standard configuration is operator-driven. Automatic operation refers primarily to powered feed conveying and dispensing.

Q2: Can one operator complete the feeding process?

Yes. The ride-on design combines feed transportation and powered distribution so one trained operator can complete routine feeding rounds.

Q3: Can feed be distributed on both sides?

Yes. Double-side dispensing configurations are available for pig houses where troughs or feeders are positioned on both sides of the aisle.

Q4: Is it suitable for narrow pig-house aisles?

Yes. Reference configurations include vehicle widths from approximately 800 mm, and the final width can be selected according to project requirements.

Q5: What feed can the cart handle?

It is mainly designed for dry meal, pellets and compatible feed ingredients. Suitability for higher-moisture materials depends on the auger and hopper configuration.

Q6: Can feed be loaded automatically?

Yes. An optional inclined loading conveyor or compatible silo-loading arrangement can be supplied.

Q7: Can the feed discharge rate be adjusted?

Yes. Suitable control systems allow the operator to regulate auger output according to pen size and feeding requirements.

Q8: What information is required for a quotation?

Please provide the required load capacity, aisle width, minimum doorway size, feed type, feeding distance, single- or double-side discharge requirement, floor gradient and project location.
