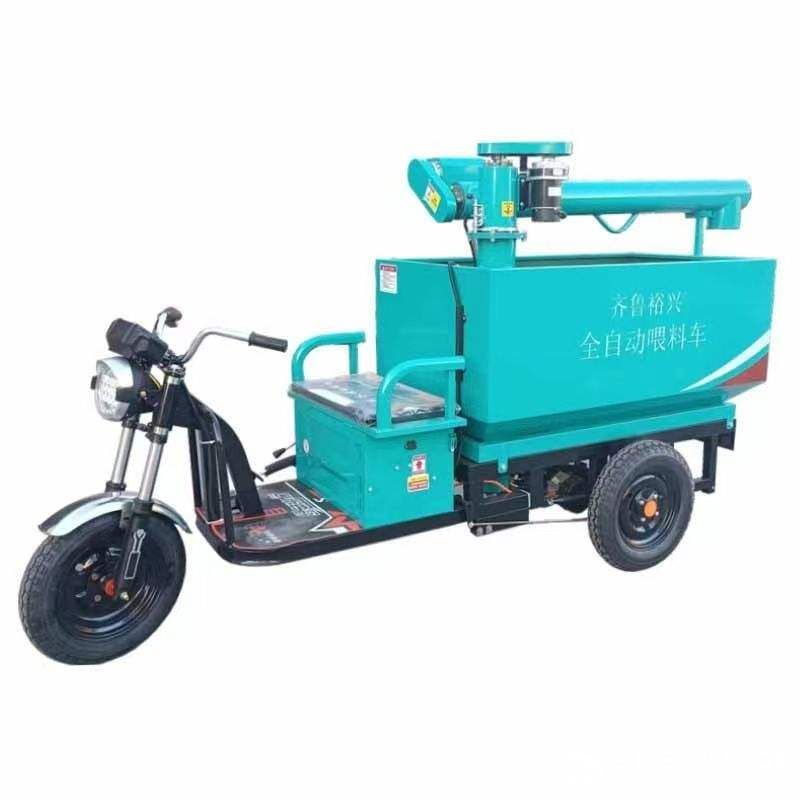

Large-Capacity Electric Pig Feed Cart

The Large-Capacity Electric Pig Feed Cart is designed for transporting and mechanically distributing dry feed in commercial pig houses. It combines a battery-powered three-wheel chassis, high-volume hopper and motor-driven auger discharge system.

Reference configurations include approximately 500 kg, 800 kg and 1000 kg load classes, helping reduce repeated trips between the feed room and livestock buildings.

Adjustable feed discharge, optional bilateral feeding and automatic hopper loading make the cart suitable for breeding, nursery and finishing farms requiring flexible mechanized feeding without installing a complete fixed feeding line.

• Large-capacity hopper reduces feed-room return trips.
• Reference load options of approximately 500, 800 and 1000 kg.
• Battery-powered electric travel reduces manual handling.
• Motor-driven auger provides fast mechanical feed distribution.
• Adjustable discharge speed supports controlled feeding.
• Single-side or bilateral discharge configurations available.
• Multiple vehicle widths suit different pig-house feeding aisles.
• Suitable for powder feed, pellets and compatible feed ingredients.
• Optional loading auger or elevator further reduces manual labor.
• Electric operation provides low-noise, exhaust-free travel inside livestock buildings.

• Large Feed Hopper: Stores bulk dry feed for extended feeding rounds.
• Three-Wheel Electric Chassis: Provides powered transport and compact maneuverability.

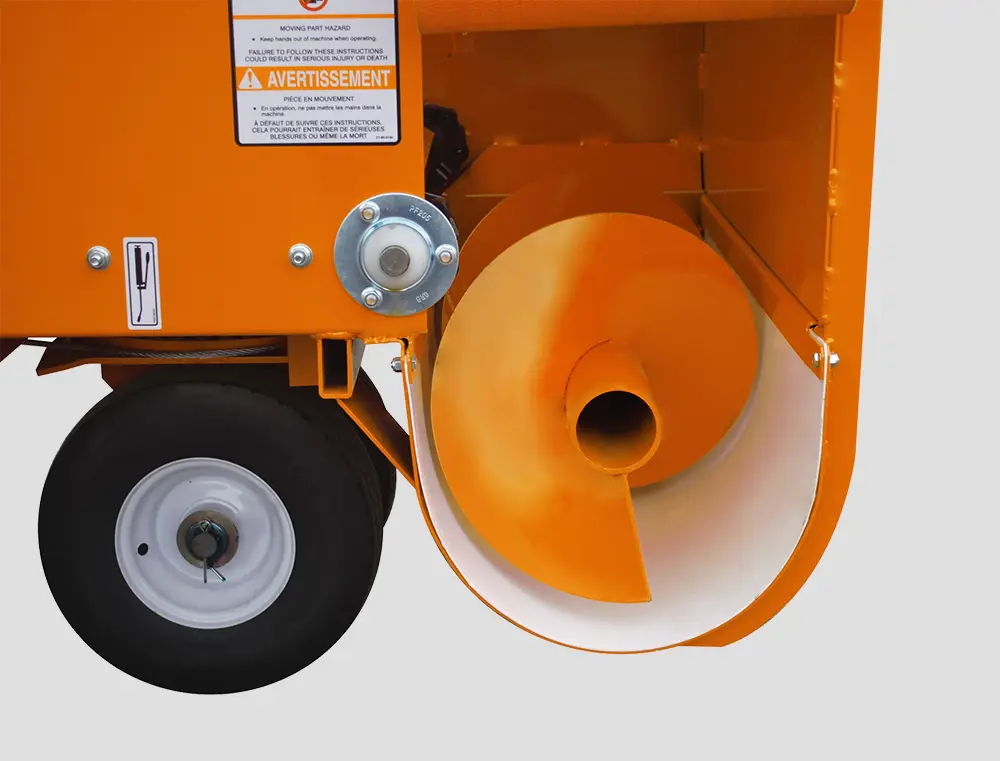

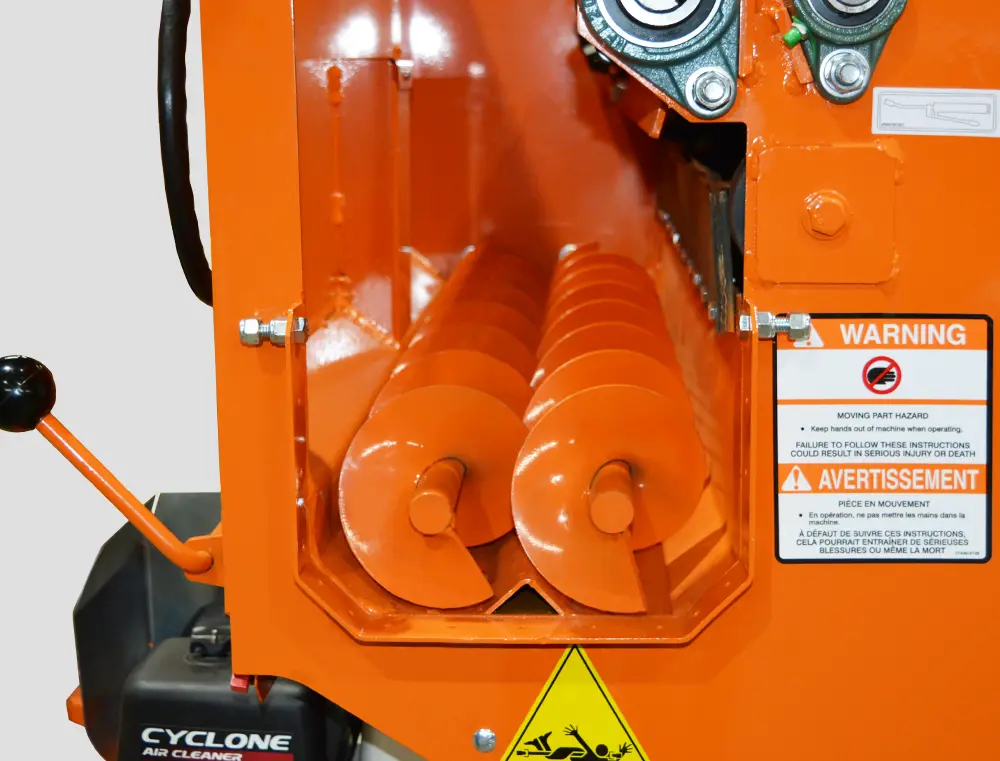

• Feed Auger: Transfers material from the hopper toward the outlet.
• Discharge Spout: Directs feed into troughs along the feeding aisle.
• Auger Motor: Powers the mechanical feed conveying system.
• Traction Motor: Drives the mobile chassis.
• Rechargeable Battery: Supplies energy for vehicle travel and feeding functions.
• Operator Controls: Manage movement and feed discharge.
• Optional Loading System: Automatically transfers feed into the hopper.

Dry feed is loaded into the hopper manually or through an optional loading conveyor. The battery-powered chassis transports the feed from the storage area to the required pig house.

At each feeding position, the operator activates the screw auger. Feed is conveyed from the hopper to the discharge outlet and delivered directly into the trough.

The discharge rate can be adjusted according to pig numbers and ration requirements. Bilateral configurations can distribute feed to pens on both sides of the aisle.

• Commercial pig breeding farms
• Sow gestation houses
• Nursery pig houses
• Grower and finishing barns
• Feed-room to barn transportation
• Pen-by-pen dry-feed distribution
• Steel-structure pig houses
• Farm feeding-system renovation projects
• Farms where fixed automatic feed lines are not practical

• 500, 800 or 1000 kg reference load class
• Vehicle width according to barn aisle dimensions
• Hopper volume and material
• Single-side or bilateral discharge
• Auger diameter and discharge capacity
• Variable feed-discharge speed
• Battery and traction-motor configuration
• Automatic loading auger or elevator
• Discharge spout height and orientation
• Customizable according to project requirements

Commissioning:

• Confirm aisle width, doorway clearance, turning radius and floor load capacity before model selection.
• Check barn floor slope and surface condition before operating at full load.
• Fully charge the battery before initial operation.
• Inspect steering, brakes, tires and electrical controls.
• Test the auger without feed and confirm the correct rotation direction.
• Adjust discharge speed according to feed characteristics and ration requirements.

Maintenance:

• Remove residual feed from the hopper and auger when required.
• Inspect auger flighting, bearings and drive components regularly.
• Prevent stones, metal parts and foreign objects from entering the hopper.
• Check wiring, switches and motor connections periodically.
• Inspect tires, steering and braking components before operation.
• Maintain the battery according to the battery manufacturer's instructions.
• Clean feed-contact surfaces according to farm biosecurity procedures.

Q: What capacities are available?
A: Reference configurations include approximately 500, 800 and 1000 kg load classes. Final capacity should be selected according to barn layout and daily feed requirements.

Q: How is feed discharged?
A: A motor-driven screw auger transfers feed from the hopper to the discharge outlet.

Q: Can it feed both sides of the aisle?
A: Yes. Bilateral discharge is available for barns with troughs on both sides of the feeding passage.

Q: What feed can the cart handle?
A: It is suitable for common pig powder feed, pellets and compatible feed ingredients. Final auger selection should match feed flowability and moisture content.

Q: Can feed loading also be mechanized?
A: Yes. A loading auger or elevator can be added to reduce manual hopper filling.

Q: What information is required for a quotation?
A: Please provide required capacity, aisle width, doorway dimensions, floor slope, feed type, discharge direction, feeding distance, required quantity and project destination.
