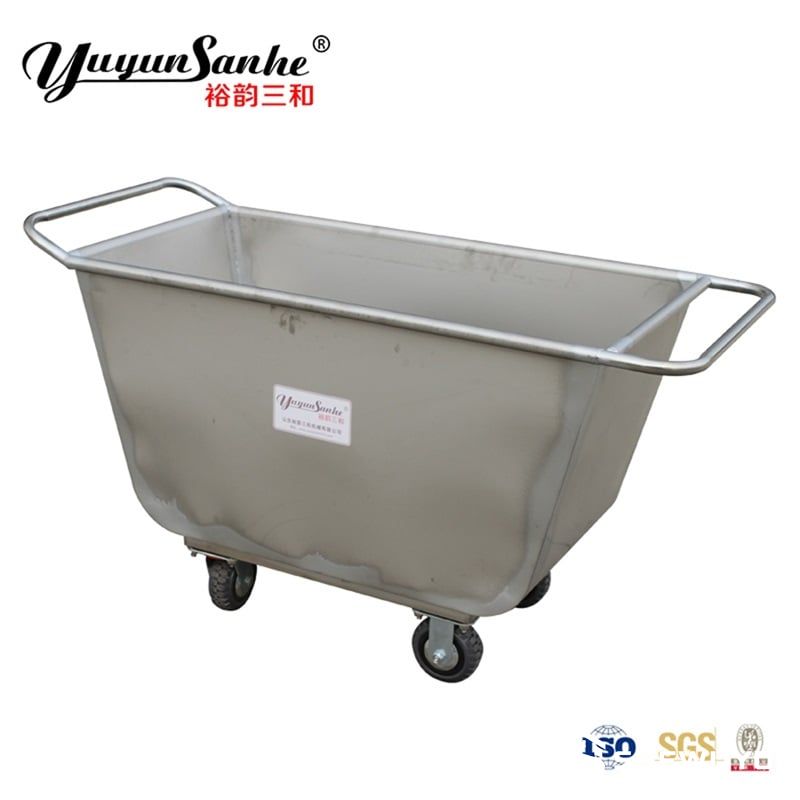

Narrow-Aisle Manual Pig Feed Cart

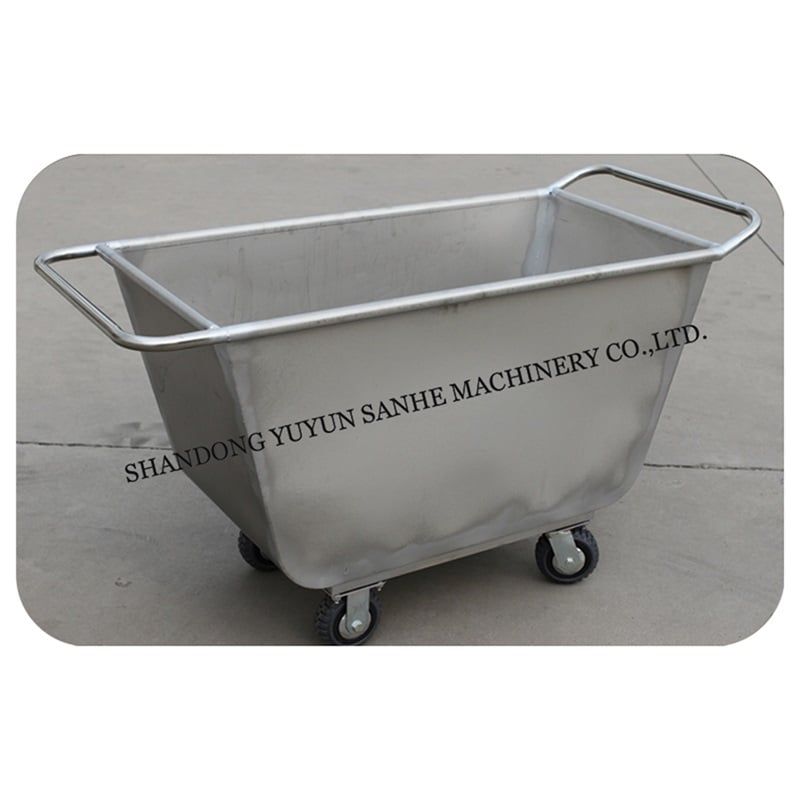

The Narrow-Aisle Manual Pig Feed Cart is designed for transporting dry feed, bagged ingredients and other compatible materials along service passages in commercial pig houses. Its compact body and flexible caster arrangement make it suitable for feeding routes where aisle width and turning space are limited.

The welded stainless steel body provides good resistance to corrosion and routine farm washing, while the curved bottom improves feed unloading and reduces material remaining in corners. Dual handles allow convenient pushing, pulling and positioning beside pig pens.

• Narrow-Aisle Mobility: Compact cart geometry is suitable for internal pig-house feeding routes and restricted passages.
• Stainless Steel Body: Provides corrosion resistance and durability in humid livestock environments.

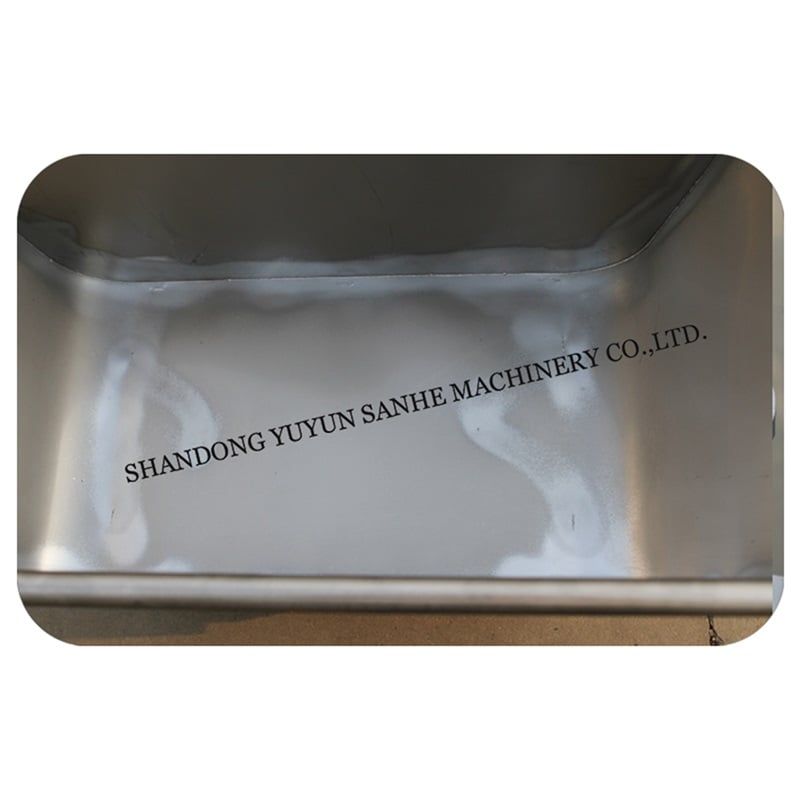

• Full-Weld Construction: Continuous welded joints improve structural strength and reduce leakage through body seams.
• Curved Bottom: Helps feed move toward the unloading area and simplifies internal cleaning.
• Dual Push Handles: Handles at both ends improve control during pushing, pulling and turning.
• 360-Degree Casters: Swivel wheels improve maneuverability around pens and aisle intersections.
• Reinforced Chassis: Bottom support structure increases load stability during daily farm use.

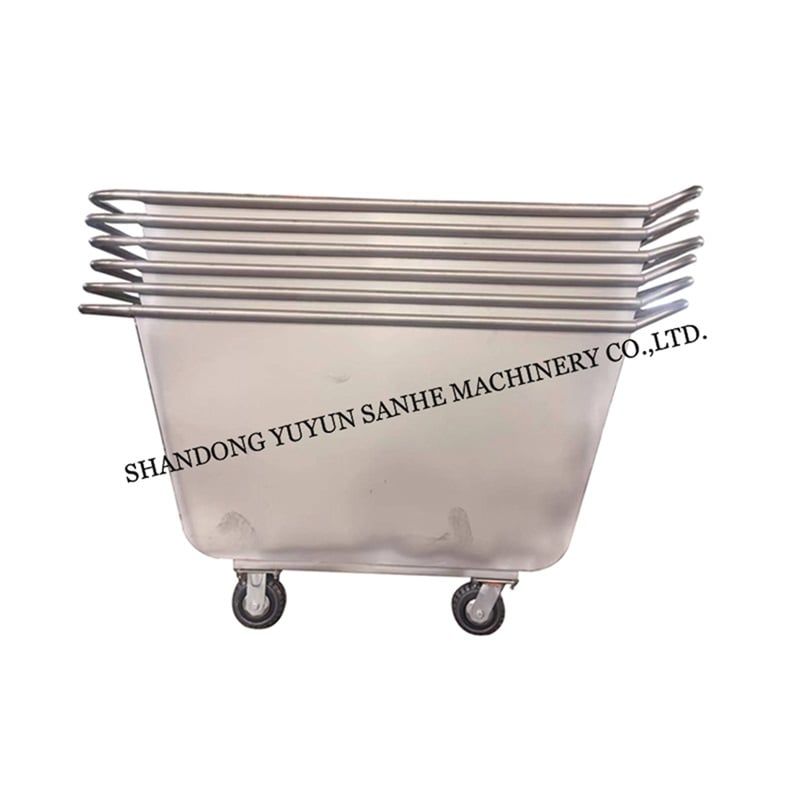

• Stackable Design: Compatible configurations can be nested for compact storage and transportation.

• Feed Container: Deep stainless steel body for bulk dry-feed transportation.
• Rolled Upper Rim: Reinforces the opening and provides a smoother handling edge.

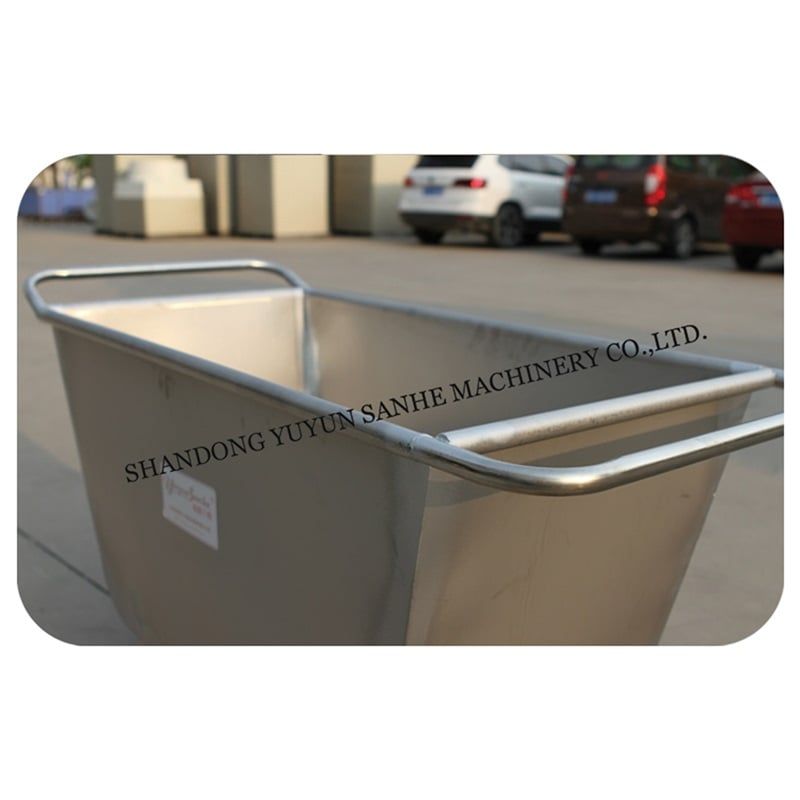

• Dual Tubular Handles: Allow convenient movement from either end of the cart.
• Curved Lower Body: Reduces difficult-to-clean internal corners.
• Reinforced Bottom Frame: Supports the loaded container and distributes weight to the wheels.

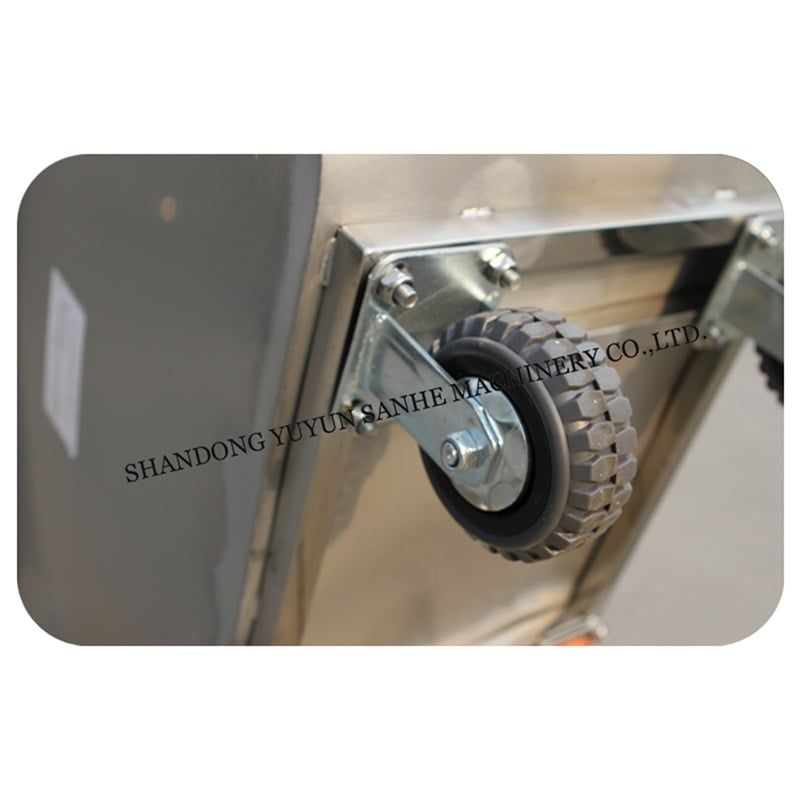

• Rubber Swivel Casters: Provide flexible manual movement and reduced rolling noise on suitable barn floors.

Dry feed is loaded into the open stainless steel container at the feed room, silo discharge point or bag-storage area. The operator manually pushes or pulls the cart along the pig-house aisle.

At each pen, feed is removed with a scoop or other suitable dispensing tool and transferred to the feeder or trough. Swivel casters allow the cart to turn in confined areas, while the curved interior assists complete unloading and subsequent cleaning.

• Product Type: Manual feed transport cart for pig farms
• Reference Load Capacity: 150 kg / 250 kg
• Reference Tank Material: 201 stainless steel
• Body Construction: Fully welded stainless steel
• Bottom Profile: Curved for easier unloading and cleaning
• Handles: Dual-ended tubular handles
• Wheel Type: Reinforced rubber casters
• Steering: 360-degree swivel caster configuration
• Operation: Manual push / pull
• Storage: Stackable configuration available
• Dimensions: Customizable according to aisle width and project requirements

• Commercial pig farms
• Sow gestation and farrowing houses
• Nursery pig houses
• Grower and finishing barns
• Manual dry-feed distribution
• Feed-room to pen transportation
• Narrow service aisles
• Prefabricated steel structure pig houses
• Farm renovation and feeding-logistics projects

• Load capacity
• Cart width for narrow aisles
• Overall length and body depth
• Stainless steel grade and material thickness
• Wheel diameter and caster specification
• Fixed and swivel wheel combinations
• Handle dimensions
• Stackable configuration and packaging available upon request

Operation:

• Confirm aisle width, floor condition and turning space before selecting the cart size.
• Distribute feed evenly inside the container and avoid exceeding the rated capacity.
• Push the cart at a controlled speed, especially around corners, ramps and wet areas.
• Use both handles as appropriate for positioning beside feeders and troughs.
• Park the cart on a level surface when loading or unloading.

Maintenance:

• Remove residual feed after each feeding round.
• Wash and disinfect the stainless steel body regularly.
• Inspect welded joints, handles and bottom reinforcement for damage.
• Check caster rotation and mounting bolts periodically.
• Remove feed, hair and debris from wheel assemblies.
• Replace excessively worn wheels before they affect stability or maneuverability.

Q1: What is the cart mainly used for?

It is designed for manual transportation of dry feed and compatible farm materials between feed-storage areas and pig pens.

Q2: What capacities are available?

The reference product is offered in 150 kg and 250 kg versions. Other sizes can be configured according to project requirements.

Q3: Is it suitable for narrow pig-house aisles?

Yes. The cart width and wheel arrangement can be selected according to the available aisle width and turning space.

Q4: Why does the cart use a curved bottom?

The curved interior helps reduce trapped feed, makes unloading easier and simplifies washing.

Q5: Can the wheels turn 360 degrees?

Reference configurations use swivel casters that improve turning and positioning in livestock-house passages.

Q6: Can the carts be stacked?

Yes. Compatible tapered-body configurations can be nested to reduce storage and transportation space.

Q7: What information is required for a quotation?

Please provide the required load capacity, aisle width, preferred cart dimensions, stainless steel specification, wheel requirements, quantity and project location.
