Product Name	Automatic Loading Feed Cart with Elevator
Product Image

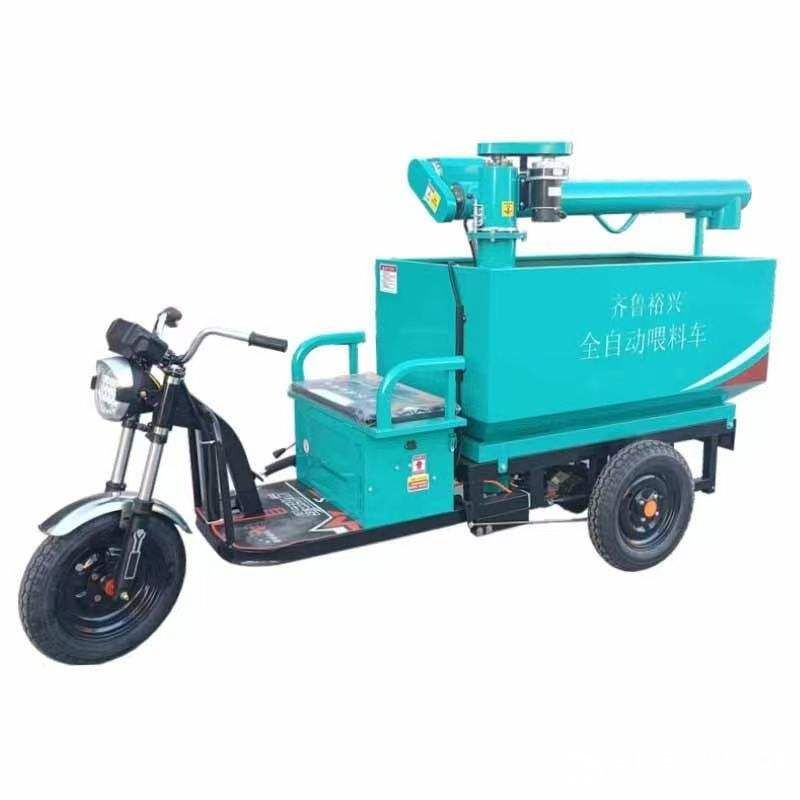

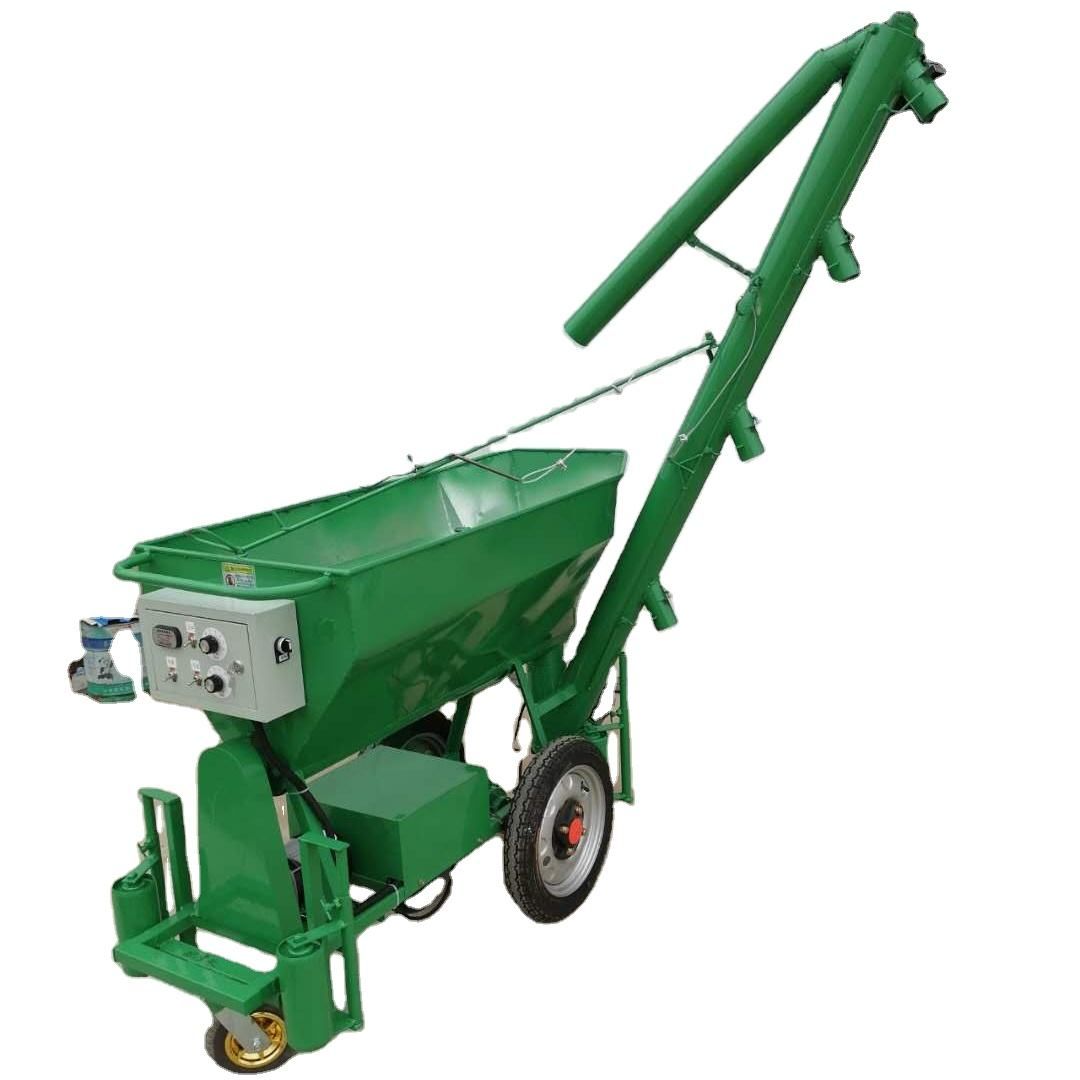

Product Overview	The Automatic Loading Feed Cart with Elevator is a mobile feed handling solution designed to combine feed loading, transportation and distribution in one unit. It is especially suitable for commercial pig farms where feed must be transferred efficiently from a feed preparation area to multiple pens or feeding points. An inclined feed elevator reduces manual lifting when filling the cart hopper, while the electric mobile chassis transports the loaded feed through livestock-house aisles. An auger discharge system then delivers feed to troughs or feeders. Capacity, cart width, elevator dimensions and discharge configuration can be customized according to the pig house layout and project requirements.
Key Features	Integrated loading elevator reduces manual lifting and simplifies hopper filling. Battery-powered mobile chassis reduces labor intensity during daily feed transportation. Auger conveying system provides continuous and controlled feed transfer. Feed loading, transport and distribution functions are integrated into one mobile unit. Adjustable feed discharge supports different feeding requirements and pen layouts. Single-side or dual-side discharge configurations are available upon request. Compact dimensions can be selected for narrow commercial pig-house aisles. Feed-contact structures can be manufactured from corrosion-resistant materials for convenient cleaning. Electric operation avoids direct engine exhaust inside livestock buildings. Multiple configurations are available for new pig farms and renovation projects.

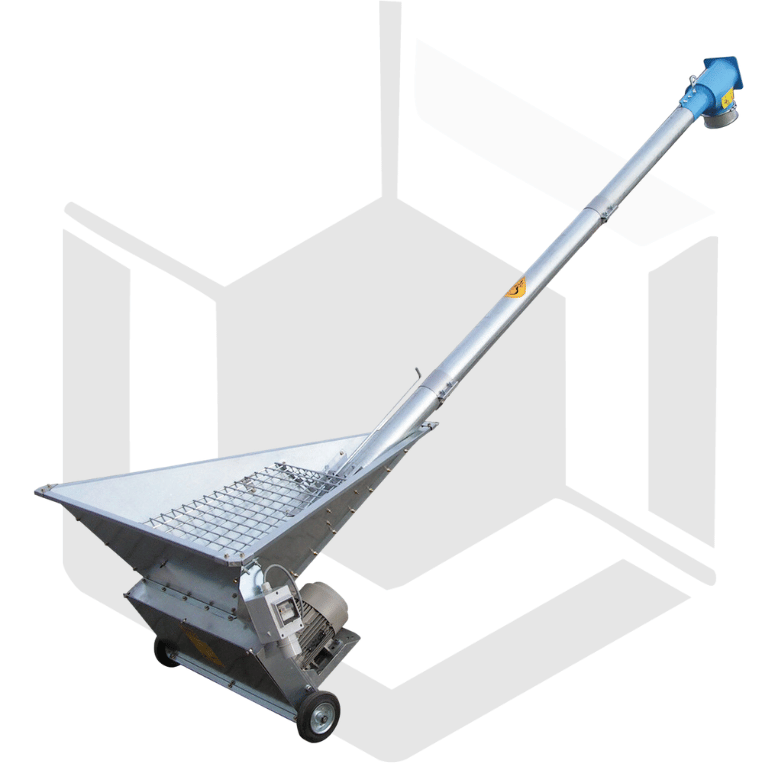

Structural Components	Feed Loading Elevator: Inclined auger-type conveying unit used to transfer feed from a low-level intake hopper into the cart. Loading Hopper: Low-position receiving section for convenient feed introduction into the elevator. Main Feed Hopper: Large storage compartment mounted on the mobile chassis. Electric Drive Chassis: Battery-powered platform providing mobile transportation through farm aisles. Discharge Auger: Transfers feed from the main hopper toward the feeding outlet. Discharge Outlet: Directs feed into troughs, feeders or designated feeding positions. Drive Motors and Gearboxes: Provide power for the loading and discharge conveying mechanisms. Electrical Control System: Controls feed loading, transportation and discharge functions. Battery and Charging System: Supplies electrical power for mobile operation and auxiliary functions.
Working Principle / Structural Principle	Feed is first introduced into the low-level intake hopper of the loading elevator. The powered auger inside the inclined conveyor transfers the feed upward and discharges it into the main cart hopper, reducing the need for workers to manually lift bags or buckets to hopper height. After loading, the electric cart moves from the feed preparation area through the pig-house feeding aisle. At each required feeding point, the operator activates the discharge auger. Feed is conveyed from the main hopper to the outlet and delivered into the corresponding trough or feeder. The loading and discharge mechanisms can be configured according to the required farm workflow.
Technical Specifications	Product Type: Automatic Loading Mobile Feed Transport Cart Drive System: Battery Electric Drive Loading Method: Inclined Feed Elevator / Auger Loader Discharge Method: Powered Auger Conveyor Main Hopper Capacity: Customizable Rated Load: According to project requirements Cart Width: Customizable according to pig-house aisle width Loading Elevator Length: Available upon request Loading Height: According to project requirements Discharge Direction: Single-Side or Dual-Side Available Feed Discharge Rate: Adjustable according to configuration Feed-Contact Material: Stainless steel or other corrosion-resistant material available upon request Battery Specification: According to selected model and operating requirements Charging Specification: Configured according to local electrical standards Applicable Feed: Dry meal feed, pellet feed and compatible feed materials
Applications	Commercial pig farms and integrated swine production facilities Sow gestation and breeding houses Grower and finisher pig houses Piglet nursery facilities Feed rooms connected with multiple livestock buildings Manual feeding systems requiring reduced labor input Farms where a fixed automatic feed line is not practical Pig farm renovation and feeding-system upgrade projects Livestock projects requiring flexible point-to-point feed distribution
Customization Options	Main feed hopper volume and rated load Overall vehicle length, width and height Dimensions according to pig-house aisle width Loading elevator length, angle and intake hopper size Single-side or dual-side feed discharge Discharge auger length and outlet height Feed-contact material and structural material Battery capacity and charging configuration Wheel, tire and chassis configuration Operator platform and control arrangement OEM branding and project-specific configurations
Installation & Maintenance	The feed cart is a mobile standalone system and normally requires no permanent installation inside the pig house. Depending on the shipping arrangement, the loading elevator, intake hopper or other detachable components may require basic mechanical assembly before commissioning. Before operation, inspect the elevator supports, auger guards, electrical connections, battery condition, drive components, wheels and control system. Remove residual feed regularly from the loading elevator, hopper and discharge auger to prevent buildup. Bearings, gearboxes, chains or other transmission components should be inspected and serviced according to the maintenance schedule. Electrical components should be protected during washing, and all safety guards should remain correctly installed during operation.
Product FAQ	Q: What is the main advantage of the loading elevator? A: The elevator transfers feed from a low-level loading point into the main hopper, reducing manual lifting and improving the efficiency of feed preparation. Q: Can the cart automatically distribute feed after loading? A: Yes. The cart can be equipped with a powered auger discharge system for controlled feed distribution along the feeding aisle. Q: Can the cart width be customized for an existing pig house? A: Yes. Overall width and chassis dimensions can be configured according to the available aisle width and farm layout. Q: Can feed be discharged on both sides? A: Single-side and dual-side discharge configurations are available according to project requirements. Q: What types of feed can be handled? A: The system is primarily suitable for dry meal feed, pellet feed and other compatible free-flowing feed materials. Special feed characteristics should be confirmed before equipment selection. Q: Can the elevator dimensions be customized? A: Yes. Elevator length, loading height, intake hopper configuration and installation angle can be designed according to the required loading arrangement. Q: Can the electrical system be supplied for different countries? A: Yes. Battery, charger and applicable electrical specifications can be configured according to local standards and project requirements.
