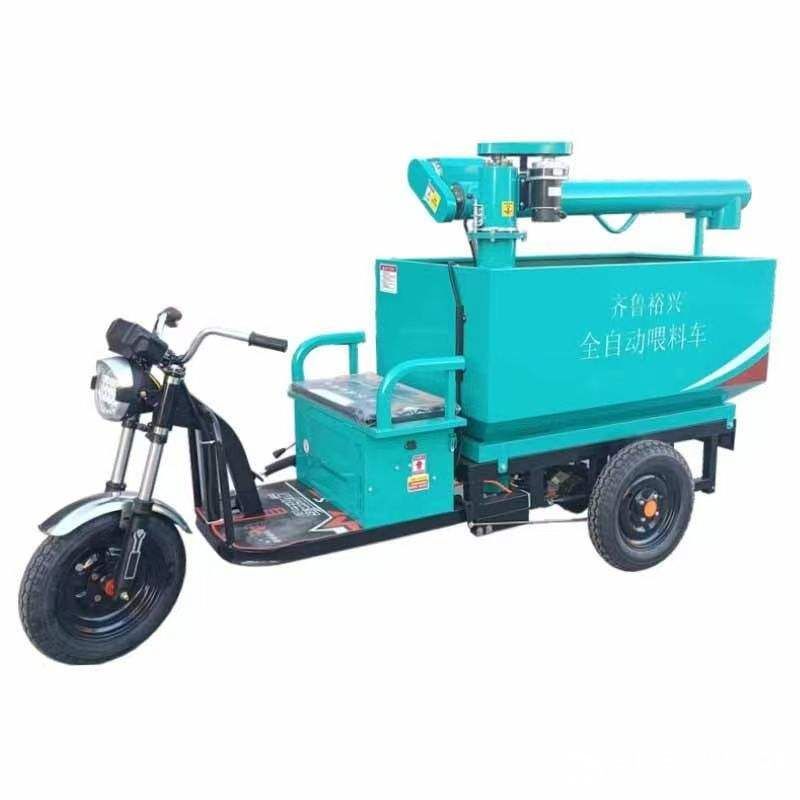

Double-Side Discharge Electric Feed Cart

The Double-Side Discharge Electric Feed Cart is a mobile dry-feed transport and dispensing vehicle designed for commercial pig farms. It combines a battery-powered chassis, bulk feed hopper and powered conveying system to complete feed transportation and distribution in one operation.

Feed can be discharged toward either side of the central aisle, allowing the operator to serve pens on both sides without repeatedly repositioning the vehicle. Adjustable discharge speed helps match feed output to pen size and ration requirements.

Compact-width configurations are suitable for existing narrow pig houses as well as new steel structure barns, providing a practical alternative where a fixed automatic feed-line system is unnecessary.

• Double-Side Discharge: Delivers feed toward the left or right side of the aisle for flexible pen-by-pen feeding.
• Electric Drive: Battery-powered movement reduces manual handling and eliminates the need for gasoline or diesel during routine barn operation.
• Powered Feed Conveying: Auger-based delivery transfers feed efficiently from the hopper to the discharge outlet.
• Adjustable Feed Output: Multiple operating settings allow discharge speed to be matched to feeding requirements.
• Narrow-Aisle Options: Several vehicle widths can accommodate different barn passage dimensions.
• Large Feed Capacity: Reduces repeated travel between the feed storage area and pig houses.
• One-Person Operation: Combines driving, transportation and feed distribution in one mobile unit.
• Optional Automatic Loading: A compatible loading conveyor can transfer feed into the hopper with less manual handling.

• Bulk Feed Hopper: Stores dry meal, pellets or compatible feed ingredients.
• Electric Vehicle Chassis: Supports powered movement along livestock-house aisles.
• Auger Conveyor: Transfers feed from the bottom of the hopper toward the discharge system.
• Double-Side Outlet: Directs feed toward either side of the vehicle.
• Feed Output Control: Regulates conveyor operation and discharge quantity.
• Operator Controls: Provide driving, forward/reverse and dispensing functions.
• Rechargeable Battery: Supplies energy for vehicle movement and feed conveying.
• Optional Loading Conveyor: Transfers bulk feed into the hopper from ground level or a feed-storage point.

Dry feed is loaded into the hopper manually, from a feed-storage outlet or through an optional loading conveyor. The battery-powered chassis transports the feed along the barn feeding aisle.

At each feeding section, the operator activates the conveying system. The rotating auger moves feed from the hopper toward the selected side outlet and into the corresponding trough or feeder.

The discharge direction and output can be controlled according to the barn layout, allowing alternate feeding of pens positioned on both sides of the aisle.

• Product Type: Electric mobile feed transport and distribution cart
• Discharge Configuration: Double-side discharge
• Drive System: Rechargeable battery electric drive
• Feed Conveying: Powered auger system
• Reference Vehicle Widths: Approximately 800 mm, 900 mm, 1000 mm and 1200 mm depending on model
• Reference Load Capacities: Approximately 500 kg, 800 kg and 1000 kg depending on configuration
• Reference Battery: Selected configurations start from approximately 32 Ah
• Feed Output: Adjustable
• Feed Types: Dry meal, pellets and compatible slightly moist feed materials
• Hopper Material: Stainless steel or corrosion-resistant steel according to project requirements
• Loading: Manual, silo-assisted or optional conveyor loading
• Final Specification: Customizable according to project requirements

• Commercial pig farms
• Sow gestation houses
• Nursery pig houses
• Grower and finishing barns
• Long central feeding aisles
• Double-row pig pen layouts
• Narrow-aisle livestock buildings
• Prefabricated steel structure pig houses
• Manual feeding modernization and farm renovation projects

• Vehicle width according to aisle dimensions
• Feed hopper capacity
• Stainless steel or coated-steel hopper
• Auger diameter and discharge capacity
• Left/right discharge outlet arrangement
• Discharge height and extension tube
• Battery capacity and charging system
• Tire and wheel configuration
• Optional automatic loading conveyor
• Complete configuration according to pig-house layout and project requirements

Commissioning:

• Confirm aisle width, doorway dimensions, turning radius and floor gradient before selecting the vehicle configuration.
• Fully charge the battery before initial operation.
• Check steering, braking, tires, auger conveyor and both discharge outlets.
• Run the conveying mechanism briefly without feed to confirm correct operation.
• Load a small test quantity and adjust feed output before routine feeding.
• Train operators in safe driving, loading and double-side dispensing procedures.

Maintenance:

• Remove residual feed from the hopper and auger after feeding when required.
• Keep both discharge outlets free from compacted material.
• Inspect auger bearings, drive components and fasteners periodically.
• Check tire condition, steering and braking performance regularly.
• Maintain and recharge the battery according to operating requirements.
• Clean feed-contact surfaces according to the farm biosecurity program.

Q1: What is the advantage of double-side discharge?

It allows one cart traveling along a central aisle to feed pens positioned on either side, reducing repositioning and improving feeding efficiency.

Q2: Can the discharge rate be adjusted?

Yes. Suitable configurations provide multiple feed-output settings so distribution can be matched to pen size and ration requirements.

Q3: Is the cart suitable for narrow pig houses?

Yes. Reference vehicle widths start at approximately 800 mm, with other widths available for different barn layouts.

Q4: What load capacities are available?

Reference configurations include approximately 500 kg, 800 kg and 1000 kg capacities. Final capacity depends on vehicle dimensions and project requirements.

Q5: What types of feed can be transported?

The cart is suitable for common pig meal, pellet feed and compatible feed ingredients. Slightly moist material may require a suitable conveying configuration.

Q6: Can it operate on sloped farm roads?

Suitable electric configurations can handle moderate slopes, but the required motor, battery and braking specification should be selected according to the actual gradient and load.

Q7: Can an automatic loading system be added?

Yes. An inclined loading conveyor or compatible feed-loading arrangement can be supplied according to project requirements.

Q8: What information is required for a quotation?

Please provide the required load capacity, aisle width, doorway dimensions, feed type, feeding distance, discharge direction, floor gradient, battery requirements and project location.
