Product Showcase	Content

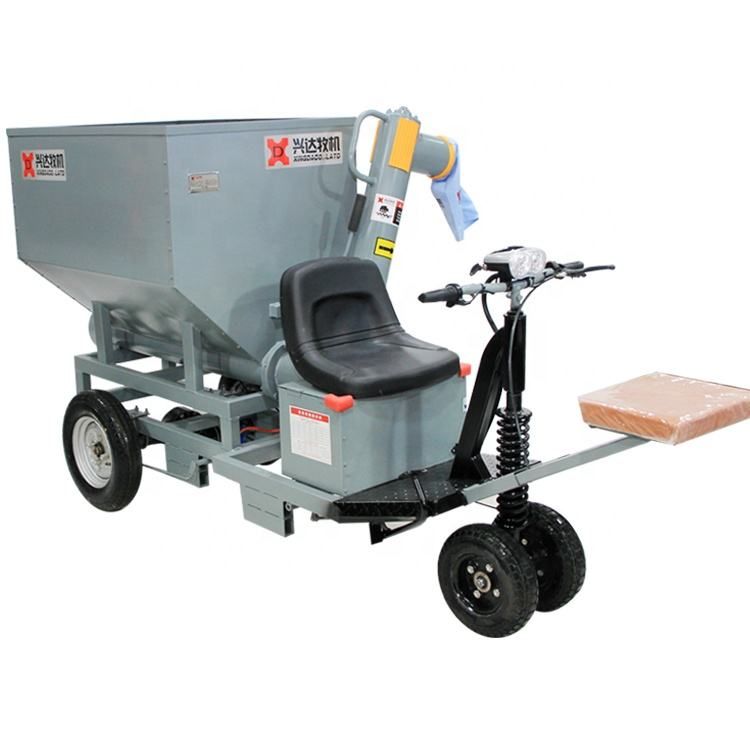

Product Name	Electric Pig Feed Transport Cart
Product Image
Product Overview	The Electric Pig Feed Transport Cart is a mobile feeding solution designed to transport and distribute feed inside commercial pig farms. It combines a battery-powered mobile chassis, feed hopper and mechanical discharge system to reduce manual handling and improve daily feeding efficiency. The compact vehicle configuration is suitable for pig-house feeding aisles where a fixed automatic feed line may not be necessary or practical. Models can be configured for different barn layouts, aisle widths, feed capacities and discharge requirements.
Key Features	Battery-powered travel reduces manual pushing and repetitive feed handling. Integrated feed hopper supports efficient transport from feed preparation areas to pig pens. Auger-based discharge system provides controlled and continuous feed delivery. Adjustable discharge speed helps operators match feeding output to different pens and feeding routines. Single-side or dual-side discharge configurations are available according to project requirements. Compact vehicle width can be customized for narrow pig-house feeding aisles. Stainless steel feed-contact structures provide good corrosion resistance and convenient cleaning. Electric operation produces no direct exhaust emissions inside livestock buildings. Optional loading equipment can reduce manual lifting when filling the feed hopper.
Structural Components	Feed Hopper: Large-capacity container designed for temporary storage and transport of pig feed. Electric Drive Chassis: Battery-powered mobile platform for transportation through farm passages. Auger Conveyor: Mechanically transfers feed from the hopper to the discharge outlet. Discharge Assembly: Delivers feed toward troughs, feeders or designated feeding points. Control System: Provides operating controls for vehicle movement and feed discharge. Battery and Charging System: Supplies electrical power for transportation and feeding functions. Wheel and Steering System: Designed for maneuvering through livestock-house aisles and farm working areas. Optional Loading Unit: Can be configured to assist with loading feed into the hopper.
Working Principle / Structural Principle	Feed is loaded into the hopper at the feed storage or preparation area. The operator drives the battery-powered cart along the feeding aisle and activates the discharge system when reaching the required pen or feeding point. An electrically driven auger transfers feed from the hopper toward the discharge outlet. Feed output can be controlled according to the required feeding rate, allowing continuous distribution while the cart travels along the pig-house aisle. Depending on configuration, discharge can be arranged on one or both sides of the vehicle.
Technical Specifications	Product Type Mobile Electric Feed Transport and Distribution Cart Drive Type Battery Electric Drive Feed Conveying Method Electric Auger Conveyor Feed Hopper Material Stainless Steel or According to Project Requirements Hopper Capacity Customizable Overall Width Designed According to Pig-House Aisle Width Discharge Direction Single-Side or Dual-Side Available Discharge Speed Adjustable According to Configuration Battery Specification Available Upon Request Charging System Configured According to Local Electrical Requirements Feed Type Dry Meal, Pellet Feed and Compatible Feed Materials Optional Loading System Available Upon Request
Applications	Commercial pig farms and integrated swine production facilities Grower and finisher pig houses Sow gestation and breeding barns Piglet nursery houses Feed transport between feed rooms and livestock buildings Manual or semi-automated pig feeding operations Existing pig farms where installation of a complete automatic feed line is impractical Pig farm renovation and modernization projects
Customization Options	Feed hopper volume and load capacity Overall vehicle width and length Single-side or dual-side feed discharge Auger length, discharge height and outlet configuration Feed-contact material and structural material Battery capacity and charging specification Wheel and tire configuration Optional automatic or assisted feed loading system OEM branding and project-specific configuration
Installation & Maintenance	The cart is a mobile standalone feeding unit and normally does not require permanent installation inside the pig house. Before operation, check battery connections, controls, wheels, steering components, auger guards and discharge assemblies. Remove residual feed from the hopper and auger system regularly to reduce feed accumulation. Clean feed-contact surfaces according to farm hygiene procedures. Inspect electrical wiring, drive components, bearings, fasteners and tires periodically. Recharge and maintain the battery according to the battery manufacturer's instructions, and keep electrical components protected during washing.
Product FAQ	Q: What is the main advantage of an electric feed transport cart? A: It combines feed transportation and mechanical distribution in one mobile unit, reducing manual carrying and pushing during daily feeding. Q: Can the cart be used in narrow pig-house aisles? A: Yes. Overall width and chassis configuration can be customized according to the available feeding aisle and barn layout. Q: Can feed be discharged on both sides? A: Dual-side discharge configurations are available for projects where feeders or troughs are located on both sides of the aisle. Q: Is the feed discharge rate adjustable? A: Yes. Depending on the selected configuration, the discharge system can provide adjustable feed output for different feeding requirements. Q: Can an automatic loading system be supplied? A: Yes. Assisted or automatic feed loading equipment can be supplied according to project requirements. Q: Can the battery and charger be configured for our country? A: Yes. Electrical and charging specifications can be selected according to local power conditions and project requirements.
Product Gallery
