Product Name	Multi-Probe Digital Veterinary Ultrasound Scanner

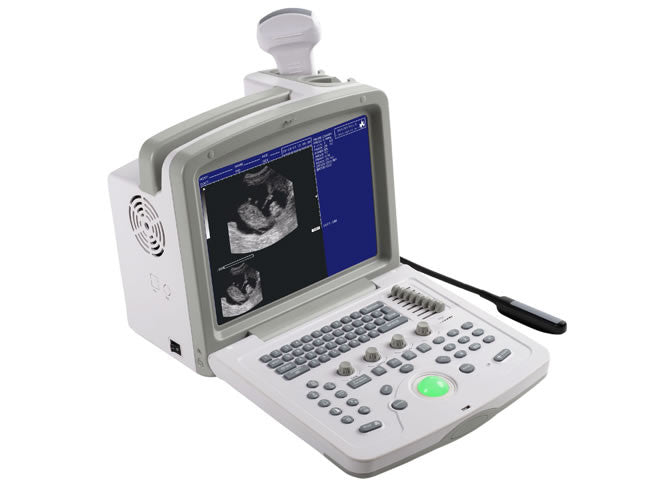

Product Image
Product Overview	The Multi-Probe Digital Veterinary Ultrasound Scanner is a portable diagnostic imaging system designed for mixed veterinary practice, livestock reproduction management, pregnancy examination, and routine animal ultrasound applications. Its digital imaging platform combines real-time ultrasound processing with dual probe connectors and automatic probe identification, allowing veterinary teams to switch between compatible probe configurations for different animal species and examination requirements. The system is suitable for commercial cattle farms, pig farms, goat-farming-equipment/" target="_blank" class="keylink">sheep and goat operations, equine breeding facilities, veterinary hospitals, animal clinics, breeding centers, distributors, and agricultural project procurement.
Key Features	Full digital veterinary ultrasound platform for mixed-practice applications. Two probe connectors support convenient switching between compatible veterinary probes. Automatic probe identification simplifies setup and daily operation. Supports convex, linear, micro-convex, and veterinary rectal probe configurations. Tissue Harmonic Imaging helps improve image quality for supported examinations. Multiple B-mode and M-mode display combinations support different diagnostic workflows. Built-in obstetric measurement functions support reproductive and pregnancy examinations. Large color display provides clear visualization for clinic and farm use. Image storage, cine-loop, USB, and external communication functions support record management. Suitable for commercial livestock farms, veterinary practices, distributors, and project procurement.
Structural Components	Main Imaging Unit: Integrates digital signal processing, image generation, measurement software, storage, and system controls. Color LCD Monitor: Displays real-time ultrasound images, measurements, annotations, and examination information. Dual Probe Connectors: Allow connection of two compatible probes with automatic probe recognition. Control Panel: Provides access to gain, depth, focus, measurement, image review, annotation, and display functions. Convex Probe: Suitable for general abdominal and reproductive examinations depending on animal species. Rectal Probe: Optional configuration for large-animal reproductive examination. Linear Probe: Optional high-frequency configuration for superficial structures and selected veterinary applications. Micro-Convex Probe: Optional compact probe for small-animal and confined acoustic-window applications.
Working Principle / Structural Principle	The electronic probe transmits ultrasound pulses into the animal body and receives echoes reflected from tissues, organs, and fluid interfaces. The scanner processes these signals digitally and converts them into real-time grayscale images for veterinary examination. Different probe shapes and frequencies provide different combinations of penetration depth, field of view, and image detail. A convex probe is suitable for general deeper imaging, while linear, rectal, and micro-convex probes can be selected for specific reproductive, superficial, or small-animal applications. The operator can adjust gain, imaging depth, display mode, zoom, orientation, and measurement functions according to the animal species and examination requirements.
Technical Specifications	Product Type Digital veterinary ultrasound scanner Display 12.1-inch TFT color LCD, 1024 × 768 reference configuration Probe Connectors 2 connectors with automatic probe identification Standard Probe 3.5 MHz convex probe in the reference configuration Optional Probes 6.5 MHz veterinary rectal, 7.5 MHz linear, 5.0 MHz micro-convex Scanning Modes Convex, linear, micro-convex, and compatible veterinary probe configurations Display Modes B, B+B, B+M, M, 4B, B+2B, 6B, 12B Scanning Depth 40-240 mm in the reference configuration Gray Scale 256 levels Cine Loop 500 frames or more in the reference configuration Permanent Image Storage 64 frames in the reference configuration Imaging Technology Digital ultrasound processing with Tissue Harmonic Imaging Measurement Functions Distance, circumference, area, volume, heart rate, EF rate, and supported obstetric measurements OB Functions Gestational age, estimated delivery date, fetal measurements, and related supported calculations Interfaces USB 2.0, RS-232, PAL-D video output Power Supply AC 100-240 V, 50/60 Hz Reference Weight Approximately 6.1 kg Additional Configuration Customizable according to project requirements
Applications	Cattle pregnancy and reproductive examination Equine breeding and reproductive management Swine reproductive ultrasound examination Sheep and goat pregnancy assessment Dog and cat abdominal and reproductive examination Veterinary clinic diagnostic imaging Livestock breeding and genetics centers Artificial insemination and reproductive management programs Commercial livestock farms and production groups Agricultural and veterinary equipment procurement projects
Customization Options	The Multi-Probe Digital Veterinary Ultrasound Scanner can be configured according to animal species, examination requirements, veterinary practice type, and commercial project specifications. Available options may include 3.5 MHz convex probes, 6.5 MHz veterinary rectal probes, 7.5 MHz linear probes, 5.0 MHz micro-convex probes, biopsy brackets, video printers, carts, transportation accessories, and other compatible components. Probe combinations, accessory packages, labeling, and commercial supply configurations are customizable according to project requirements.
Installation & Maintenance	Place the scanner on a stable working surface or compatible trolley and connect the required probe to the appropriate probe socket before operation. Confirm the probe type and examination preset before scanning. Use suitable veterinary ultrasound coupling gel for external examinations and follow the applicable preparation procedures for rectal or other specialized examinations. After use, clean and disinfect probes according to the probe manufacturer's instructions and compatible disinfectant requirements. Avoid impact, excessive cable pulling, connector contamination, and liquid ingress into the main unit. Store the scanner and probes in a clean, dry environment and inspect probe cables, connectors, power components, and the control panel periodically.
Project Cases	The Multi-Probe Digital Veterinary Ultrasound Scanner is suitable for mixed veterinary clinics, dairy farms, beef cattle operations, swine breeding farms, sheep and goat farms, equine reproduction centers, livestock genetics companies, and animal healthcare projects. For commercial procurement, the system can be supplied together with multiple probes, ultrasound gel, carts, carrying accessories, reproductive instruments, pregnancy diagnosis supplies, and other veterinary equipment according to project requirements.
Product FAQ	Q: How many probes can be connected to the scanner? A: The reference WED-180V configuration provides two probe connectors with automatic probe identification. Q: What probe types are available? A: The reference system supports a 3.5 MHz convex probe and optional 6.5 MHz veterinary rectal, 7.5 MHz linear, and 5.0 MHz micro-convex probes. Q: Is it suitable for mixed veterinary practice? A: Yes. The system is designed for mixed-practice use and supports examinations involving cats, dogs, pigs, sheep, horses, and other compatible veterinary applications. Q: Can it be used for livestock pregnancy examination? A: Yes. Its obstetric measurement functions and compatible probe configurations support reproductive and pregnancy examinations in livestock applications. Q: Does it support image storage? A: Yes. The reference configuration provides permanent image storage, cine-loop review, and USB connectivity. Q: Can different probe packages be supplied for farm projects? A: Yes. Probe combinations, carts, printing equipment, biopsy accessories, and project-specific configurations are available according to project requirements.

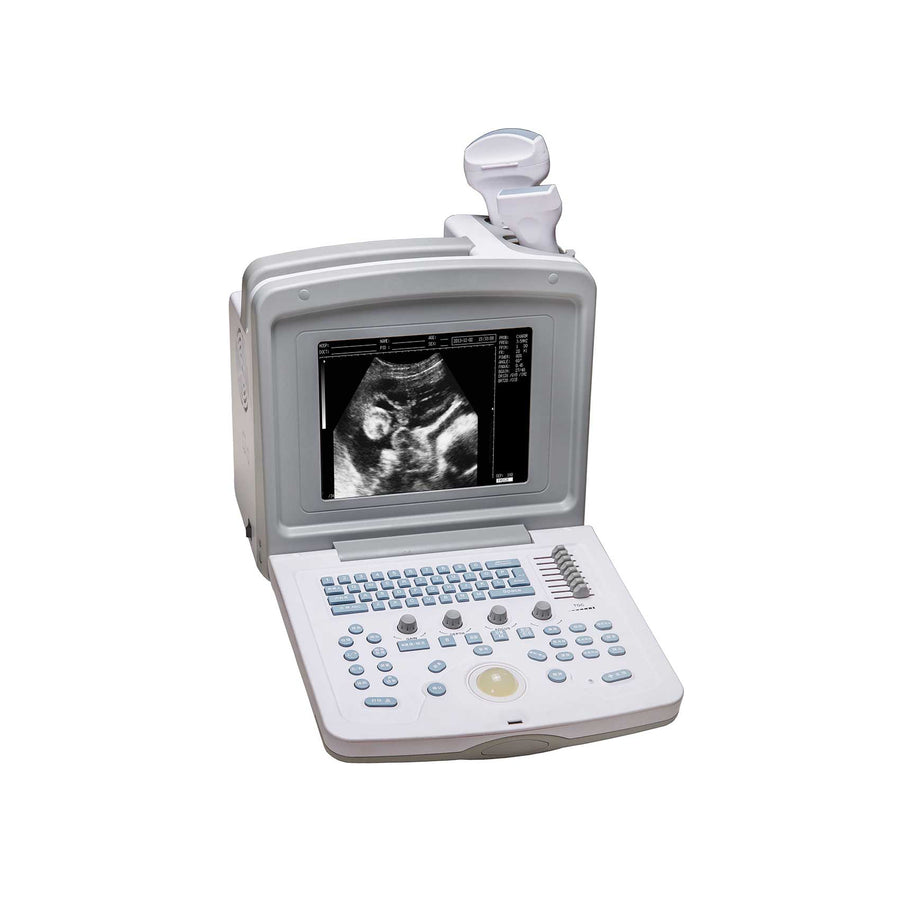

Product Gallery
