Product Name	Electronic Convex Veterinary Ultrasound Probe

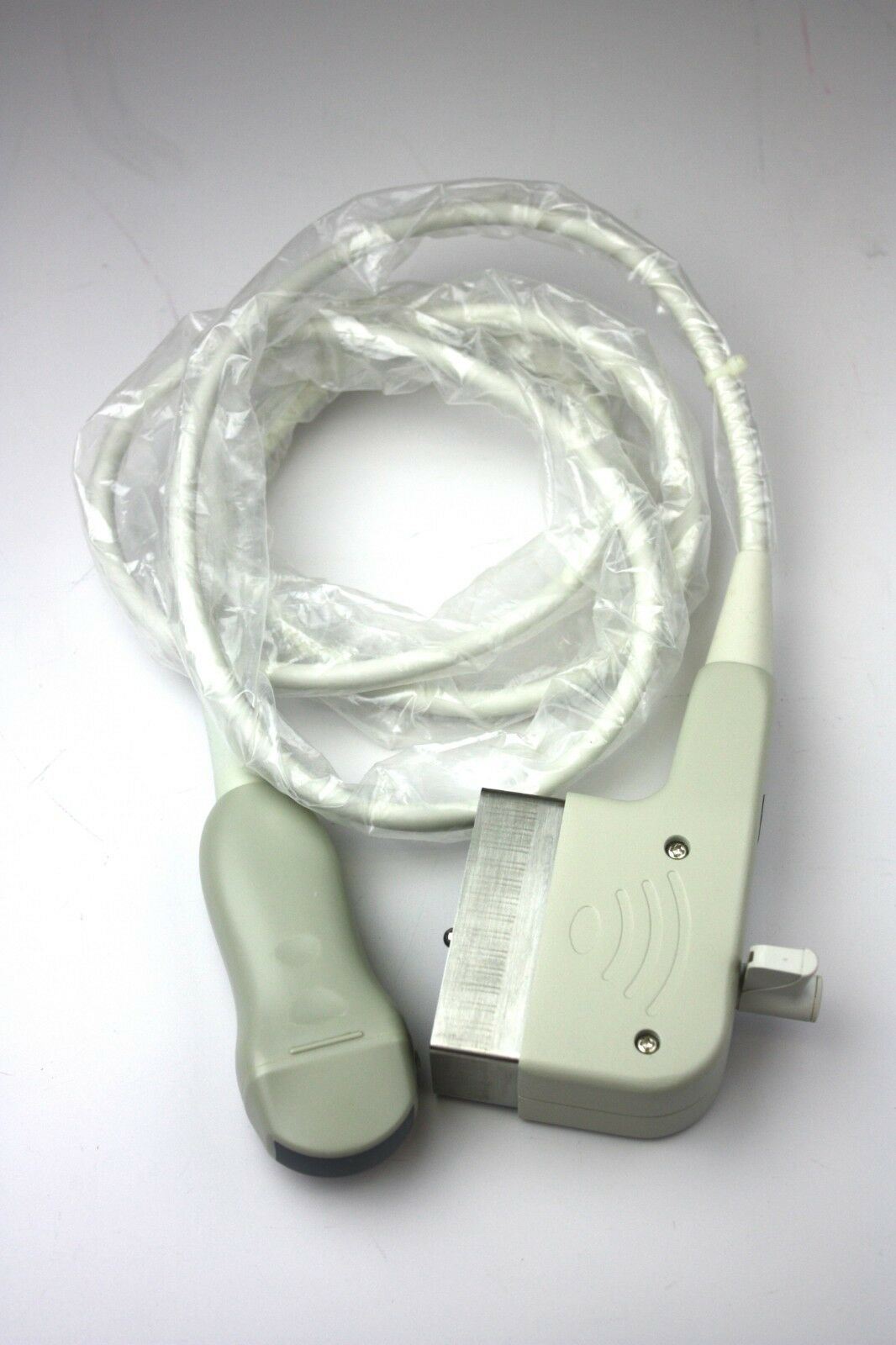

Product Image
Product Overview	The Electronic Convex Veterinary Ultrasound Probe is a curved-array transducer designed for general veterinary imaging applications where a wide field of view and suitable penetration depth are required. It can be used with compatible veterinary ultrasound systems for abdominal, reproductive, obstetric, kidney, urinary, and general soft-tissue examinations. The convex probe format is especially suitable for medium and large scanning areas because its curved acoustic surface produces a sector-shaped image that becomes wider with increasing depth. This makes the probe useful for cattle, pigs, goat-farming-equipment/" target="_blank" class="keylink">sheep, goats, horses, dogs, cats, and other compatible animals. Probe frequency, connector type, cable configuration, and system compatibility can be selected according to project requirements.
Key Features	Electronic curved-array transducer designed for veterinary ultrasound imaging. Wide sector-shaped field of view supports abdominal and reproductive examinations. Suitable for both livestock and companion-animal applications. Multi-frequency operation can be supported by compatible ultrasound systems. Electronic array structure provides real-time beam formation without mechanical probe movement. Ergonomic probe housing supports routine handheld scanning. Flexible cable and dedicated system connector provide stable signal transmission. Suitable for veterinary hospitals, breeding farms, livestock groups, distributors, and agricultural projects.
Structural Components	Convex Transducer Head: Contains the curved electronic array used for ultrasound transmission and echo reception. Acoustic Lens: Provides the contact surface between the probe and the animal examination area. Electronic Array Elements: Generate and receive ultrasound signals under control of the compatible scanner. Ergonomic Handle: Supports stable positioning and controlled scanning movement. Probe Cable: Transfers electrical signals between the transducer and ultrasound console. System Connector: Interfaces with the compatible veterinary ultrasound unit.
Working Principle / Structural Principle	The electronic convex probe uses multiple piezoelectric elements arranged along a curved array. The connected ultrasound scanner activates selected elements in a controlled sequence to transmit ultrasound pulses into the animal body and receive returning echoes. The system processes these echo signals into real-time images. Because of the curved arrangement of the transducer elements, the image field expands with depth, providing a broad viewing area for abdominal organs, reproductive structures, kidneys, urinary organs, and other internal anatomy. Lower-frequency settings generally provide greater penetration, while higher-frequency settings can improve near-field detail. Final frequency selection should be based on animal size, examination depth, anatomical region, and compatible scanner configuration.
Technical Specifications	Product Type Electronic convex veterinary ultrasound probe Array Type Convex electronic array Reference Center Frequency 3.5 MHz Reference Multi-Frequency Range 2.0 / 2.5 / 3.5 / 5.0 MHz on compatible systems Reference Radius R60 configuration available Typical Applications Abdominal, obstetric, reproductive, kidney, urinary, and general veterinary imaging Compatible Animals Cattle, pigs, sheep, goats, horses, dogs, cats, and other compatible species Connector Type According to compatible ultrasound system Cable Length Customizable Probe Frequency According to project requirements and scanner compatibility Packaging Available upon request
Applications	Cattle abdominal and reproductive ultrasound Pregnancy examination in livestock Pig and sow reproductive imaging Sheep and goat abdominal examination Equine general abdominal imaging Canine and feline abdominal ultrasound Kidney and urinary system examination Veterinary obstetric examinations Breeding farms and genetics centers Veterinary hospitals and mobile animal healthcare services
Customization Options	Electronic convex veterinary ultrasound probes can be configured according to the ultrasound system, animal species, examination depth, veterinary workflow, and commercial procurement requirements. Available options may include center frequency, multi-frequency range, array radius, system connector, cable length, probe identification, protective packaging, and accessory combinations. Final compatibility should be confirmed with the ultrasound scanner model before ordering. OEM and project-based supply configurations are available upon request.
Installation & Maintenance	Before connection, confirm that the probe connector and electronic specifications are compatible with the veterinary ultrasound system. Connect and disconnect the probe only according to the scanner manufacturer's instructions. Apply suitable veterinary ultrasound coupling gel during examination to improve acoustic contact. Avoid dropping the probe, striking the acoustic lens, sharply bending the cable, or placing excessive stress on the connector. After use, clean and disinfect the probe using methods compatible with the probe materials and manufacturer instructions. Do not immerse the connector or other non-waterproof components. Store the probe in a dry, protected position with the cable loosely arranged.
Project Cases	Electronic Convex Veterinary Ultrasound Probes can be supplied as replacement probes, spare probes, or components of complete veterinary ultrasound packages for livestock farms, breeding centers, veterinary hospitals, mobile veterinary teams, distributors, and agricultural development projects. For complete imaging projects, the probe can be supplied together with compatible ultrasound scanners, linear probes, micro-convex probes, rectal probes, protective carrying cases, ultrasound gel, probe holders, and other veterinary diagnostic accessories according to project requirements.
Product FAQ	Q: What is a convex veterinary ultrasound probe used for? A: It is commonly used for abdominal, reproductive, obstetric, kidney, urinary, and other general veterinary ultrasound examinations. Q: What is the typical frequency of a veterinary convex probe? A: A 3.5 MHz center frequency is common for general veterinary applications, while compatible multi-frequency systems may support several selectable operating frequencies. Q: Is this probe suitable for large animals? A: Yes. Convex probes are widely used for suitable examinations in cattle, pigs, sheep, goats, horses, and other livestock species. Q: Can it also be used for dogs and cats? A: Yes. Depending on animal size and examination depth, a compatible convex probe can be used for companion-animal abdominal imaging. Q: Will the probe work with any ultrasound machine? A: No. Probe connector, electronics, software recognition, and system compatibility must be confirmed before purchase. Q: Can frequency and connector configuration be customized? A: Yes. Probe frequency, cable, connector, packaging, and compatible system configuration can be supplied according to project requirements.
Product Gallery
