Product Name	Veterinary Ultrasound Probe Standoff
Product Image

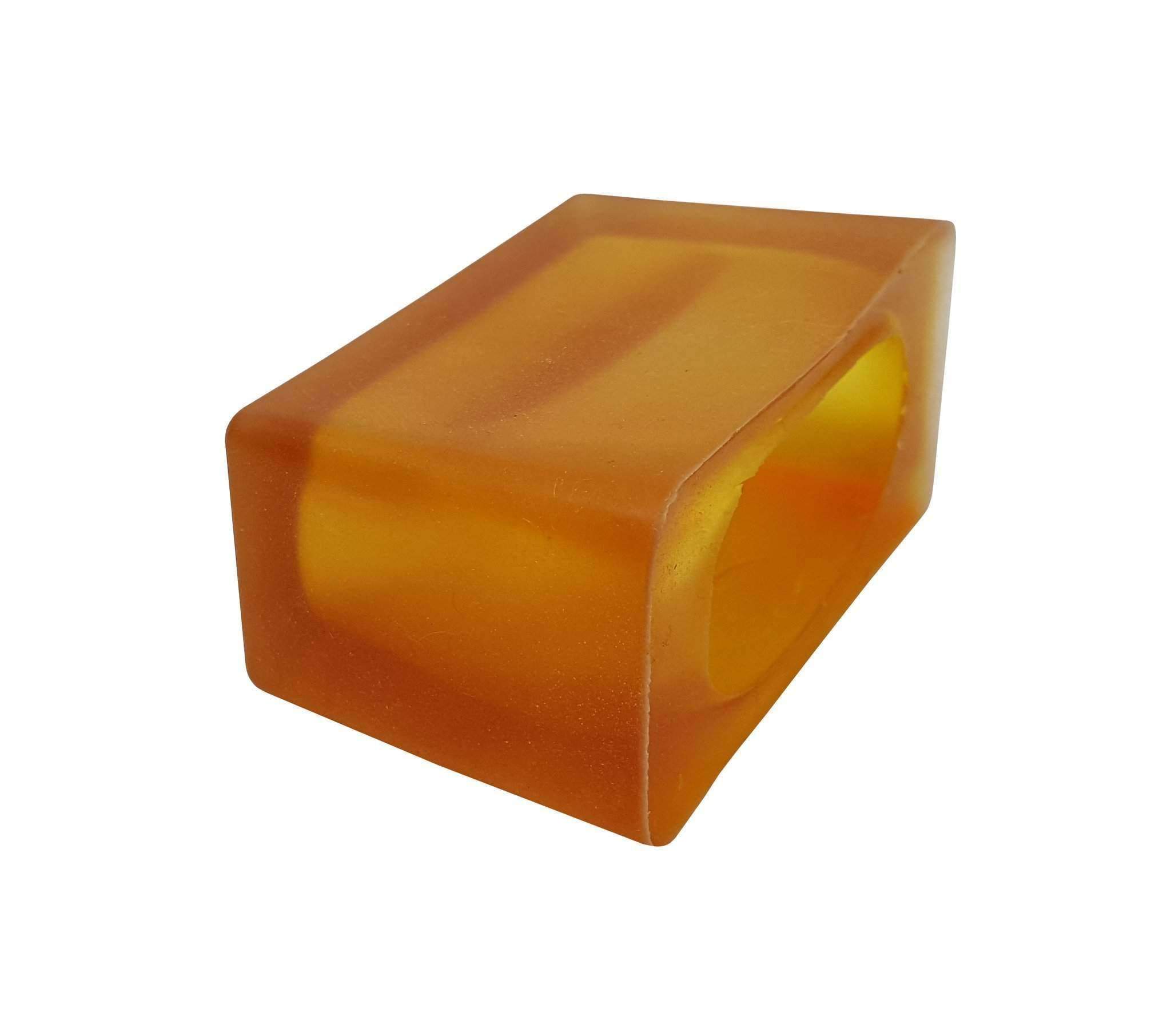

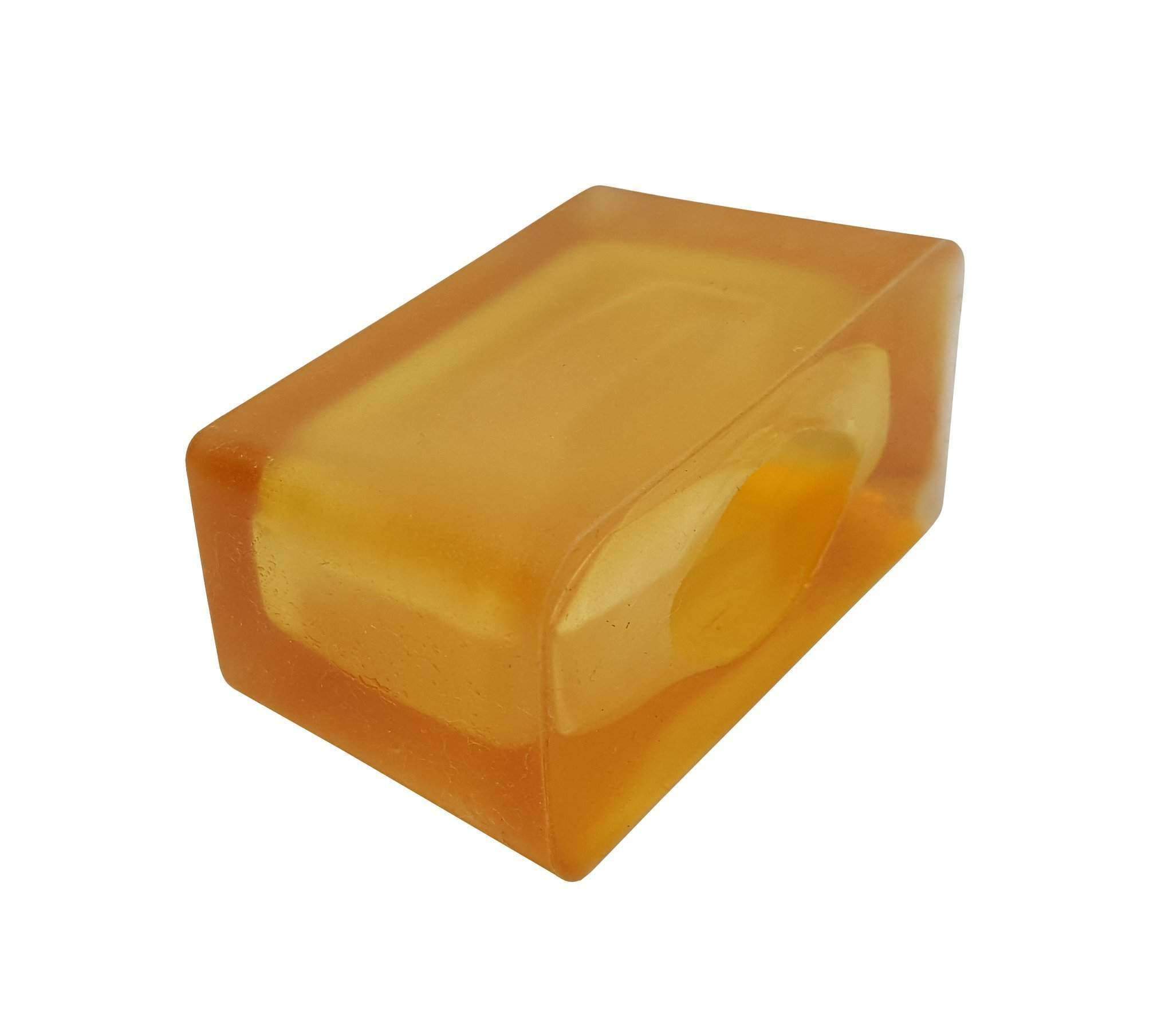

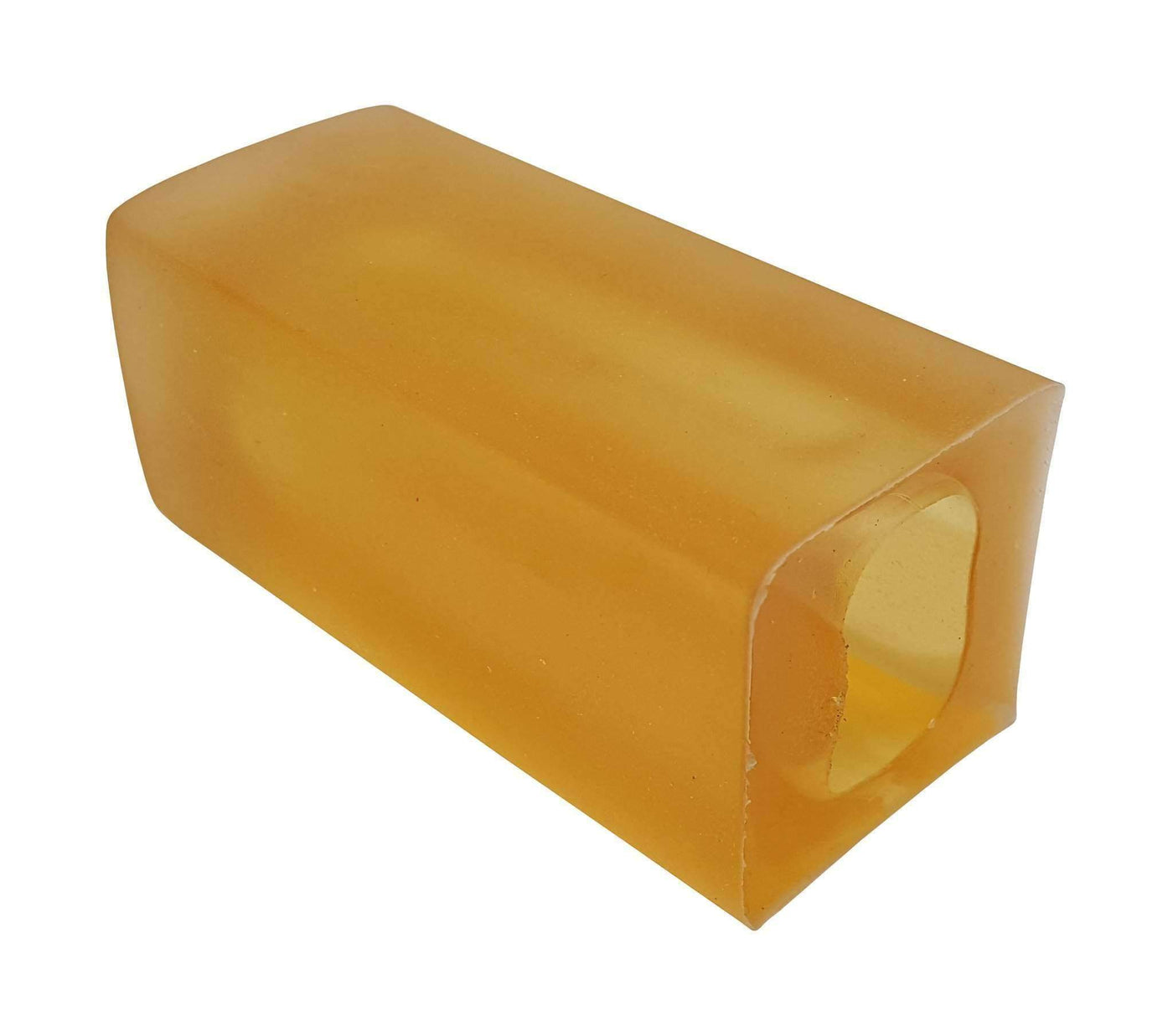

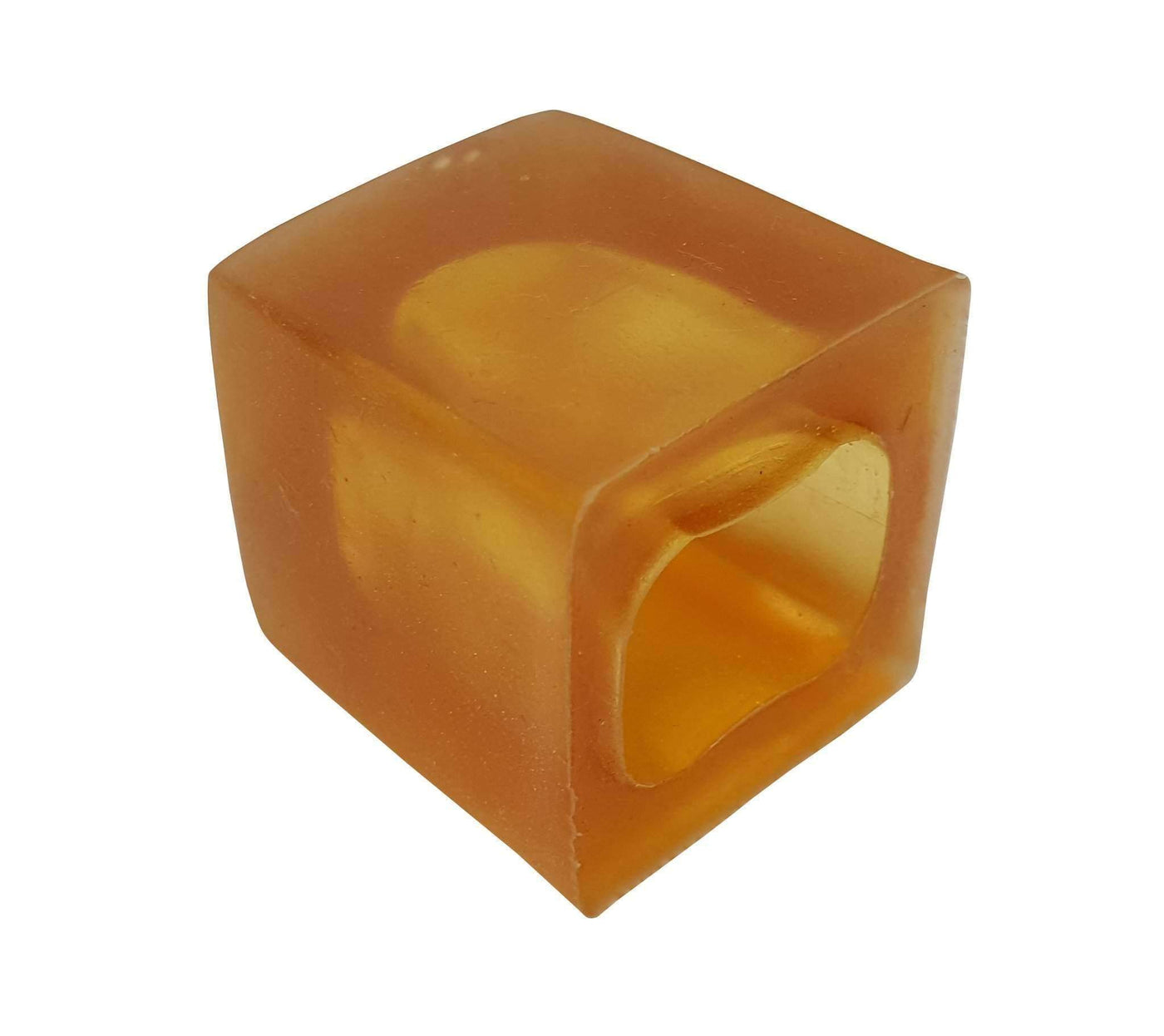

Product Overview	The Veterinary Ultrasound Probe Standoff is a flexible acoustic accessory designed to fit over compatible veterinary ultrasound transducers. It creates an additional acoustic interface between the probe surface and the animal, helping improve contact and image visualization during selected veterinary examinations. Standoffs are especially useful when examining superficial structures, irregular anatomical surfaces or areas where direct probe contact is difficult. Different configurations can be supplied for rectal, linear-array and micro-convex veterinary ultrasound probes.
Key Features	Flexible Polymer Construction: Manufactured from a flexible material designed for repeated veterinary examination use. Improved Acoustic Contact: Provides an additional coupling interface between the transducer and examination surface to support clearer ultrasound imaging. Comfortable Probe Interface: The soft standoff surface can help reduce direct pressure from the hard transducer housing during selected examinations. Multiple Probe Configurations: Versions can be supplied for rectal, standard linear, small linear and micro-convex veterinary probes. Simple Installation: Fits directly over the compatible probe after ultrasound gel is applied to the probe face and standoff contact surface. Reusable Design: Suitable for routine cleaning and repeated use when handled according to veterinary hygiene procedures.
Structural Components	Flexible Standoff Body: Forms the acoustic spacing layer between the ultrasound probe and examination surface. Probe Receiving Opening: Shaped to accommodate the compatible ultrasound transducer. Scanning Contact Surface: Provides the external surface used against the animal during ultrasound examination. Probe Retention Area: Helps keep the transducer positioned inside the standoff during scanning.
Working Principle	The standoff is installed over the ultrasound transducer with coupling gel placed between the probe face and the inner surface of the standoff. The flexible material forms an acoustic path that allows ultrasound waves to pass from the transducer through the standoff and into the animal. By increasing the distance between the probe face and the tissue surface, the standoff can assist visualization of structures located close to the skin or probe contact area. Proper gel application and removal of trapped air are important because air pockets can interfere with ultrasound transmission.
Technical Specifications	Product Type Veterinary ultrasound probe standoff Material Flexible polymer material Compatible Probe Types Rectal, linear-array, small linear and micro-convex probes Installation Method Slip-on installation with ultrasound coupling gel Application Veterinary ultrasound examinations and superficial structure imaging Probe Compatibility According to ultrasound probe model and dimensions Size Available according to probe configuration Customization Customizable according to project requirements
Applications	Large Animal Reproductive Ultrasound: Suitable for compatible rectal ultrasound probes used in cattle, equine and livestock reproductive examinations. Superficial Soft-Tissue Imaging: Helps improve probe contact when imaging structures located close to the body surface. Musculoskeletal Examinations: Can be used with compatible linear probes for tendon, ligament and superficial soft-tissue examinations. Veterinary Clinics: Suitable as an accessory for routine ultrasound diagnostic equipment. Commercial Livestock Operations: Can support mobile veterinary services, breeding programs and reproductive management on cattle, goat-farming-equipment/" target="_blank" class="keylink">sheep, goat and pig farms.
Customization Options	Standoff configuration can be selected according to the ultrasound probe type, probe dimensions and veterinary application. Available options may include: • Rectal probe standoff • Standard linear probe standoff • Small linear probe standoff • Micro-convex probe standoff • Dimensions according to compatible probe requirements • OEM and project procurement configurations available upon request Customers are recommended to provide the ultrasound scanner brand, probe model and probe dimensions before ordering.
Installation & Maintenance	Apply suitable ultrasound coupling gel to the transducer scanning surface and to the internal contact area of the standoff before installation. Insert the compatible probe fully into the standoff. After insertion, gently press or wipe along the scanning area to remove trapped air between the probe and standoff. During use, apply additional coupling gel between the external standoff surface and the examination area when required. After examination, remove the standoff from the probe and clean it using suitable veterinary cleaning procedures. For routine maintenance, mild soap and water may be used where compatible with the material. Dry thoroughly before storage.
Product FAQ	Q: What is a veterinary ultrasound probe standoff used for? A: It creates an additional acoustic interface between the ultrasound probe and the animal, helping improve contact and visualization of superficial or difficult-to-scan structures. Q: Can it be used with rectal ultrasound probes? A: Yes. Rectal probe versions are available, but the standoff dimensions must match the specific transducer. Q: Is ultrasound gel required? A: Yes. Coupling gel should be applied between the probe and standoff to remove air gaps and support efficient ultrasound transmission. Q: Can one standoff fit every ultrasound probe? A: No. Probe shapes and dimensions vary. The correct standoff should be selected according to the probe type and model. Q: How should the standoff be cleaned? A: Remove residual gel after use, clean with suitable materials such as mild soap and water when appropriate, and dry completely before storage.
