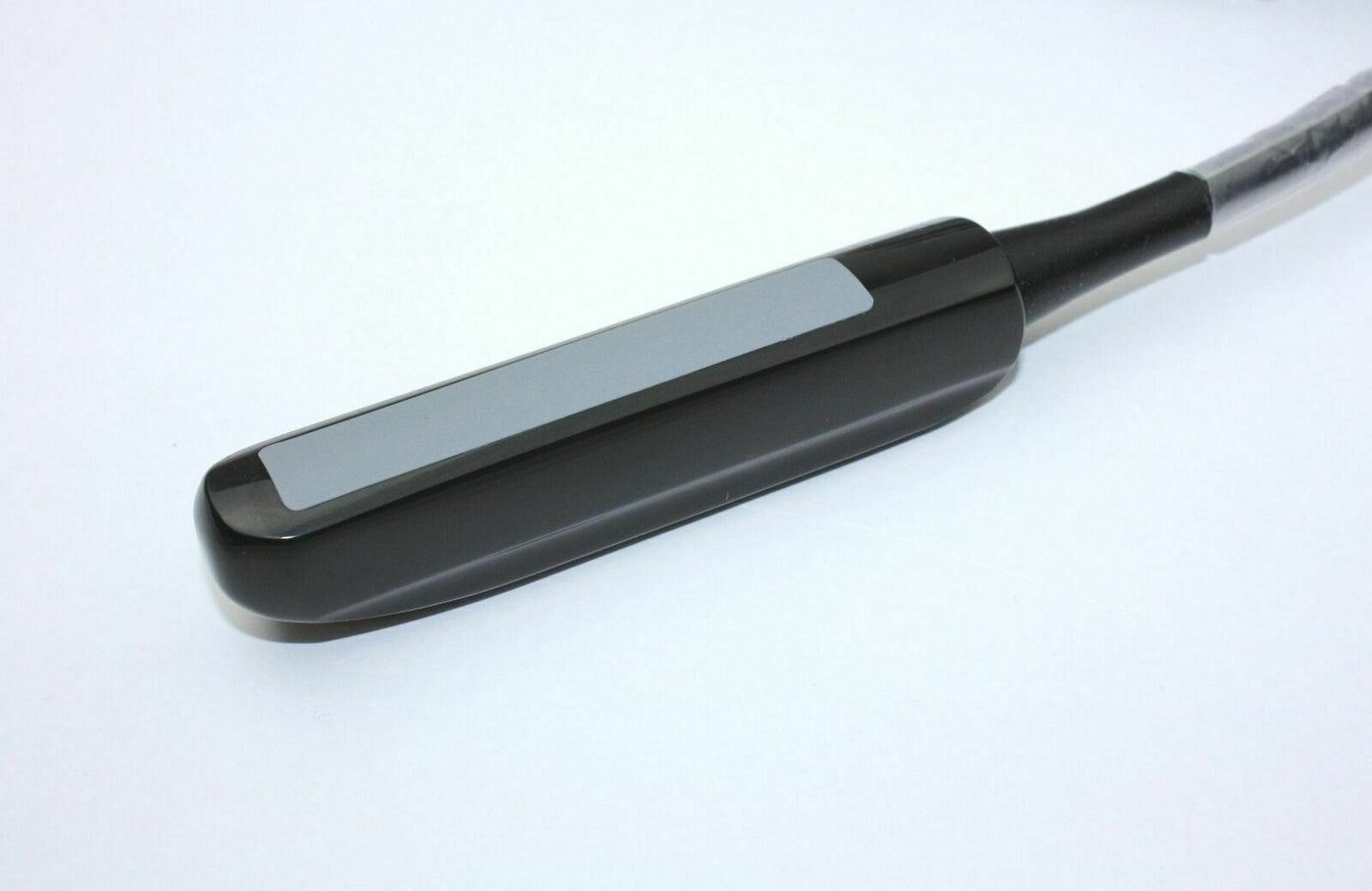

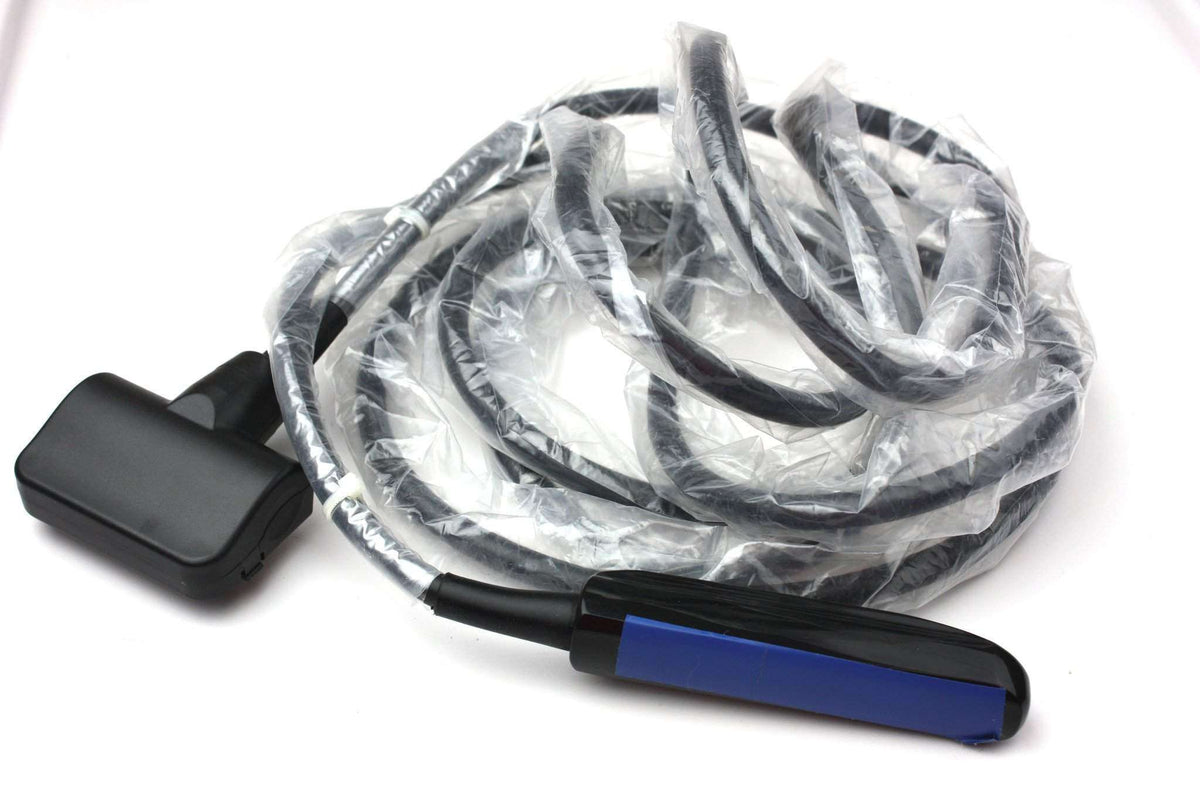

Product Name	Bovine Rectal Linear Veterinary Ultrasound Probe
Product Image
Product Overview	The Bovine Rectal Linear Veterinary Ultrasound Probe is a specialized electronic transducer designed for transrectal reproductive ultrasound examination in cattle. Its elongated, narrow probe body allows controlled manipulation during rectal examinations while the linear array provides a rectangular imaging field suitable for evaluating reproductive structures. The probe can be used for pregnancy diagnosis, ovarian examination, follicle monitoring, uterine assessment, breeding management, and other compatible large-animal reproductive applications. A 6.5 MHz linear rectal probe is commonly used with professional veterinary ultrasound systems for bovine and equine examination. Probe frequency, cable length, connector configuration, and compatible ultrasound system can be supplied according to project requirements.
Key Features	Linear-array transducer designed for veterinary transrectal imaging. Suitable for bovine reproductive examination and pregnancy management. Elongated probe housing supports controlled handling during rectal scanning. Linear imaging format provides a practical field of view for reproductive structures. Reference 6.5 MHz configuration provides a balance between penetration and reproductive imaging detail. Suitable for examination of the uterus, ovaries, follicles, and pregnancy-related structures. Compatible with selected portable and console veterinary ultrasound systems. Durable cable and probe construction supports routine farm and veterinary field use. Connector, frequency range, cable specification, and accessories can be customized according to project requirements.
Structural Components	Linear Transducer Array: Generates and receives ultrasound signals across a straight scanning surface. Acoustic Lens: Provides the contact surface through which ultrasound energy is transmitted into the examined tissue. Elongated Probe Housing: Designed for controlled veterinary transrectal manipulation. Probe Cable: Transfers electrical signals between the transducer and ultrasound scanner. Strain Relief: Helps protect the cable-to-probe connection during repeated bending and handling. Ultrasound Connector: Interfaces with the compatible veterinary ultrasound system and varies according to scanner model.
Working Principle / Structural Principle	The linear probe contains multiple piezoelectric transducer elements arranged in a straight array. During examination, groups of elements are electronically activated to transmit ultrasound pulses into the reproductive tract and surrounding tissues. Returning echoes are received by the same transducer array and transferred to the ultrasound scanner, where they are processed into real-time grayscale images. The linear arrangement produces a rectangular imaging field that is well suited to observing reproductive anatomy at relatively close scanning distances. During bovine reproductive examination, a trained operator guides the probe transrectally while adjusting orientation and position to visualize the uterus, ovaries, follicles, pregnancy structures, and other relevant anatomy.
Technical Specifications	Product Type Veterinary rectal linear ultrasound probe Primary Application Bovine reproductive ultrasound examination Transducer Type Electronic linear array Reference Frequency 6.5 MHz Frequency Options According to compatible ultrasound system and project requirements Scanning Method Transrectal linear imaging Typical Animal Application Bovine; selected configurations can also support equine applications Probe Housing Elongated veterinary rectal design Cable Length Customizable Connector Type According to ultrasound scanner model Compatible Scanner Available upon request Packaging Protective individual packaging according to project requirements
Applications	Bovine pregnancy diagnosis Early reproductive examination Ovarian and follicular monitoring Uterine examination Estrus and breeding management Artificial insemination programs Embryo transfer and reproductive management support Dairy cattle breeding farms Beef cattle breeding operations Veterinary reproductive service teams Cattle genetics and breeding centers Large-scale livestock production projects
Customization Options	Bovine rectal ultrasound probe configurations can be selected according to the veterinary ultrasound scanner, reproductive examination procedure, operator requirements, and livestock project specifications. Available options may include operating frequency, multi-frequency configuration, cable length, ultrasound connector, probe housing design, insertion handle or extension arm, protective carrying case, and related ultrasound accessories. Scanner compatibility must be confirmed before ordering. Connector and electrical specifications are customizable according to project requirements and compatible system design.
Installation & Maintenance	Before installation, confirm that the probe connector, operating frequency, and transducer specification are compatible with the veterinary ultrasound scanner. Connect the probe only when the ultrasound system and connector interface are in the appropriate operating condition. Before each examination, inspect the acoustic surface, housing, cable, strain relief, and connector for visible damage. Use suitable veterinary ultrasound coupling material and follow professional transrectal examination procedures. After use, clean and disinfect the probe according to the applicable manufacturer instructions and farm biosecurity protocol. Avoid aggressive chemicals, excessive bending of the cable, impact to the acoustic lens, and immersion of connectors or non-immersible components. Store the probe in a clean, dry protective case without tightly coiling or crushing the cable.
Project Cases	Bovine Rectal Linear Veterinary Ultrasound Probes can be supplied as replacement transducers or as part of complete reproductive ultrasound systems for dairy farms, beef cattle operations, breeding centers, veterinary service companies, artificial insemination stations, and livestock development projects. Project supply can combine compatible veterinary ultrasound scanners, rectal linear probes, insertion arms, protective cases, ultrasound gel, batteries, reproductive instruments, artificial insemination equipment, and pregnancy diagnosis accessories according to project requirements.
Product FAQ	Q: What is a bovine rectal linear ultrasound probe used for? A: It is primarily used for transrectal reproductive ultrasound examinations including pregnancy diagnosis, ovarian monitoring, follicle assessment, and uterine examination in cattle. Q: What frequency is commonly used? A: A 6.5 MHz linear rectal probe is a common veterinary configuration for bovine and equine reproductive examinations. Q: Can this probe work with every veterinary ultrasound scanner? A: No. Probe connector, electronics, frequency range, and scanner software must be compatible. The exact ultrasound model should be confirmed before ordering. Q: Can the probe also be used for horses? A: Selected veterinary linear rectal probe configurations are suitable for both bovine and equine reproductive examination. Q: Is the cable length customizable? A: Yes. Cable length and related connection configurations can be supplied according to project requirements. Q: Can a rectal insertion arm be supplied? A: Yes. Compatible insertion arms and other reproductive ultrasound accessories are available upon request. Q: Can replacement probes be supplied for commercial farm projects? A: Yes. Replacement probes, compatible scanners, accessories, and complete livestock ultrasound packages can be configured according to project requirements.
Product Gallery
