Product Name	Handheld Electronic Probe Veterinary Ultrasound Scanner

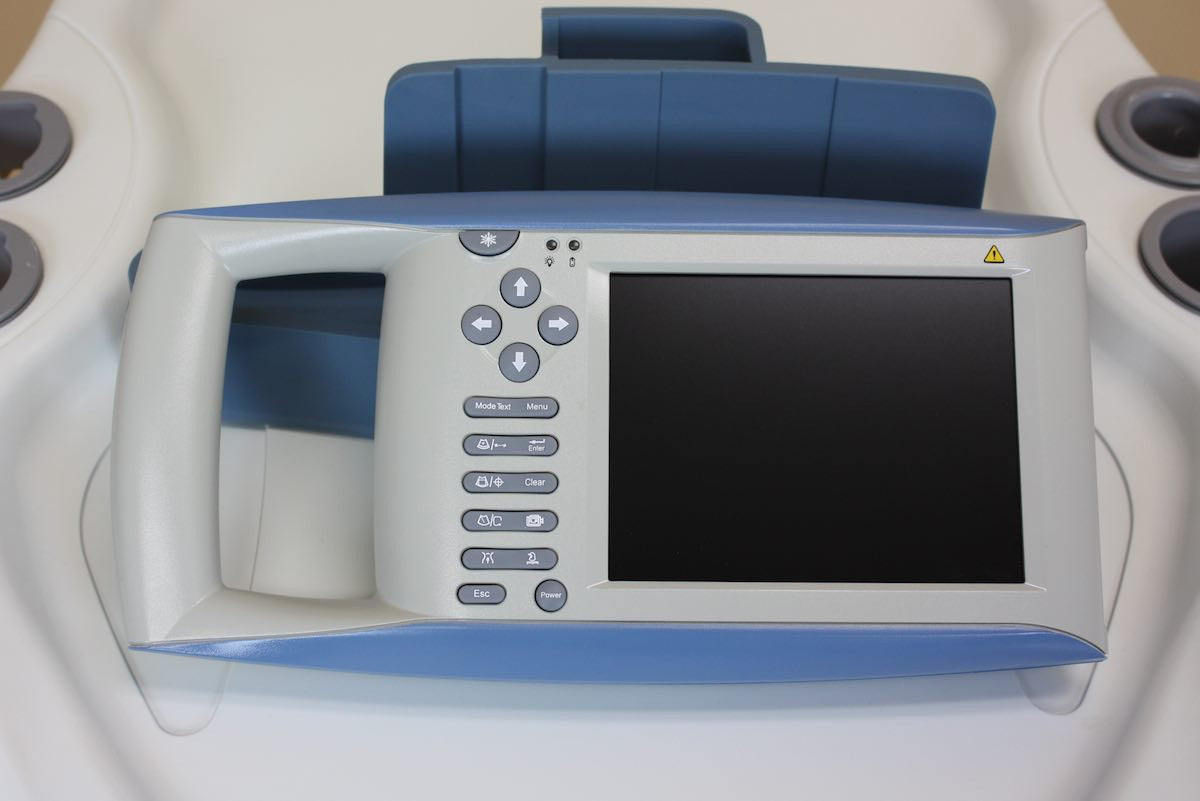

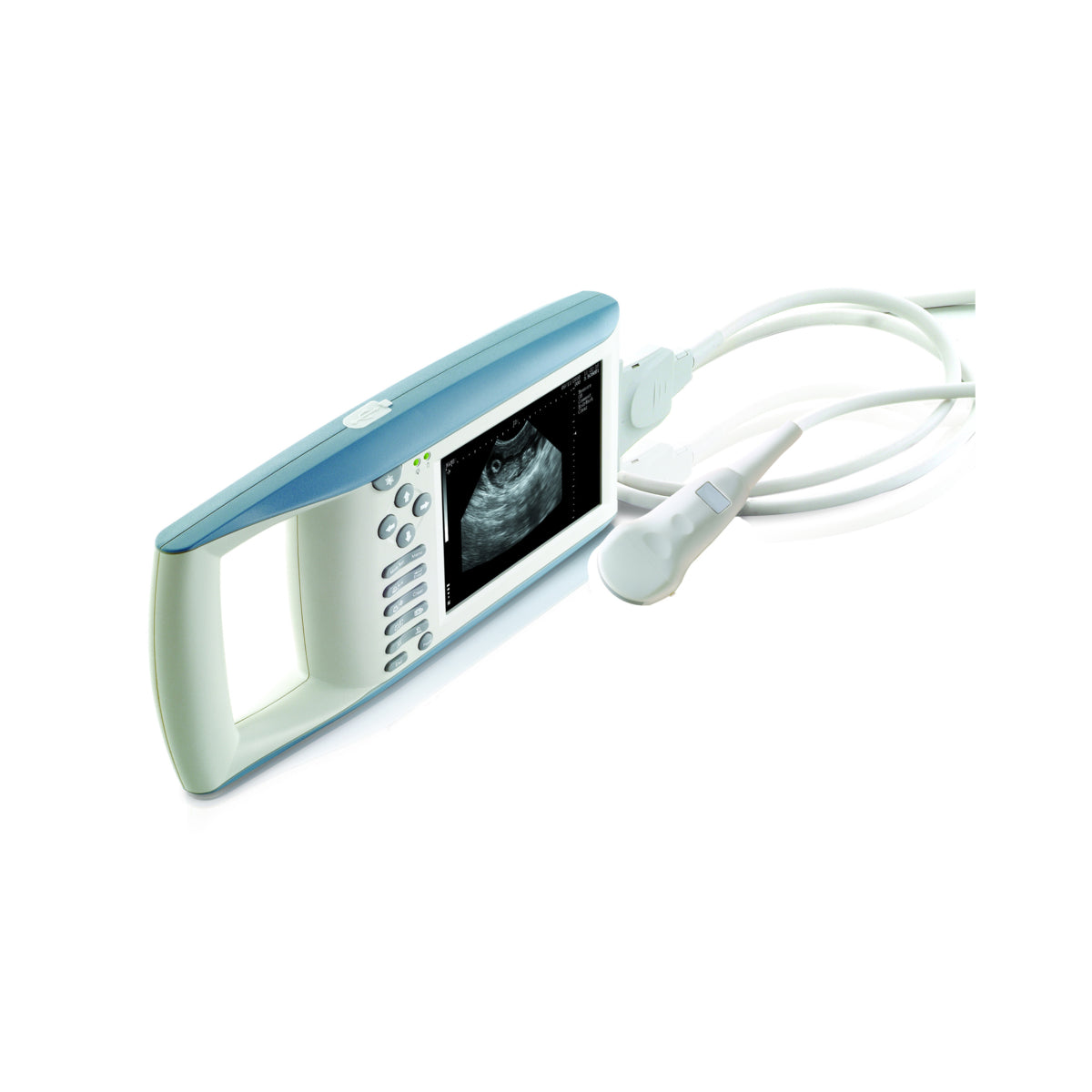

Product Image
Product Overview	The Handheld Electronic Probe Veterinary Ultrasound Scanner is a compact full-digital imaging system designed for reproductive examination, pregnancy diagnosis, abdominal scanning, and general veterinary applications in both large and small animals. Its lightweight handheld structure and rechargeable battery system make it suitable for mobile veterinary work, livestock farms, breeding centers, artificial insemination programs, dairy operations, and field service teams. Electronic convex, linear, micro-convex, and rectal probe configurations can be selected according to animal species and examination requirements. The scanner combines real-time ultrasound imaging, veterinary measurement software, image storage, and multi-species obstetric functions in a portable platform suitable for commercial livestock and agricultural project procurement.
Key Features	Full-digital handheld veterinary ultrasound platform for farm and clinical applications. Electronic convex, linear, micro-convex, rectal, and other probe options available according to examination requirements. Suitable for bovine, equine, ovine, caprine, swine, canine, feline, and other compatible animal applications. Real-time imaging and harmonic imaging support routine veterinary diagnostic procedures. Multiple display modes provide flexible examination and measurement options. Rechargeable battery operation supports mobile use in barns, breeding areas, and field environments. Built-in veterinary obstetric measurement functions support pregnancy and reproductive management. Image storage and data transfer functions support record keeping and farm management. Compact housing and integrated handle simplify carrying between examination locations. Suitable for veterinary distributors, livestock groups, breeding companies, and agricultural engineering projects.
Structural Components	Main Ultrasound Unit: Integrates the digital imaging processor, veterinary software, control interface, display, and storage functions. Electronic Probe: Converts electrical signals into ultrasound waves and receives returning echoes without a mechanically swept transducer assembly. LCD Display: Provides real-time grayscale ultrasound imaging and measurement information. Control Keyboard: Allows adjustment of gain, depth, zoom, image mode, measurements, and image storage. Probe Connector: Supports compatible interchangeable electronic veterinary probes. Rechargeable Battery: Provides portable operation away from fixed power sources. Carrying Handle and Protective Housing: Support routine transportation and use in farm and veterinary environments.
Working Principle / Structural Principle	The electronic probe contains an array of ultrasound elements that are electronically controlled to transmit ultrasound pulses into the animal body and receive echoes reflected from internal tissues and fluid interfaces. The scanner processes these signals into real-time grayscale images. Electronic beam control eliminates the mechanically rotating or oscillating probe structure used in mechanical-sector systems and enables different probe formats to be selected for abdominal, reproductive, rectal, small-parts, and other veterinary examinations. During scanning, the operator selects the appropriate probe and examination preset, applies suitable ultrasound coupling gel, positions the probe over the examination area, and adjusts gain, depth, focus, and measurement settings according to animal species and diagnostic requirements.
Technical Specifications	Product Type Handheld full-digital veterinary ultrasound scanner Probe Technology Electronic array probe Reference Display 6.4-inch high-resolution LCD Display Modes B, B/B, B/M, M, 4B Gray Scale 256 levels Imaging Functions Real-time imaging and harmonic imaging Image Storage Built-in image storage CINE Loop Available in the reference configuration Electronic Probe Options Convex, linear, micro-convex, rectal, transvaginal, and other compatible probes Reference Convex Probe 3.5 MHz multi-frequency convex probe available Reference Linear Probe 7.5 MHz multi-frequency linear probe available Reference Rectal Probe 6.5 MHz linear veterinary rectal probe or other compatible configuration Power Supply AC 100-240 V, 50-60 Hz and rechargeable battery operation Reference Main Unit Weight Approximately 1.5 kg Additional Configuration Customizable according to project requirements
Applications	Cattle pregnancy diagnosis and reproductive management Equine reproductive and general ultrasound examination Sheep and goat pregnancy scanning Swine reproductive examination Canine and feline abdominal and reproductive scanning Veterinary obstetric examination Artificial insemination and breeding programs Abdominal and urological examination Small-parts and musculoskeletal applications with compatible probes Commercial livestock farms and breeding centers Mobile veterinary service operations Agricultural and livestock development projects
Customization Options	The handheld electronic probe veterinary ultrasound system can be configured according to animal species, examination type, farm operating requirements, veterinary service procedures, and distributor specifications. Available options may include convex probes, linear probes, micro-convex probes, veterinary rectal probes, transvaginal probes, probe handles, rectal insertion arms, carrying straps, protective cases, additional batteries, data-transfer accessories, and compatible printing or workstation solutions. Probe configuration, accessories, packaging, and project supply combinations are customizable according to project requirements.
Installation & Maintenance	No fixed installation is normally required. Before operation, connect the selected electronic probe securely, confirm adequate battery power, and select the appropriate veterinary examination settings. Prepare the scanning area as required and use suitable ultrasound coupling gel. During operation, protect the scanner and probe connector from impact, excessive moisture, dust accumulation, and unnecessary cable tension. After examination, clean and disinfect compatible probe surfaces according to the manufacturer's instructions. Avoid immersing components unless specifically rated for immersion. Store the scanner, probes, batteries, charger, and accessories in a clean and dry protective case when not in use.
Project Cases	The Handheld Electronic Probe Veterinary Ultrasound Scanner can be supplied for dairy farms, beef cattle operations, equine breeding centers, sheep and goat farms, pig breeding operations, veterinary clinics, artificial insemination programs, livestock groups, and agricultural project contractors. For complete livestock reproduction projects, the scanner can be supplied together with selected electronic probes, rectal probe accessories, carrying equipment, ultrasound gel, protective cases, reproductive instruments, pregnancy diagnosis supplies, and related breeding equipment according to project requirements.
Product FAQ	Q: What is the difference between an electronic probe and a mechanical probe? A: An electronic probe uses an array of electronically controlled transducer elements, while a mechanical probe uses a mechanically moving transducer to sweep the ultrasound beam. Q: What animals can this scanner be used for? A: With the appropriate probe, it can support applications involving cattle, horses, sheep, goats, pigs, dogs, cats, llamas, and other compatible animals. Q: Can different probes be connected to the scanner? A: Yes. Compatible convex, linear, micro-convex, rectal, and other electronic probes are available according to project requirements. Q: Is the scanner suitable for pregnancy diagnosis? A: Yes. Pregnancy examination and reproductive management are major veterinary applications of the system. Q: Can the scanner operate without mains electricity? A: Yes. Rechargeable battery operation supports mobile farm and field examinations. Q: Are images and measurements stored in the machine? A: The reference configuration includes image storage, CINE functions, and veterinary measurement software. Q: Can configurations be customized for commercial livestock projects? A: Yes. Probe combinations, accessories, carrying systems, packaging, and project supply solutions are available upon request.
