Product Name	Swine and Sheep Electronic Probe Pregnancy Ultrasound Scanner

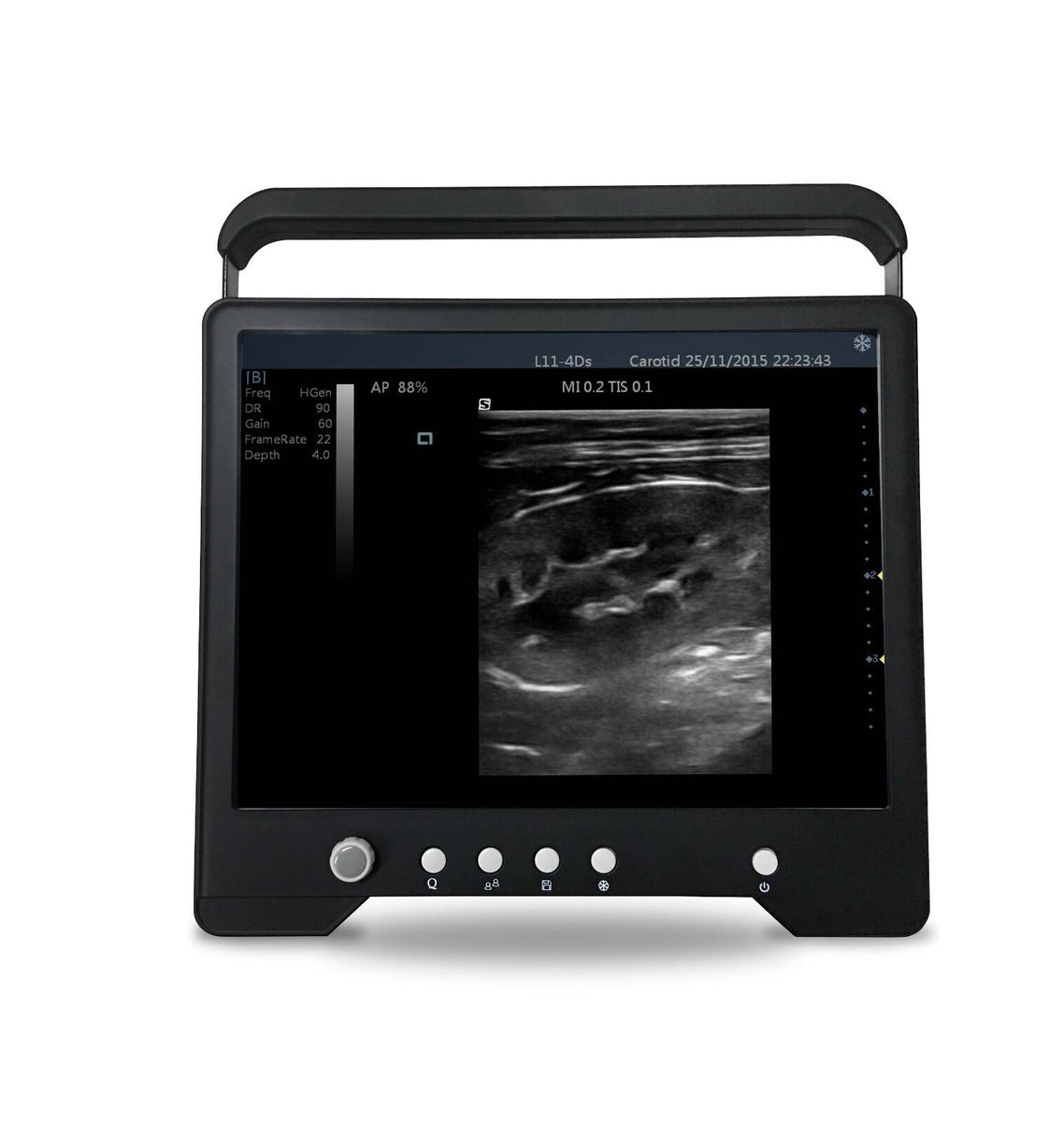

Product Image
Product Overview	The Swine and Sheep Electronic Probe Pregnancy Ultrasound Scanner is a professional veterinary imaging system designed for pregnancy examination, reproductive monitoring, and routine abdominal ultrasound in livestock operations. Unlike mechanical-sector systems, the electronic probe uses an array of transducer elements to generate and steer ultrasound beams electronically, supporting stable real-time imaging with no mechanically swept transducer inside the probe. The reference configuration is suitable for pigs, goat-farming-equipment/" target="_blank" class="keylink">sheep, goats, and other compatible animals and can be equipped with convex, micro-convex, linear, or rectal probe options according to veterinary application and project requirements.
Key Features	Electronic probe technology supports stable real-time veterinary ultrasound imaging. Suitable for pregnancy checking and reproductive management in pigs, sheep, goats, and other compatible animals. Convex probe configuration provides a broad field of view for abdominal and reproductive examinations. Touch-screen operation is available in the reference system for convenient parameter adjustment. Battery-powered configuration supports mobile use in livestock houses and breeding facilities. Multiple imaging modes support different examination and measurement workflows. Image optimization functions can improve tissue visualization during routine veterinary scanning. Multiple probe connections support flexible use in mixed livestock and veterinary applications. Suitable for commercial farms, breeding centers, veterinary service providers, distributors, and agricultural projects.
Structural Components	Main Ultrasound Unit: Integrates image processing, display, measurement functions, probe control, and system settings. Electronic Convex Probe: Uses an electronic transducer array to generate sector-shaped ultrasound images for abdominal and reproductive examinations. Touch Display: Provides image observation and access to operating parameters in compatible configurations. Probe Connectors: Allow different transducer options to be connected according to examination requirements. Battery System: Supports portable examination in farm and field environments. Power Adapter: Provides mains power and battery charging according to the selected configuration. Transport Accessories: Carrying case, trolley, protective cover, and other accessories are available upon request.
Working Principle / Structural Principle	The electronic probe contains multiple ultrasound transducer elements arranged in an array. These elements are activated electronically to transmit ultrasound pulses into the animal body and receive echoes reflected from tissues, fluid interfaces, and reproductive structures. The ultrasound system processes the returning signals and converts them into real-time grayscale images. Electronic beam control enables rapid image formation without requiring mechanical movement of the transducer inside the probe. For pregnancy examination, suitable ultrasound coupling gel is applied and the probe is positioned at the appropriate abdominal or reproductive examination area. The operator adjusts depth, gain, focus, and other image settings according to animal size and examination requirements.
Technical Specifications	Product Type Electronic-probe veterinary ultrasound scanner Primary Application Pregnancy examination and reproductive management Applicable Animals Pigs, sheep, goats, and other compatible animals Reference Probe Electronic convex or micro-convex probe Reference Convex Probe Frequency 2.5-5.0 MHz Display 15-inch touch-screen LCD in the reference configuration Imaging Modes B, M, 2B, B/M, 4B Gray Scale 256 levels System Frequency Range 2-11 MHz in the reference system Maximum Reference Scanning Depth Up to 220 mm Image Optimization Compound imaging, tissue harmonic imaging, speckle reduction, and related functions according to configuration Probe Connections Up to three probe connectors in the reference configuration Power Supply Battery operation and 110-240V AC power input in the reference configuration Additional Probe Options Customizable according to project requirements
Applications	Sow pregnancy examination Swine reproductive management Sheep pregnancy checking Goat pregnancy examination Breeding flock monitoring Livestock artificial insemination programs Veterinary reproductive examination Commercial pig and sheep farms Breeding centers and genetics companies Mobile veterinary service teams Agricultural and livestock engineering projects
Customization Options	The ultrasound system can be configured according to livestock species, examination method, farm management requirements, veterinary practice, and commercial procurement specifications. Available options may include convex probe, micro-convex probe, linear abdominal probe, rectal linear probe, probe frequency, carrying accessories, trolley, protective case, battery configuration, power adapter, software language, and packaging. Final configuration is customizable according to project requirements.
Installation & Maintenance	No permanent farm installation is normally required. Before operation, connect the selected electronic probe securely, confirm the power supply or battery status, and select the appropriate imaging parameters. Apply suitable veterinary ultrasound coupling gel between the probe and examination area to improve acoustic transmission. Protect the probe cable from excessive pulling, twisting, crushing, and animal contact during scanning. After use, clean the probe and main unit according to the manufacturer's instructions. Avoid using unsuitable chemicals or immersing components unless specifically approved. Store the scanner and probes in a clean, dry protective case when not in use.
Project Cases	Swine and Sheep Electronic Probe Pregnancy Ultrasound Scanners can be supplied for commercial pig farms, sheep and goat breeding operations, livestock production groups, veterinary hospitals, reproduction centers, distributors, and agricultural development projects. For complete livestock reproduction projects, the scanner can be supplied together with ultrasound probes, coupling gel, carrying equipment, protective cases, pregnancy diagnosis accessories, artificial insemination instruments, and related breeding equipment according to project requirements.
Product FAQ	Q: Is this scanner suitable for pigs and sheep? A: Yes. The reference convex-probe system is designed for veterinary examination of pigs, sheep, goats, and other compatible animals. Q: What is the difference between an electronic probe and a mechanical probe? A: An electronic probe uses an array of transducer elements and electronic beam control, while a mechanical probe forms the scan by physically sweeping a transducer within the probe housing. Q: Is a convex probe suitable for pregnancy examination? A: Yes. Convex probes provide a broad imaging field and are commonly used for abdominal and reproductive ultrasound examinations. Q: Can the scanner operate on battery power? A: Yes. The reference configuration supports battery-powered mobile operation. Q: Are other probe types available? A: Yes. Linear abdominal, rectal linear, convex, and other compatible probe configurations are available according to project requirements. Q: Can the system be supplied for commercial farm projects? A: Yes. Probe combinations, accessories, packaging, and complete livestock reproduction equipment packages can be customized for project procurement.

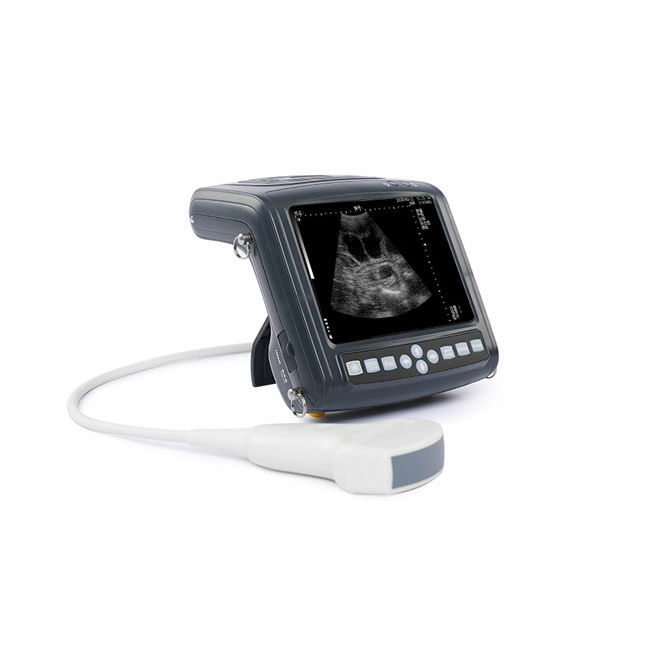

Product Gallery
