Smart Cattle Tracking System

The Smart Cattle Tracking System is an integrated livestock monitoring solution that combines animal-mounted tracking devices, wireless communication gateways, cloud connectivity and digital herd management software. Unlike a conventional RFID identification tag that only provides an electronic animal ID at a reading point, a smart tracking system can be configured to collect and transmit location, movement and other monitoring data according to the selected technology.

Depending on project requirements, cattle can be equipped with GPS ear tags, smart ear tags, collars or other compatible livestock tracking devices. Data is transmitted through technologies such as LoRaWAN, cellular communication or other farm IoT networks to a gateway and cloud-based management platform.

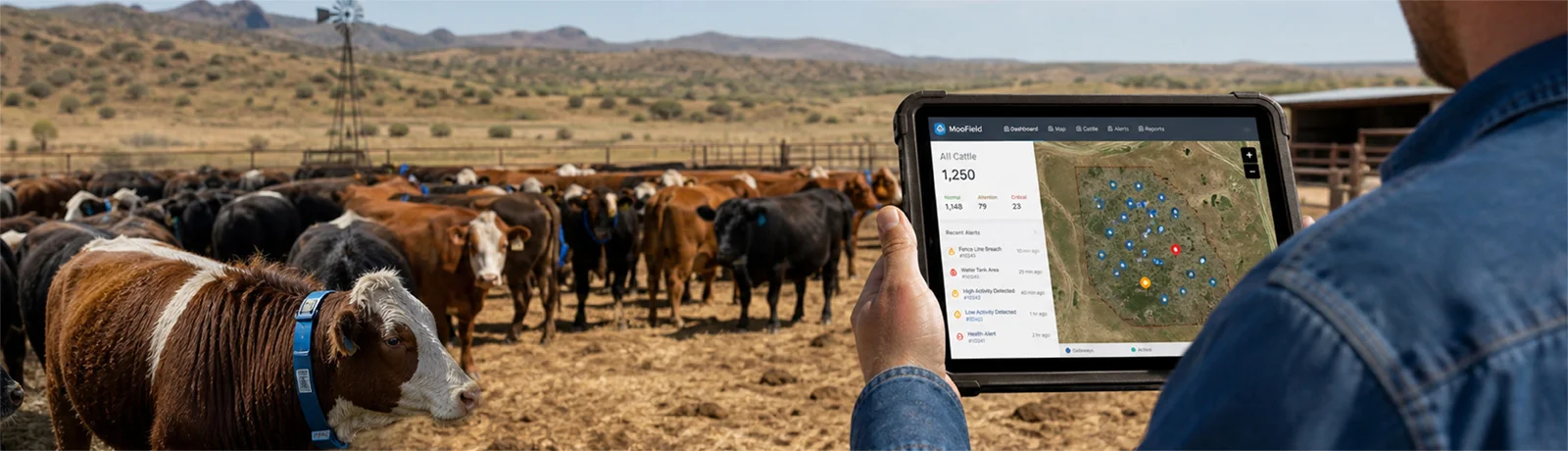

Farm managers can use a computer, tablet or mobile device to review animal locations, movement history, geofence status and system alerts. The solution is suitable for dairy farms, beef ranches, breeding operations, feedlots and extensive grazing projects requiring improved herd visibility and digital livestock management.

• Integrated cattle tracking architecture combining animal devices, gateway, cloud platform and management dashboard.
• GPS-enabled configurations available for animal location monitoring.
• Supports digital visualization of cattle location and movement history.
• Geofence functions can help identify animals leaving predefined management areas.
• Automatic alerts can be configured according to the selected hardware and software platform.
• Long-range wireless communication options suitable for large ranches and grazing areas.
• Desktop and mobile management access available according to system configuration.
• Expandable architecture supports different herd sizes and multiple monitoring zones.
• Suitable for both intensive cattle facilities and extensive grazing operations.
• Hardware, communication network and software functions can be customized according to project requirements.

• Animal Tracking Device: GPS ear tag, smart ear tag, collar or compatible livestock sensor installed on individual cattle according to the selected system.
• Positioning Module: GPS/GNSS positioning can be integrated into selected tracking devices for location monitoring.
• Wireless Communication Module: Transfers animal data using the selected communication technology.
• IoT Gateway: Receives data from field devices and forwards information to the server or cloud platform.
• Communication Backhaul: Cellular, Ethernet, Wi-Fi or other available connections can be used according to farm infrastructure.
• Cloud Platform: Processes and stores tracking and management information.
• Management Dashboard: Displays animal information, location maps, movement records and alerts.
• Mobile Access: Selected systems provide smartphone or tablet access for remote herd monitoring.

Each animal is assigned a tracking device linked to its individual cattle record. In GPS-enabled configurations, the device obtains location information and transmits selected data through the configured wireless network.

A farm gateway receives information from cattle tracking devices and transfers the data to a cloud server or local management platform. Depending on the selected network architecture, communication can use LoRaWAN, cellular or other IoT technologies.

The management platform converts incoming data into useful information such as current or reported location, movement history, geofence status and alerts. Authorized farm personnel can review this information through a computer or mobile device.

The exact update interval, communication range and positioning accuracy depend on the selected tracking device, network configuration, terrain, gateway installation and local operating conditions.

• GPS cattle location tracking
• Extensive beef ranch management
• Dairy cattle monitoring
• Pasture and grazing herd management
• Animal movement history recording
• Geofence and boundary monitoring
• Stray animal detection
• Remote livestock management
• Breeding cattle management
• Multi-paddock herd management
• Commercial cattle farm digitalization
• Smart ranch and precision livestock farming projects

• GPS ear tag, smart ear tag or collar configuration according to project requirements.
• Wireless communication technology selectable according to farm conditions.
• Gateway quantity and coverage layout customizable according to property size.
• Solar-powered outdoor gateway options available upon request.
• Location reporting interval configurable according to selected hardware.
• Geofence areas and alert rules configurable through compatible software.
• Dashboard functions customizable according to herd-management requirements.
• Multi-farm and multi-user management available according to platform configuration.
• API or third-party software integration available upon request.
• Complete hardware and software packages available for livestock projects.

Tracking Device Installation: Install the selected smart ear tag, GPS tag or collar according to the device manufacturer's application procedure and link its unique device ID with the corresponding animal record.

Gateway Positioning: Install gateways in elevated locations with suitable communication coverage. The required number and position of gateways depend on terrain, farm buildings, paddock layout and wireless technology.

Network Setup: Configure the gateway and communication backhaul according to the selected LoRaWAN, cellular or farm network architecture.

Software Setup: Register animals and tracking devices, configure farm boundaries or geofences where supported, and define user access and alert rules.

Commissioning: Test device communication and location reporting under actual farm conditions before full deployment.

Maintenance: Regularly inspect animal devices, attachment points, gateways, antennas, power supplies and network connections. Battery-powered or solar-assisted devices should be maintained according to the selected hardware configuration.

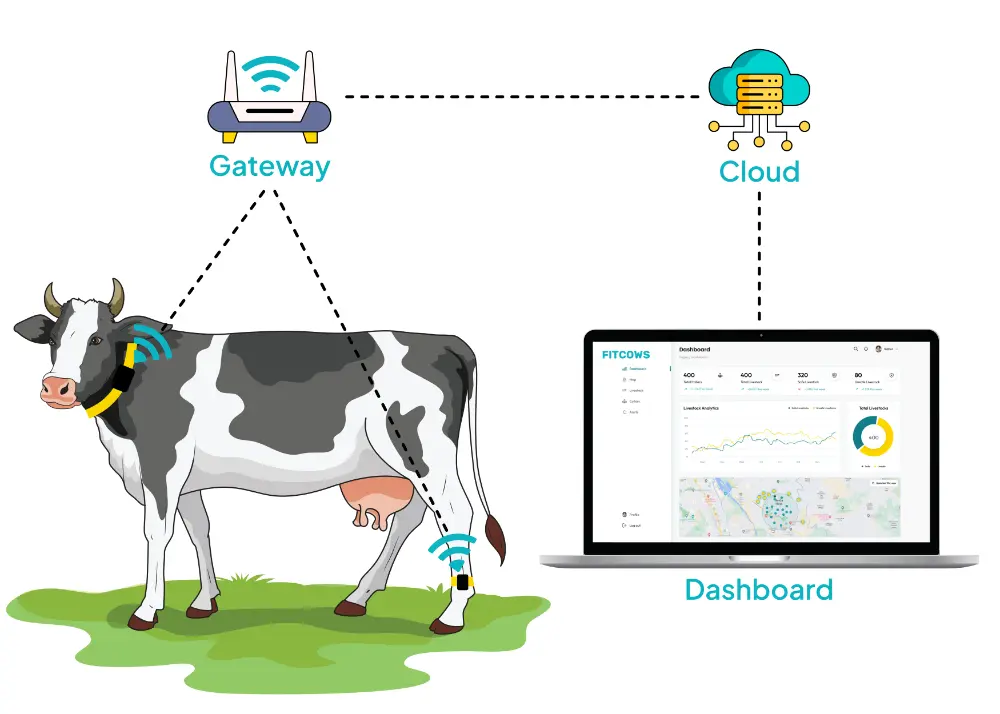

A typical smart cattle tracking project equips individual animals with tracking devices and installs one or more wireless gateways across the farm. Animal data is transmitted from the field through the gateway to a cloud platform, where authorized users can access maps, movement information and alerts.

For integrated cattle projects, SHEWUYOU can configure tracking equipment together with cattle handling systems, weighing equipment, identification devices, farm communication infrastructure and other livestock equipment according to project requirements.

Q: Is this system different from a standard RFID cattle ear tag?
A: Yes. A standard passive RFID tag mainly provides electronic identification when scanned or when it enters a reader zone. A smart tracking system can combine tracking devices, wireless gateways and software to provide location and movement information according to the selected configuration.

Q: Can the system show cattle locations on a map?
A: Yes. GPS-enabled configurations can display reported animal locations through a compatible digital management platform.

Q: Does the system support geofencing?
A: Geofence functionality is available with selected GPS tracking platforms and can be configured according to farm boundaries or management zones.

Q: Can it be used on large grazing properties?
A: Yes. Long-range wireless and GPS-based configurations are particularly suitable for extensive ranches, although gateway layout and network coverage should be designed according to terrain and property size.

Q: Can farmers access the system from a mobile phone?
A: Mobile or browser-based remote access is available according to the selected management platform.

Q: Is continuous live location guaranteed?
A: No. Location reporting frequency depends on the selected tracking device, power-management strategy, network coverage and software configuration.

Q: Can the complete system be customized?
A: Yes. Animal devices, gateways, communication networks, management software and system scale can be configured according to herd size, farm layout and project requirements.
