Livestock Data Collection Terminal

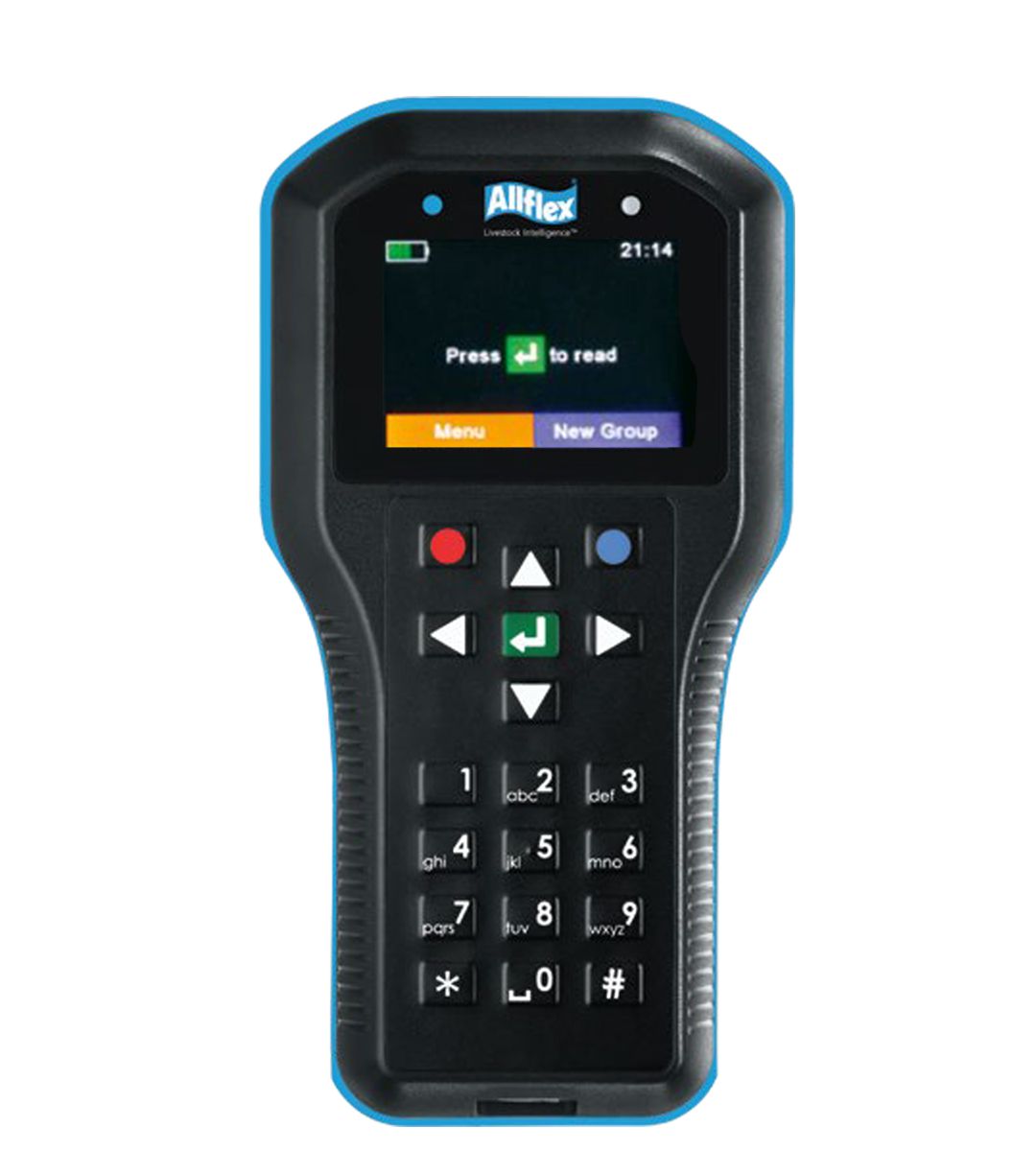

The Livestock Data Collection Terminal is a rugged handheld RFID reader and animal data management device designed for electronic identification, field data collection and livestock record management. It combines an integrated EID reader, color display, alphanumeric keypad, large-capacity memory and multiple communication interfaces in one portable terminal.

Designed around professional livestock identification workflows, the terminal can read compatible 134.2 kHz HDX and FDX-B transponders compliant with ISO 11784 / ISO 11785. Operators can identify individual animals, create groups, enter management information and store records directly in the field.

The compact terminal is suitable for cattle farms, goat-farming-equipment/" target="_blank" class="keylink">sheep and goat operations, breeding centers, veterinary services, livestock markets, feedlots and traceability projects where electronic identification must be combined with structured animal data collection.

• Integrated handheld EID reader and livestock data collection terminal.
• Reads compatible 134.2 kHz HDX and FDX-B electronic identification tags.
• Compatible with ISO 11784 / ISO 11785 livestock identification systems.
• Full alphanumeric keypad supports direct animal data entry in the field.
• 2.4-inch color TFT display provides clear identification and management information.
• Large internal memory supports extensive animal identification records and structured data collection.
• Bluetooth and USB interfaces simplify data exchange with compatible farm equipment and management systems.
• External antenna connection supports applications requiring additional physical reach.
• LED, audible and vibration signals provide clear read confirmation in noisy livestock environments.
• Integrated rechargeable Li-ion battery supports portable field operation.
• IP67-rated enclosure provides protection for demanding livestock working environments.
• Wireless synchronization allows compatible readers to operate in close proximity according to ISO 24631-2.

• Integrated RFID Antenna: Reads compatible livestock HDX and FDX-B electronic identification transponders.
• Color TFT Display: Displays EID numbers, menus, animal information, task data and terminal status.
• Alphanumeric Keypad: Enables manual entry of animal and management information directly at the handling location.
• Navigation Controls: Directional keys, confirmation button and softkeys support efficient menu operation.
• Status LEDs: Provide visual feedback during charging, communication and tag-reading operations.
• Speaker and Vibration Motor: Provide additional confirmation when electronic tags are successfully read.
• Bluetooth Module: Supports wireless communication with compatible computers, mobile devices and livestock equipment.
• USB Interface: Supports data communication and battery charging.
• External Antenna Connection: Allows connection to a compatible external antenna for selected applications.
• Integrated Battery: Rechargeable Li-ion power supply supports mobile livestock data collection.
• Protective Housing: Rugged IP67-rated enclosure designed for regular farm and field use.

When the reading function is activated, the integrated antenna generates a low-frequency electromagnetic field. A compatible passive livestock EID tag entering this field is energized and returns its unique identification information to the terminal.

After a successful scan, the electronic identification number appears on the display and can be stored in the terminal. The operator can assign animals to groups or tasks and enter additional information through the alphanumeric keypad.

Collected records can subsequently be transferred through Bluetooth or USB to compatible livestock management systems, computers or other farm equipment. This workflow reduces manual transcription and helps connect physical animal identification with digital herd records.

• Cattle electronic identification and herd inventory
• Dairy and beef cattle data collection
• Sheep and goat EID management
• Animal grouping and batch management
• Breeding and reproductive records
• Vaccination and veterinary treatment records
• Livestock weighing and performance recording
• Animal movement and traceability management
• Feedlot processing and cattle handling
• Livestock market and transport identification
• Veterinary field data collection
• Digital livestock and smart farm management projects

• Livestock EID system configuration according to project requirements.
• External stick antenna options available upon request.
• Compatible RFID cattle, sheep and goat ear tags available.
• Data workflow configuration according to farm management requirements.
• Integration with compatible weighing equipment available upon request.
• Software and data export solutions available according to project requirements.
• Charging and field accessories available according to selected configuration.

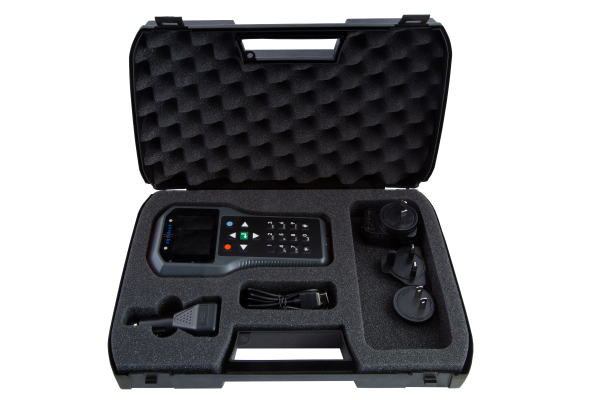

• Protective carrying cases available for mobile field applications.
• Complete EID reader and livestock identification packages available for distributors and agricultural projects.

Initial Charging: Fully charge the terminal with the specified USB charging equipment before initial field operation.

System Configuration: Configure reader settings, groups, tasks and communication interfaces according to the livestock identification workflow.

EID Reading: Activate the reading function and bring the reader close to the electronic tag. Correct tag orientation and suitable distance help achieve reliable reading performance.

Data Entry: Use the alphanumeric keypad to enter required animal or management information and assign records to the appropriate group or task.

Data Transfer: Transfer collected records through Bluetooth or USB to compatible software or farm management equipment.

External Antenna: Where additional physical reach is required, connect a compatible external antenna according to the selected system configuration.

Maintenance: Keep the terminal, magnetic USB connection and external antenna connector clean and dry. Inspect the housing regularly and avoid unnecessary impact even though the device is designed for demanding farm environments.

In a commercial cattle operation, the terminal can be used at the cattle race or handling chute to read each animal's electronic ear tag while the operator records treatment, breeding, grouping or other management information. The collected records can then be transferred to the farm's digital management workflow.

For integrated livestock projects, SHEWUYOU can configure data collection terminals together with electronic cattle ear tags, RFID readers, livestock weighing systems, cattle handling equipment and related animal management equipment according to project requirements.

Q: Is this only an RFID reader?
A: No. In addition to reading livestock EID tags, the terminal provides an alphanumeric keypad, internal memory and animal management functions for structured field data collection.

Q: Which electronic livestock tags can it read?
A: The reference configuration supports compatible 134.2 kHz HDX and FDX-B transponders conforming to ISO 11784 / ISO 11785.

Q: How much data can the terminal store?
A: The reference configuration provides 8 GB of memory and supports up to 1,000,000 records, making it suitable for both individual animal management and large herd data collection.

Q: Can operators enter information manually?
A: Yes. The integrated alphanumeric keypad allows additional animal and management information to be entered directly in the field.

Q: Can the data be transferred wirelessly?
A: Yes. Bluetooth connectivity is available for compatible data-transfer workflows, while USB can also be used for communication and file transfer.

Q: Can an external antenna be connected?
A: Yes. The reference terminal includes a connection for a compatible external antenna where additional physical scanning reach is required.

Q: Is it suitable for outdoor livestock work?
A: Yes. The IP67-rated housing is designed for demanding livestock environments, although normal equipment care and correct charging practices remain necessary.

Q: Can the terminal be supplied with electronic ear tags and other equipment?
A: Yes. Complete livestock identification packages can be configured with EID ear tags, readers, external antennas, weighing equipment and related livestock management products.
