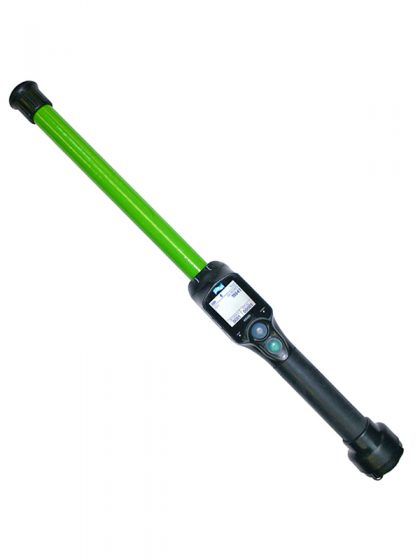

Portable RFID Livestock Reader

The Portable RFID Livestock Reader is a rugged stick-style electronic identification device designed for fast scanning of livestock RFID ear tags in cattle farms, feedlots, breeding centers and veterinary operations. Its extended body allows operators to read electronic tags while maintaining a practical working distance from the animal.

The reference configuration supports ISO 11784/11785 compatible FDX-B and HDX electronic livestock tags. A large high-contrast display, rechargeable battery, internal data storage and wireless communication functions make the reader suitable for daily livestock identification and traceability work.

Scanned EID numbers can be stored in working sessions and transferred to compatible computers, mobile devices, electronic livestock scales or herd-management systems for further processing.

• Portable Stick Design: Extended reader body supports convenient scanning at livestock chutes, pens and processing areas.
• FDX-B & HDX Compatibility: Suitable for common ISO-compliant electronic livestock identification tags.
• ISO 11784/11785 Support: Designed for standardized livestock electronic identification applications.
• High-Contrast Display: Provides clear animal ID, tag type, battery status and session information.
• Wireless Operation: Integrated Bluetooth supports cable-free communication with compatible devices.
• USB Data Interface: Provides convenient connection to supported computers and software.
• Large Internal Memory: Reference RS420 configuration stores up to 100,000 animal IDs with session-based organization.
• Multiple Read Indicators: Visual indication, audible signal and handle vibration confirm successful tag scanning.
• Rechargeable Battery: Supports field operation without permanent power connections.
• Rugged Farm Construction: Fiberglass and polymer housing is suitable for demanding livestock environments.

• Low-frequency RFID scanning antenna
• Extended fiberglass reader tube
• Electronic decoding module
• High-contrast graphical display
• Read / power button
• Menu control button
• Visual status indicators
• Audible buzzer
• Handle vibration module
• Internal data memory
• Bluetooth communication module
• USB / serial communication interface
• Rechargeable lithium-ion battery pack
• Ergonomic handle and protective end sections

The reader generates a low-frequency electromagnetic field through the antenna located near the front of the stick. When a compatible electronic livestock transponder enters the reading zone, the passive RFID tag responds by transmitting its encoded identification number.

The reader decodes the signal and displays the animal ID. A successful read can be confirmed through the screen, indicator light, audible signal and handle vibration.

The identification record can be stored in the reader and transferred through Bluetooth, USB or another supported communication interface to compatible livestock-management equipment and software.

• Dairy cattle EID identification
• Beef cattle traceability
• Livestock inventory management
• Electronic weighing and performance recording
• Animal health and vaccination records
• Breeding and reproduction management
• Feedlot livestock processing
• Animal sorting and drafting
• Livestock movement recording
• Sheep and goat electronic identification
• Commercial pig farm identification
• Livestock market and veterinary field operations

In commercial cattle facilities, the reader can be used around cattle chutes, weighing stations, veterinary areas, breeding pens and animal receiving points. The extended scanning body helps operators identify animals without moving unnecessarily close to the ear.

For pig farm construction and steel structure livestock projects, portable RFID readers can be integrated with electronic tags, livestock scales, automatic sorting systems and digital farm-management infrastructure.

• Reader length options
• FDX-B / HDX configuration
• Memory and session configuration
• Bluetooth connectivity
• USB / serial communication
• Electronic scale integration
• Mobile application integration
• Herd-management software connection
• Replacement rechargeable battery
• Charging accessories
• Rugged protective carrying case
• Matched RFID livestock ear tags
• Complete EID identification kit
• OEM packaging available upon request

The reader package can be configured according to tag technology, animal species, herd size, livestock handling layout, management software and project requirements.

Initial Charging: Fully charge the reader battery before field operation.

Reader Setup: Configure date, time, session and communication settings according to the farm's livestock data workflow.

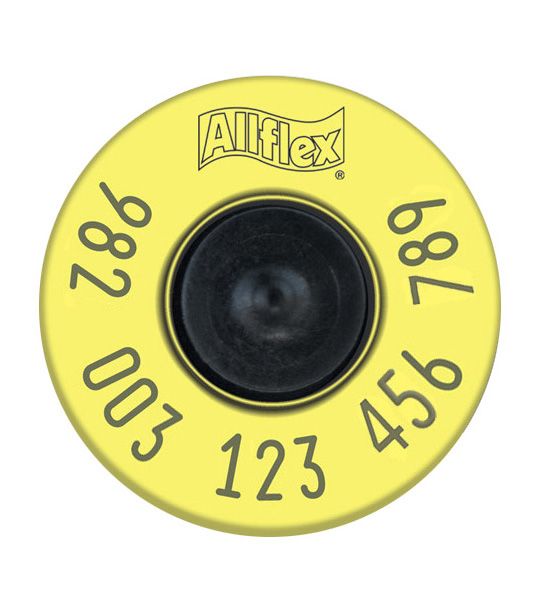

Confirm Tag Compatibility: Verify that the livestock EID tags use compatible FDX-B or HDX technology.

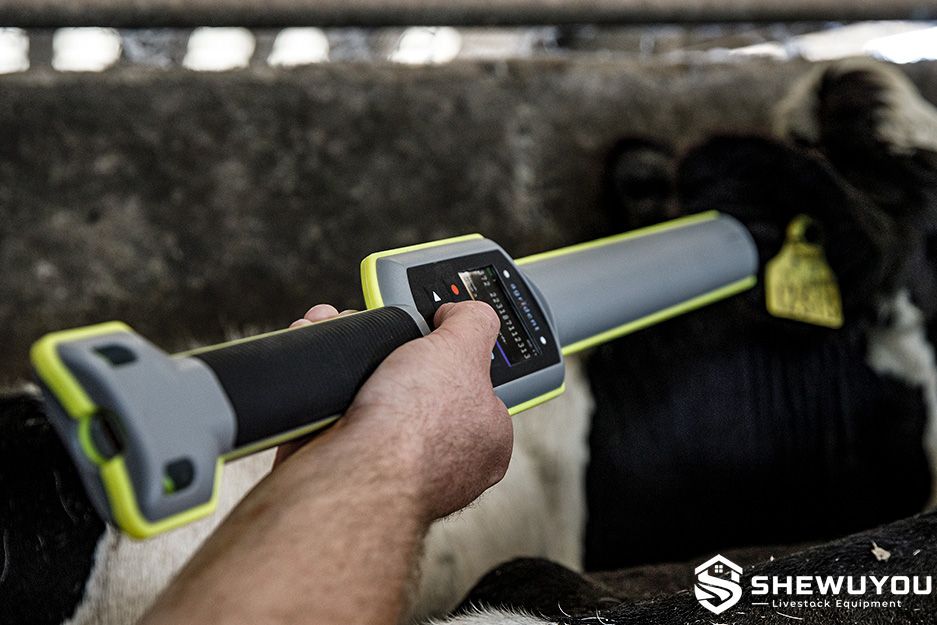

Scanning: Position the antenna end close to the electronic ear tag and activate the reading function until successful identification is confirmed.

Data Transfer: Connect the reader to compatible livestock management equipment through Bluetooth, USB or supported communication interfaces.

Cleaning: Remove manure, dust and other contamination from the housing after use. Avoid chemicals that may damage the display, seals or polymer components.

Battery Maintenance: Recharge the battery regularly and follow the applicable storage recommendations during extended periods of non-use.

Inspection: Periodically check the antenna housing, display, controls and communication connectors for physical damage.

Portable stick readers are suitable for livestock operations that require electronic animal identification at several locations without installing fixed RFID antennas throughout the farm.

Commercial cattle farms can use the reader during weighing, vaccination, pregnancy checking, breeding, drafting and inventory management. Bluetooth connectivity also allows animal IDs to be transferred to compatible mobile applications and electronic scales.

For large livestock projects, portable readers can complement fixed RFID equipment, automatic sorting gates and centralized herd-management software.

Q1: What RFID tags can the portable livestock reader scan?
Compatible configurations can read ISO 11784/11785 FDX-B and HDX electronic livestock transponders.

Q2: How far away can an ear tag be read?
Comparable RS420 systems can read suitable HDX tags at distances up to approximately 42 cm and FDX-B tags up to approximately 36 cm under optimum conditions. Actual range depends on tag type, orientation and surrounding equipment.

Q3: Can the reader store scanned animal IDs?
Yes. Comparable professional configurations provide storage for up to 100,000 IDs organized into working sessions.

Q4: Can data be sent wirelessly?
Yes. Integrated Bluetooth allows communication with compatible devices and livestock management applications.

Q5: Can it connect to electronic livestock scales?
Yes. Compatible readers can transmit electronic animal IDs to supported weighing indicators and data-management systems.

Q6: Is the reader suitable for wet farm environments?
Comparable RS420 reader configurations use rugged IP67-rated housings designed for demanding livestock conditions.

Q7: Can the reader be used for pigs, sheep and goats?
Yes, provided the animals use compatible electronic identification transponders.

Q8: Are different reader lengths available?
Comparable stick readers are available in approximately 45 cm and 60 cm configurations.

Q9: Can a protective case and spare battery be supplied?
Yes. Professional kit configurations can include a rugged carrying case, replacement battery and charging accessories.

Q10: Can complete electronic identification systems be supplied?
Yes. Portable readers, RFID ear tags, applicators, electronic scales and related livestock identification equipment can be configured according to project requirements.
