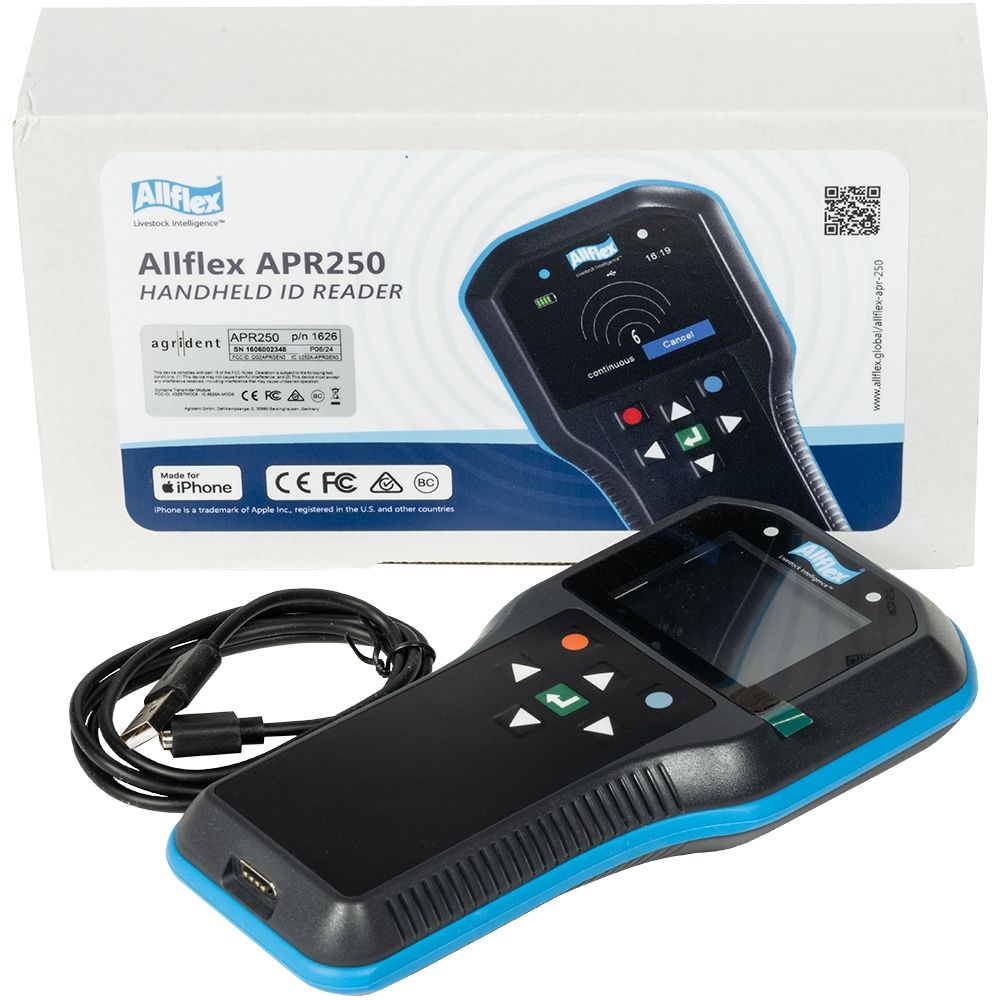

Handheld RFID Cattle Ear Tag Reader

The Handheld RFID Cattle Ear Tag Reader is a compact electronic identification device designed for reading low-frequency livestock EID/RFID ear tags in commercial cattle farms, breeding centers, feedlots and veterinary operations. It allows operators to capture individual animal identification numbers quickly without manually recording long tag codes.

Professional handheld readers support common HDX and FDX-B livestock transponders operating at 134.2 kHz and can be configured for ISO 11784/11785 compliant identification systems. A color display, internal memory and multiple operator feedback signals make the unit suitable for routine field use.

Depending on the selected configuration, scanned data can be transferred through USB or Bluetooth to compatible computers, smartphones, electronic livestock scales and herd-management software.

• HDX & FDX-B Reading: Supports common electronic livestock identification transponders used in cattle management.
• 134.2 kHz Operation: Designed for standard low-frequency livestock RFID applications.
• ISO-Compatible Reading: Compatible configurations support ISO 11784/11785 livestock identification standards.
• Handheld Portable Design: Lightweight construction is convenient for cattle chutes, barns, yards and mobile veterinary work.
• Color Display: Backlit screen provides clear tag numbers, menus and operating information.
• Multiple Read Indicators: LED, audible and vibration signals provide clear confirmation during busy livestock handling operations.
• Internal Data Storage: Allows animal identification records to be collected in the field and transferred later.
• USB & Bluetooth Connectivity: Supports data exchange with compatible farm-management devices and software.
• Rechargeable Battery: Integrated lithium battery supports extended field operation.
• Rugged Housing: Professional readers are designed for dust, moisture and demanding livestock environments.

• Low-frequency RFID antenna
• Electronic RFID decoding module
• Color TFT display
• Directional keypad and control keys
• LED status indicators
• Audio speaker
• Vibration motor
• Internal data memory
• Bluetooth communication module
• USB interface
• Integrated rechargeable lithium battery
• Impact-resistant protective housing
• Charging and data cable

The handheld reader generates a 134.2 kHz electromagnetic field through its internal antenna. When a compatible electronic cattle ear tag enters the reading zone, the passive transponder is activated and transmits its encoded identification number back to the reader.

The device decodes the RFID signal and displays the individual animal number. A successful read can also be confirmed through LED, sound and vibration feedback.

Identification records can be stored internally and later transferred through USB or Bluetooth to a compatible computer, smartphone, livestock scale or herd-management platform. This reduces manual transcription errors and supports more efficient livestock traceability.

• Dairy cattle electronic identification
• Beef cattle traceability
• Livestock inventory management
• Cattle weighing and performance recording
• Vaccination and treatment records
• Pregnancy and breeding records
• Feedlot animal processing
• Cattle sorting and drafting
• Livestock movement recording
• Veterinary field operations
• Livestock market and auction management
• Government EID programs

In commercial cattle facilities, handheld RFID readers can be used at cattle chutes, electronic weighing stations, treatment areas, breeding pens and animal receiving points. The reader can form part of a complete livestock identification workflow together with RFID ear tags, visual tags, electronic scales and herd-management software.

For steel structure livestock farm projects, RFID reading points can be integrated into livestock handling lanes, weighing areas, sorting systems and veterinary workstations.

• HDX / FDX-B reader configuration
• Internal memory capacity
• Bluetooth communication
• USB communication
• Animal event recording functions
• Sorting alert configuration
• Electronic livestock scale integration
• Herd-management software integration
• Protective carrying case
• Charging cable and power accessories
• Matched RFID ear tags
• Complete cattle EID identification kit
• OEM packaging available upon request

The reader package can be configured according to RFID tag type, herd size, cattle processing workflow, management software and livestock project requirements.

Initial Charging: Charge the reader fully before livestock processing or field operation.

Reader Setup: Configure date, time, communication settings and required animal data fields before use.

Confirm Tag Compatibility: Verify that the livestock ear tags use HDX or FDX-B technology supported by the reader.

Scanning: Position the reader antenna near the electronic ear tag and activate the reading function until the device confirms a successful scan.

Data Collection: Store the animal ID together with relevant farm information where supported by the selected software configuration.

Data Transfer: Use USB or Bluetooth to transfer records to a compatible computer, smartphone or herd-management platform.

Cleaning: Remove dust, manure and other contamination with suitable livestock-equipment cleaning methods. Avoid aggressive chemicals that may damage the display or enclosure.

Battery Maintenance: Recharge the unit regularly and avoid long-term storage with the battery completely discharged.

Handheld EID readers are suitable for commercial cattle farms that require mobile electronic identification without installing a fixed reader at every handling point.

Operators can scan livestock during weighing, health treatment, breeding checks and sorting, then transfer the collected information to centralized herd-management systems.

For large livestock projects, handheld readers can complement fixed RFID antennas, electronic scales, automatic sorting gates and cloud-based animal management platforms.

Q1: What types of cattle RFID tags can the reader scan?
Professional 134.2 kHz readers commonly support HDX and FDX-B livestock transponders compliant with ISO 11784/11785.

Q2: What is the typical reading distance?
Comparable APR250 readers can achieve approximately 25 cm with suitable 30 mm HDX or FDX-B transponders under reference conditions. Actual range varies with tag and environment.

Q3: Can the reader store animal IDs?
Yes. Professional handheld readers include internal memory for field data collection.

Q4: Can the reader connect to a smartphone?
Yes. Bluetooth connectivity is available on compatible models for communication with supported smartphones and applications.

Q5: Can it connect to a computer?
Yes. USB data transfer is supported by compatible reader configurations.

Q6: Can the reader record animal weights?
Selected readers can receive weight data from compatible electronic livestock scales and associate it with the animal EID.

Q7: Is the reader suitable for wet farm environments?
Professional models such as the APR250 use rugged sealed housings, with comparable configurations rated up to IP67.

Q8: Can it be used for pigs, goat-farming-equipment/" target="_blank" class="keylink">sheep and goats?
Yes, provided the animals use compatible HDX or FDX-B electronic identification tags.

Q9: Can complete RFID identification systems be supplied?
Yes. Readers, RFID ear tags, applicators, visual tags and related livestock identification accessories can be configured according to project requirements.
