Poultry Brooding Equipment
Popular

Brooder Guard Extension Panel

Published: 2026-09-04 Views: 0 Comments: 0 Source: SHEWUYOU Products Team Request a Quote
Product Showcase Content
Product Name Brooder Guard Extension Panel

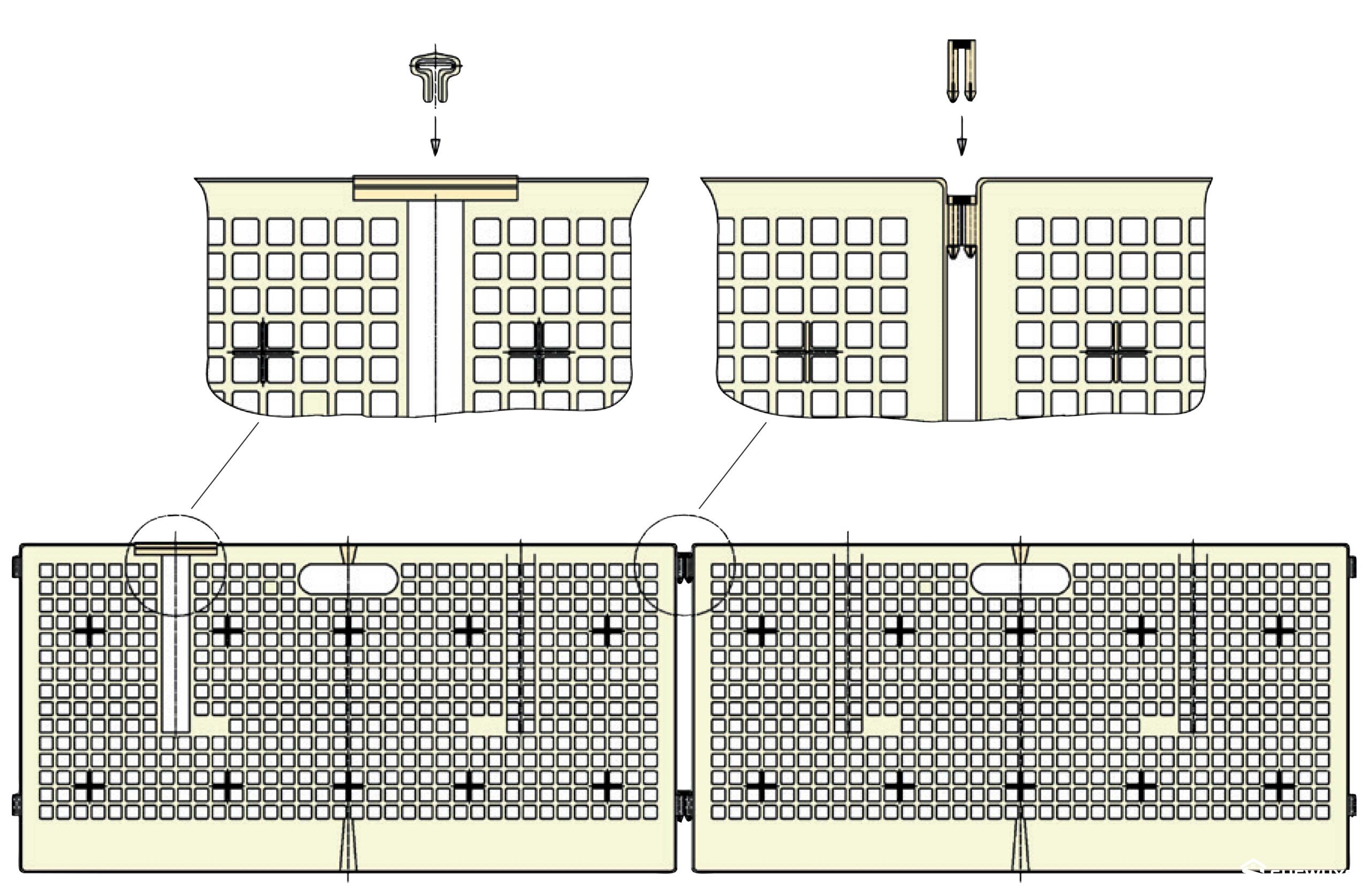

Product Image Brooder Guard Extension Panel for chick rearing
Product Overview The Brooder Guard Extension Panel is a modular panel element designed to enlarge or reconfigure chick-rearing enclosures inside commercial poultry houses. Multiple panels can be connected to create a circular or customized brooder ring, allowing the enclosure size to be adjusted according to flock size, house layout and management requirements.

The lightweight panel concept supports fast assembly, dismantling and relocation. It is suitable for new poultry house construction, farm renovation and integrated livestock equipment projects where flexible rearing-area management is required.
Key Features
  • Modular design allows the brooder enclosure to be extended as required.
  • Lightweight construction supports efficient handling by farm personnel.
  • Designed for connection with compatible brooder guard hinges.
  • Grid-style panel structure provides visibility while maintaining air circulation.
  • Integrated carrying features facilitate transport of assembled sections.
  • Quick assembly and dismantling reduce labor requirements during flock-cycle changes.
  • Reusable design supports long-term commercial poultry farm operation.
  • Configuration can be customized according to project requirements and farm layout.
Structural Components The extension panel forms part of a modular brooder guard assembly. A typical system consists of lightweight plastic guard panels, top and bottom connecting hinges, and stabilizing accessories where required.

The individual panels are joined together to create a continuous rearing barrier. Additional panels can be incorporated into the existing arrangement to increase the enclosure circumference or adapt the layout to a different house configuration.

Where drinking-line access openings are required, the panel system can be prepared at designated separation points and reinforced with a compatible stabilizer.
Working Principle / Structural Principle The extension panel functions as a repeatable modular section of the brooder guard. Panels are connected at the upper and lower connection points to form a stable continuous enclosure. By adding further sections, the rearing ring can be enlarged without replacing the existing guard system.

The grid structure provides a controlled visual boundary for young birds while allowing air movement through the enclosure. The modular connection principle also allows the system to be folded and dismantled when the brooding stage is completed.
Technical Specifications
Product Type Modular brooder guard extension panel
Application Chick rearing and brooding enclosure systems
Reference Panel Size 800 × 400 mm for the referenced brooder guard system
Material Plastic construction; specification according to project requirements
Connection Compatible connecting hinges
Configuration Customizable according to project requirements
Additional Dimensions Available upon request
Applications The Brooder Guard Extension Panel is suitable for:
  • Commercial broiler chick rearing houses
  • Turkey and young poultry brooding facilities
  • Hatchery and brooder rooms
  • Modular chick-rearing pens and brooder rings
  • Poultry house construction and renovation projects
  • Large-scale agricultural projects requiring flexible livestock equipment layouts
  • Equipment supply programs for engineering companies, distributors and poultry farm groups
Customization Options Extension panels can be configured according to the requirements of the complete brooder guard system. Customization may include panel dimensions, connection geometry, material specification, surface finish and accessory compatibility.

For turnkey poultry farm projects, the panel configuration can be coordinated with building dimensions, floor layout, drinking-line positions, ventilation requirements and other livestock equipment. OEM and bulk-order solutions are available according to project requirements.
Installation & Maintenance Position the extension panel alongside the existing brooder guard section and connect the corresponding upper and lower connection points with the compatible hinges. Additional panels can then be added sequentially to achieve the required enclosure size.

Before use, verify that all connections are fully engaged and that the assembled guard is correctly aligned. During routine maintenance, inspect panels and connecting components for deformation, cracking, displacement or excessive wear. Thorough cleaning after each flock cycle helps maintain hygiene and supports repeated use.
Project Cases The modular brooder guard concept is suitable for commercial poultry houses where rearing groups need to be formed and enlarged according to flock management requirements. Reference system configurations include multiple 800 × 400 mm sections assembled into circular rearing rings, with the enclosure diameter increased by adding additional sections.

Final panel quantities should be determined according to flock capacity, building dimensions, equipment arrangement and local farm conditions.
Product FAQ

Q: What is a Brooder Guard Extension Panel used for?
A: It is used to enlarge or reconfigure a modular chick-rearing enclosure by adding additional guard sections.

Q: Can several extension panels be connected together?
A: Yes. Compatible panels can be connected with upper and lower hinges to create a continuous rearing enclosure.

Q: What is the reference size of the panel?
A: The referenced brooder guard system uses lightweight plastic sections measuring 800 × 400 mm. Customized dimensions are available upon request.

Q: Can the brooder guard ring be enlarged after installation?
A: Yes. The modular structure allows additional guard sections to be incorporated when a larger rearing area is required.

Q: Is the panel suitable for commercial poultry projects?
A: Yes. It can be incorporated into commercial brooding facilities, poultry house construction projects, farm renovations and integrated livestock equipment packages.
Product Gallery
Brooder Guard Extension Panel assembly
Brooder Guard connecting hinge

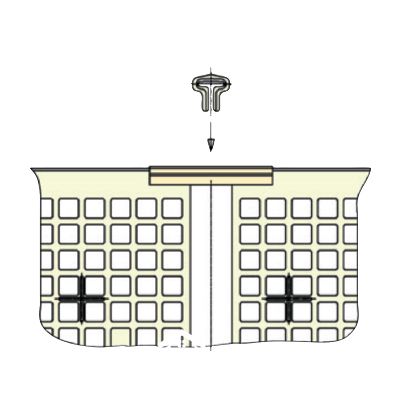

Brooder Guard connecting hinge installation
Brooder Guard stabilizer accessory
