Chick Guard Connecting Hinges

Chick Guard Connecting Hinges

Chick Guard Connecting Hinges are dedicated connection components for modular brooder guard systems. They join individual plastic guard sections at the top and bottom to create a secure, continuous rearing enclosure for young chicks.

The hinged connection provides both stability during use and convenient folding during dismantling. This makes the system suitable for commercial poultry houses where brooding layouts may need to be assembled, enlarged, removed and reused according to flock management requirements.

• Designed specifically for connecting modular chick brooder guard sections.
• Provides secure connection at both the upper and lower joining points.
• Allows connected guard sections to fold during dismantling.
• Supports quick assembly and removal of temporary rearing rings.
• Helps maintain a continuous and stable brooding enclosure.
• Suitable for repeated installation, dismantling and farm layout adjustment.
• Compact accessory design simplifies transportation, storage and replacement.

• Hinged Connector Body: The main connecting component positioned across the joint between adjacent brooder guard sections.
• Upper Connection: Secures the upper edge of the adjoining guard panels.
• Lower Connection: Provides additional connection at the lower section for improved standing stability.
• Folding Joint: Allows connected guard panels to be folded when the rearing ring is dismantled.

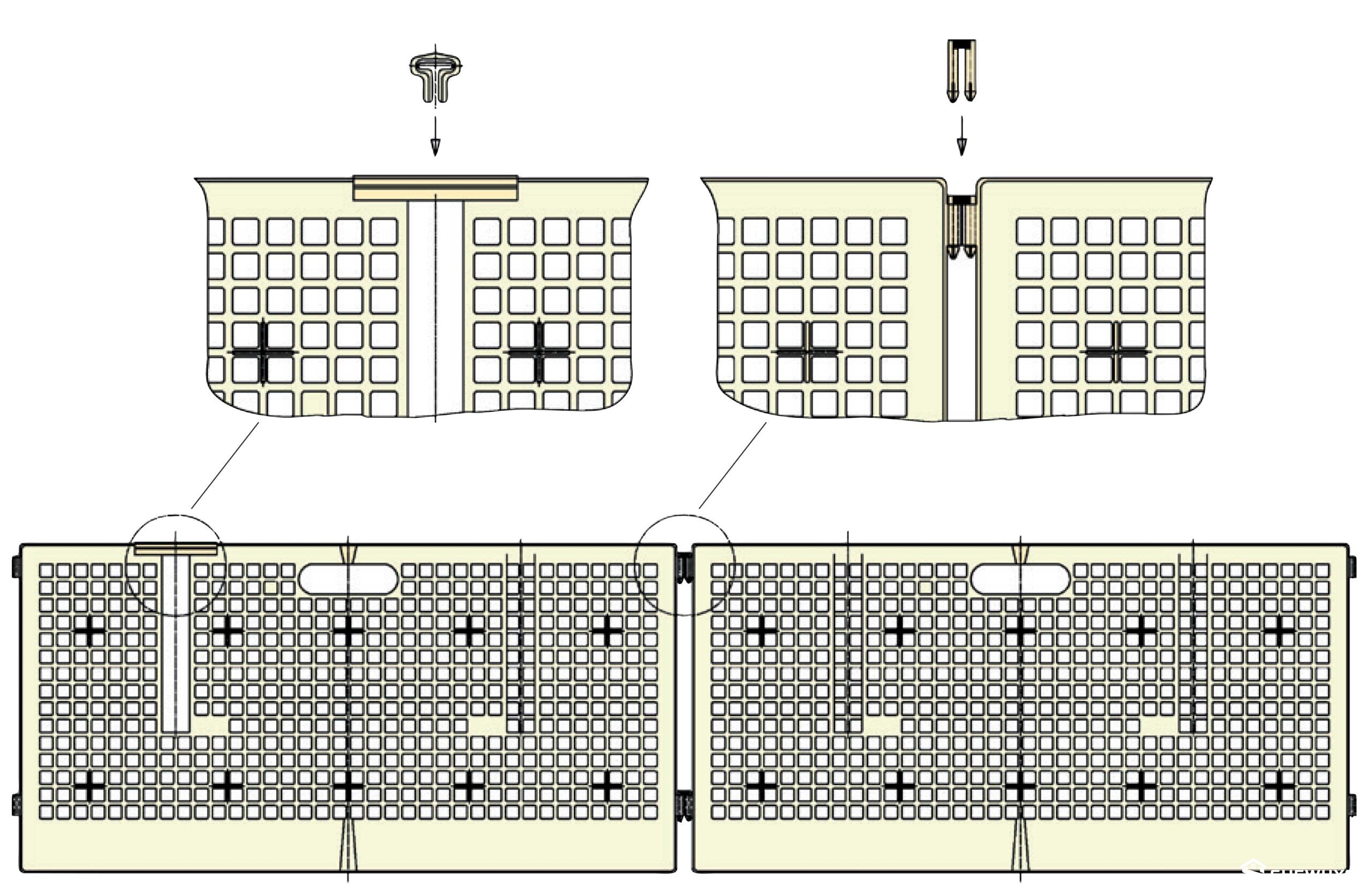

The connecting hinge bridges the joint between two adjacent brooder guard panels. Hinges are fitted at the required upper and lower connection points to hold the panels together and maintain a continuous rearing ring. The hinged structure retains the connection during operation while permitting the panels to fold together during dismantling, reducing handling and storage effort.

• Commercial chick brooding systems
• Broiler and poultry rearing houses
• Layer and pullet rearing facilities
• Temporary chick migration and rearing enclosures
• New poultry house construction projects
• Poultry farm expansion and renovation projects
• Turnkey poultry equipment and agricultural engineering projects
• Replacement parts for poultry equipment distributors and farm service companies

For equipment distributors, dealers, farm contractors and agricultural project buyers, connecting hinges can be supplied according to the selected brooder guard system and project requirements.

• Compatible guard configuration: According to project requirements
• Connection arrangement: Designed according to the selected guard panel system
• Packaging quantity: Available upon request
• Bulk supply: Available for commercial poultry farm projects
• OEM and replacement-part supply: Available according to project requirements

1. Position two adjacent brooder guard sections with their joining edges aligned.

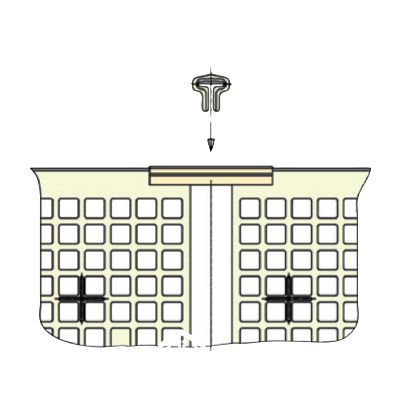

2. Fit the connecting hinges at the designated upper and lower connection points.
3. Press or slide the hinge into its intended position according to the guard design.
4. Check that both panels are securely connected and can stand correctly before placing chicks.
5. When dismantling, fold the connected panels through the hinged joint to simplify handling and storage.
6. Inspect hinges periodically for deformation, cracking or excessive wear and replace damaged components when necessary.

Q: What are Chick Guard Connecting Hinges used for?
A: They are used to join individual brooder guard sections together to form a continuous chick rearing ring.

Q: Where are the connecting hinges installed?
A: The connection system uses hinges at the upper and lower joining points of adjacent brooder guard sections.

Q: Can the connected brooder guards be folded?
A: Yes. The hinged connection allows the guard sections to fold during dismantling, making handling and storage more convenient.

Q: Can the rearing ring be enlarged?
A: Yes. Additional brooder guard sections can be connected to extend the rearing enclosure according to flock size and farm layout.

Q: Can connecting hinges be supplied as replacement components?
A: Yes. Replacement and bulk supply are available according to the required brooder guard system and project requirements.
