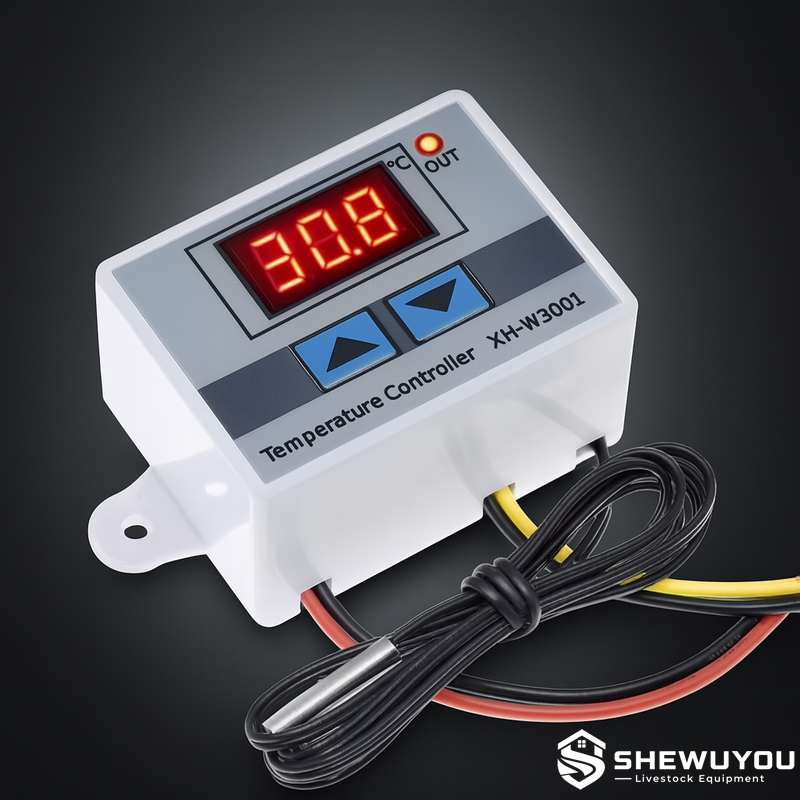

Digital Brooder Temperature Controller

The Digital Brooder Temperature Controller is designed to monitor brooding-area temperature and automatically regulate electric heaters, infrared lamps, brooders or compatible heating equipment. A digital display provides clear temperature information, while an external probe measures conditions at the selected bird-level monitoring point.

The controller can be used as a stand-alone thermostat for individual brooders or incorporated into a larger poultry climate-control system. Advanced project configurations can coordinate heating stages, temperature curves and other environmental functions according to bird age and production requirements.

• Digital Temperature Display: provides clear real-time temperature information for convenient farm inspection.
• Automatic Heating Control: switches or regulates compatible brooding equipment according to programmed temperature thresholds.
• External Temperature Probe: enables temperature sensing close to the chick activity zone rather than at the controller housing.
• Adjustable Set Points: heating start and stop temperatures can be configured according to bird age and management requirements.
• Stable Brooding Environment: helps reduce excessive temperature fluctuation during the critical early production period.
• Energy Management: avoids unnecessary continuous heater operation when the required brooding temperature has been reached.
• Flexible Heating Integration: suitable for infrared lamps, electric heating plates, suspended brooders and other compatible heaters.
• Expandable Control Options: relay, staged or 0-10V heater control can be configured in advanced poultry climate-control projects.

• Digital controller housing
• LED or LCD temperature display
• Temperature-setting buttons
• Output status indicator

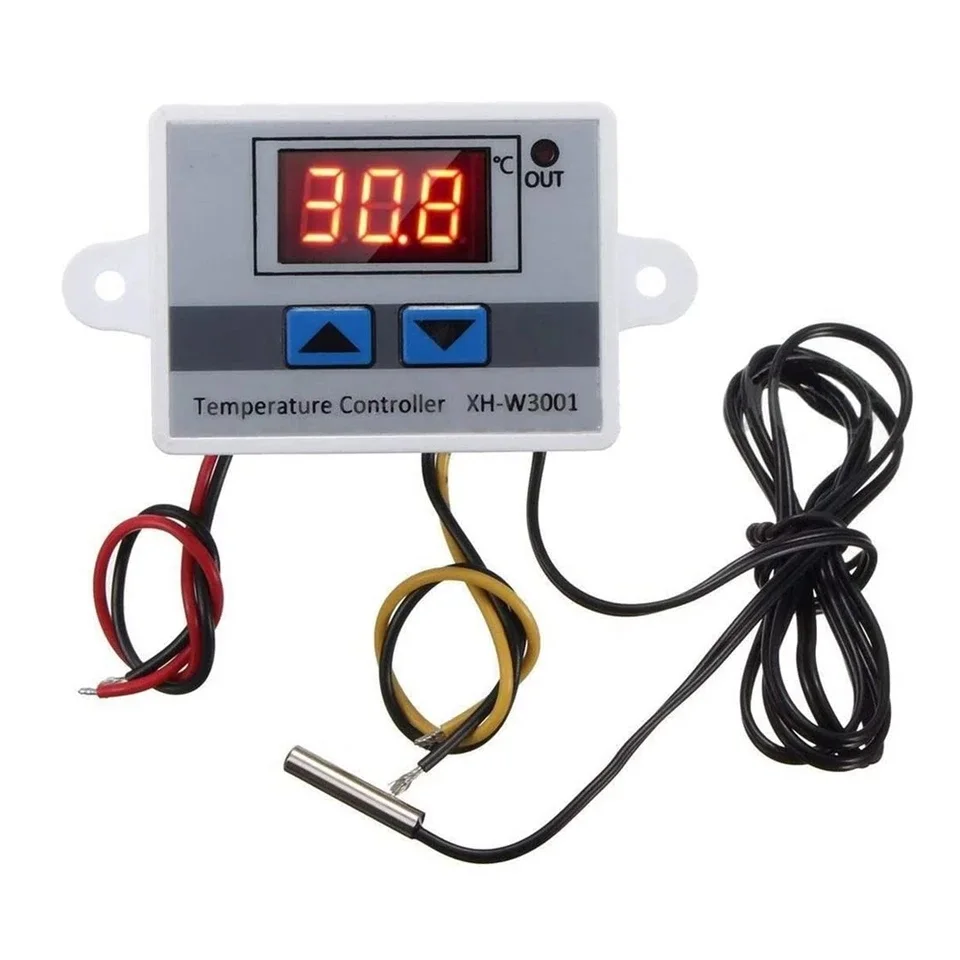

• External temperature sensor probe

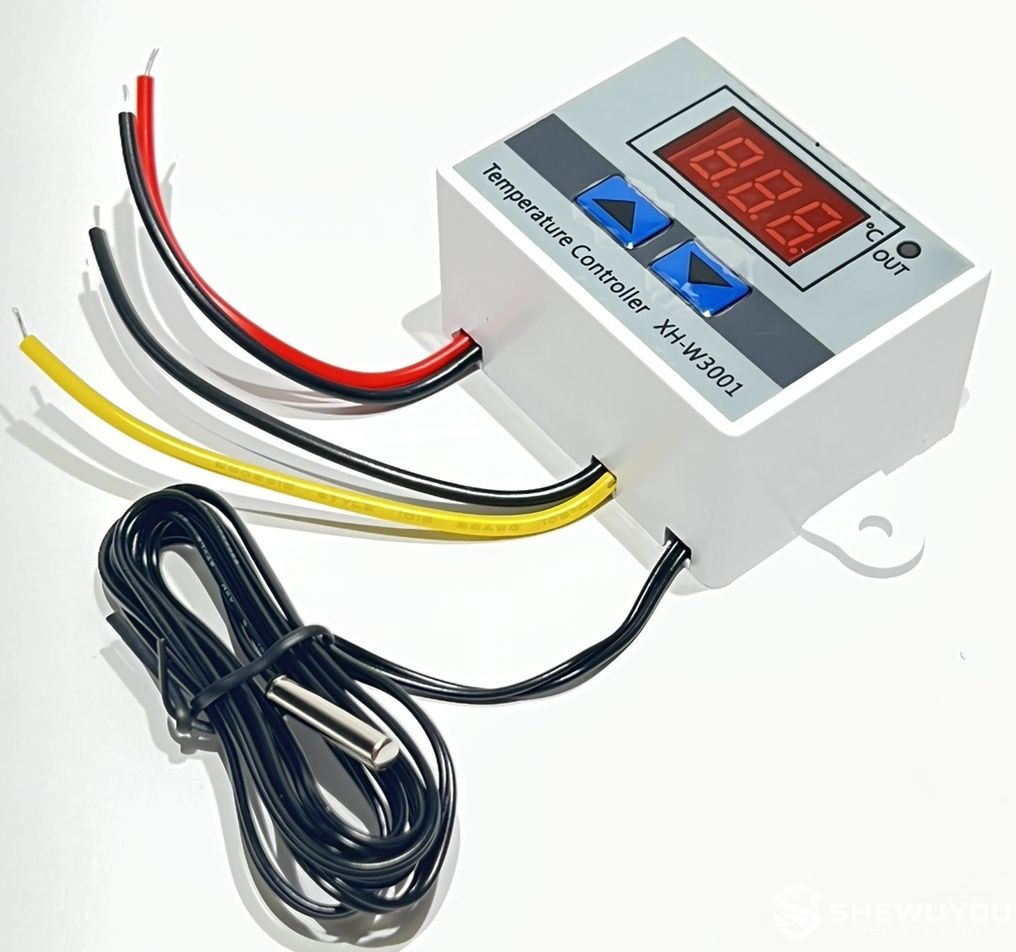

• Power input connection
• Heating output connection
• Internal relay or control output
• Mounting tabs, bracket or control-panel installation structure

The external temperature probe continuously measures conditions in the brooding area and sends the reading to the digital controller. The measured temperature is compared with the programmed heating start and stop values.

When temperature falls below the heating start threshold, the controller activates the connected brooder or heater. When the stop temperature is reached, the controller switches the heating output off or reduces heat output, depending on the selected control configuration.

In advanced poultry-house controllers, brooder set points can also follow age-based temperature curves, staged heating logic or proportional 0-10V output for more precise climate management.

• Commercial broiler chick houses
• Poultry hatcheries and chick rooms
• Broiler breeder rearing facilities
• Pullet brooding houses
• Duckling and gosling brooding areas
• Infrared brooder heat lamp systems
• Electric brooder heating systems
• Multi-zone poultry heating systems
• Environmentally controlled livestock buildings
• Steel structure poultry-house construction projects

• Operating voltage and frequency
• Temperature control range
• Sensor type and cable length
• Relay output capacity
• ON/OFF or proportional heating control
• Single-zone or multi-zone configuration
• Alarm output
• Remote monitoring interface
• Wall-mount or control-panel housing
• Designed according to local climate and farm conditions

Install the controller in a dry and accessible location protected from direct radiant heat, water spray and excessive dust. The housing should be positioned where farm personnel can read the display and adjust settings conveniently.

Place the temperature probe at a representative chick-level position. Avoid locations immediately below a heat lamp, beside an air inlet or against a cold wall because these positions may not represent average brooding conditions.

Verify that the connected heater load does not exceed the controller or relay rating. Higher-capacity brooder systems should use correctly sized contactors, relays or control modules according to the electrical design.

Disconnect electrical power before servicing. Regular maintenance should include checking the probe, wiring, terminals, display, output relay and controller response. Replace damaged probes or electrical components before the next production cycle.

Q: What does a digital brooder temperature controller do?

A: It measures brooding-area temperature and automatically controls compatible heating equipment according to programmed settings.

Q: Can it control infrared heat lamps?

A: Yes. A correctly rated controller or relay system can be used with compatible infrared poultry heat lamps.

Q: Where should the temperature sensor be installed?

A: The sensor should be positioned close to bird level at a representative location away from direct heater radiation and strong incoming airflow.

Q: Can the temperature setting change automatically as chicks grow?

A: Advanced poultry climate controllers can use age-based temperature curves to adjust brooder operating temperatures automatically.

Q: Can one controller operate several brooders?

A: Yes. Multiple heaters can be controlled when the switching equipment, electrical capacity and heating-zone design are sized correctly.

Q: Is remote monitoring available?

A: Remote temperature and equipment monitoring can be provided with compatible farm controllers and communication systems.

Q: Can the controller be customized for different countries?

A: Yes. Voltage, frequency, sensor configuration, output capacity and control functions can be selected according to project requirements.
